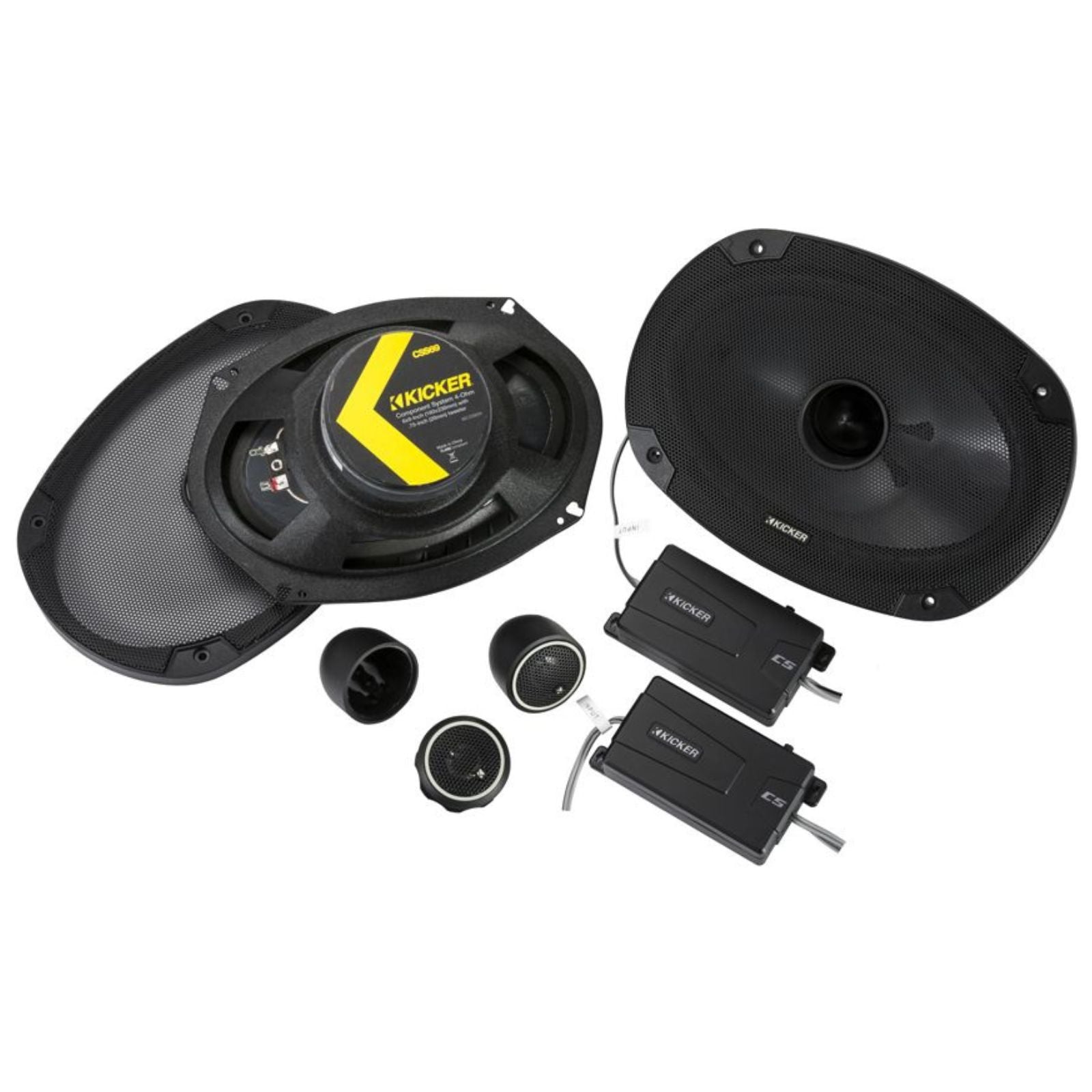

The Kicker 46CSS694 is a CS Series 6x9" (160 x 230 mm) 2-way component speaker set rated at 150W RMS, featuring 3/4" titanium dome tweeters and 12 dB crossovers with a three-position tweeter level switch.
Key specifications
- Woofer: 6x9" (160 x 230 mm)
- Tweeter: 3/4" (20 mm) titanium dome, neodymium magnet
- Power handling: 150W RMS, 450W peak
- Frequency range: 30 Hz - 21 kHz
- Crossover: 12 dB/octave at 4 kHz, tweeter level 0 / +3 / +6 dB
- Woofer mounting hole: 143 x 215 mm
- Woofer mounting depth: 81 mm
- Tweeter flush mount: 40 mm hole, 14.5 mm depth
- Grilles: bolt-through steel mesh
CS Series 6x9" Component Speaker System
The CS Series uses a heavy-duty motor/magnet structure with EVC™ (Extended Voice Coil) technology, polypropylene cones and tough UV-treated ribbed surrounds for precise linear excursion and long-term reliability.
The 46CSS694 includes titanium tweeters and two-way crossovers with a smooth 12 dB slope and a three-position tweeter adjustment switch (0 dB / +3 dB / +6 dB) built into each external crossover. Flush, angled and surface pod tweeter mounts are included for straightforward installation in most cars.
Features

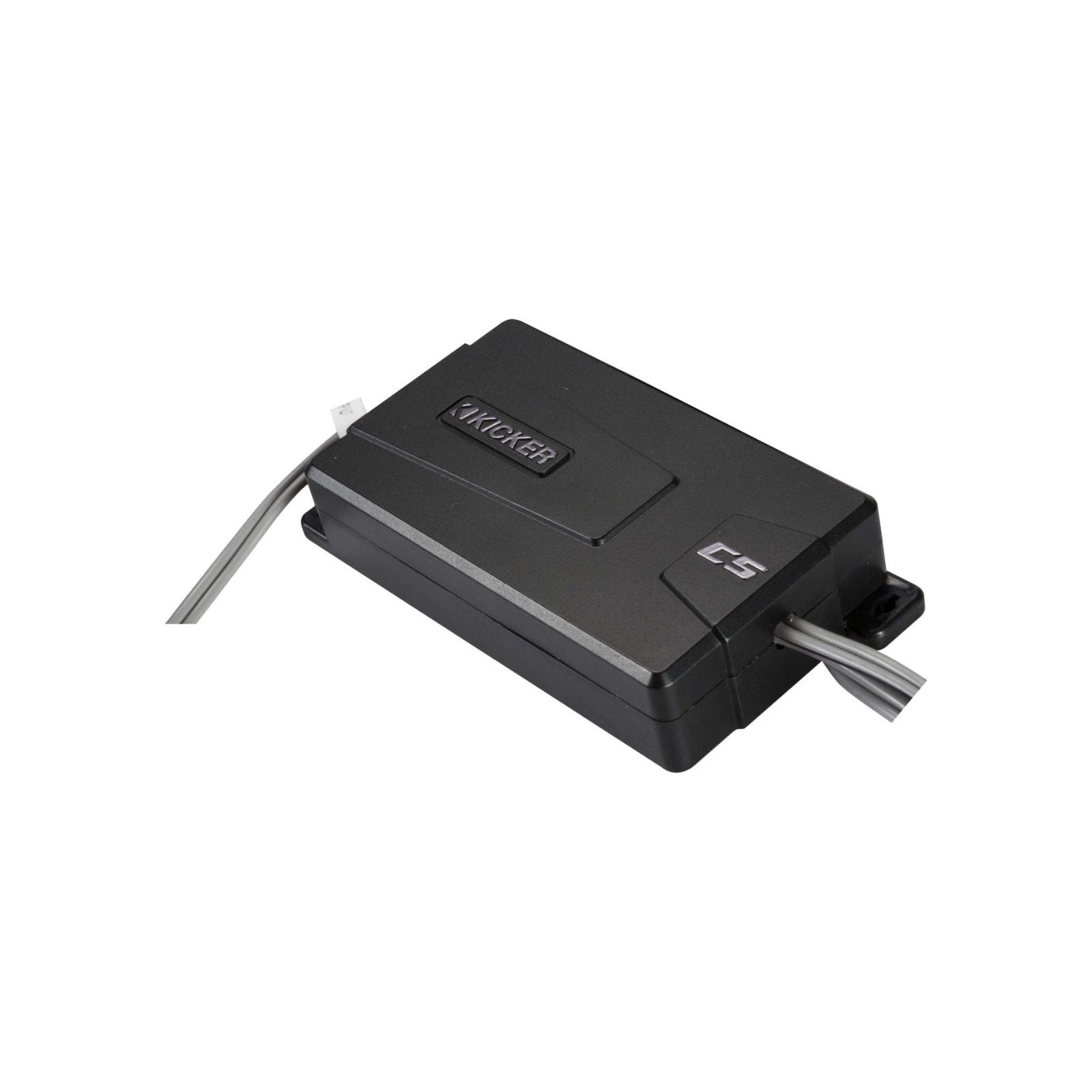

- 12 dB crossovers with a compact footprint for easier installation
- Three-position tweeter switch for adjusting high-frequency output
- EVC™ (Extended Voice Coil) technology for improved bass response
- Titanium tweeter construction with neodymium magnets
- UV-treated poly-foam surround for precise linear excursion
- Phase plugs in the woofer cones to reduce distortion

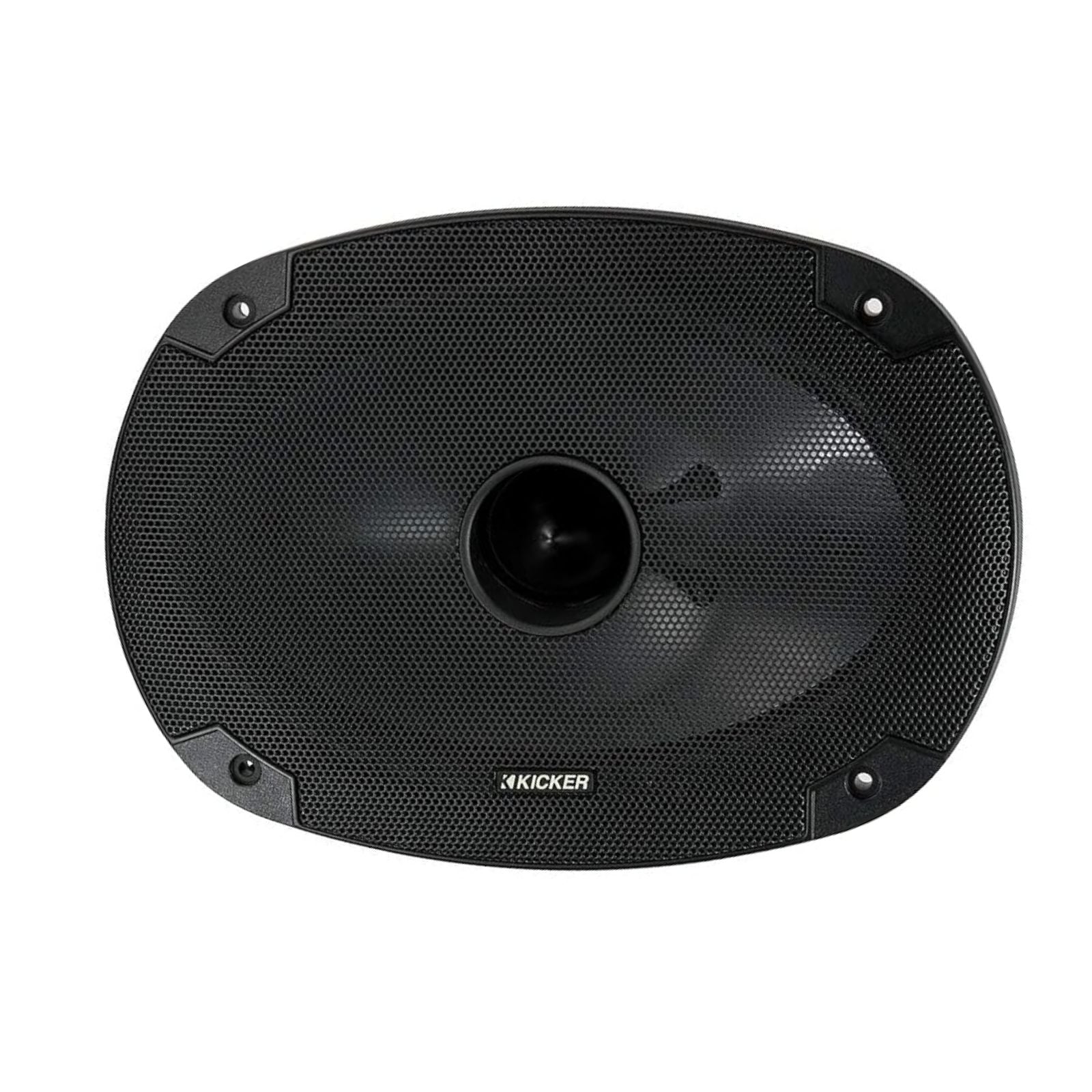

- Bolt-through steel mesh grilles to protect the drivers

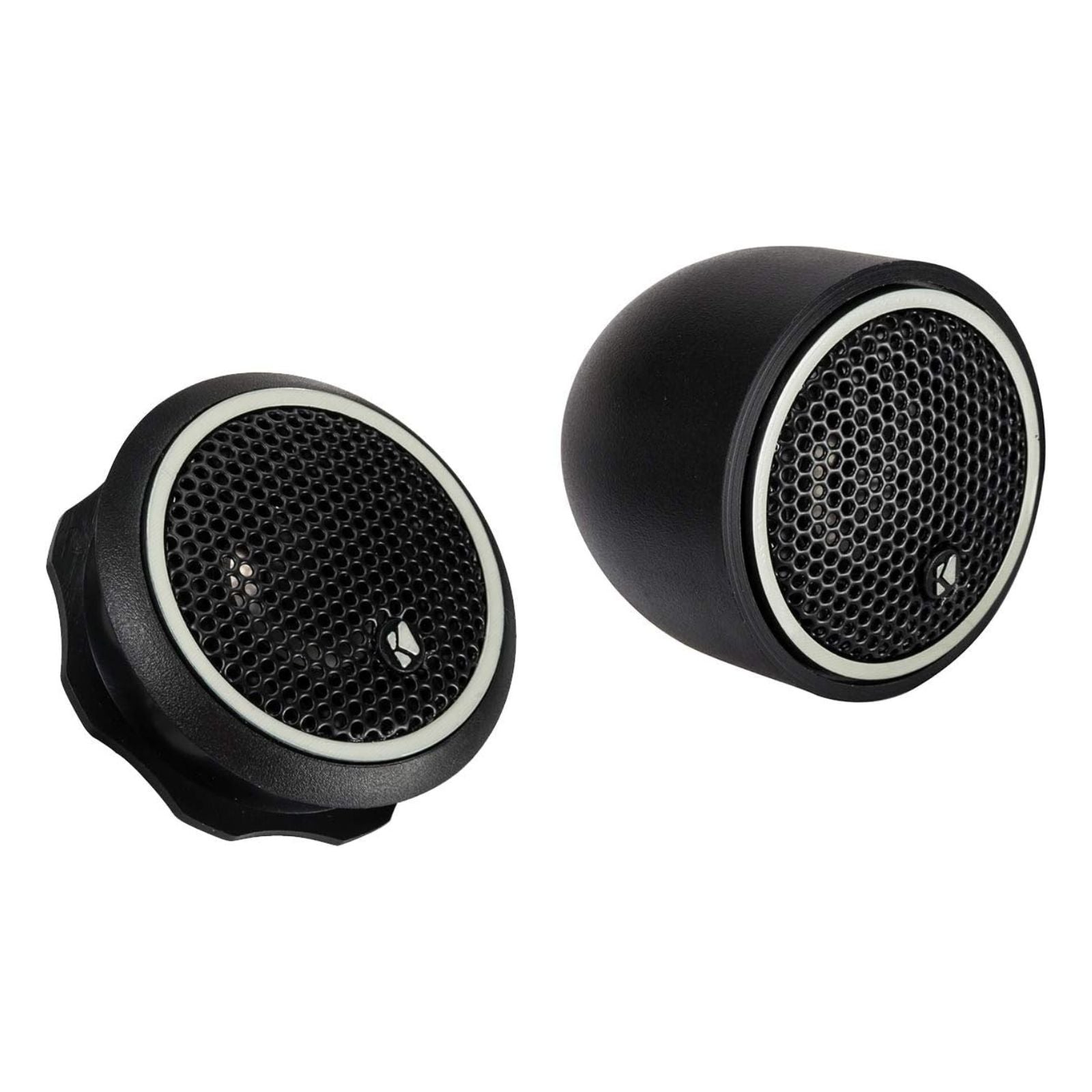

- Three tweeter mounting options: flush, angled and surface pods
Explore the full range in Kicker CS Series Speakers.
Specification
| Woofer Size (in. mm) | 6x9 (160x230) |
|---|---|
| Tweeter Size (in, mm) | 0.75 (20) |
| Dome Material | Titanium |
| Peak Power (watts, per ANSI/CTA-2031-A) | 450 |
| Recommended Amplifier Power (watts RMS) | 150 |
| Effective Frequency Range (Hz) | 30-21k |
| Woofer Mounting Hole Diameter (in, mm) | 5 5/8 x 8 7/16 (143x215) |
| Woofer Bottom Mount Depth (in, mm) | 3 3/16 [81] |
| Flush Mount Tweeter Depth (in, mm) | 9/16 (14.5) |
| High Pass | dB, at Frequency (Hz) | 12, 4000 |
| Low Pass | dB, at Frequency (Hz) | 12, 4000 |
| High Frequency Output Attenuation (dB) | 0, 3, & 6 |
| Bolt-Thru Grilles | Yes |
More specs
| |
What's Included
- Kicker 46CSS694
Kicker
About the Kicker 46CSS694
From our tech experts at CEN
The Kicker 46CSS694 is a CS Series 6x9" (160 x 230 mm) 2-way component speaker set rated at 150W RMS and 450W peak. Separating the woofer and tweeter delivers cleaner stereo imaging than a coaxial design. The 3/4" titanium dome tweeters come with 12 dB crossovers that include a three-position level switch (0, +3 or +6 dB) to balance high-frequency output to your interior.
Who it suits
These suit drivers who want noticeably better sound staging from a 6x9" location and have an amplifier rated around 150W RMS per channel. If you prefer a simpler drop-in option, the Kicker 46CSC6934 CS Series 6x9" 3-way coaxial handles the same power without needing separate crossover placement.
Our tech experts advise
The woofer mounting hole is 143 x 215 mm with an 81 mm depth, so measure your door or parcel shelf carefully before fitting. Three tweeter mount options — flush, angled and surface pod — are included to suit most A-pillar or dash positions. Installation is priced per vehicle; speak to our team via our Nottingham fitting page for details.
Explore the full Kicker range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Kicker
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Kicker News & Guides
The latest Kicker product news, launches and guides from the CEN team in Nottingham.
Looking for Installation?
At CEN we take pride in being able to share the quality of our work as well as being able to show what incredible products we have installed week on week.
More from Kicker CS Series Speakers
More options from the same range, in stock and ready to go

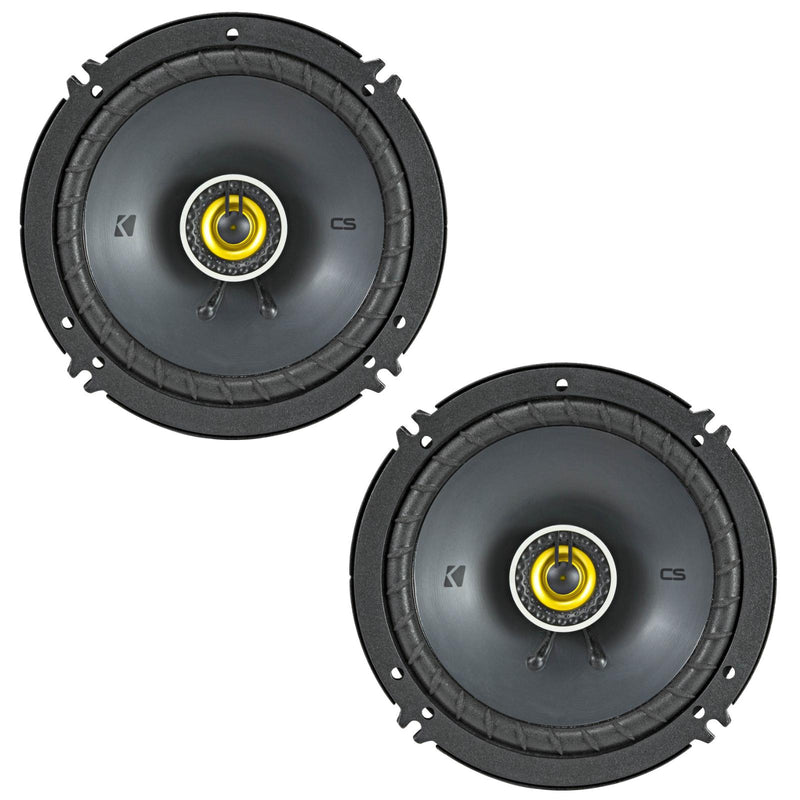

Staff PickKicker 46CSC654 CS Series 6.5" 16cm 2 Way Car Door Coaxial Speakers 100w RMS
£80.99
View product

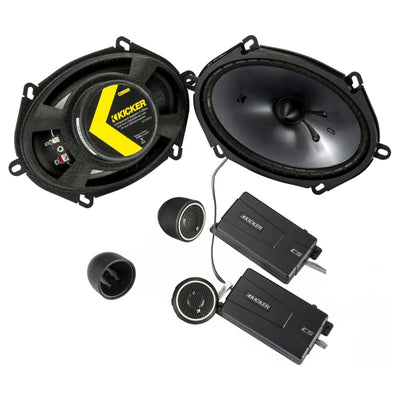

Kicker 46CSS684 6x8" 2 Way Component Speakers 75w RMS
£149.95

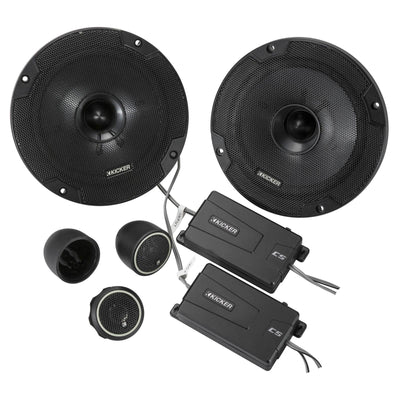

Kicker 46CSS654 CS Series 6.5" 16cm 2 Way Car Door Component Speakers 100w RMS
£149.95

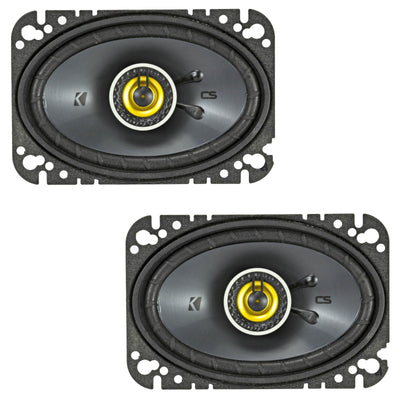

Kicker 46CSC464 CS Series 4x6" 2 Way Car Door Dash Coaxial Speakers 50w RMS Pair
£59.95

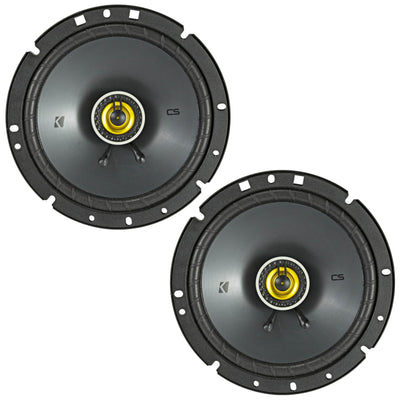

Kicker 46CSC674 CS Series 6.75" 17cm 2 Way Car Door Coaxial Speakers 100w RMS
£89.95
Frequently Asked Questions
Q: Will these speakers fit my car?
A: Most car speakers are standard sizes, but mounting depth and fitting rings vary by vehicle. Check the size in the Specification tab against your vehicle, or contact CEN with your registration and we will confirm fitment and any adapters or fitting kits you need.
Q: Do I need an amplifier to run these speakers?
A: Not always. Most speakers will run from a standard head unit, but a dedicated amplifier lets them perform at their best, particularly for component sets and higher power handling models. The RMS figure in the Specification tab is the guide to how much clean power they can use.
Q: What is the difference between coaxial and component speakers?
A: Coaxial speakers combine the tweeter and woofer in one unit for a simple like-for-like upgrade. Component sets separate the tweeter and woofer with a crossover for better imaging and detail, and suit installs where sound quality is the priority.
Q: Do these come as a pair?
A: Unless stated otherwise, car speakers are sold in pairs. Check the product title and What's Included tab, which lists exactly what is in the box.
Q: Can CEN fit these speakers for me?
A: Yes. CEN offers professional installation from our Nottingham premises. Contact us to book an installation slot or ask for a fitting quote.
Q: Can I adjust the tweeter level on the Kicker 46CSS694?
A: Yes. Each crossover has a three-position switch for 0, +3 or +6 dB of tweeter output.
Q: How can the 46CSS694 tweeters be mounted?
A: There are three options: flush, angled and surface mount. Flush mounting needs a 40 mm hole and 14.5 mm of depth.
Q: What size hole do the 46CSS694 woofers need?
A: A 143 x 215 mm mounting hole, with 81 mm of mounting depth.
