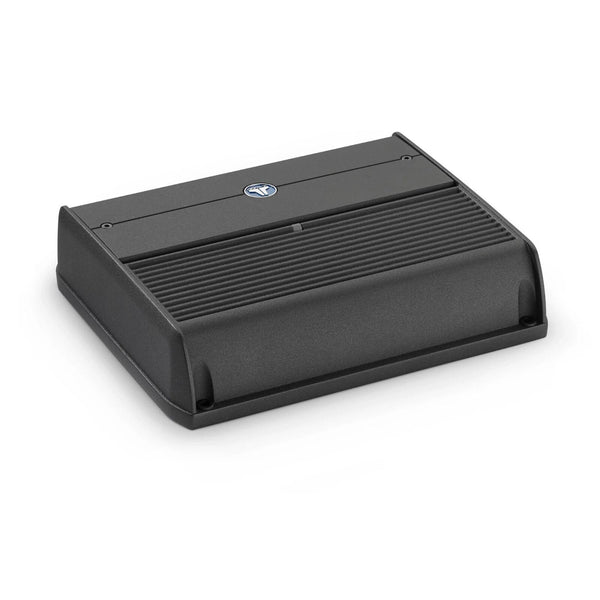

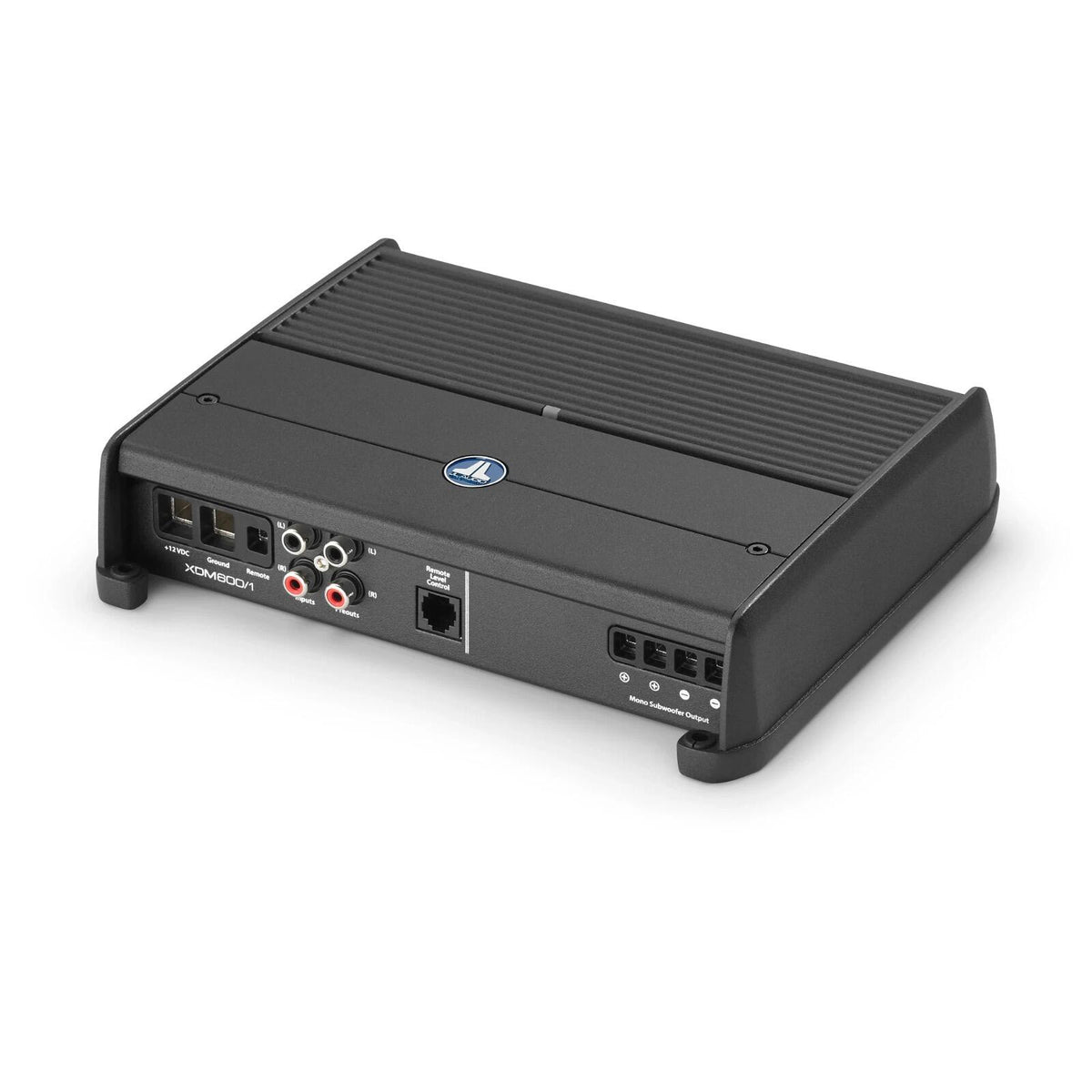

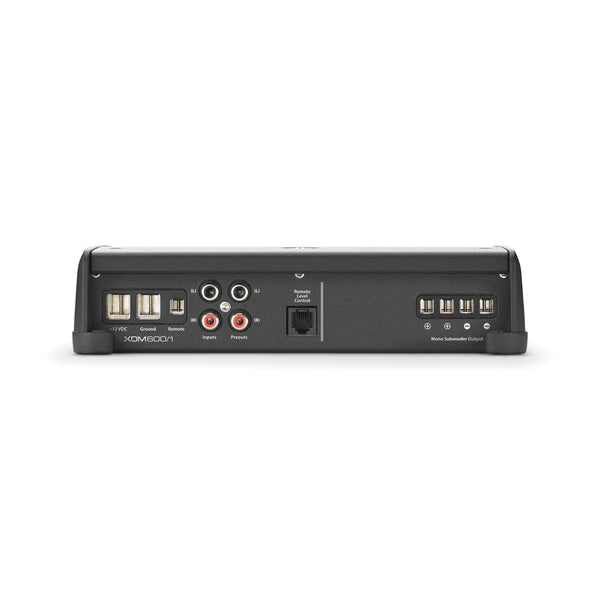

JL Audio XDM600/1 Monoblock Amp Car Marine Subwoofer Class D Amplifier 600w RMS

The JL Audio XDM600/1 is a monoblock Class D subwoofer amplifier built for car or marine use, rated at 600 W RMS into 2 Ω or 400 W RMS into 4 Ω at 14.4 V. It uses JL Audio's NexD™ switching technology and is part of the XDM Series.

Pair it with the JL Audio XDM400/4 for a 1,000 W four-speaker plus subwoofer system. The optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately) lets you adjust sub level from the driver's seat or helm.

Key specifications

• Channels: 1 (monoblock), Class D (NexD™), car or marine
• Power (14.4 V): 400 W RMS @ 4 Ω, 500 W RMS @ 3 Ω, 600 W RMS @ 2 Ω
• Power (12.5 V): 300 W RMS @ 4 Ω, 500 W RMS @ 2 Ω
• Frequency response: 7 Hz – 500 Hz
• Low-pass filter: 12/24 dB/octave, 50 Hz – 500 Hz (variable slope, continuously variable cutoff)
• Infrasonic filter: 30 Hz, defeatable
• Fuse rating: 50 A
• Dimensions (H × W × D): 52 × 216 × 180 mm; weight 2.86 kg

XDM600/1 overview

The XDM600/1 uses JL Audio's NexD™ switching design to deliver 600 W of continuous power into a 2 Ω load (14.4 V, 1% THD) from a compact chassis. Designed for car or marine installations, it is built with marine-grade materials and features an exclusive dual-mode input filter for noise-free performance in both environments. Automatic turn-on (via signal sensing or DC-offset sensing) makes it straightforward to integrate with factory systems.

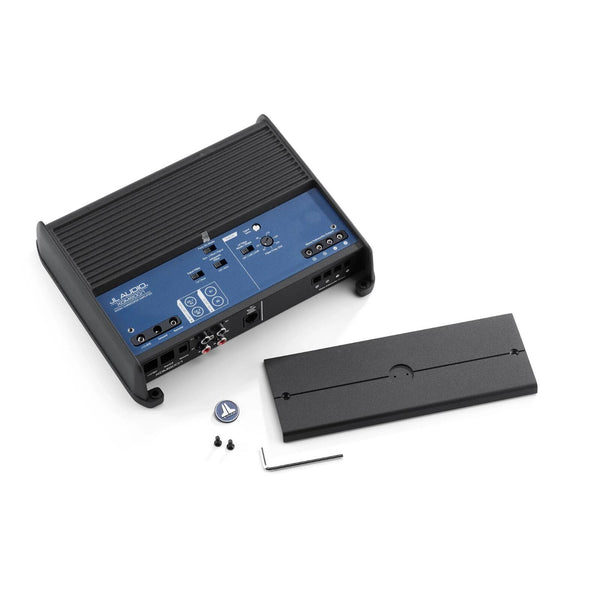

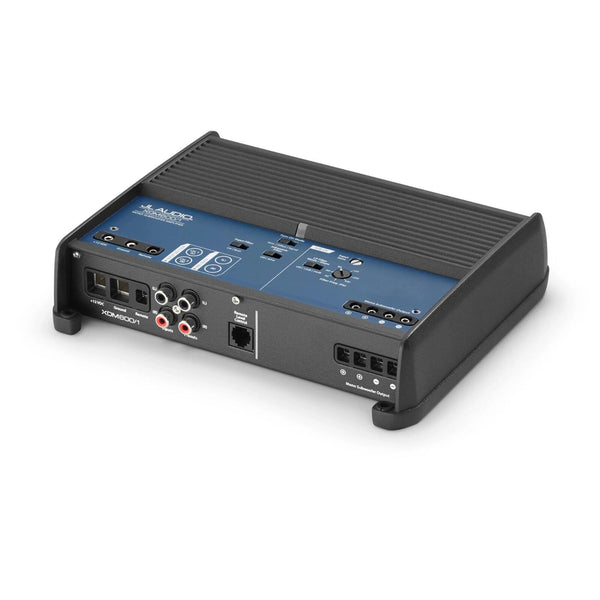

The amp includes a variable-slope low-pass filter with continuously variable cutoff from 50–500 Hz, targeting subwoofer applications. All controls are protected beneath a gasketed, removable top cover finished in black powder-coat.

NexD™ switching technology

JL Audio has developed NexD™ technology from its long history in Class D amplifier design, beginning with the original Slash subwoofer amplifiers. A traditional PWM switching amp uses a fixed switching frequency and varies pulse width based on the audio input alone. This assumes ideal conditions — such as a steady power supply — that rarely exist in a real vehicle. Power supply sag causes distortion at all power levels, even well below clipping.

The NexD™ subwoofer design addresses this with a switching frequency of 240 kHz — around four times higher than most Class D subwoofer amplifiers. This extends bandwidth to at least 500 Hz with minimal distortion, improves efficiency, and keeps circuitry compact for tight, controlled bass output.

For full-range NexD™ amplifiers, JL Audio applies a variable, ultra-high-speed version switching at well over 400 kHz. A self-oscillating modulator with feed-forward sends information about the instantaneous power supply voltage to the modulator, cancelling distortion caused by supply voltage fluctuation before feedback is applied — simplifying the overall feedback loop design.

Advanced Rollback Protection

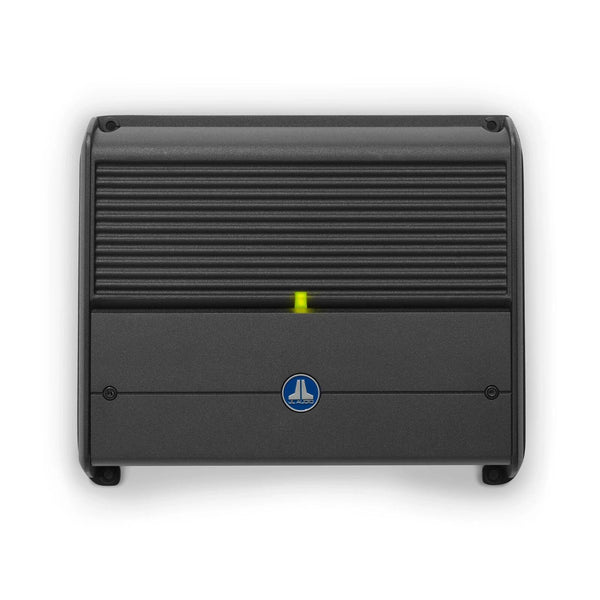

If the XDM600/1 reaches an unsafe operating temperature, Advanced Rollback Protection rolls back peak power output — without changing gain — until the amplifier cools to a safe level. A red Thermal or Status LED indicates this condition. Once the amplifier cools, full peak power is restored and the indicator returns to its normal state. In most cases the protection operates inaudibly, keeping audio playing under demanding conditions.
