JBL Stage 1 601C 6.5 Inch 2 Way Component Car Door Speaker System 40w RMS
Couldn't Load Pickup availability

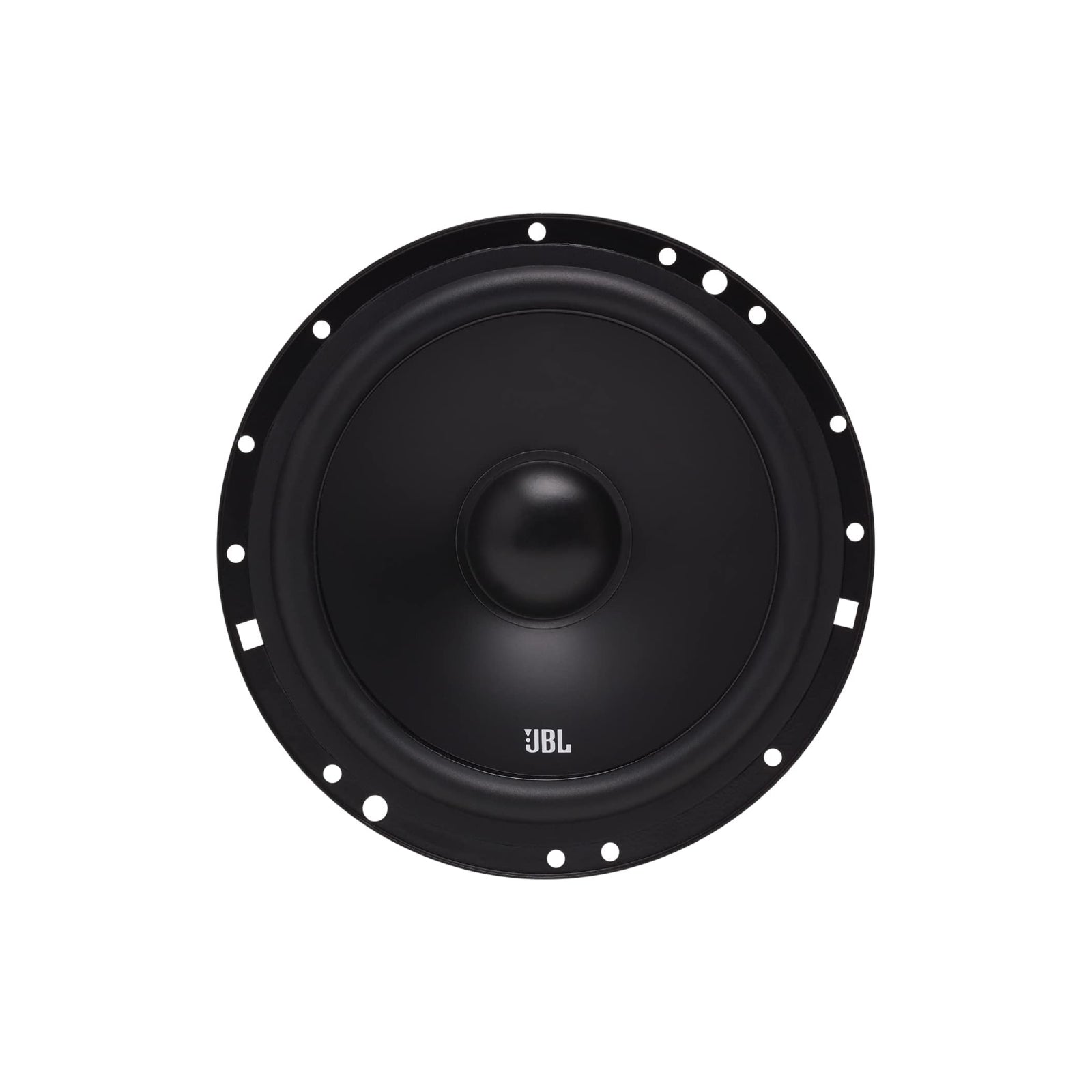

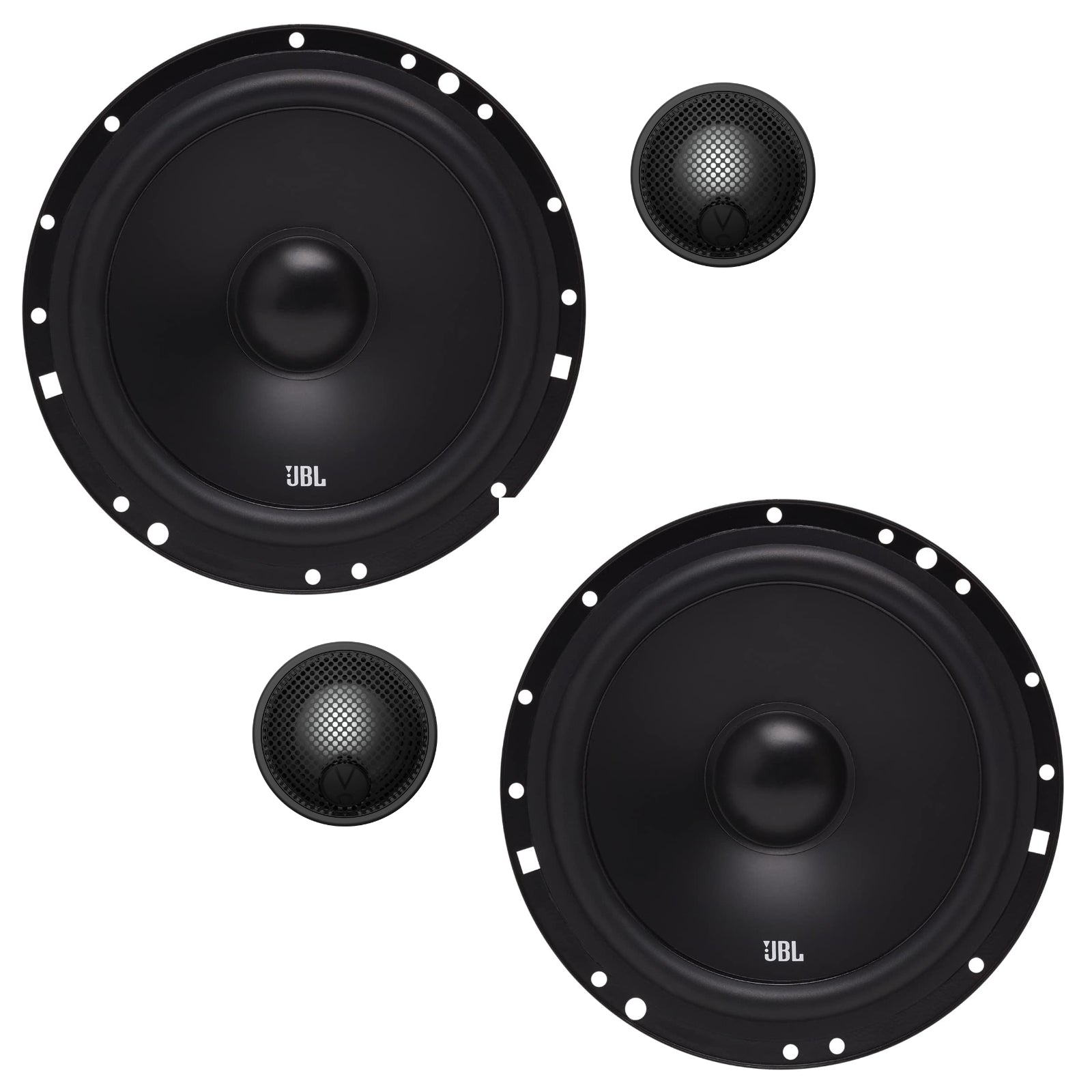

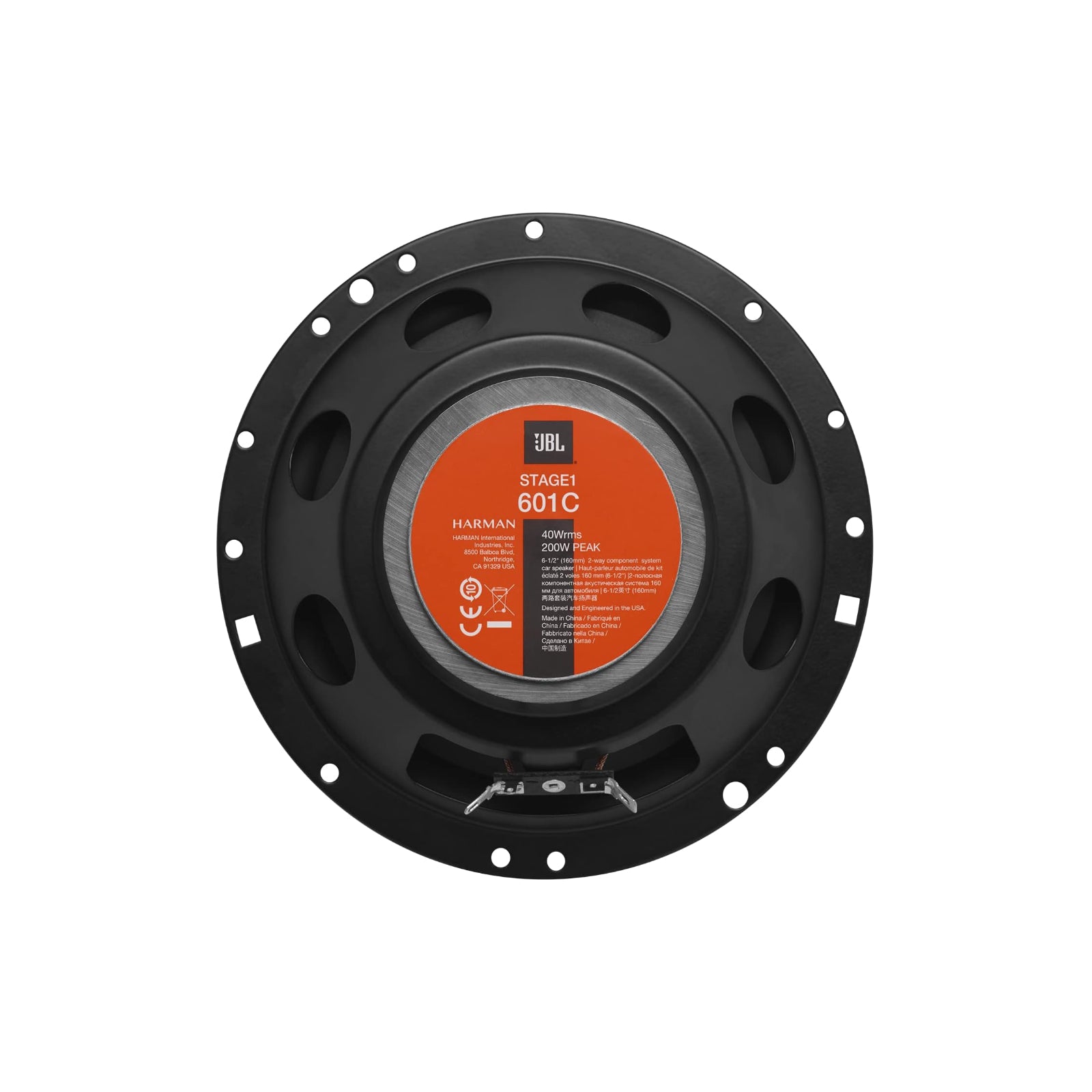

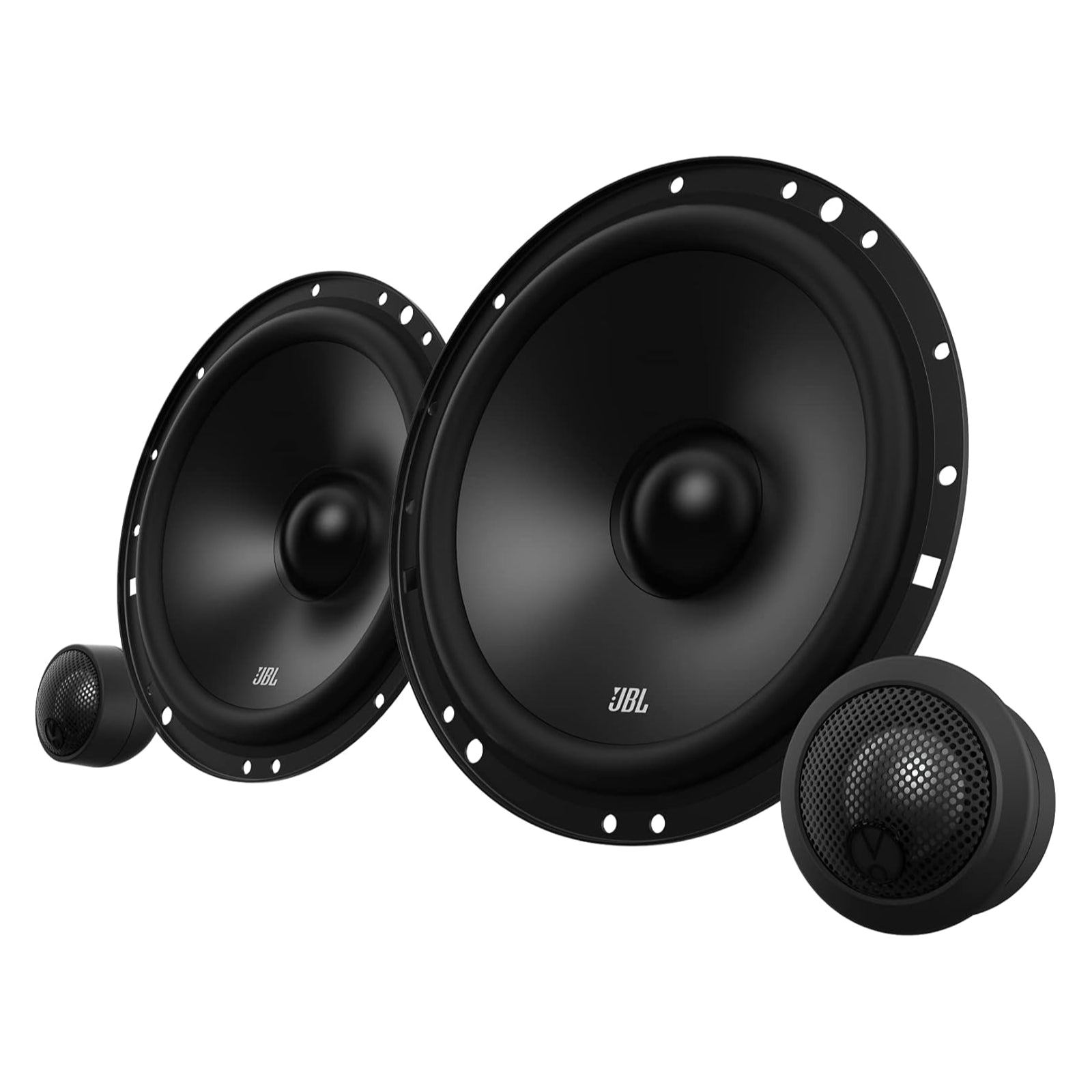

The JBL Stage 1 601C is a 6.5 inch (160mm) 2-way component car speaker system rated at 40W RMS, from JBL's entry-level Stage 1 range. The set includes two Plus One polypropylene woofers, two separate PEI dome tweeters, two external crossovers, and grilles.
If you prefer a coaxial setup, the JBL Stage 2 624 offers a 6.5 inch 2-way coaxial alternative at the same 40W RMS rating. For a component upgrade, consider the JBL Stage 2 604C.
Key specifications
- Size: 6.5 inch (160mm) woofer
- Type: 2-way component system
- Power handling: 40W RMS, 200W peak
- Woofer: Plus One polypropylene cone

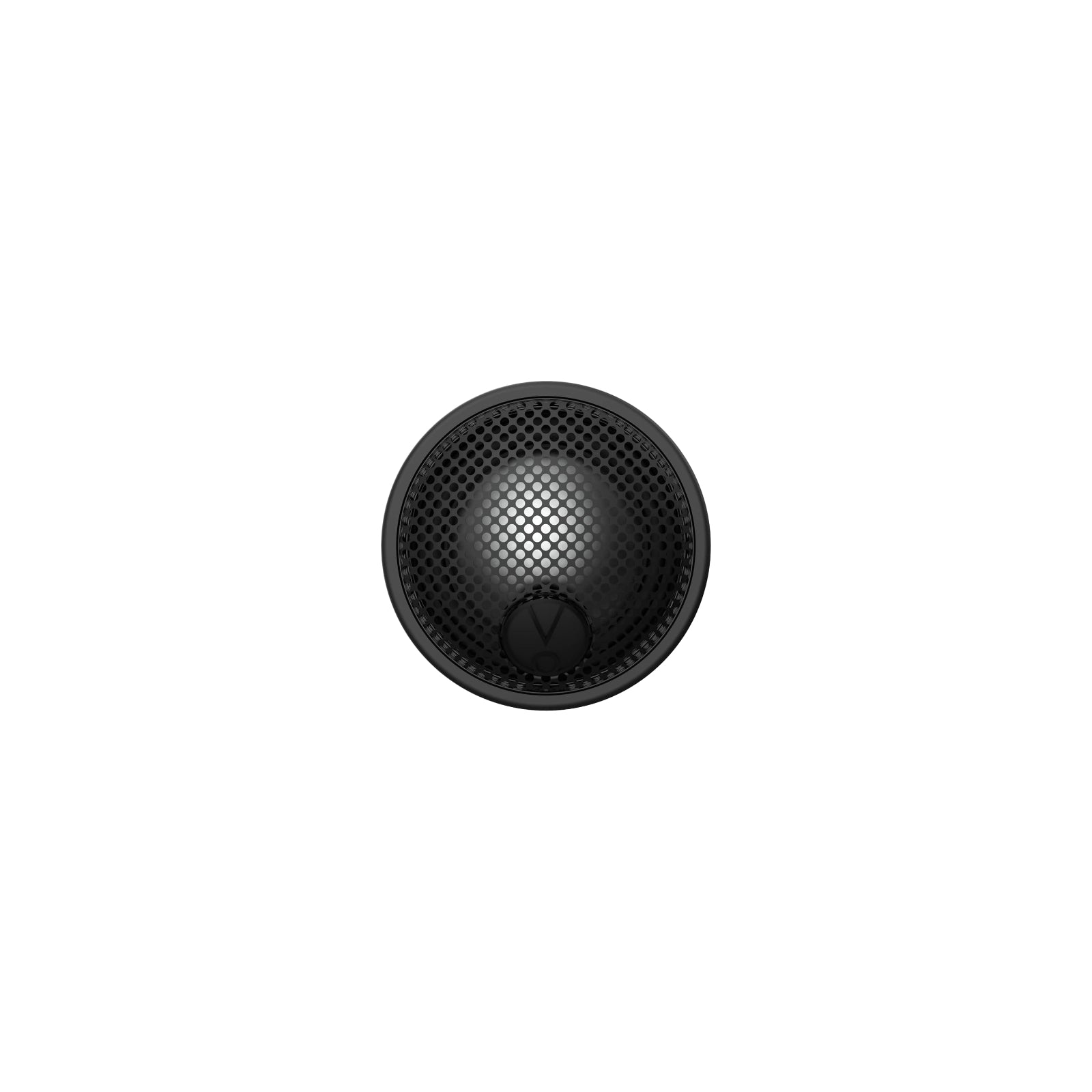

- Tweeter: separate PEI dome
- Crossover: external, tweeter level 0 or +2dB
- Impedance: 3 ohms
- Sensitivity (2.83V): 92dB
- Frequency response: 55Hz – 20kHz
- Grilles: included
Strong components at a strong price
The Stage 1 601C delivers a capable sound without a premium price tag. JBL's patented Plus One™ design extends the surface area of the polypropylene woofer cone for improved low-frequency output. The separate tweeter and external crossover are finished with JBL's distinctive exclamation-point logo. Grilles are included.
A match for any system
At 3 ohms impedance, these speakers are sensitive enough to run from an aftermarket head unit, though an external amplifier will get the best out of them. The external crossover offers two selectable tweeter output levels — 0dB or +2dB — so you can tune the sound to your preference.
Explore the full range in JBL Stage.
Specification
| frequency response | 55-20,000 Hz |
|---|---|
| impedance | 3 ohms |
| sensitivity | 92 dB at 2.83V |
| woofer top-mount depth | 1-15/16" |
More specs
| |
What's Included
- JBL Stage 1 601C
JBL
About the JBL Stage 1 601C
From our tech experts at CEN
JBL 6.5 inch component speakers, with separate tweeters for mounting where you will actually hear them, rated at 40w RMS.
Who it suits
Drivers building a front stage who are happy for tweeters to be mounted separately, which usually means a professional fit.
Our tech experts advise
Sizes, adapter rings and harnesses vary by vehicle, year and trim, so we confirm what your car takes before ordering rather than guessing. Door treatment matters as much as the speaker itself. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.
Explore the full JBL range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all JBL
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Have it Fitted By Our Team
Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.
- 1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
- 2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
- 3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.
Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA
More from JBL Stage
More options from the same range, in stock and ready to go
Frequently Asked Questions
Q: Will these speakers fit my car?
A: Most car speakers are standard sizes, but mounting depth and fitting rings vary by vehicle. Check the size in the Specification tab against your vehicle, or contact CEN with your registration and we will confirm fitment and any adapters or fitting kits you need.
Q: Do I need an amplifier to run these speakers?
A: Not always. Most speakers will run from a standard head unit, but a dedicated amplifier lets them perform at their best, particularly for component sets and higher power handling models. The RMS figure in the Specification tab is the guide to how much clean power they can use.
Q: What is the difference between coaxial and component speakers?
A: Coaxial speakers combine the tweeter and woofer in one unit for a simple like-for-like upgrade. Component sets separate the tweeter and woofer with a crossover for better imaging and detail, and suit installs where sound quality is the priority.
Q: Do these come as a pair?
A: Unless stated otherwise, car speakers are sold in pairs. Check the product title and What's Included tab, which lists exactly what is in the box.
Q: Can CEN fit these speakers for me?
A: Yes. CEN offers professional installation from our Nottingham premises. Contact us to book an installation slot or ask for a fitting quote.
Q: What is included with the JBL Stage1 601C?
A: It is a full component set: two woofers, two tweeters and two external crossovers. Grilles are included.
Q: Can I adjust the tweeter level on the Stage1 601C?
A: Yes. The external crossover network has two selectable tweeter levels, 0 and +2dB.
Q: What impedance is the Stage1 601C?
A: It is a 3 ohm design with 92 dB sensitivity at 2.83V, so it can be powered from an aftermarket head unit, although an outboard amplifier gives even better results.
Q: How much power can the JBL Stage1 601C handle?
A: JBL rates the Stage1 601C at 40W RMS and 200W peak power handling.
