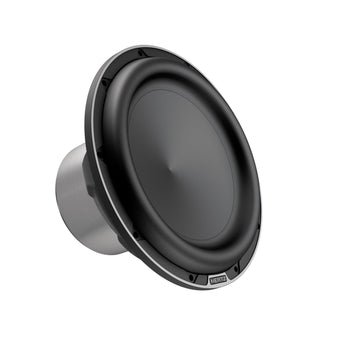

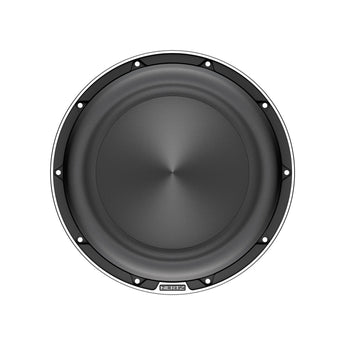

Hertz Mille Legend ML 2500.3 10 Inch Single Voice Coil 4 ohm Subwoofer 700w RMS
Couldn't Load Pickup availability
The Hertz Mille Legend ML 2500.3 is a 10 inch (250 mm) single voice coil 4 ohm subwoofer rated at 700 W RMS. It features a 100 mm voice coil, neodymium magnet, and is optimised for compact sealed enclosures. It is part of the Hertz Mille Legend range.
Matching grilles: the steel mesh MG 250.3 or the die-cast aluminium MLG 2500.3.
Key specifications
- Size: 250 mm (10 inch)
- Power handling: 700 W continuous, 1400 W peak
- Impedance: 4 ohms, single voice coil
- Voice coil: 100 mm (4 inch)
- Frequency response: 27 to 500 Hz
- Magnet: neodymium
- Xmech: ±27 mm
- Sealed enclosure volume: 17 to 25 litres
ML 2500.3 Legend
Designed to reproduce the impact and emotion of live bass in a car environment, the ML 2500.3 combines extreme power handling with a compact, installation-friendly form factor optimised for sealed box use.
- Large neodymium magnet optimised with FEA simulations for magnetic field stability at high excursion.
- Very low carbon content CNC machined plates for maximum magnetic permeability and low distortion at high power levels.
- Voice coil internal magnet with high size/performance ratio for maximum efficiency.
- CCAW 100 mm (4 inch) voice coil handling 1400 W musical power, keeping working temperature low and minimising dynamic compression.
- Voice coil wound using the In/Out method for even cooling across coil layers.
- Voice coil wound on TIL former: fibreglass-based material combining the heat dissipation of aluminium with the stiffness of Polyamide composites.
- Central pole with Aluminium Shorting Ring for minimum distortion and maximum low-frequency extension.
- Boundary Free IIR rubber surround for higher SPL from the same external diameter.
- Exponential V-cone® with optimised geometry for high stiffness and resistance to deformation at maximum excursion.
- Mineral-injected paper cone for superior rigidity and damping.
- Acoustically transparent anti-resonant aluminium alloy basket with six-spoke self-standing structure and built-in venting holes beneath the spider.
- CNC machined diamond-cut basket edge featuring the Hertz logo.
- Ergonomic, ultra-compact design with electro-acoustic parameters optimised for sealed box applications with 17–25 litre volume.
Explore the full range in Hertz Mille Legend.
Specification
| Power Handling | - Continuous W 700 |
|---|---|
| Power Handling | - Peak W 1400 |
| Impedance | Ohm 4 |
| Voice Coil | Ø 100 (4) |
| Frequency Response | Hz 27 ÷ 500 |
| Magnet | size D x d x h mm (in.) 95 x 28 x 6 D x d x h (in.) (3.7 x 1.1 x 0.24) |
| Weight | of one component kg (lb.) 7,5 (16.53) |
| Magnet | Neodymium |
| Cone | Pressed-pulp cone with mineral powders |
More specs
| |
What's Included
- One 10" Subwoofer
- Screws
- Speed clips
- Owner's manual
- Template on box
Hertz
About the Hertz ML 2500.3
From our tech experts at CEN
A Mille Legend series 10 inch subwoofer, 4 ohm, handling 700w RMS.
Who it suits
Drivers building a system where the bass does real work rather than filling in behind the speakers. The Mille Legend line is Hertz at its most serious, and deserves an amplifier and enclosure to match.
Our tech experts advise
A subwoofer is only as good as its enclosure and the amplifier driving it: box volume and port tuning decide what you actually hear, and impedance decides how it should be wired to your amplifier. We build enclosures to suit the vehicle at our Beeston workshop. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.
Explore the full Hertz range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Hertz
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Have it Fitted By Our Team
Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.
- 1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
- 2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
- 3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.
Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA
Hertz Car Audio Range
Hertz produces high-performance car audio systems driven by research.Music fans who attend live concerts know well the emotions that low undistorted frequencies without dynamic compression can arouse.
More from Hertz Mille Legend
More options from the same range, in stock and ready to go
Hertz Mille Legend ML 2000.3 8 Inch Single Voice Coil 4ohm Subwoofer 700w RMS
£579.99
View product
Hertz Mille Legend MG 200.3 8 Inch Steel Mesh Sub Grille ML 2000.3 Subwoofer
£39.99
Hertz Mille Legend MLG 2500.3 10 Inch 25cm Subwoofer Grille for ML 2500.3 Sub
£79.99
Hertz Mille Legend ML 280.3 1.38 Inch 35mm Tetolon Dome Tweeters Pair
£269.99
Hertz Mille Legend MLK 165.3 6.5 Inch 16.5cm Component Speakers 150w RMS Pair
£499.99
Frequently Asked Questions
Q: Do I need an amplifier for this subwoofer?
A: Yes, unless it is an active (powered) subwoofer with a built-in amplifier. Passive subwoofers need an external amplifier matched to the RMS power and impedance shown in the Specification tab.
Q: What size enclosure does this subwoofer need?
A: The recommended enclosure volume is listed in the Specification tab where the manufacturer provides it. As a rule, sealed enclosures give tighter, more accurate bass while ported enclosures deliver more output. Contact CEN if you would like a recommendation for your build.
Q: What does RMS power mean?
A: RMS is the continuous power a subwoofer can handle, and it is the number that matters when matching an amplifier. Peak or max figures describe short bursts only. Match your amplifier output to the RMS rating in the Specification tab.
Q: Sealed or ported enclosure - which should I choose?
A: Sealed boxes are compact and produce tight, controlled bass suited to sound quality builds. Ported boxes are larger and produce more output at low frequencies, suited to those who want maximum impact. Either works well when built to the recommended volume.
Q: Can CEN build or supply an enclosure and fit everything?
A: Yes. CEN supplies enclosures and offers professional installation from our Nottingham premises, including amplifier wiring. Contact us to discuss your build.
Q: What box does the ML 2500.3 need?
A: Its parameters are optimised for a sealed enclosure of 17 to 25 litres.
Q: Does the ML 2500.3 come with a grille?
A: No grille is listed in the box. The MG 250.3 steel mesh grille and the MLG 2500.3 die-cast aluminium grille are available separately.
