GZIF 69
6×9″ 3-way coaxial speaker system
6×9″ 3-way coaxial speaker system with HQPP cone and with an impedance of 4 ohms
Features
- 3-way coaxial speaker system
- HQPP cone
- Rubber surround
- Resonance free steel basket
- Universal 4 ohms version
- 13 mm / 0.51″ Mylar tweeter
- 50 mm / 2″ Mylar midrange speaker
- 6 dB/oct high pass filter

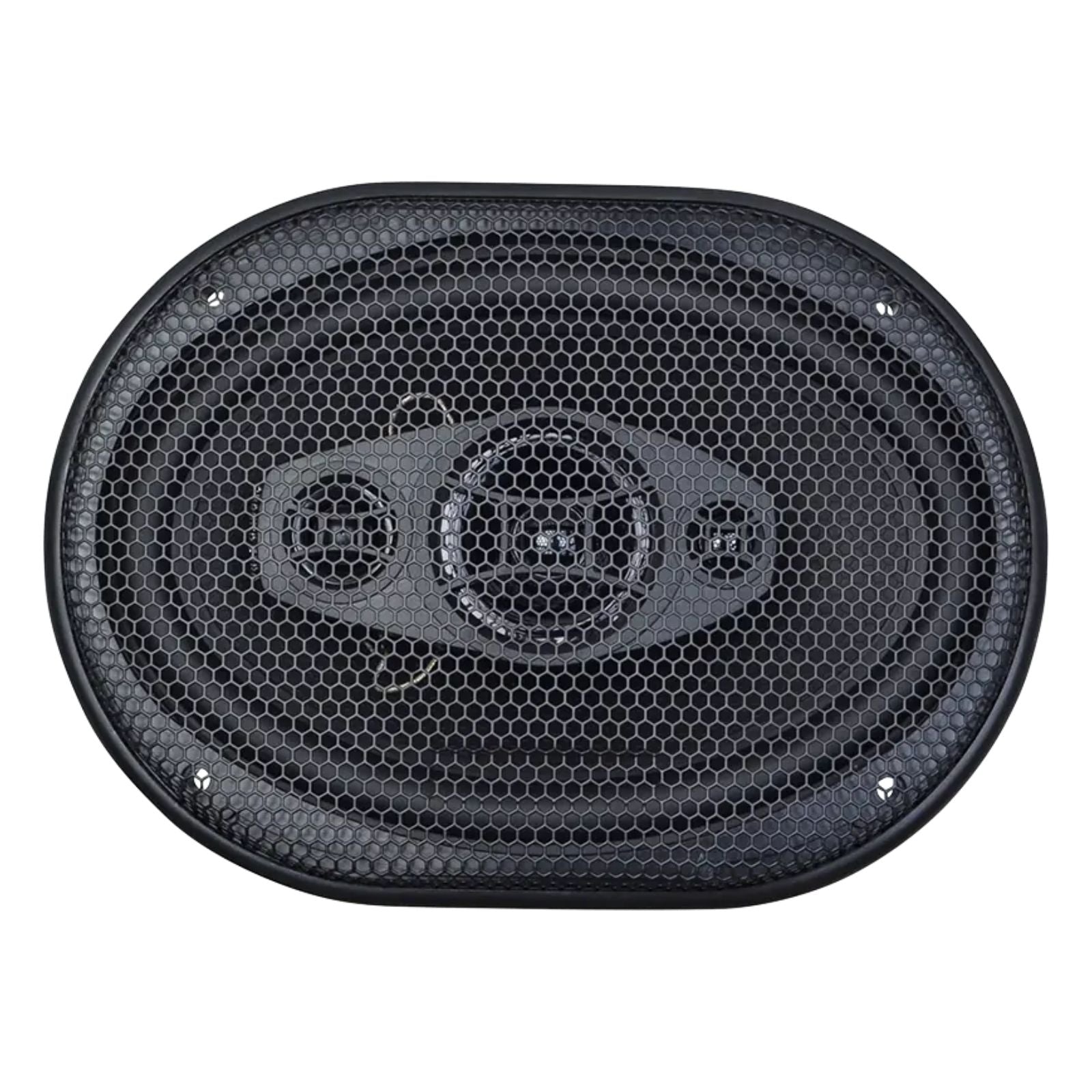

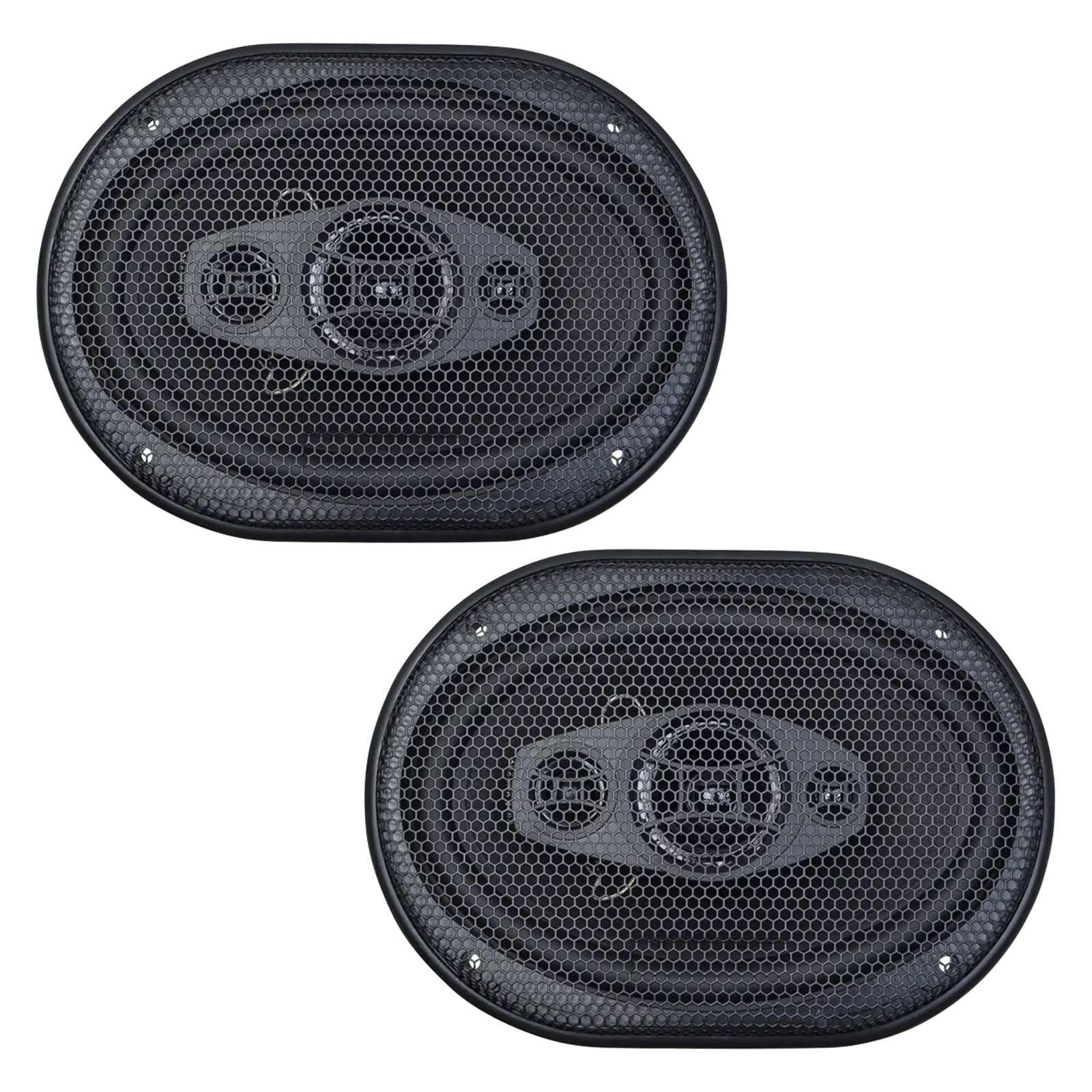

- Incl. hexagon style protection grill
Specification
| Nominal Diameter | 15 x 23 cm / 6 x 9“ |
|---|---|
| Loudspeaker Type | 3-way coaxial |
| Impedance | 4 Ohms |
| Frequency Response | 40 Hz – 20 kHz |
| Power Handling | (RMS) 120 Watts |
| Power Handling | (max) 180 Watts# |
| Tweeter | 13 mm / 0.51″ Mylar tweeter |
| Midrange Speaker | 50 mm / 2″ mylar |
| Efficiency (SPL) | 92 dB |
| Resonance Frequency | 44 Hz |
| Xmax | 10 mm / 0.39” |
| Mounting Diameter | 214 x 152 mm / 8.4 x 5.98” |
| Mounting Depth | 83 mm / 3.27” |
What's Included
- GZIF 69
