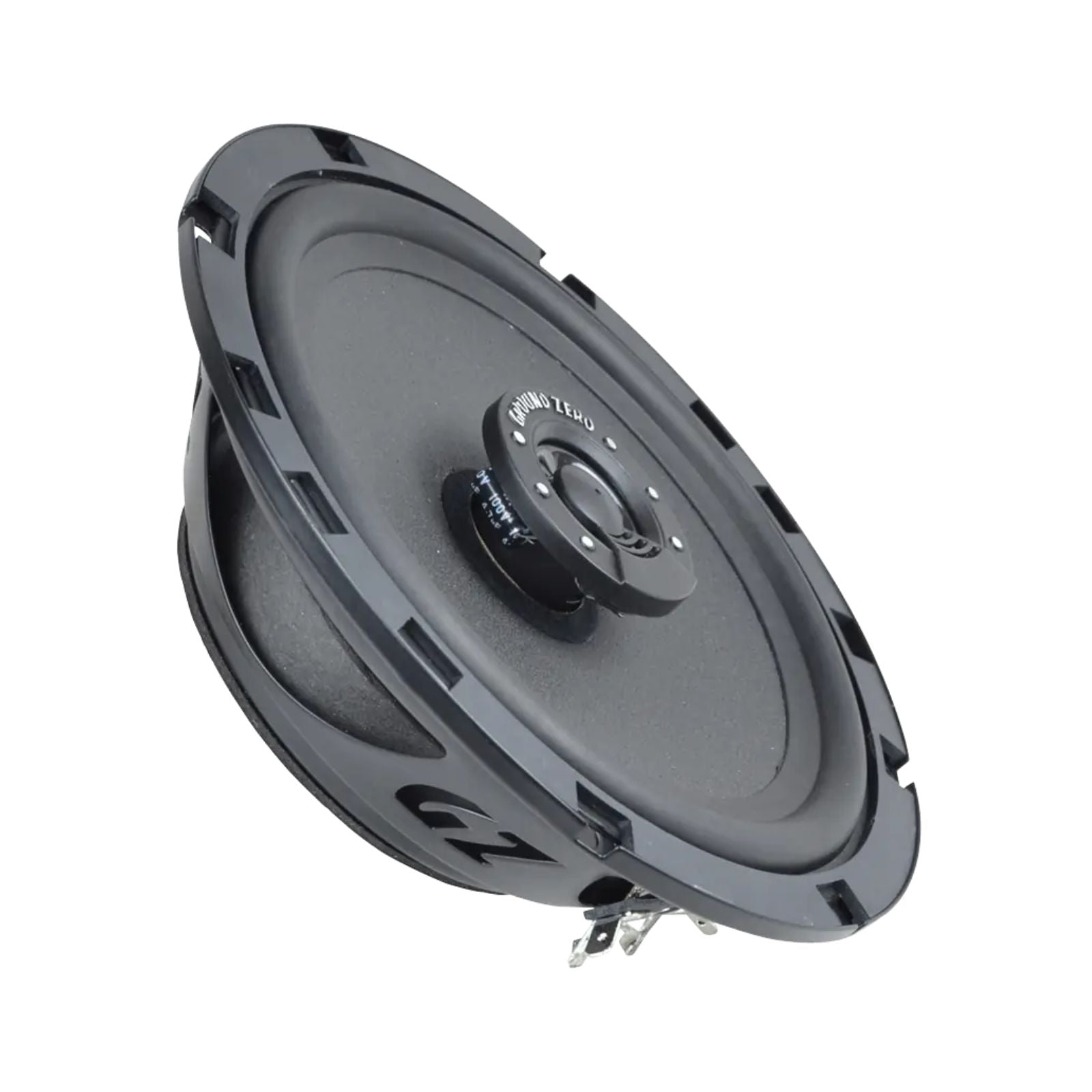

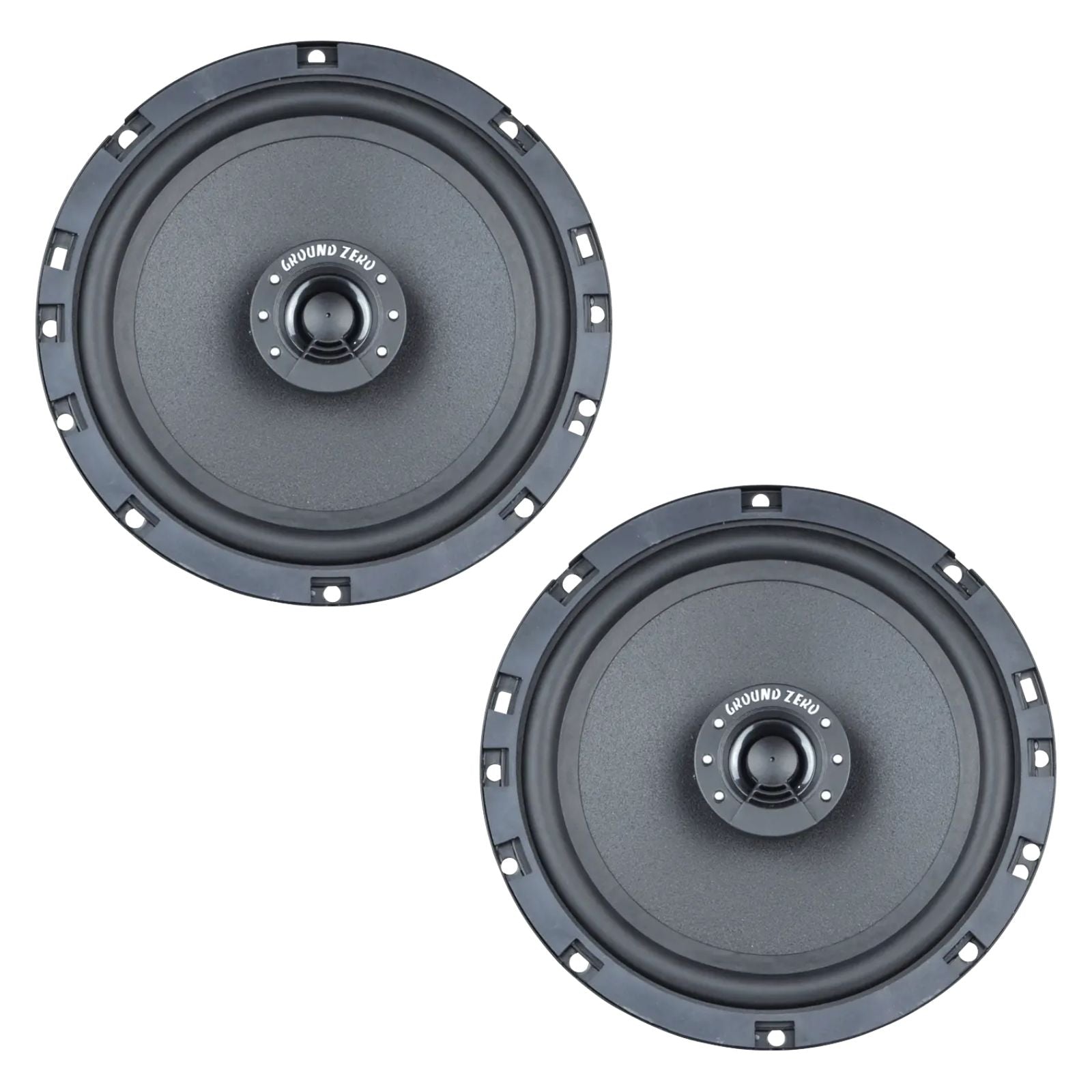

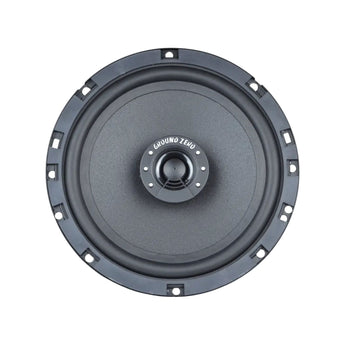

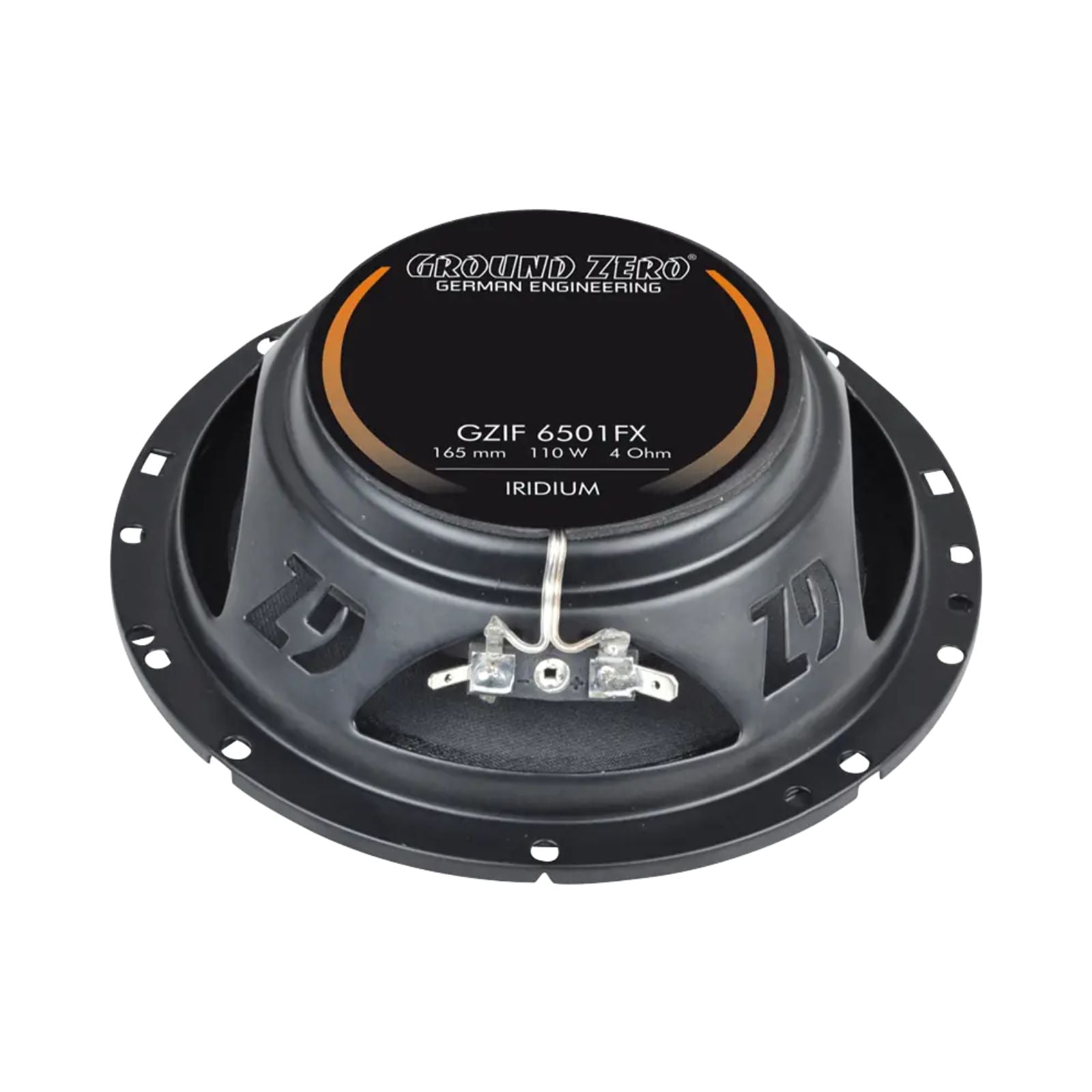

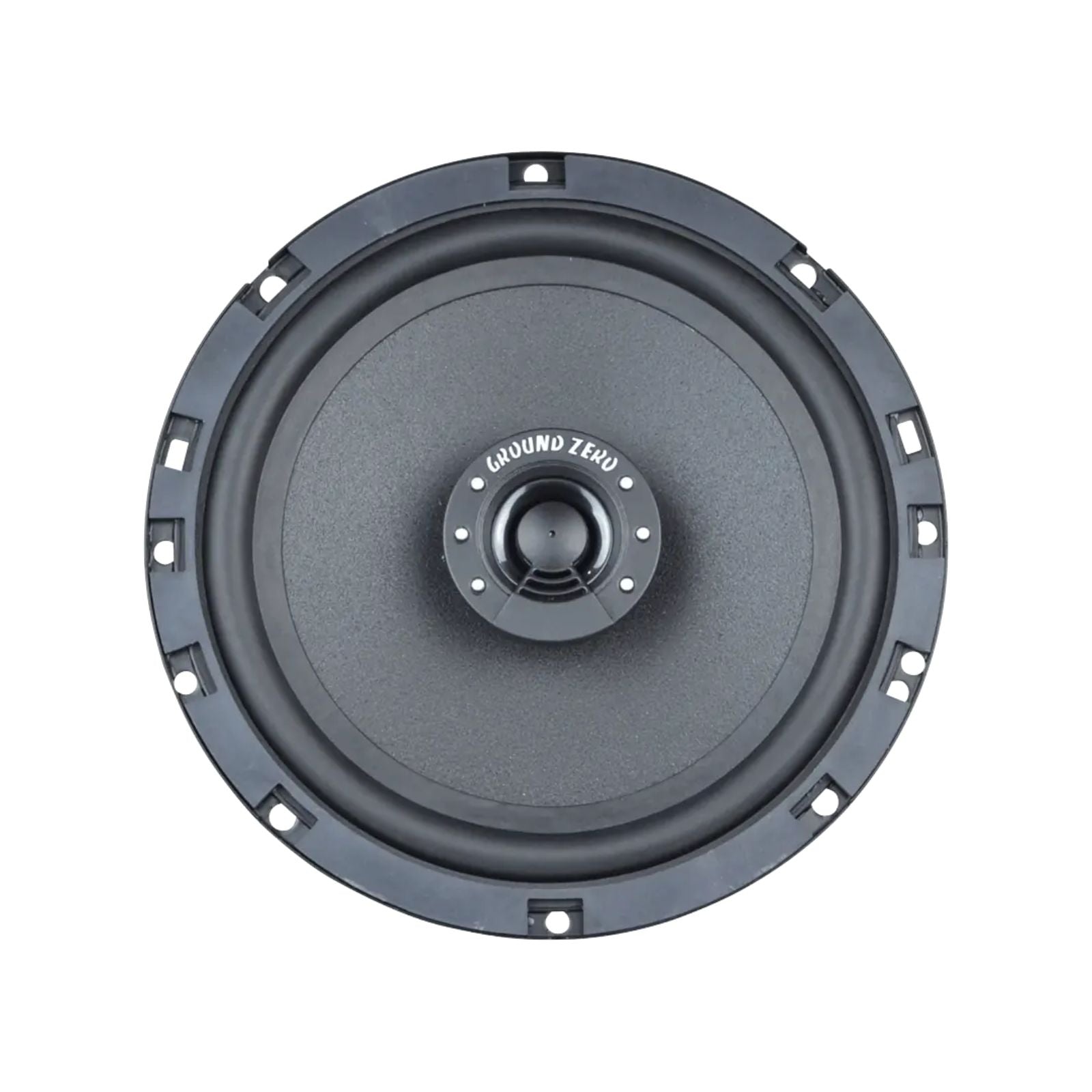

The Ground Zero GZIF 6501FX is a 6.5 inch (165 mm) 2-way coaxial car speaker rated at 70W RMS (110W max) at 4 ohms. Its Euro-DIN basket and 44 mm mounting depth make it a practical replacement for factory speakers in most vehicles.
Key specifications
- Size: 165 mm / 6.5 inch
- Type: 2-way coaxial
- Power handling: 70W RMS / 110W max
- Impedance: 4 ohms
- Efficiency: 91 dB
- Frequency response: 60 Hz to 20 kHz
- Tweeter: 13 mm / 0.51 inch Mylar
- Mounting cutout: 142.5 mm / 5.61 inch
- Mounting depth: 44 mm / 1.73 inch
Want a separate tweeter for better imaging? The Ground Zero GZIC 650FX component kit is the 6.5 inch component option from the same range.
GZIF 6501FX: 165 mm / 6.5″ 2-way coaxial speaker system
A straightforward upgrade for factory speakers. The GZIF 6501FX fits standard Euro-DIN locations and keeps installation depth low, making it a practical choice for most vehicles.
Features
- 2-way coaxial speaker system
- Coated paper cone
- Rubber surround
- Euro-DIN basket
- Resonance free steel basket
- Universal 4 ohms version
- 13 mm / 0.51″ Mylar tweeter
- Ferrite motor
- 6 dB/oct high pass filter

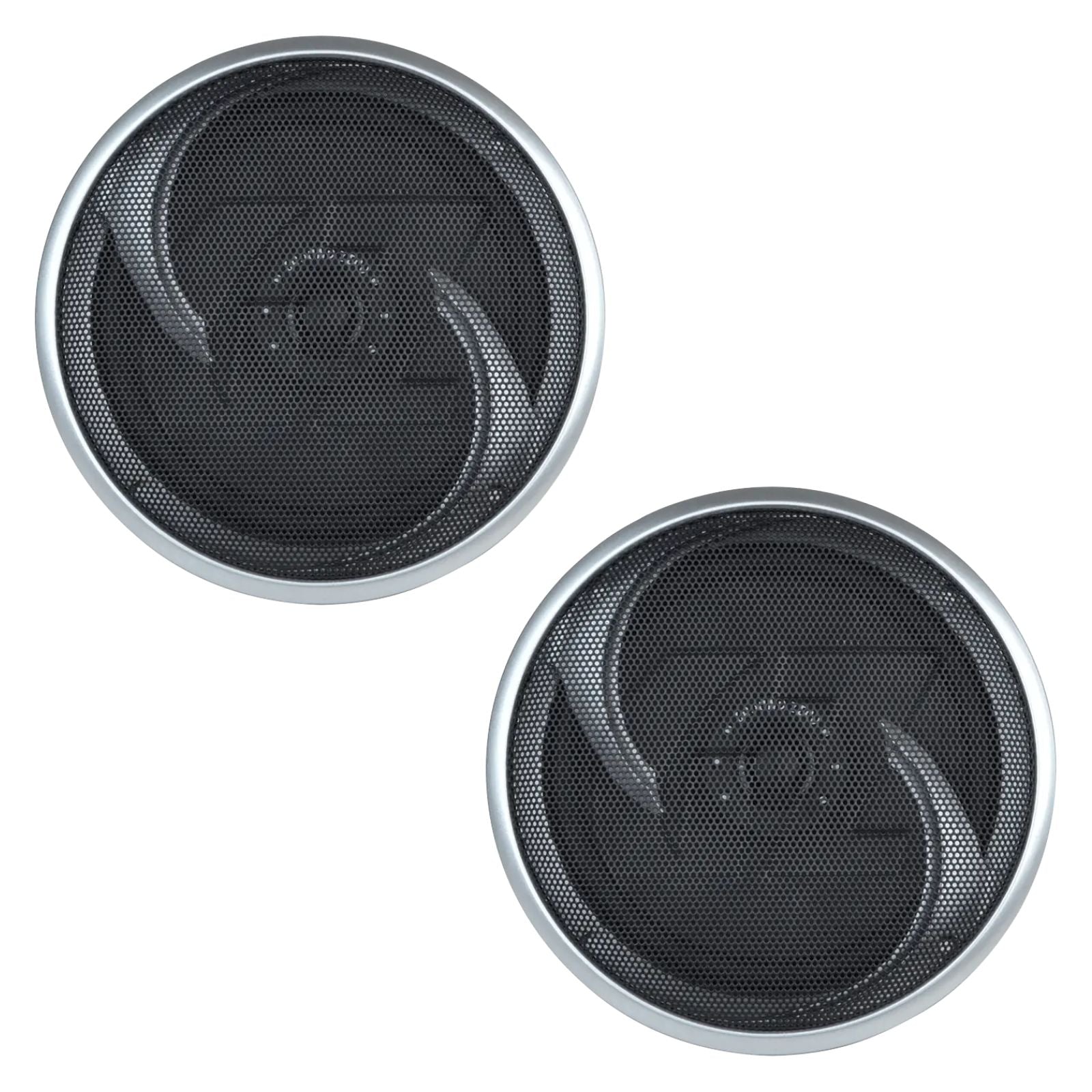

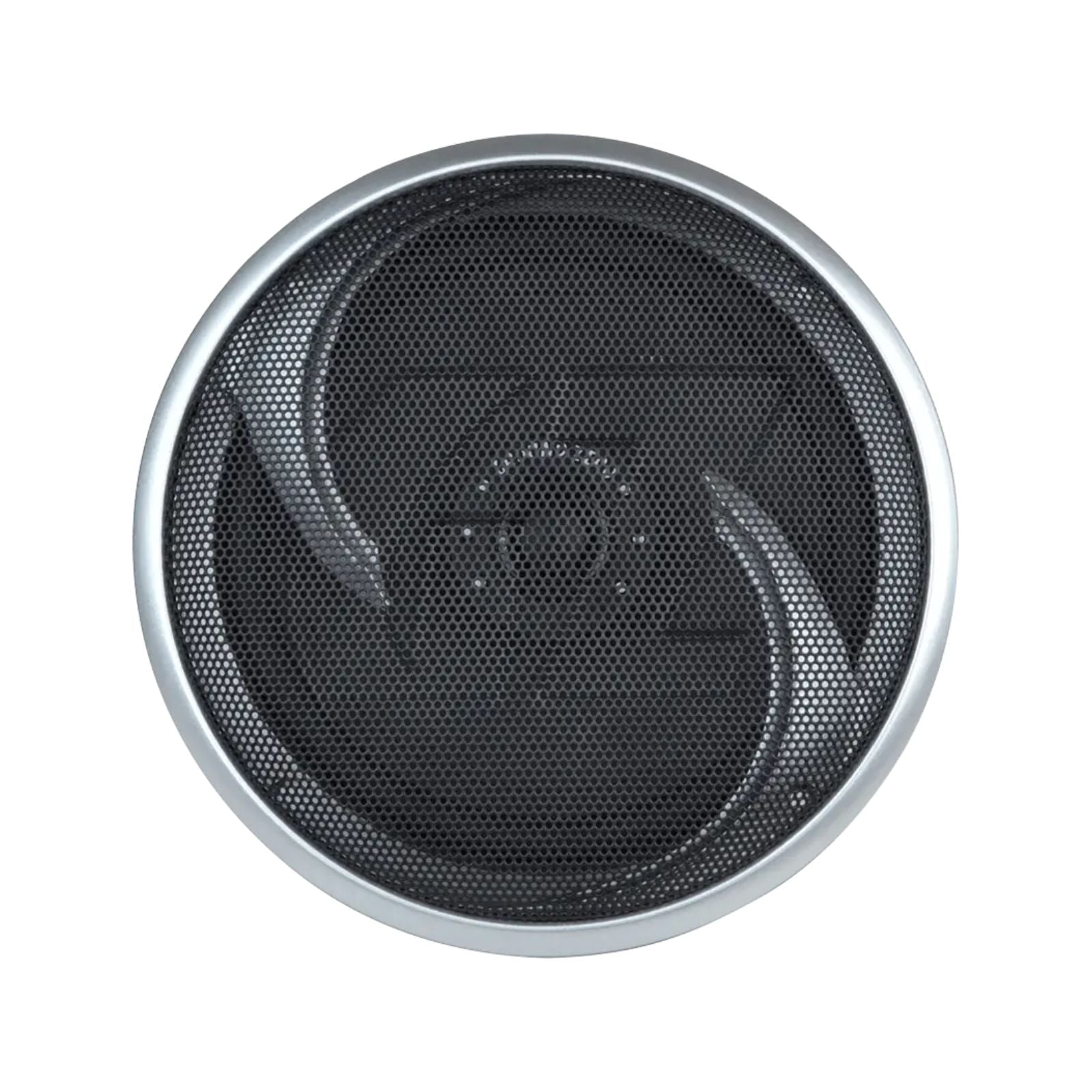

- Incl. protection grill
Explore the full range in Ground Zero.
Specification
| Impedance | 4 Ohms |
|---|---|
| Frequency response | 60 Hz – 20 kHz |
| Efficiency (SPL) | 91 dB |
| Power handling | (RMS) 70 Watts |
| Power handling | (max.) 110 Watts |
| Tweeter | 13 mm / 0.51″ mylar |
| Cone | Coated Paper |
| Fs | 84 Hz |
| Xmax | 6 mm / 0.24″ |
| Diameter (nominal) | 165 mm / 6.5″ |
| Mounting cutout | 142.5 mm / 5.61″ |
| Mounting depth | 44 mm / 1.73″ |
What's Included
- GZIF 6501FX
Ground Zero
About the Ground Zero GZIF 6501FX
From our tech experts at CEN
Ground Zero 6.5 inch coaxial speakers, rated at 70w RMS.
Who it suits
Drivers replacing tired factory speakers who want a clear improvement.
Our tech experts advise
Sizes, adapter rings and harnesses vary by vehicle, year and trim, so we confirm what your car takes before ordering rather than guessing. Door treatment matters as much as the speaker, and these repay an amplifier. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.
Explore the full Ground Zero range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Ground Zero
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Looking for Installation?
At CEN we take pride in being able to share the quality of our work as well as being able to show what incredible products we have installed week on week.
More from Ground Zero
More options from the same range, in stock and ready to go
Frequently Asked Questions
Q: How do I choose the right amplifier for my speakers or subwoofer?
A: Match the amplifier's RMS output per channel to the RMS handling of your speakers or subwoofer at the same impedance. The Specification tab lists the power figures. If in doubt, contact CEN with your setup and we will recommend a match.
Q: What is the mounting depth of the GZIF 6501FX?
A: It needs 44 mm (1.73 inch) of mounting depth and a 142.5 mm (5.61 inch) cutout.
Q: Will the GZIF 6501FX run from my head unit?
A: Yes. It is a 4 ohm speaker with 91 dB efficiency, so it works from a head unit. It can also take up to 70W RMS from an amplifier.
Q: Can CEN fit these speakers for me?
A: Yes. CEN offers professional installation from our Nottingham premises. Contact us to book an installation slot or ask for a fitting quote.
