Bluetti PV200 Portable Solar Panel IP65 Splashproof 200W
Couldn't Load Pickup availability

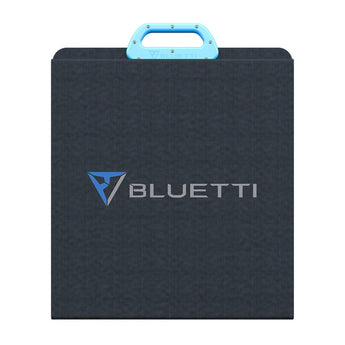

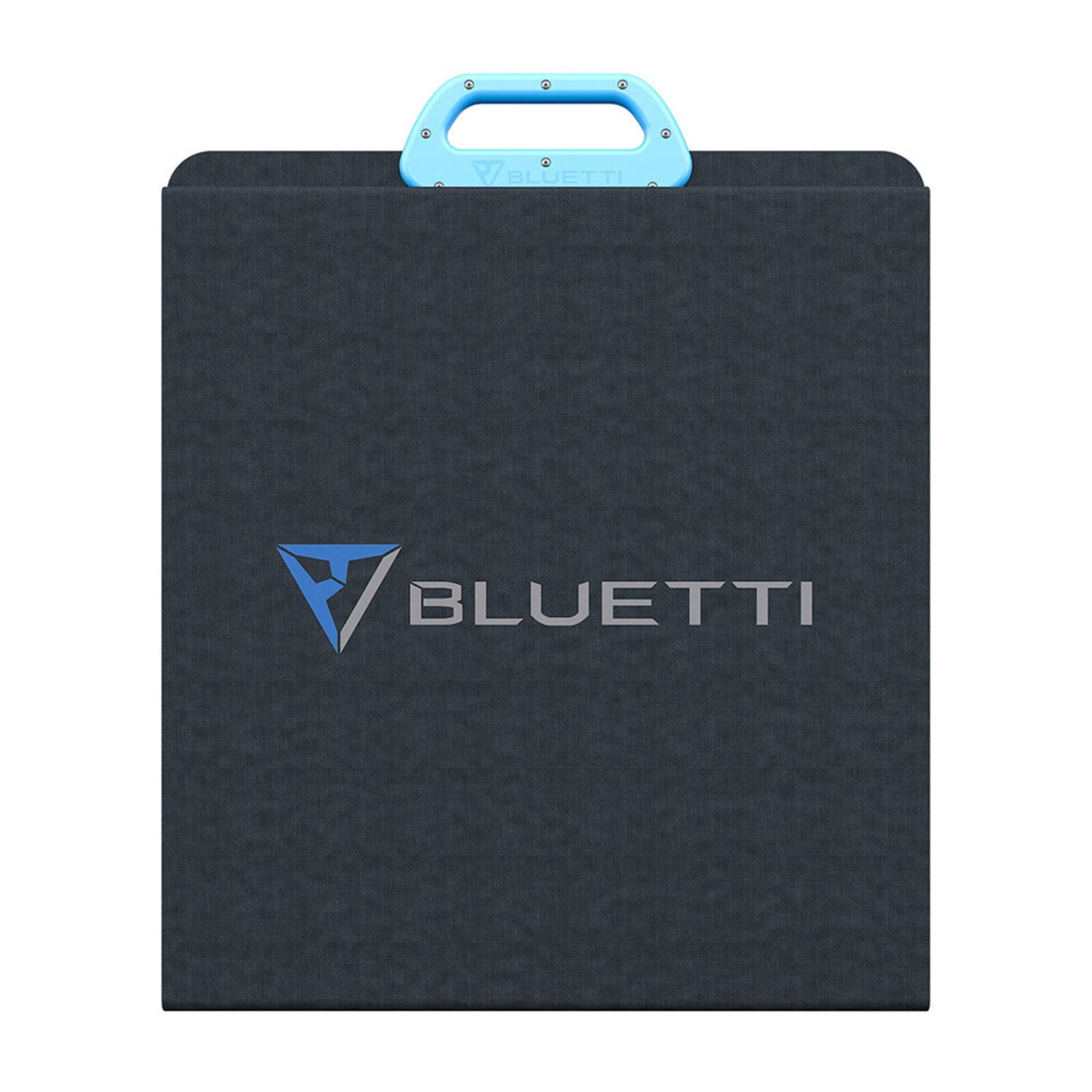

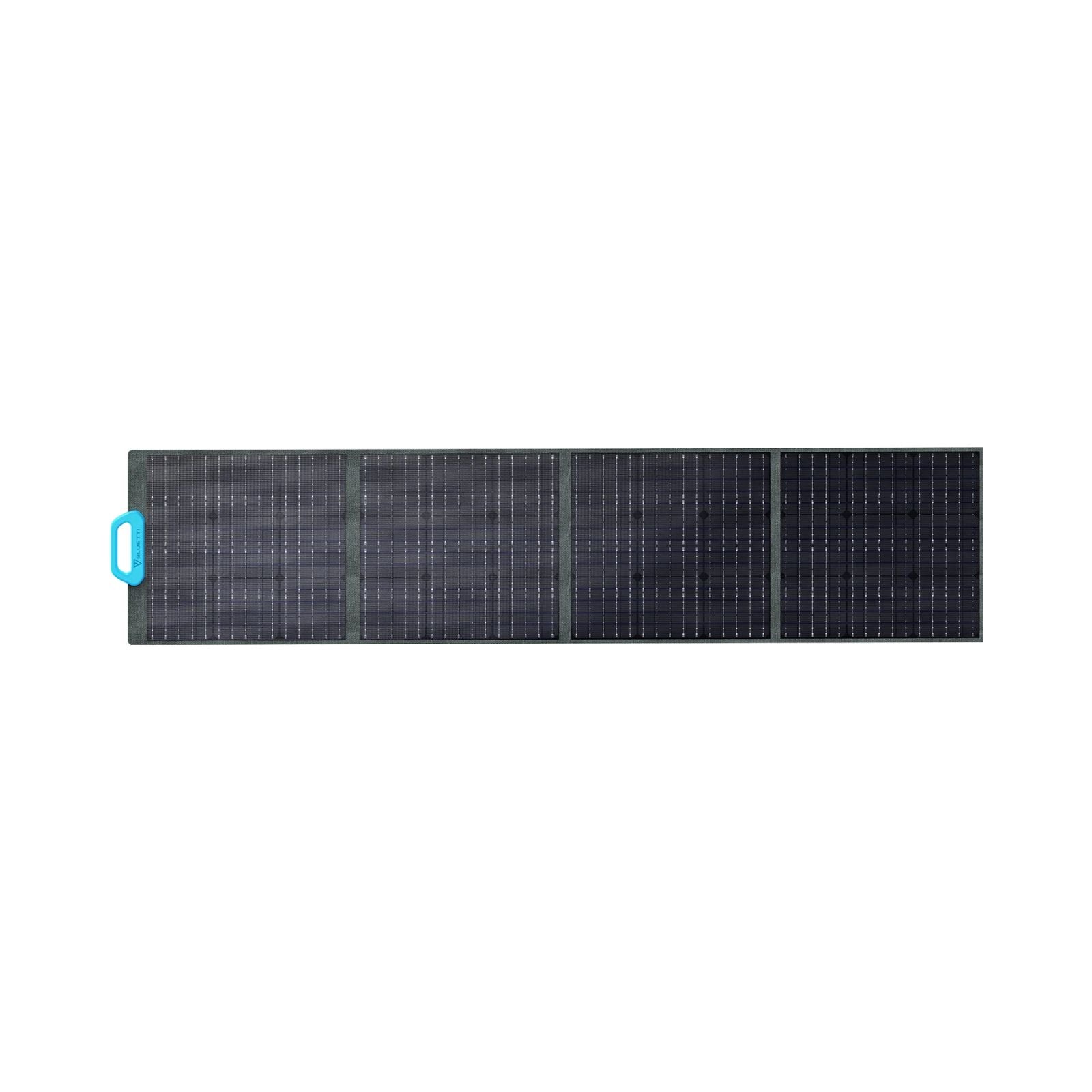

The Bluetti PV200 is a 200W foldable monocrystalline solar panel with up to 23.4% cell efficiency, an ETFE coating, and an IP65-rated junction box. It connects via universal MC4 to Bluetti and other compatible power stations, and is part of the Bluetti portable solar panel range.
This listing is the 200W PV200. The Bluetti portable solar panel range is also available in 60W (Sora 60) and 500W (Sora 500).
Key specifications
- Power: 200W
- Cells: monocrystalline, up to 23.4% efficiency
- Protection: ETFE coating, IP65 junction box (splash-resistant)
- Vmp / Imp: 20.5V / 9.7A
- Voc / Isc: 26.1V / 10.3A
- Connector: universal MC4, 3m cable
- Weight: 7.3kg
- Folded size: 59 x 60cm
23.4% High Efficiency
Monocrystalline cells convert up to 23.4% of sunlight into usable energy, maintaining effective charging even in poor weather conditions.
Easy Mobility, Easy Power
The foldable, lightweight design makes the PV200 straightforward to carry, set up, and use — whether during a power outage at home or as part of an off-grid setup.

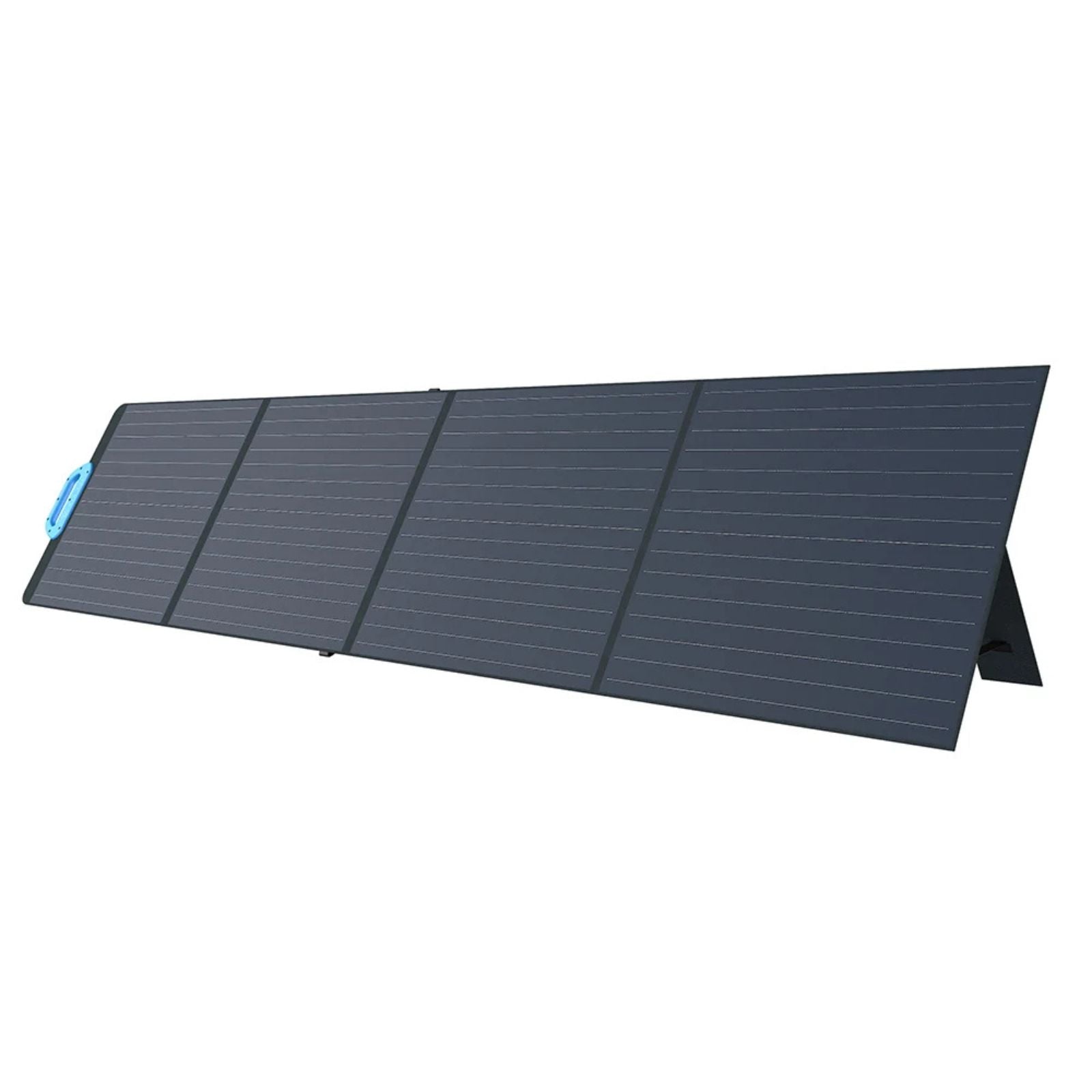

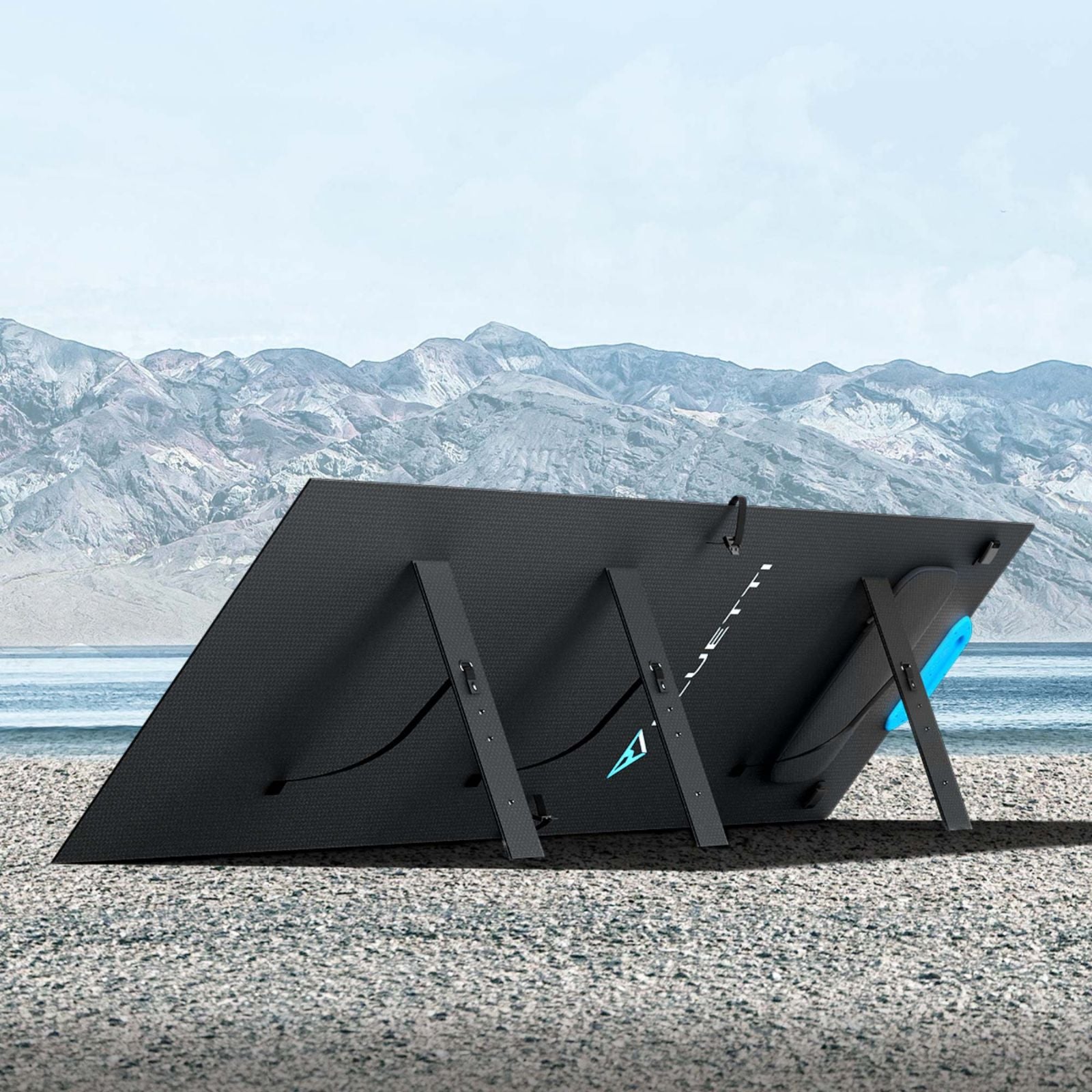

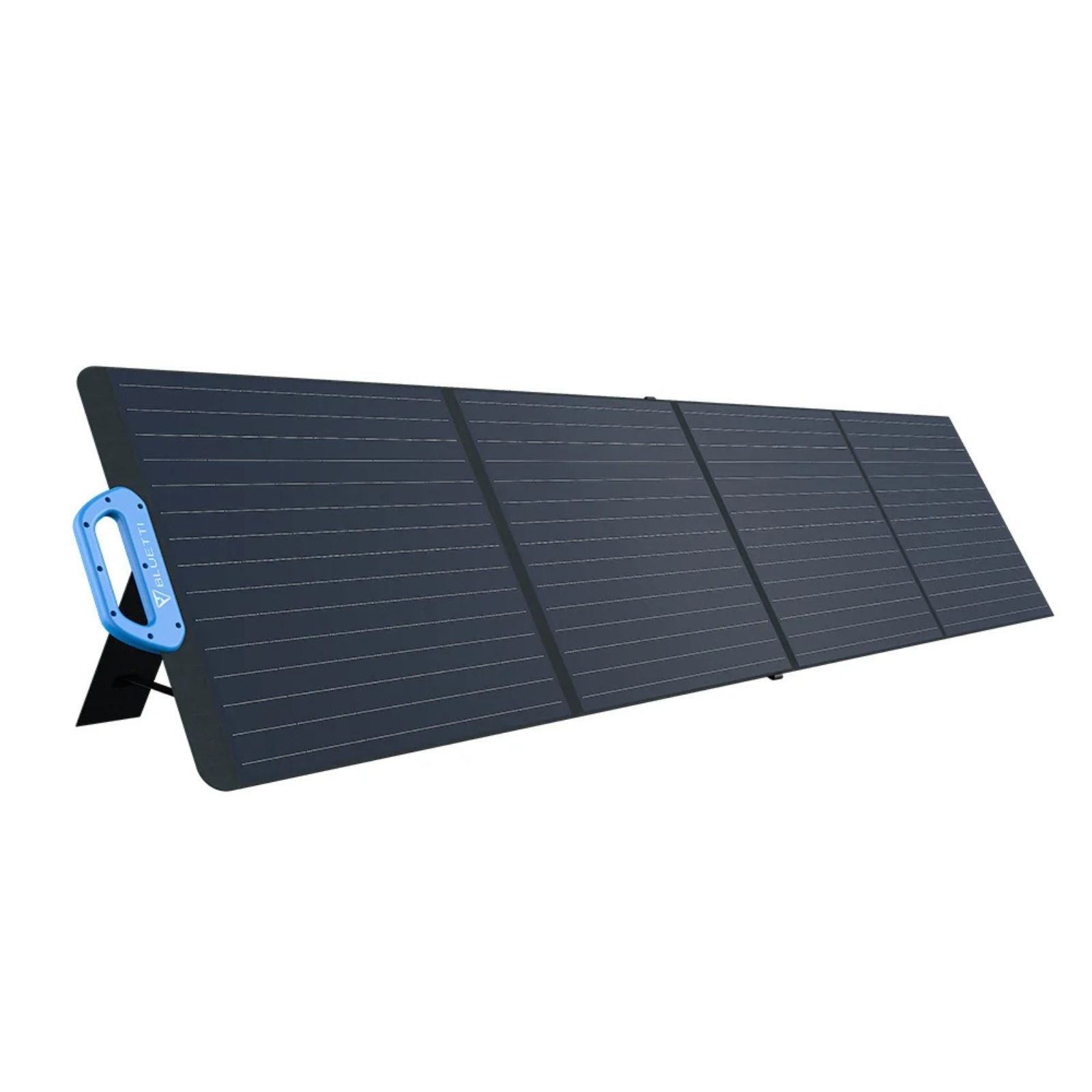

Easy Setup With Kickstand
Unfold the panel, snap out the kickstands, adjust the angle to maximise sunlight exposure, and connect to your power station. Recharging times below refer to charging to 80%.
- BLUETTI EB55 (537Wh) + PV200: as soon as 3 hours
- BLUETTI AC200P (2,000Wh) + 2× PV200: as soon as 5.5 hours
- BLUETTI AC200MAX (2,048Wh) + 4× PV200: as soon as 3 hours
- BLUETTI AC300 + B300 (3,072Wh) + 8× PV200: as soon as 2.5 hours
- BLUETTI EP500PRO (5,100Wh) + 6× PV200: as soon as 4.5 hours
Built to Last
The ETFE coating resists scratches, and the IP65-rated junction box handles water splashes — suited to camping, fishing, and hiking. Avoid direct rain exposure and do not submerge in water.
Universal Compatibility
The universal MC4 interface and 3m cable allow the PV200 to work with a wide range of power stations beyond the Bluetti ecosystem. Plug in and solar energy flows straight to your storage device. It pairs directly with Bluetti power stations such as the Bluetti AC60P 504Wh portable power station.
Explore the full range in Bluetti Solar Panels.
Specification
| Model | PV200 |
|---|---|
| Power | 200W |
| Lamination | ETFE (Ethylene tetrafluoroethylene) |
| Cell Type | Monocrystalline Silicon |
| Cell Efficiency | Up to 23,4% |
| Voltage at Max Power(Vmp) | 20,5V |
| Current at Max Power(Imp) | 9,7A |
| Open Circuit Voltage(OCV) | 26,1V |
| Short Circuit Current(Isc) | 10,3A |
| Connector | Standard MC4 Connector |
| Weight | 16,1lbs (7,3kg) |
| Dimensions | (Unfolded) 23,2 × 89,2in (59 × 226,5cm) |
| Dimensions | (Folded) 23,2 × 24,8inch (59 × 60cm) |
| Operating Temperature | 14-149℉ (-10-65℃) |
| Best Working Temperature | 77℉ (25℃) |
| Cable Length | 118in (3m) |
| Certifications | FCC, CE, ROHS |
What's Included
- PV200 Solar Panel
- Manuals
- Warranty Card
Bluetti
About the Bluetti PV200
From our tech experts at CEN
A Bluetti portable solar panel, 200W.
Who it suits
Campers, vanlifers and anyone running a power station who wants to top it up without an engine or a hookup.
Our tech experts advise
Output in UK conditions is well below the rated figure, so plan for more panel than the arithmetic suggests. Angle matters more than most people expect: flat on the ground is the worst case. get in touch for advice on pairing it to your power station.
Explore the full Bluetti range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Bluetti
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Looking for Installation?
At CEN we take pride in being able to share the quality of our work as well as being able to show what incredible products we have installed week on week.
More from Bluetti
More options from the same range, in stock and ready to go
Frequently Asked Questions
Q: Is the PV200 waterproof?
A: It has an IP65 junction box and ETFE coating that resist water splashes and scratches, but it should not be left in rain or submerged.
Q: Will the PV200 work with my power station?
A: Its universal MC4 connector suits a wide range of power stations. Check that your power station accepts the PV200 open circuit voltage of 26.1V and current of up to 10.3A.
Q: How heavy is the PV200?
A: It weighs 7.3kg and folds to 59 x 60cm. Unfolded it measures 59 x 226.5cm.
