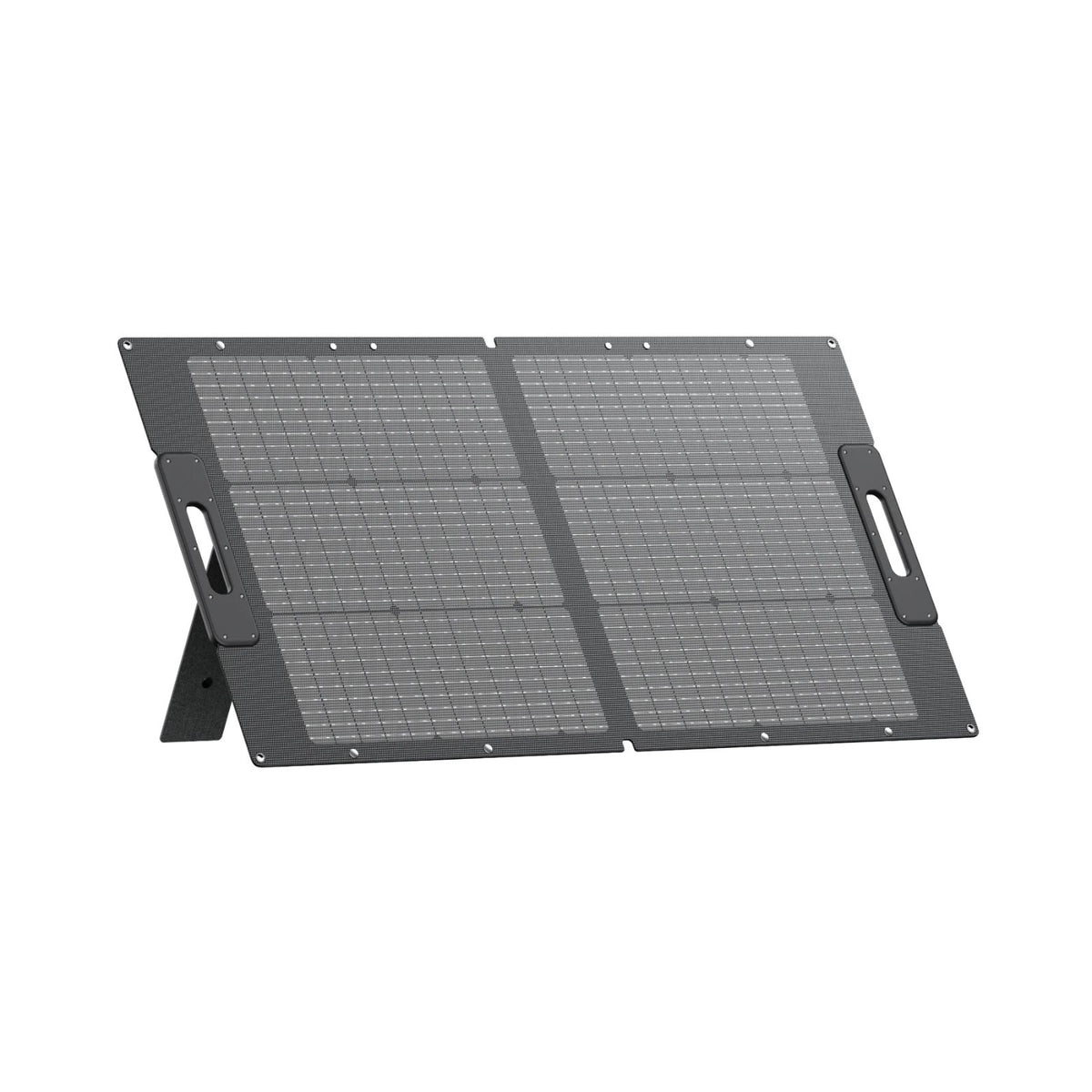

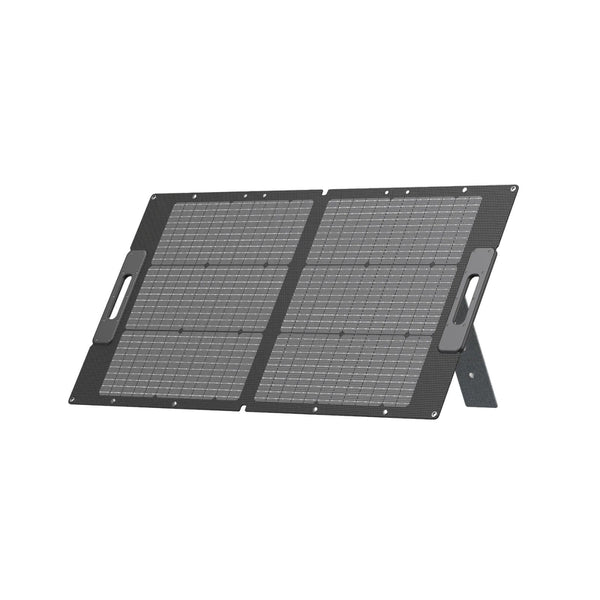

The Bluetti PV100D is a 100W foldable monocrystalline solar panel with up to 23.4% cell efficiency, IP67 waterproofing and an ETFE coating, from the Bluetti solar panel range.
This listing is the 100W model. The Bluetti portable solar panel range is also available in 60W and 500W.
Key specifications
- Power: 100W
- Cells: monocrystalline, up to 23.4% efficiency
- Lamination: ETFE
- Water resistance: IP67
- Vmp / Imp: 20.5V / 4.9A
- Voc / Isc: 24.6V / 5.8A
- Connector: standard MC4, 3m cable
- Weight: 4.9kg
- Folded size: 595 x 565 x 35mm
Collecting and storing solar energy

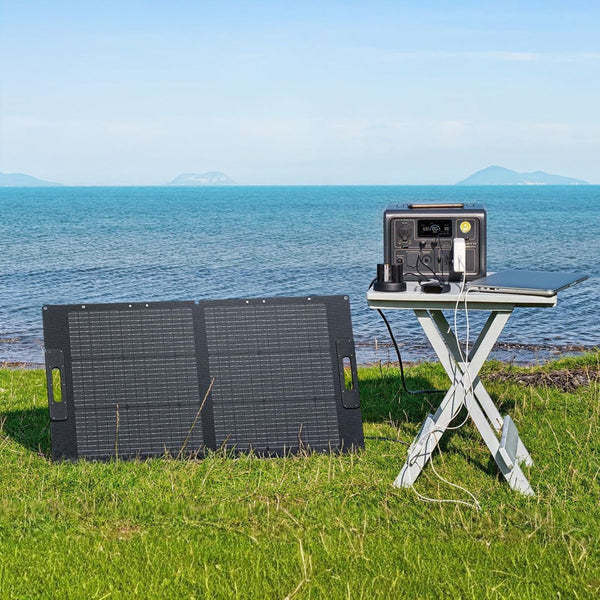

The PV100D works with a compatible solar generator to collect, convert and store clean solar energy. It suits travelling, camping or daily backup use, and is compatible with BLUETTI and other MC4-compatible power stations.
Superior durability and efficiency
The ETFE coating provides UV resistance and extends the panel's working life in all conditions. Monocrystalline cells deliver up to 23.4% conversion efficiency to make the most of available sunlight.
Easy setup with kickstand

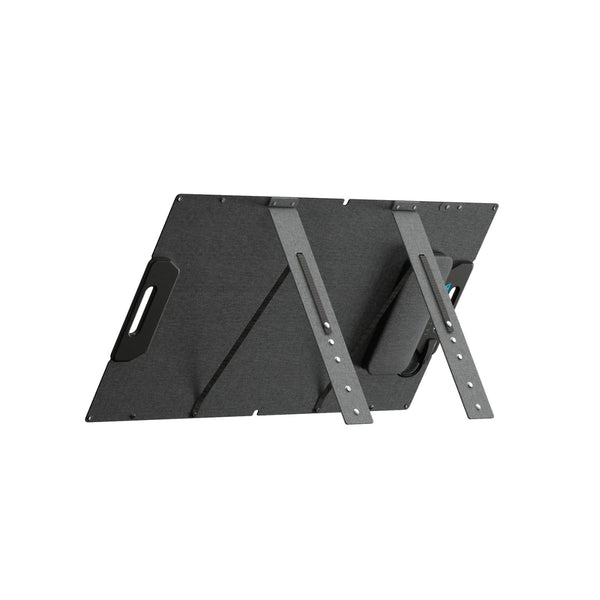

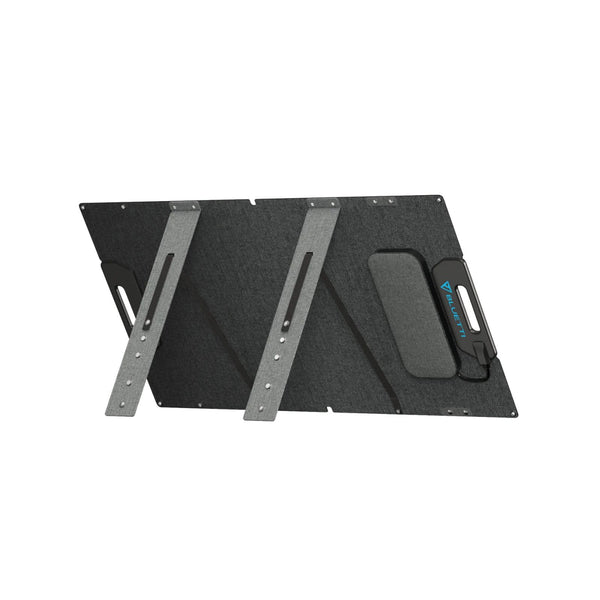

Unfold the panel, snap the built-in kickstands into position, adjust the angle towards the sun, and it is ready to charge your power station. No tools required.
Explore the full range in Bluetti Solar Panels.
Specification
| Power | 100W |
|---|---|
| Lamination | ETFE (Ethylene tetrafluoroethylene) |
| Cell Type | Monocrystalline Silicon |
| Cell Efficiency | Up to 23.4% |
| Voltage at Max Power(Vmp) | 20.5V |
| Current at Max Power(Imp) | 4.9A |
| Open Circuit Voltage(Voc) | 24.6V |
| Short Circuit Current(Isc) | 5.8A |
| Connector | Standard MC4 Connector |
| Water Resistance | IP67 |
| Weight | 10.8 lbs (4.9 kg) |

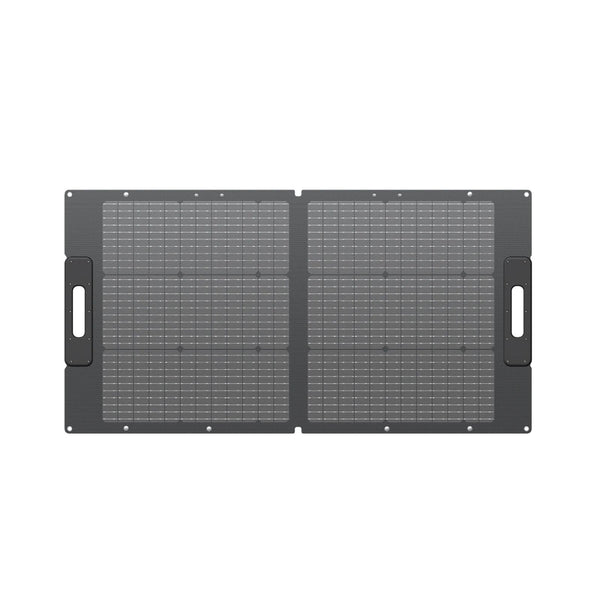

| Dimensions | (Unfolded) 1135 × 600 × 4 mm (44.6 × 23.4 × 0.8 in) |

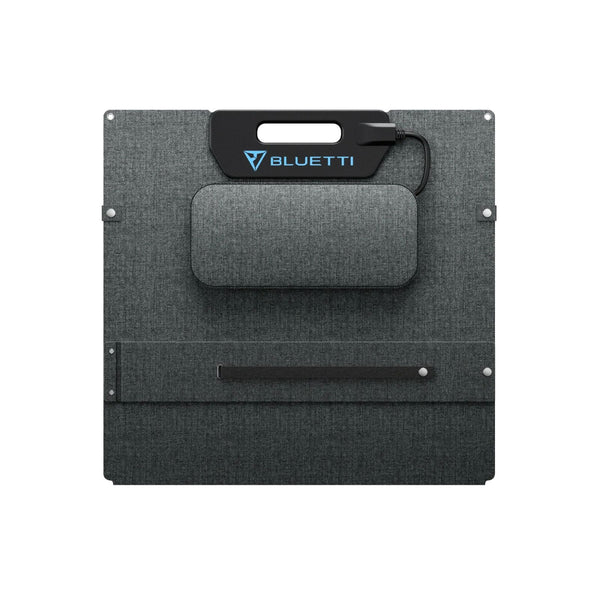

| Dimensions | (Folded) 595 × 565 × 35 mm (23.4 × 22.3 × 1.4 in) |
| Operating Temperature | 14-149°F (-10°C to +65°C) |
| Best Working Temperature | 77°F (25°C) |
| Cable Length | 118 in (3m) |
| Certifications | CE, ROHS, PSE, FCC, UKCA |
What's Included
- PV100D Foldable Solar Panel
- Manuals
- Warranty Card
Bluetti
About the Bluetti PV100D
From our tech experts at CEN
A Bluetti portable solar panel, 100W.
Who it suits

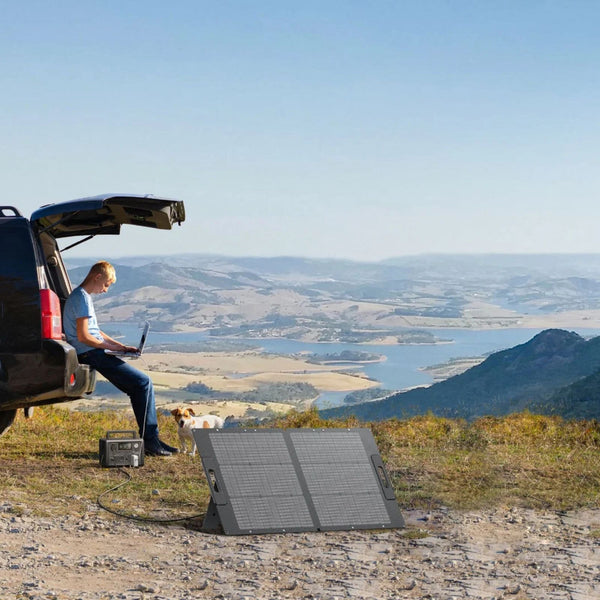

Campers, vanlifers and anyone running a power station who wants to top it up without an engine or a hookup.
Our tech experts advise
Output in UK conditions is well below the rated figure, so plan for more panel than the arithmetic suggests. Angle matters more than most people expect: flat on the ground is the worst case. get in touch for advice on pairing it to your power station.
Explore the full Bluetti range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Bluetti
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Looking for Installation?
At CEN we take pride in being able to share the quality of our work as well as being able to show what incredible products we have installed week on week.
More from Bluetti
More options from the same range, in stock and ready to go
Frequently Asked Questions
Q: Will the PV100D charge my power station?
A: It uses a standard MC4 connector with an open circuit voltage of 24.6V, so it suits power stations whose solar input accepts that voltage, including most BLUETTI models. Check your power station's solar input range in its specification.
Q: How big is the PV100D when folded?
A: Folded it measures 595 x 565 x 35mm and weighs 4.9kg. Unfolded it is 1,135 x 600mm.
Q: How efficient is the PV100D?
A: Its monocrystalline cells convert up to 23.4% of sunlight into electricity, and the ETFE coating adds durability and UV resistance.
Q: Is the PV100D waterproof?
A: The PV100D is IP67 rated for dust and water resistance, and its ETFE coating adds durability and UV resistance for outdoor use.
