Audison Prima APK 165P 6.5" 17cm 2 Way Car Component Door Speakers 115w RMS
Couldn't Load Pickup availability

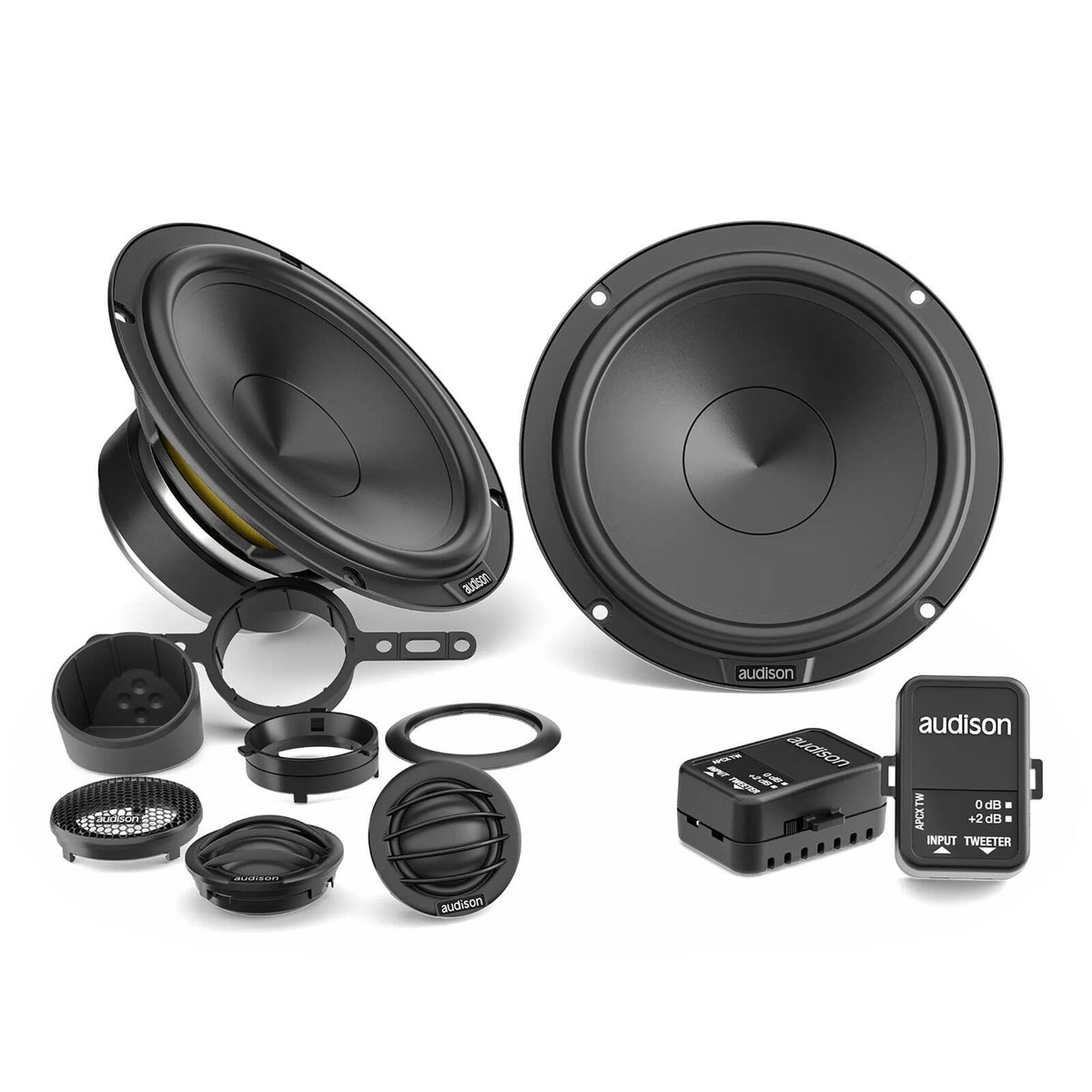

The Audison Prima APK 165P is a 6.5" (165 mm) 2-way component speaker kit from the Audison Prima range, rated at 115 W RMS / 345 W peak. The kit comprises the AP 1P tweeter, AP 6.5P woofer and separate APCX P crossovers.
Key specifications
- Type: 2-way component kit (AP 1P + AP 6.5P + crossovers)
- Woofer size: 165 mm (6.5")
- Tweeter size: 29 mm (1")
- Power handling: 115 W RMS / 345 W peak
- Impedance: 4 ohms
- Sensitivity: 92.5 dB
- Frequency response: 50 Hz – 24 kHz
- Crossover: 4 kHz, 12 dB/oct tweeter / 6 dB/oct woofer
- Tweeter level adjustment: 0 / +3 dB
Audison Prima APK 165P overview
The APK 165P is a 345 W peak, 4-ohm, 2-way component kit combining the AP 1P tweeter, AP 6.5P woofer and separate crossovers. If you prefer a coaxial option in the same 6.5" size, the Audison Prima APX 6.5 is also available.
Audison Prima
Audison Prima is designed for car audio enthusiasts who want to hear every detail of the music through components that fit neatly into OEM door and dash positions. Space efficiency is central to the range's design philosophy.
The APK 165P handles up to 345 W peak and is the ideal pairing for the AP F8.9 bit or other Prima amplifiers running in high-power configurations.

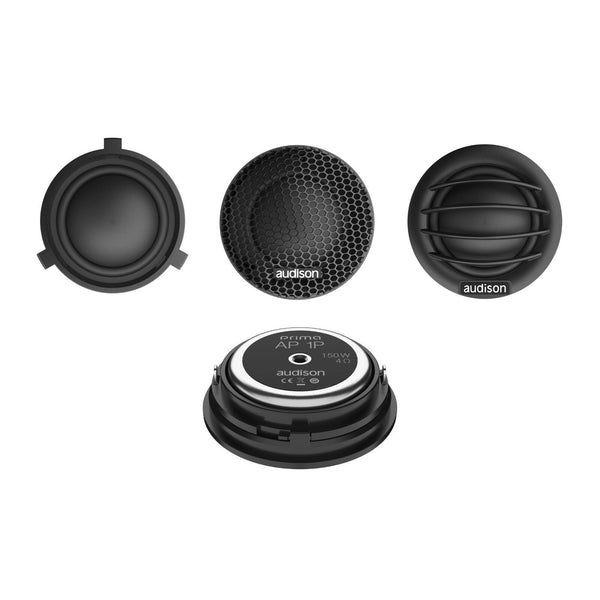

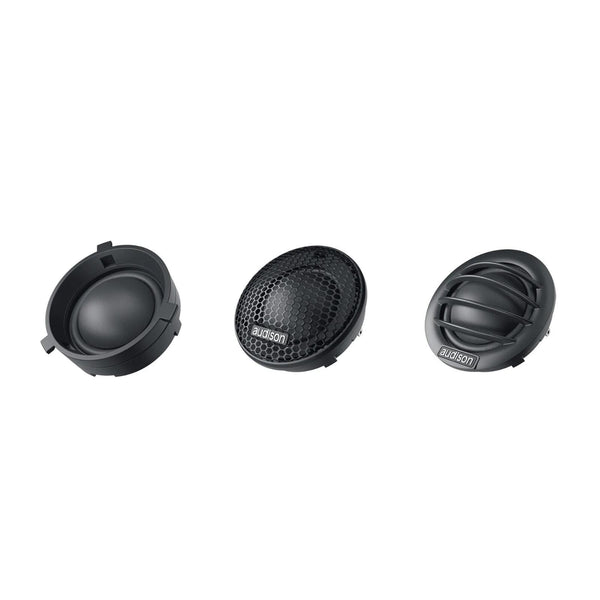

AP 1P tweeter

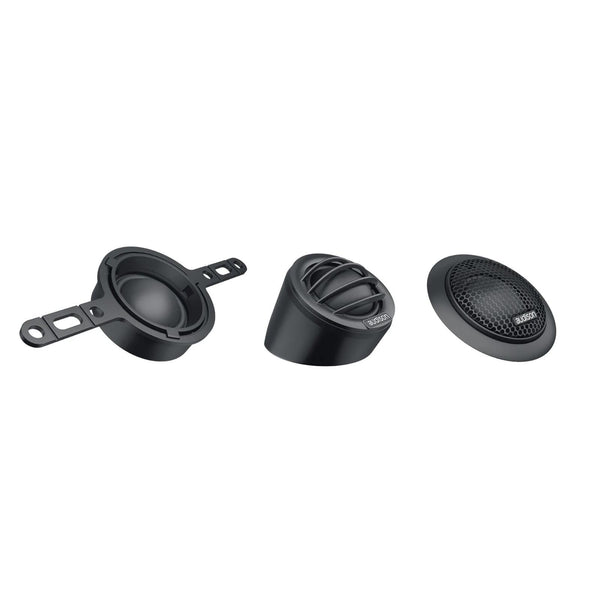

- AIF (Any Install Faceplate) technology for flexible fitment and faster installation.
- Three mounting accessories included to suit any installation type.
- Double neodymium magnet assembly for strong high-frequency extension.
- 1" CCAW voice coil for superior dynamic response.
- FEM-optimised dome profile for wide off-axis dispersion.

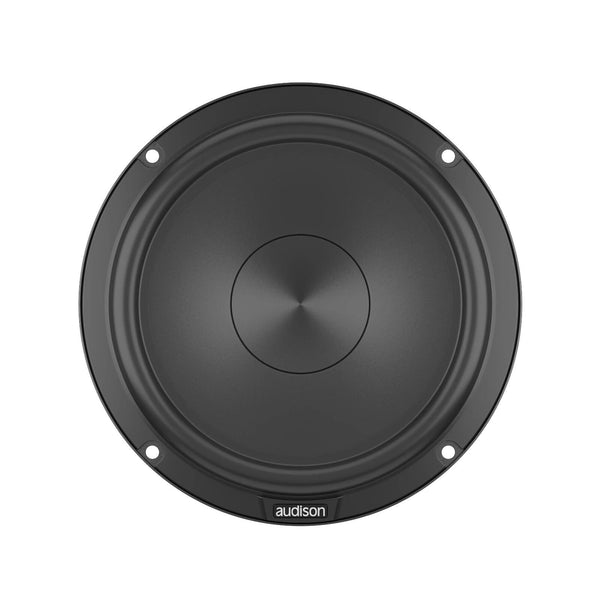

AP 6.5P woofer
- Increased mobile group excursion for superior dynamic response.
- Electro-acoustic parameters optimised for OEM placements.
- Magnetic assembly sized for precise control at maximum cone excursion.
- CCAW (Copper-Clad Aluminium Wire) voice coil (32 x 14 mm) for efficient power handling.
- Compact basket for straightforward OEM installation.
APCX P 2T and APCX P 2W crossovers
- Separate ultra-compact crossovers for tweeter and woofer to minimise space and simplify cable routing.
- Components selected for high-power handling without saturation.
- Asymmetric slope filtering: 12 dB/oct on the tweeter and 6 dB/oct on the woofer for optimal balance between drivers.
Explore the full range in Audison Prima.
Specification
| Magnet | Size Woofer 100 x 40 x 18 |
|---|---|
| Power Handling | - Peak 345 W |
| Power Handling | - Continuous 115 W |
| Sensitivity | 92.5 dB |
| Impedance | 4 Ohm |
| Frequency Response | 50 ÷ 24k |
| Crossover Woofer Low-Pass | 4 kHz @ 6 dB/Oct |
| Crossover Tweeter Hi-Pass | 4 KHz @ 12dB/Oct. |
More specs
| |
What's Included
- Audison Prima APK 165P Speakers
Audison
About the Audison APK 165P
From our tech experts at CEN
Audison Prima 6.5 inch two-way component speakers, with separate tweeters for mounting where you will actually hear them, rated at 115w RMS.
Who it suits
Drivers building a proper front stage, happy for tweeters to be mounted separately, which usually means a professional fit. Prima is the accessible end of the Audison range and still built to the same thinking.
Our tech experts advise
Sizes, adapter rings and harnesses vary by vehicle, year and trim, so we confirm what your car takes before ordering. Door treatment matters as much as the speaker, and Audison drivers repay amplification and tuning. Installation and tuning are priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.
Explore the full Audison range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Audison
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Audison News & Guides
The latest Audison product news, launches and guides from the CEN team in Nottingham.
Audison Prima APBX 10 AS2 Review: Compact Active Bass Done Properly
The Audison Prima APBX 10 AS2 answers the most common bass request we get: proper low-end from a factory-looking system,...
Car Subwoofer Buying Guide: Size, Power and Enclosures Explained
The short version: for most cars, a 10" or 12" subwoofer in a sealed enclosure, driven by a properly matched...
Powerful, Precise Bass with Audison VOCE II Subwoofers
Reproducing low frequencies with authority, precision and dynamic control is essential for achieving a realistic and immersive sound experience. For...
Looking for Installation?
At CEN we take pride in being able to share the quality of our work as well as being able to show what incredible products we have installed week on week.
Elettromedia Brands
Evolution of technology and art of sound
More from Audison Prima
More options from the same range, in stock and ready to go

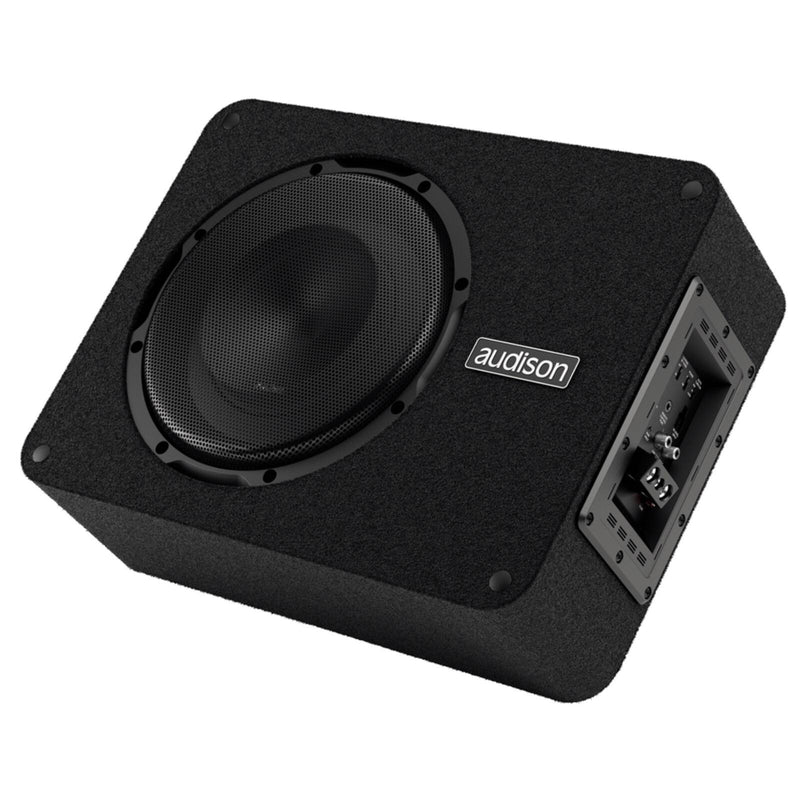

Audison Prima APBX 10 AS2 10" Active Subwoofer Enclosure Compact Sub Box 400w
£529.99RRP £569.99Save 7%

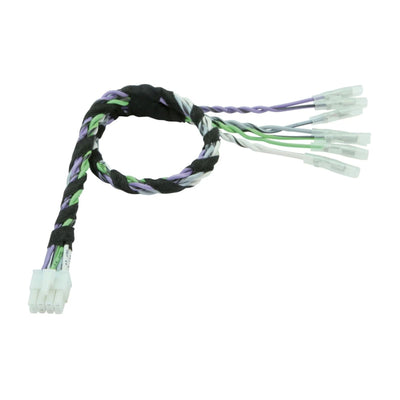

Audison Prima AP SPK OUT 4.9 Speaker Output Cable for AP4.9
£24.99£30.99

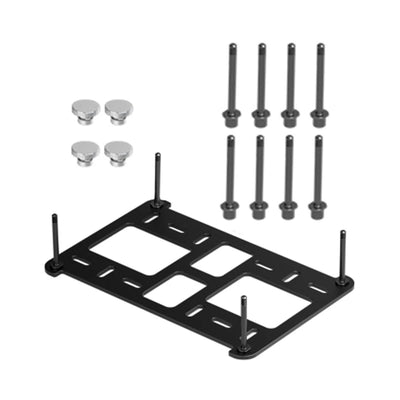

Audison Prima Tower Kit 3 APTK 3 Amplifier Stacking System
£69.99£119.99

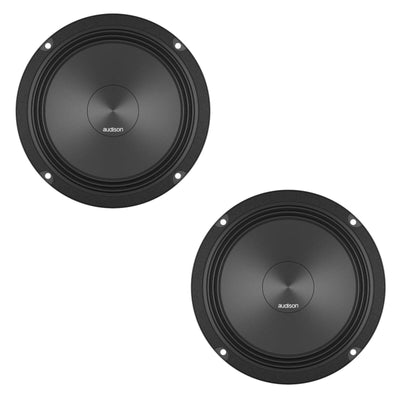

Audison Prima AP 6.5 2 ohm 6.5" 17cm Car Midbass Woofer Door Speakers 70w RMS
(1)£109.99
Best Seller

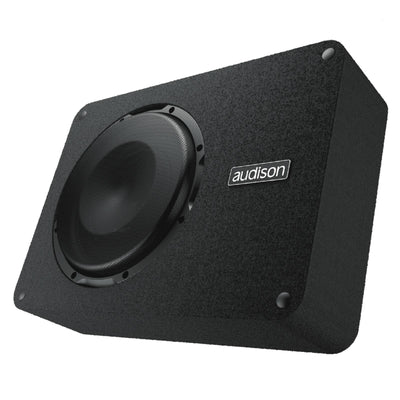

Audison Prima APBX 10 DS 10" Passive Sub Box Compact Subwoofer Enclosure 400w
£379.99
Frequently Asked Questions
Q: Will these speakers fit my car?
A: Most car speakers are standard sizes, but mounting depth and fitting rings vary by vehicle. Check the size in the Specification tab against your vehicle, or contact CEN with your registration and we will confirm fitment and any adapters or fitting kits you need.
Q: Do I need an amplifier to run these speakers?
A: Not always. Most speakers will run from a standard head unit, but a dedicated amplifier lets them perform at their best, particularly for component sets and higher power handling models. The RMS figure in the Specification tab is the guide to how much clean power they can use.
Q: What is the difference between coaxial and component speakers?
A: Coaxial speakers combine the tweeter and woofer in one unit for a simple like-for-like upgrade. Component sets separate the tweeter and woofer with a crossover for better imaging and detail, and suit installs where sound quality is the priority.
Q: Do these come as a pair?
A: Unless stated otherwise, car speakers are sold in pairs. Check the product title and What's Included tab, which lists exactly what is in the box.
Q: Can CEN fit these speakers for me?
A: Yes. CEN offers professional installation from our Nottingham premises. Contact us to book an installation slot or ask for a fitting quote.
Q: What amplifier suits the Audison Prima APK 165P?
A: The APK 165P handles 115 W continuous and 345 W peak at 4 ohms. Audison designed it to make full use of the AP F8.9 bit or other Prima amplifiers in high power configurations.
Q: How can the APK 165P tweeters be mounted?
A: The AP 1P tweeter uses Audison's AIF (Any Install Faceplate) technology and comes with three mounting accessories, giving options for different installation positions.
Q: Does the APK 165P come with crossovers?
A: Yes. It includes separate ultra-compact crossovers for the tweeters (APCX P 2T) and woofers (APCX P 2W), crossing over at 4 kHz with 12 dB/oct on the tweeter and 6 dB/oct on the woofer.
