Audison Prima APK 165 2 ohms 6.5" 16.5cm 2 Way Car Component Door Speakers 100w
Couldn't Load Pickup availability

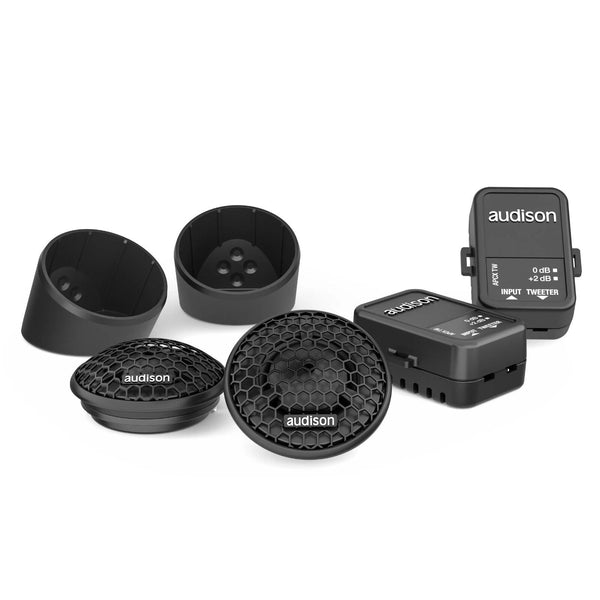

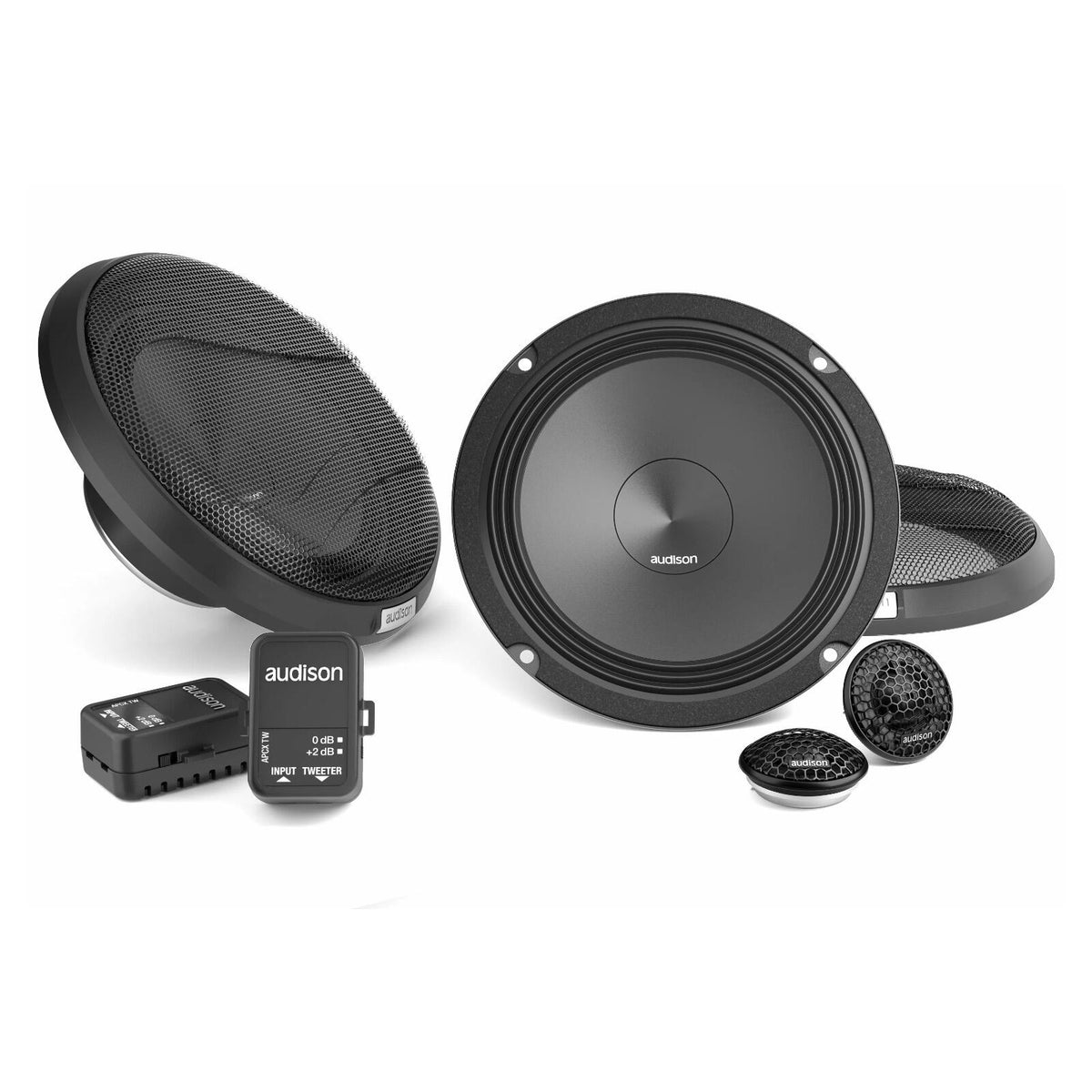

The Audison Prima APK 165 2 ohm is a 6.5" (165mm) 2-way component speaker kit from the Audison Prima range, rated at 100W continuous / 300W peak with a 2 ohm impedance. The kit includes AP 6.5 2 ohm woofers, AP 1 tweeters, and separate APCX WF 2 ohm and APCX TW 2 ohm crossovers.
This listing is the APK 165 2 ohm. The Audison Prima component speaker range is also available as the APK 165P.
Key specifications

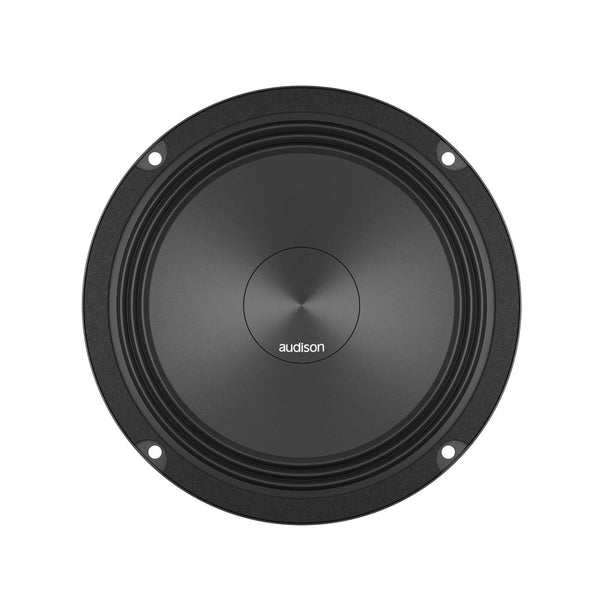

- Woofer: AP 6.5 2 ohm, 165mm, 25mm voice coil

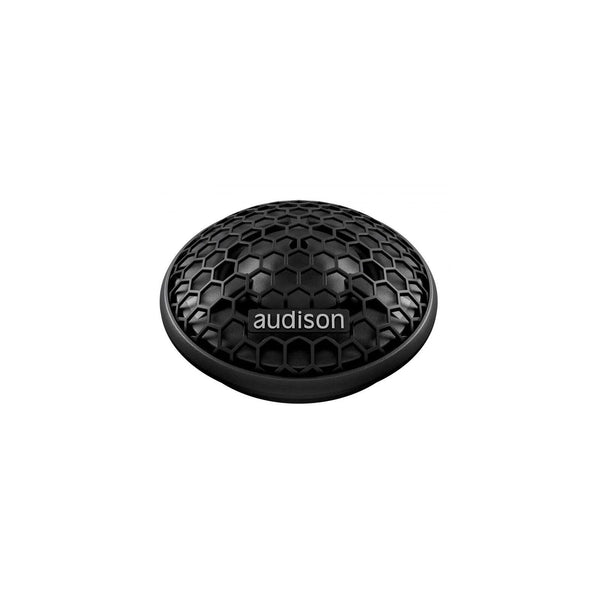

- Tweeter: AP 1, 26mm with acoustic lens
- Power: 100W continuous / 300W peak
- Impedance: 2 ohms
- Frequency response: 50Hz–20kHz
- Crossovers: APCX WF 2 ohm and APCX TW 2 ohm, cut-off 4.5/5kHz
- Tweeter level: 0dB or +2dB
- Woofer sensitivity: 95dB, Xmax 2.8mm
Protective grilles for the woofers are available separately as the Audison Prima APG 6.5.
Audison Prima
Audison Prima is designed for enthusiasts who want OEM system integration without sacrificing sound quality or space. The APK 165 2 ohm features separate crossovers for the woofer and tweeter to simplify installation.
- 2 ohm impedance, designed to fully exploit the 65W per channel at 2 ohm of the AP8.9-bit amplifier.
- 75Hz resonance frequency, extending the frequency range down to 50Hz and increasing SPL in the low range.
- 25mm voice coil maximising efficiency at 95dB.
- 10mm winding height voice coil for maximum linear excursion up to 2.8mm and minimal distortion at high listening levels.
- APCX WF 2 ohm dedicated woofer crossover with low-loss voice coils, shaping the frequency response for an optimal match with the tweeter.
- APCX TW 2 ohm tweeter crossover with Hi-Contour function to enhance high frequencies and achieve the correct timbre balance with the woofer's low-frequency output.

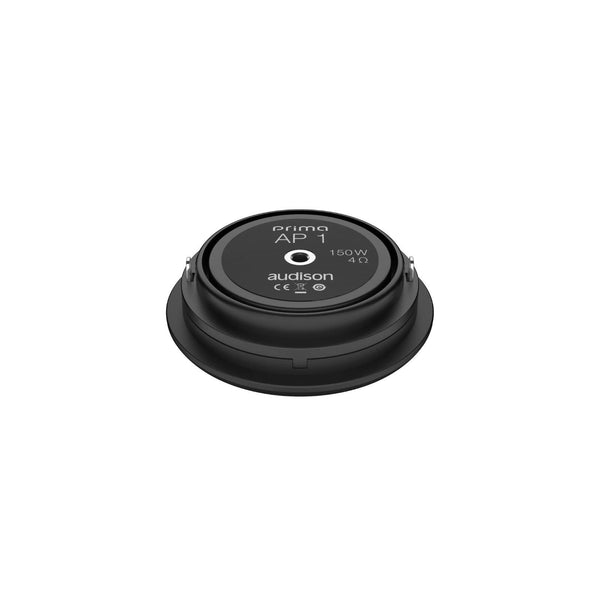

- AP 1 tweeter with acoustic lens, balancing frequency response in the 10kHz–13kHz range and optimising acoustic emission in OEM placements where a factory grille is present.
- Connection cable integrated into the passive crossover, terminated with fast-on connectors. Differently shaped terminations at each pole prevent incorrect connections and speed up installation.

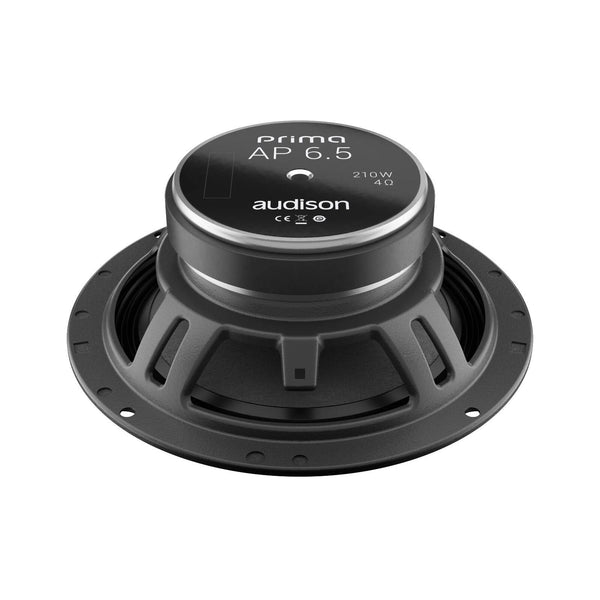

- AP 6.5 2 ohm woofer with water-repellent treated paper cone, developed using FEM simulation technology and optimised with Klippel Scan Vibrometer.
- Reduced mounting depth for ease of installation in OEM placements.
- TPU (thermoplastic polyurethane) surround with "triple wave" profile for maximum excursion linearity.
- Compact basket with abrasion-resistant, scratch-proof coating and damping epoxy glue for coupling with the motor system.
- High-current fast-on terminal with double contact on positive and negative poles and a temperature-resistant plastic cover to protect against accidental short circuits.
- Developed using the KLIPPEL suite.
Explore the full range in Audison Prima.
Specification
| Magnet | Size Woofer 85 x 32 x 15 |
|---|---|
| Power Handling | - Peak 300 W |
| Power Handling | - Continuous 100 W |
| Impedance | 2 Ohm |
| Frequency Response | 50 ÷ 20k |
| Weight | Woofer 0.78 kg |
| Weight | Tweeter 0.04 kg |
More specs
| |
What's Included
- Audison Prima APK 165 Speakers 2ohm
Audison
About the Audison APK 165 2 ohm
From our tech experts at CEN
Audison Prima 6.5 inch two-way component speakers, with separate tweeters for mounting where you will actually hear them, 2 ohm.
Who it suits
Drivers building a proper front stage, happy for tweeters to be mounted separately, which usually means a professional fit. Prima is the accessible end of the Audison range and still built to the same thinking.
Our tech experts advise
Sizes, adapter rings and harnesses vary by vehicle, year and trim, so we confirm what your car takes before ordering. Door treatment matters as much as the speaker, and Audison drivers repay amplification and tuning. Installation and tuning are priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.
Explore the full Audison range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Audison
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Audison News & Guides
The latest Audison product news, launches and guides from the CEN team in Nottingham.
Audison Prima APBX 10 AS2 Review: Compact Active Bass Done Properly
The Audison Prima APBX 10 AS2 answers the most common bass request we get: proper low-end from a factory-looking system,...
Car Subwoofer Buying Guide: Size, Power and Enclosures Explained
The short version: for most cars, a 10" or 12" subwoofer in a sealed enclosure, driven by a properly matched...
Powerful, Precise Bass with Audison VOCE II Subwoofers
Reproducing low frequencies with authority, precision and dynamic control is essential for achieving a realistic and immersive sound experience. For...
Looking for Installation?
At CEN we take pride in being able to share the quality of our work as well as being able to show what incredible products we have installed week on week.
Elettromedia Brands
Evolution of technology and art of sound
More from Audison Prima
More options from the same range, in stock and ready to go
Audison Prima APBX 10 AS2 10" Active Subwoofer Enclosure Compact Sub Box 400w
£529.99RRP £569.99Save 7%
Audison Prima AP SPK OUT 4.9 Speaker Output Cable for AP4.9
£24.99£30.99
Audison Prima Tower Kit 3 APTK 3 Amplifier Stacking System
£69.99£119.99
Audison Prima AP 6.5 2 ohm 6.5" 17cm Car Midbass Woofer Door Speakers 70w RMS
(1)£109.99
Best Seller
Audison Prima APBX 10 DS 10" Passive Sub Box Compact Subwoofer Enclosure 400w
£379.99
Frequently Asked Questions
Q: Will these speakers fit my car?
A: Most car speakers are standard sizes, but mounting depth and fitting rings vary by vehicle. Check the size in the Specification tab against your vehicle, or contact CEN with your registration and we will confirm fitment and any adapters or fitting kits you need.
Q: Do I need an amplifier to run these speakers?
A: Not always. Most speakers will run from a standard head unit, but a dedicated amplifier lets them perform at their best, particularly for component sets and higher power handling models. The RMS figure in the Specification tab is the guide to how much clean power they can use.
Q: What is the difference between coaxial and component speakers?
A: Coaxial speakers combine the tweeter and woofer in one unit for a simple like-for-like upgrade. Component sets separate the tweeter and woofer with a crossover for better imaging and detail, and suit installs where sound quality is the priority.
Q: Do these come as a pair?
A: Unless stated otherwise, car speakers are sold in pairs. Check the product title and What's Included tab, which lists exactly what is in the box.
Q: Can CEN fit these speakers for me?
A: Yes. CEN offers professional installation from our Nottingham premises. Contact us to book an installation slot or ask for a fitting quote.
Q: Why is the APK 165 a 2 ohm speaker?
A: The 2 ohm impedance lets it take full advantage of amplifiers that deliver more power into 2 ohms, such as the Audison AP8.9 bit with 65W per channel at 2 ohms. Check that your amplifier is 2 ohm stable before connecting it.
Q: Does the APK 165 2 ohm come with crossovers?
A: Yes. It has separate APCX WF 2 ohm woofer crossovers, with a low ESR inductor, and APCX TW 2 ohm tweeter crossovers with the Hi-Contour function. The crossover cut-off is 4.5/5kHz and the tweeter level can be set to 0dB or +2dB.
Q: Are grilles available for the APK 165 woofers?
A: Yes. The Audison Prima APG 6.5 is a pair of 165mm grilles compatible with the APK 165 2 ohm woofers.
