Audison Prima AP 1P Tweeter Component 1" 29mm Neodymium REN Magnet 150w Peak
Couldn't Load Pickup availability

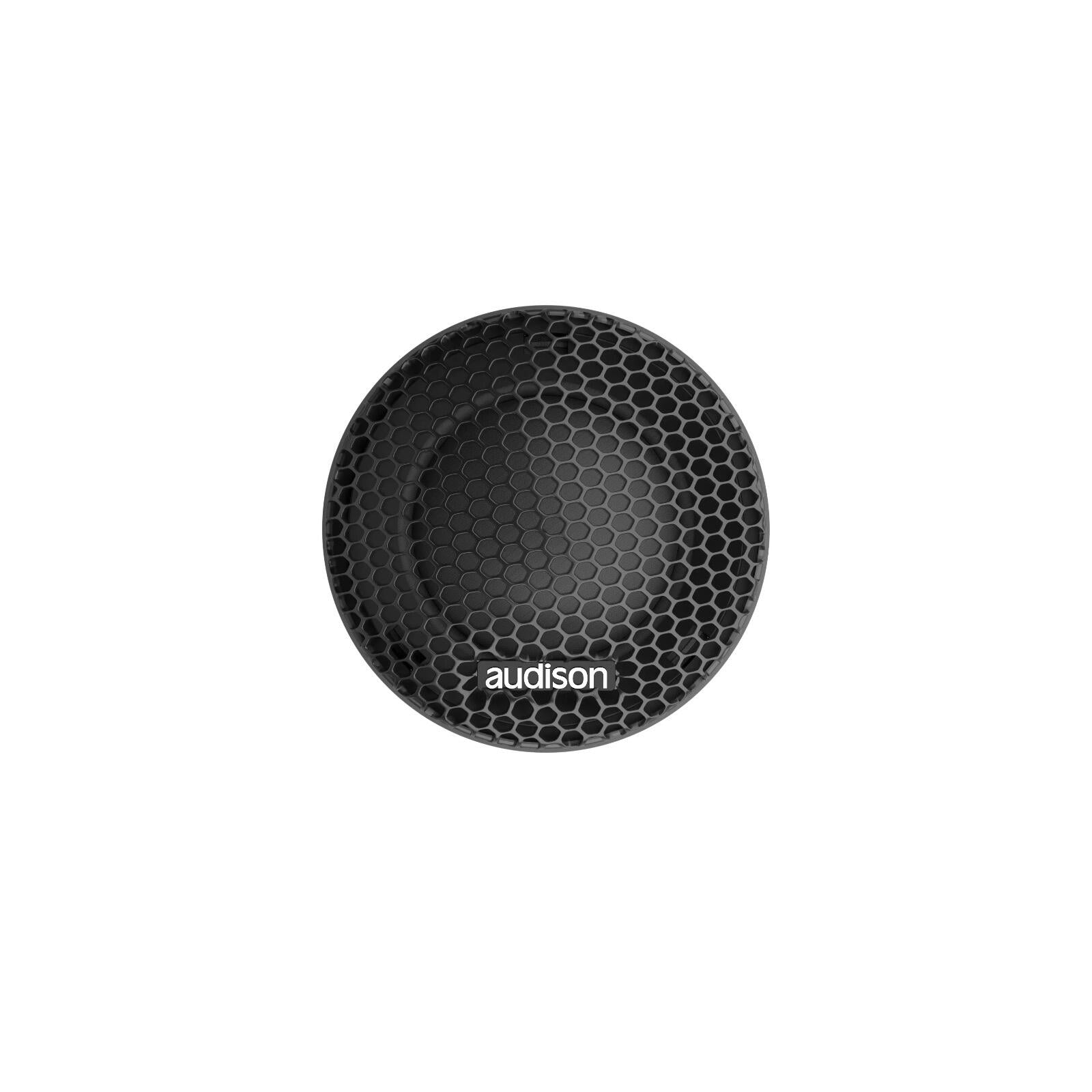

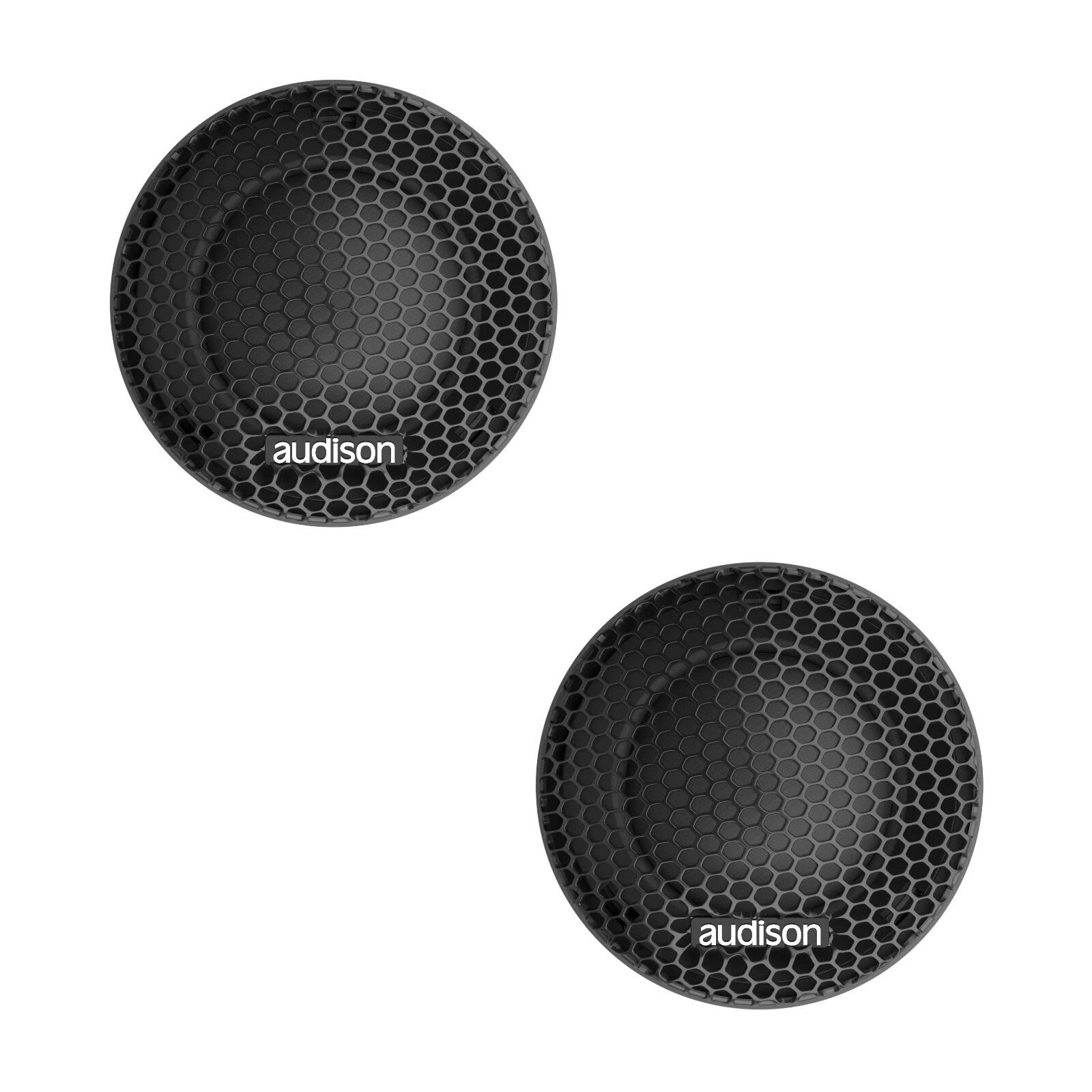

The Audison Prima AP 1P is a 1" (29 mm) Teloton fibre dome tweeter from the Audison Prima range, handling 150 W peak power at 8 ohms, built around a double neodymium magnet and Audison's AIF (Any Install Faceplate) system.
Key specifications
- Size: 29 mm (1")
- Dome material: Teloton fibre
- Magnet: Double neodymium
- Power handling: 150 W peak (hi-pass filtered at 2.5 kHz, 12 dB/oct)
- Impedance: 8 ohms
- Frequency response: 1.2 kHz to 25 kHz
- Sensitivity: 92 dB
- Voice coil: 25 mm (1 in) CCAW

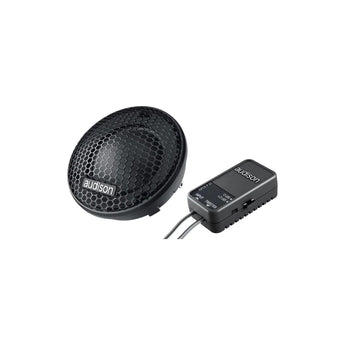

- Crossover: APCX P 2T, high pass 12 dB/oct, tweeter level 0 / +3 dB
Audison Prima
Audison Prima is designed for enthusiasts who want to hear every nuance of their music through components that integrate cleanly with a car's OEM system — without compromising on space.
The AIF (Any Install Faceplate) system gives the installer three different faceplates, reducing installation time and covering virtually any fitment scenario. Four mounting accessories are included to handle any installation type, and the tweeter is designed to run with the APCX P 2T high-pass crossover. Pair it with the Audison Prima AP 6.5 midbass woofer for a full Prima component system.
- AIF technology provides three faceplates for total application versatility.
- Four mounting accessories supplied to suit any installation type.
- Double neodymium magnet for excellent high-frequency extension.
- 1 in. CCAW voice coil for superior dynamic response.
- Dome profile optimised with FEM simulations for wide off-axis dispersion.

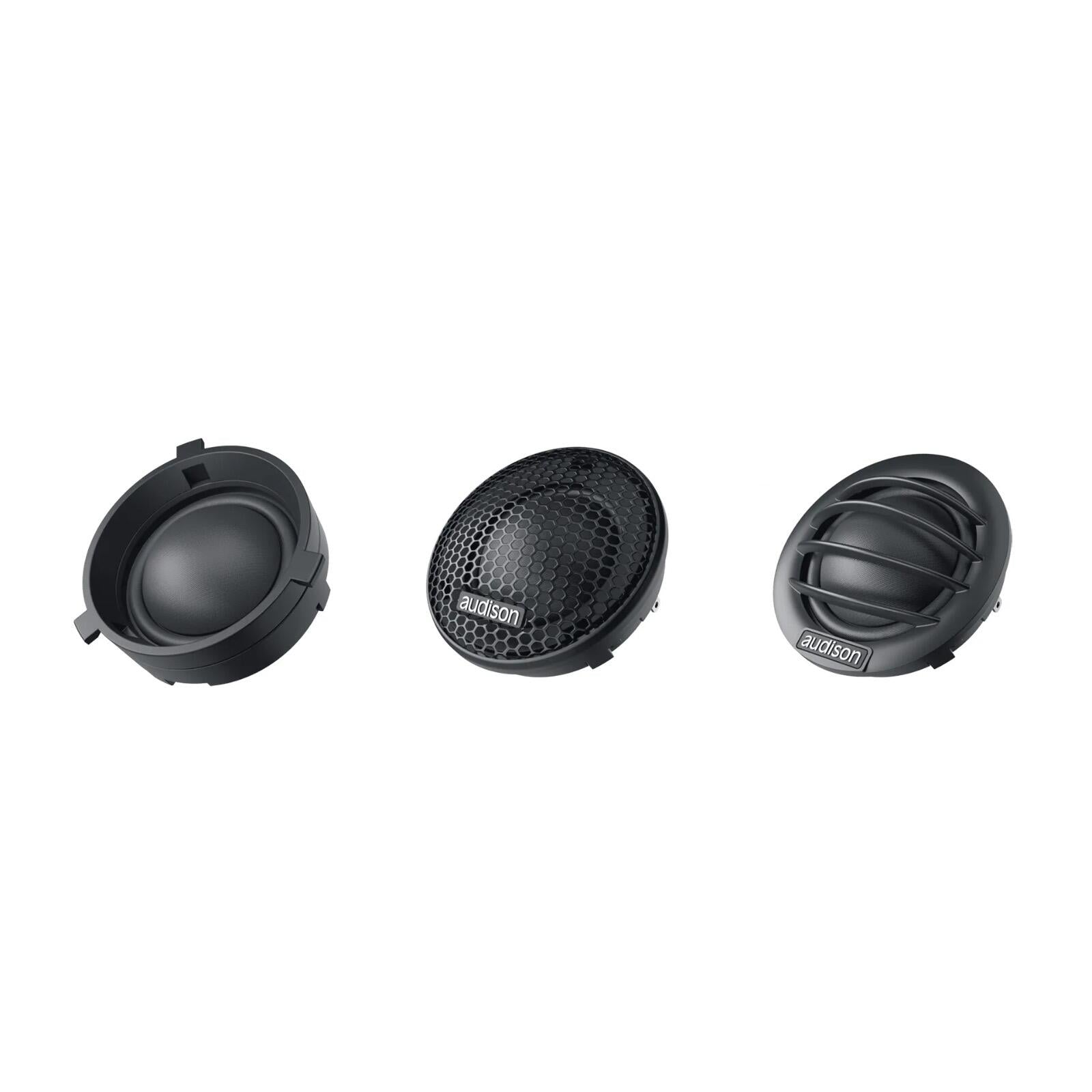

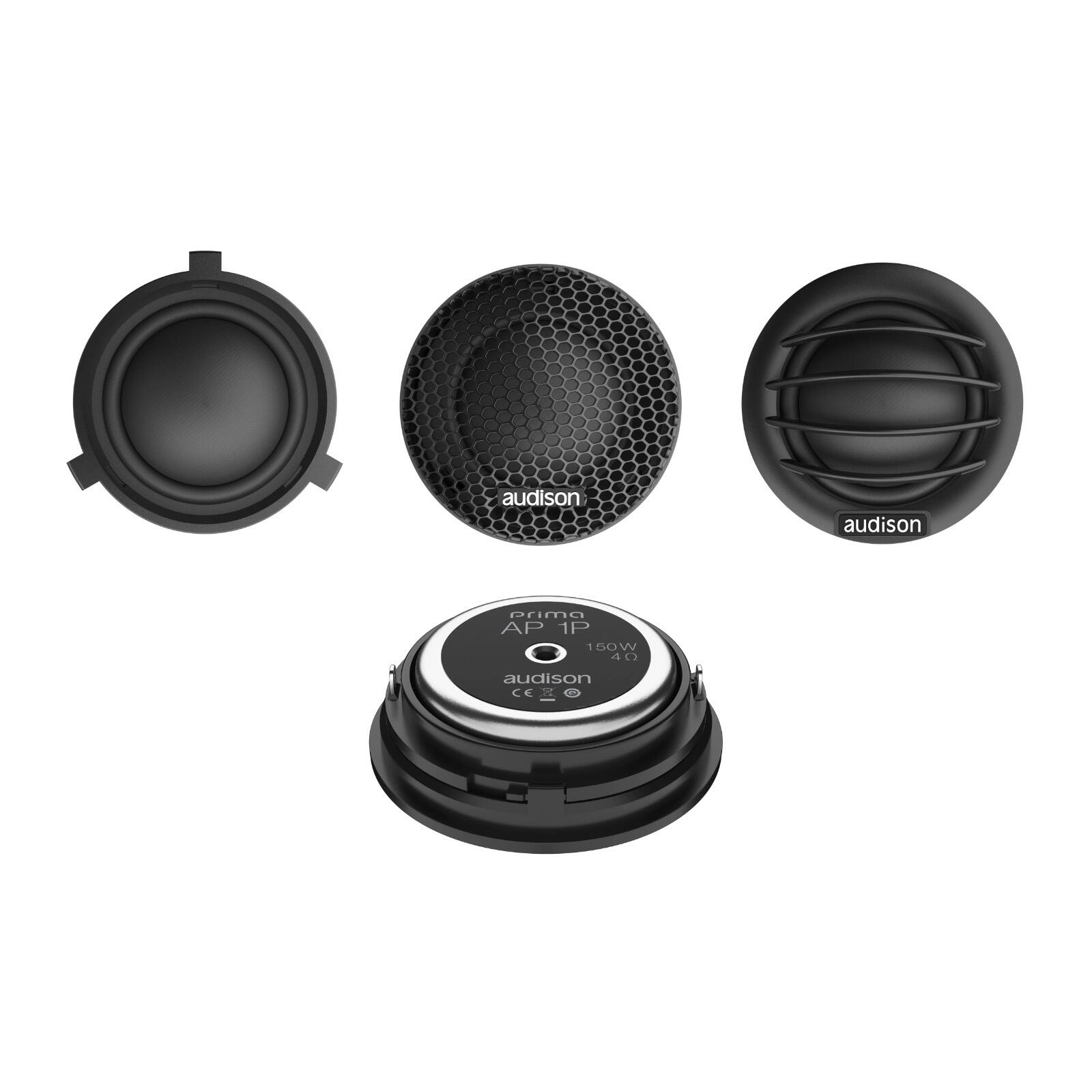

The three AIF faceplates are:
- OEM: for easy, correct factory placement
- Mesh grille: best compromise between protection and performance for A-pillar installations
- Spoke grille: maximum acoustic performance for A-pillar installations

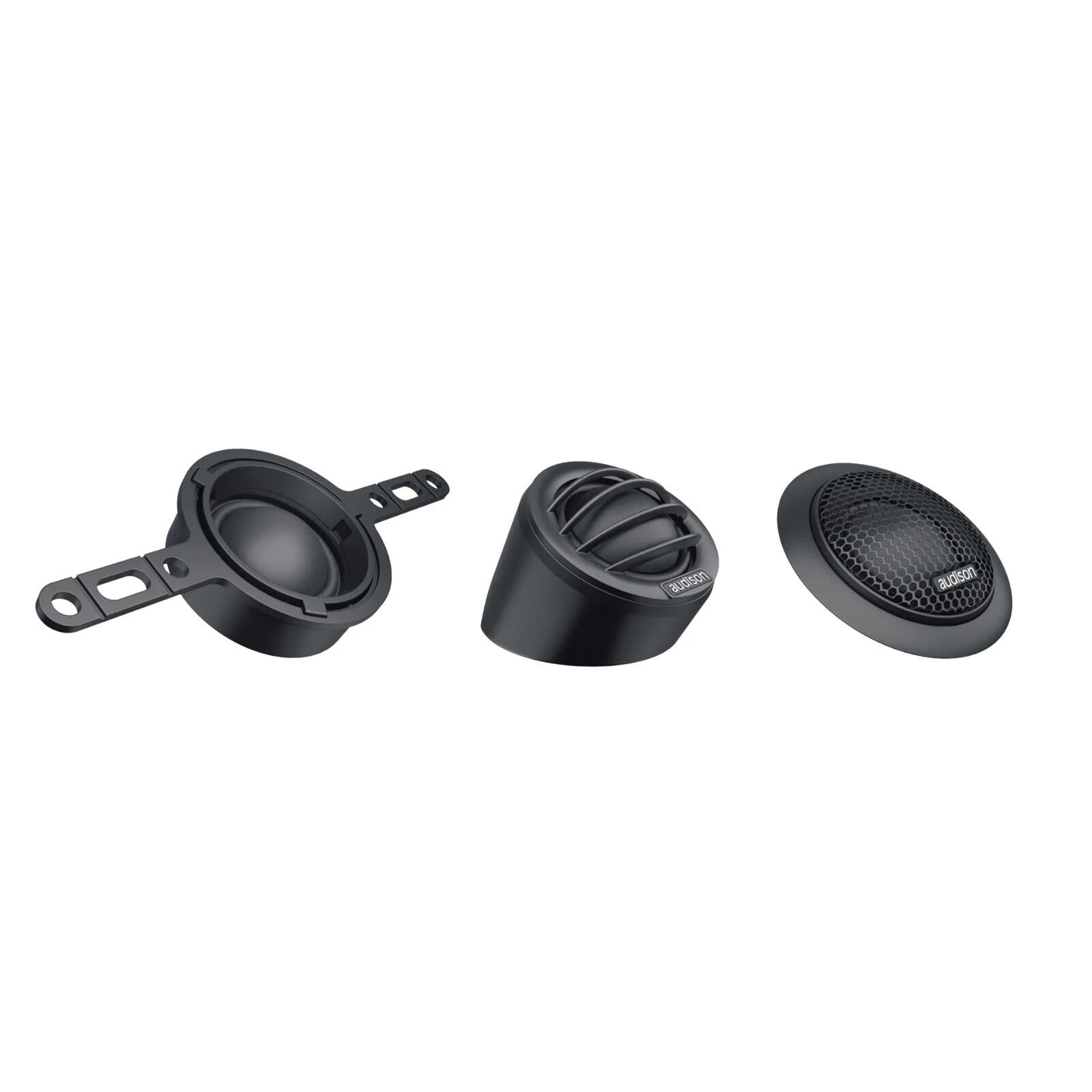

The four included mounting accessories are:
- Watch band
- Double-angle cup
- Flush mounting ring
- Metal mounting spring
Explore the full range in Tweeters.
Specification
| Power Handling | - Peak 150 W |
|---|---|
| Power Handling | Crossover Hi-pass filtered @2.5 kHz 12dB/oct |
| Impedance | 8 Ohm |
| Frequency Response | 1,2 ÷ 25k Hz |
| Crossover adjustment Tweeter Level | 0 / +3 dB |
| Magnet | Material NEODYMIUM |
| Voice Coil | Ø 25 mm |
| Weight | 0.067 kg |
More specs
| |
What's Included
- Audison Prima AP 1P Tweeter
- Watch band
- Double-angle cup
- Flush Mounting Ring
- Metal mounting spring
Audison
About the Audison AP 1P
From our tech experts at CEN
Audison Prima tweeters, 1 inch.
Who it suits
Drivers building a front stage where the tweeter needs to sit higher than the door, and anyone replacing a damaged tweeter from an Audison set.
Our tech experts advise
Placement and aiming change the result more than the tweeter does, and they must be crossed over so they never play too low. get in touch. See car audio installation.
Explore the full Audison range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Audison
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Audison News & Guides
The latest Audison product news, launches and guides from the CEN team in Nottingham.
Audison Prima APBX 10 AS2 Review: Compact Active Bass Done Properly
The Audison Prima APBX 10 AS2 answers the most common bass request we get: proper low-end from a factory-looking system,...
Car Subwoofer Buying Guide: Size, Power and Enclosures Explained
The short version: for most cars, a 10" or 12" subwoofer in a sealed enclosure, driven by a properly matched...
Powerful, Precise Bass with Audison VOCE II Subwoofers
Reproducing low frequencies with authority, precision and dynamic control is essential for achieving a realistic and immersive sound experience. For...
Looking for Installation?
At CEN we take pride in being able to share the quality of our work as well as being able to show what incredible products we have installed week on week.
Elettromedia Brands
Evolution of technology and art of sound
More from Tweeters
More options from the same range, in stock and ready to go
Save 8% Focal TBM Utopia M Series Pair of Beryllium Inverted Dome Tweeters 20w RMS RRP£1,299.99£1,199.99 / Save 8%In stock
Best Seller Hertz Mille Pro MP 28.3 Car Audio Tetolon Dome 35mm Tweeters 180w Peak Pair £149.99 /In stock
Save 17% Best Seller Helix Compose i5 Ci5 T25FM-CA Tweeters 1 Inch 25mm FlexMount Aluminum Dome RRP£149.99£124.99 / Save 17%In stock
Frequently Asked Questions
Q: What size is the Audison AP 1P tweeter?
A: The AP 1P has a 29 mm Teloton fibre dome with a 25 mm (1 inch) CCAW voice coil.
Q: What impedance is the AP 1P?
A: The AP 1P is an 8 ohm tweeter, with 150 W peak power handling when high-pass filtered at 2.5 kHz, 12 dB/oct.
Q: What mounting options does the AP 1P have?
A: It has three interchangeable faceplates (OEM, mesh grille and spoke grille) plus four mounting accessories: a watch band, double-angle cup, flush mounting ring and metal mounting spring.
Q: Can CEN fit these tweeters for me?
A: Yes. CEN offers professional installation from our Nottingham premises. Contact us to book an installation slot or ask for a fitting quote.
