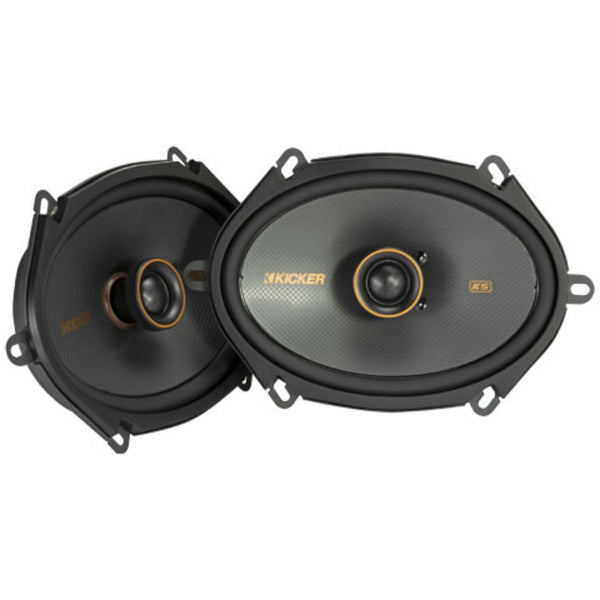

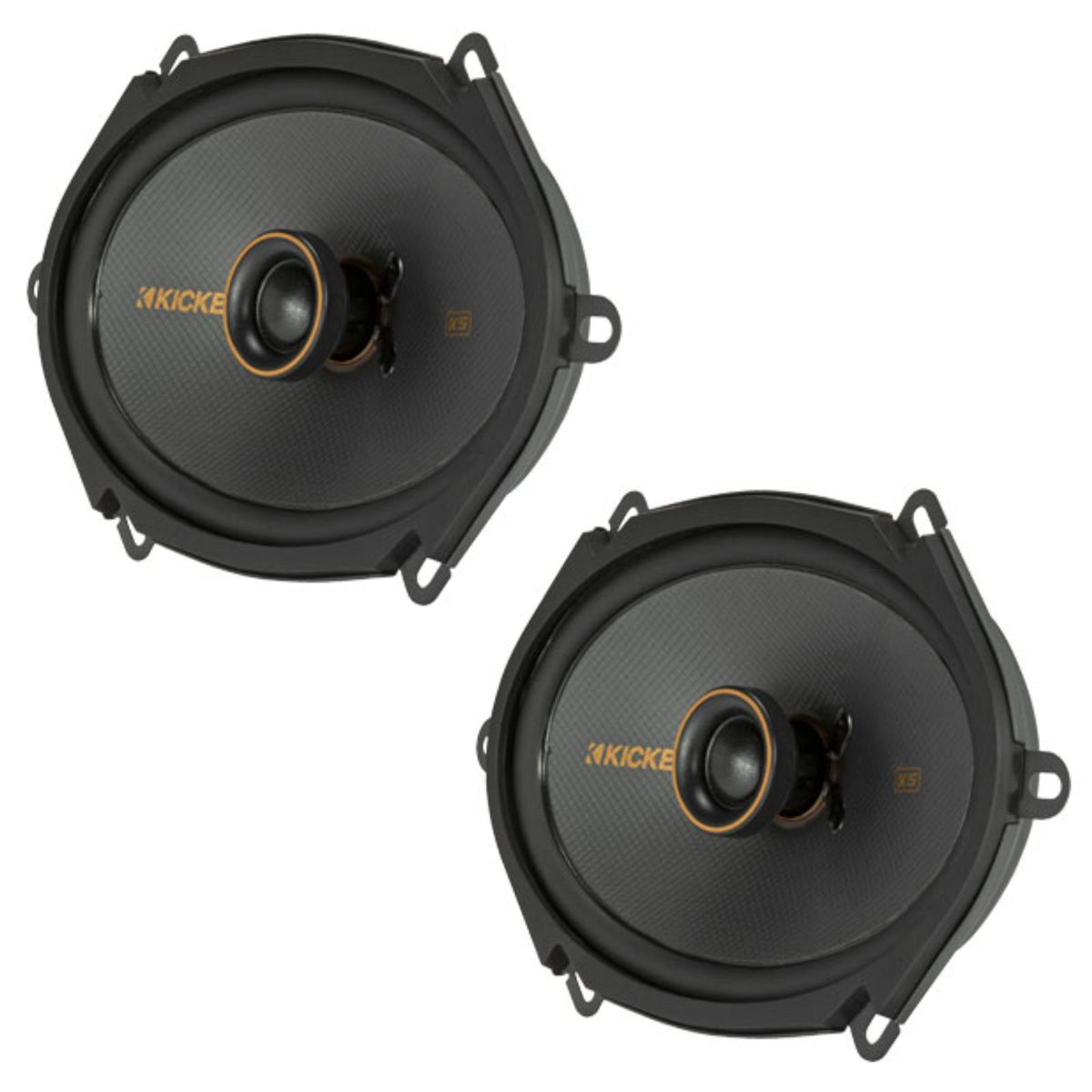

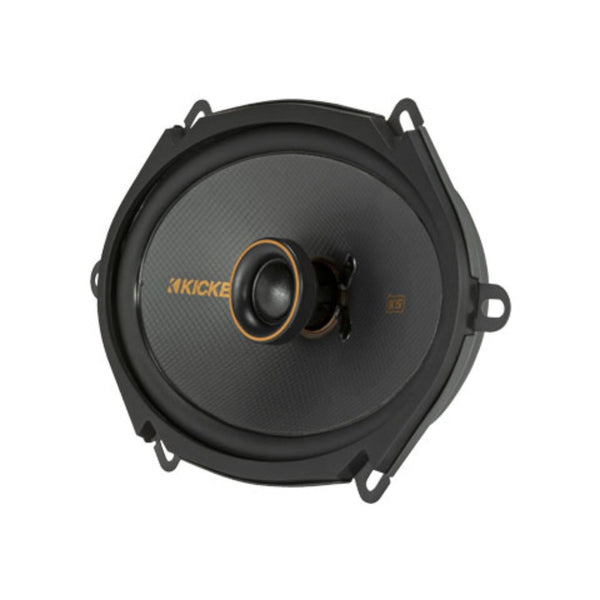

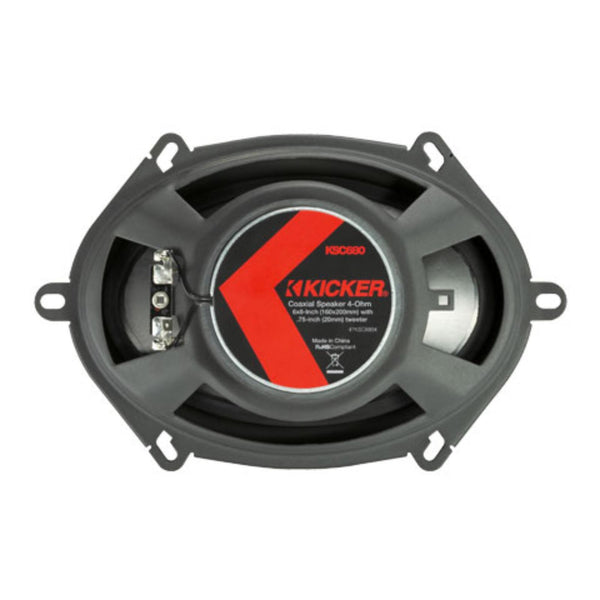

Kicker 47KSC6804 KS Series 6x8" 2 Way Car Door Dash Shelf Coaxial Speakers 75w RMS
Couldn't Load Pickup availability
The Kicker 47KSC6804 is a KS Series 6x8" (160 x 200 mm) 2-way coaxial speaker pair rated at 75W RMS, designed as a direct replacement for factory door, dash and shelf speakers — and also fits most 5x7" locations.
Key specifications
- Size: 6x8" (160 x 200 mm), 2-way coaxial
- Tweeter: 3/4" (20 mm) silk dome, neodymium magnet
- Impedance: 4 ohms
- Recommended power: 15–75W RMS
- Sensitivity: 90 dB 1W/1m
- Frequency response: 45 Hz–21 kHz
- Mounting hole: 127 x 182 mm (5 x 7-3/16")

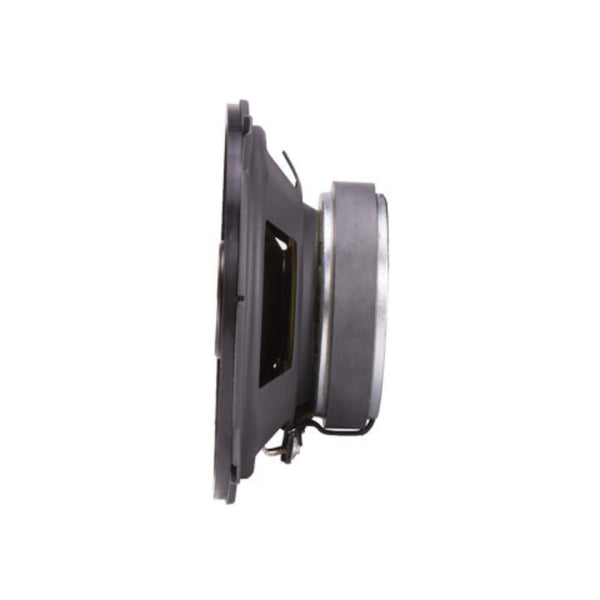

- Mounting depth: 58 mm top, 67 mm bottom
- Tweeter protrusion: zero (0", 1 mm)
Potent performance
The KS Series is built for high output without losing refinement. Internally dampened polypropylene cones and durable rubber surrounds handle precise midrange and midbass, while the silk-dome tweeters deliver natural, detailed highs at any volume.
With a mounting depth under 2.5 inches and zero tweeter protrusion, the KSC6804 slots into almost any vehicle — including 5x7" speaker locations — and drops straight in behind factory grilles. Recommended power is 15–75W RMS.
- High power handling
- Silk-dome tweeters for smooth, detailed highs
- Polypropylene woofer cone with rubber surround
- Thin-mount design fits behind factory grilles
Explore the full range in Kicker KS Series Speakers.
Specification
| Sensitivity | [1W, 1m] 90 |
|---|---|
| Frequency Response | [Hz] 45-21k |
More specs
| |
What's Included
- KSC6804 Speakers
- Speaker Wire
- Connectors
- Eight Self-tapping screws
- 8 Speed clips
- Owner's manual
Kicker
About the Kicker 47KSC6804
From our tech experts at CEN
The Kicker 47KSC6804 is a KS Series 6x8" (160 x 200 mm) 2-way coaxial speaker pair rated at 75W RMS. Polypropylene cones with rubber surrounds handle midrange and midbass, while a 20 mm silk-dome neodymium tweeter delivers detailed highs. The speakers also fit most 5x7" locations, with a mounting depth of 58–67 mm and zero tweeter protrusion.
Who it suits
These suit drivers replacing factory 6x8" or 5x7" door or shelf speakers. At 90 dB sensitivity, they perform well from a standard head unit at 15–75W RMS. For a step down in the 6x8" format, see the Kicker 46CSC684 CS Series 6x8".
Our tech experts advise
Before ordering, confirm your mounting hole is at least 127 x 182 mm and that you have 67 mm of depth at the deeper end. The zero-protrusion tweeter fits behind most factory grilles without alteration. Each pair ships with speaker wire connectors, self-tapping screws and speed clips. Installation is priced per vehicle — see our Nottingham fitting page for details.
Explore the full Kicker range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Kicker
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Have it Fitted By Our Team
Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.
- 1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
- 2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
- 3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.
Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA
More from Kicker KS Series Speakers
More options from the same range, in stock and ready to go
Frequently Asked Questions
Q: Will these speakers fit my car?
A: Most car speakers are standard sizes, but mounting depth and fitting rings vary by vehicle. Check the size in the Specification tab against your vehicle, or contact CEN with your registration and we will confirm fitment and any adapters or fitting kits you need.
Q: Do I need an amplifier to run these speakers?
A: Not always. Most speakers will run from a standard head unit, but a dedicated amplifier lets them perform at their best, particularly for component sets and higher power handling models. The RMS figure in the Specification tab is the guide to how much clean power they can use.
Q: What is the difference between coaxial and component speakers?
A: Coaxial speakers combine the tweeter and woofer in one unit for a simple like-for-like upgrade. Component sets separate the tweeter and woofer with a crossover for better imaging and detail, and suit installs where sound quality is the priority.
Q: Do these come as a pair?
A: Unless stated otherwise, car speakers are sold in pairs. Check the product title and What's Included tab, which lists exactly what is in the box.
Q: Can CEN fit these speakers for me?
A: Yes. CEN offers professional installation from our Nottingham premises. Contact us to book an installation slot or ask for a fitting quote.
Q: Will the Kicker 47KSC6804 fit 5x7 inch speaker locations?
A: Yes. As well as 6x8 inch openings, it is designed to fit most 5 x 7 inch speaker holes. The mounting hole is 127 x 182 mm.
Q: What mounting depth does the 47KSC6804 need?
A: The top mount depth is 58 mm and the bottom mount depth is 67 mm, so it fits behind most factory grilles.
Q: Do the 47KSC6804 come with grilles?
A: No. Grilles are not included. The box contains the speakers, speaker wire, connectors, eight self-tapping screws, eight speed clips and the owner's manual.
