AudioControl Epicenter Digital Bass Restoration Processor
Couldn't Load Pickup availability
The AudioControl Epicenter is a digital bass restoration processor from AudioControl's Concert Series. It takes a preamp (RCA) input signal, recreates missing bass tones using patented bass maximisation circuitry, and outputs up to 13.5 Vrms. The ACR-1 dash mount remote control is included.
This listing is for the Epicenter (black). If you need speaker-level inputs for a factory head unit, see the EPICENTER Micro, which adds speaker-level inputs and line output conversion.
Key specifications
- Function: digital bass restoration processor
- Inputs: 1 preamp input (2 channels), balanced, up to 15 Vrms
- Outputs: 1 preamp output (2 channels), up to 13.5 Vrms
- Frequency response: 10 Hz to 100 kHz
- Signal to noise: 110 dB
- Total harmonic distortion: 0.003%

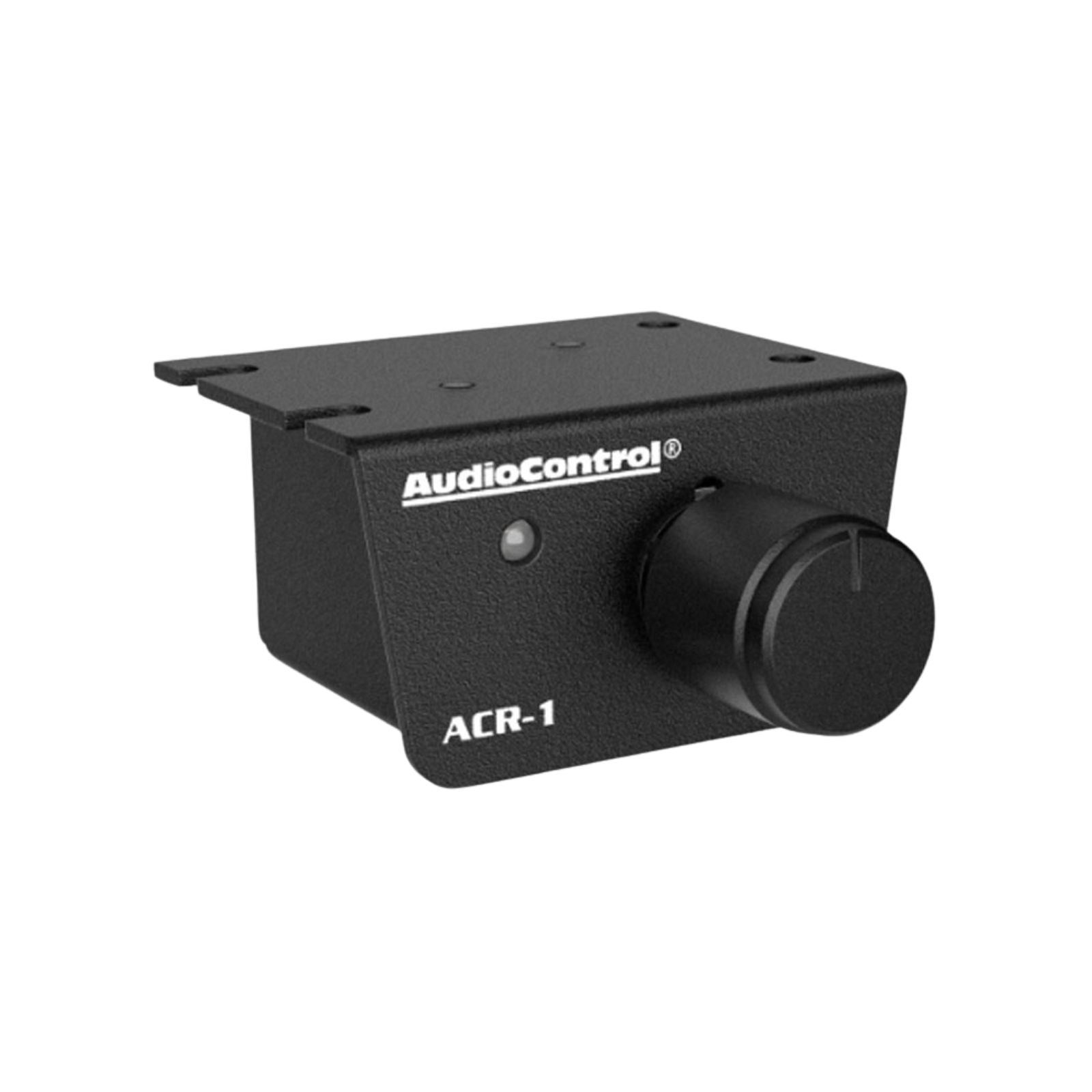

- Remote: ACR-1 dash mount control included
- Dimensions: 8 in W x 5.5 in D x 1.2 in H
Restore the bass
The Epicenter analyses the incoming audio signal from your source unit, recreates missing bass tones, and reintroduces that low-frequency information back into the signal path. Parametric bass control and a PFM subsonic filter let you fine-tune the result, restoring the power and depth your subwoofers need.
Features
- Patented Bass Maximizer
- Dash mount control included (ACR-1)
- Bass restoration lighted display
- Parametric bass control
- PFM subsonic filter
- Balanced inputs
- Bass output control
Explore the full range in Line Drivers / Converters.
Specification
| Preamp Inputs | 1 (2 channels) |
|---|---|
| Maximum Input Level | 15Vrms |
| Input Impedance | 10kΩ |
| Preamp Outputs | 1 (2 channels) |
| Maximum Output Level | 13.5Vrms |
| Output Impedance | 150Ω |
| Total Harmonic Distortion | 0.003% |
| Frequency Response | 10Hz-100kHz |
| Signal to Noise | 110dB |
| Power Supply | High Headroom PWM Switching |
| Current Draw | 150mA |
| Recommended Fuse Rating | 1A |
| Dimensions | 8″W x 5.5″D x 1.2″H |
| Weight | 1.8 lbs (0.8 kg) |
More specs
| |

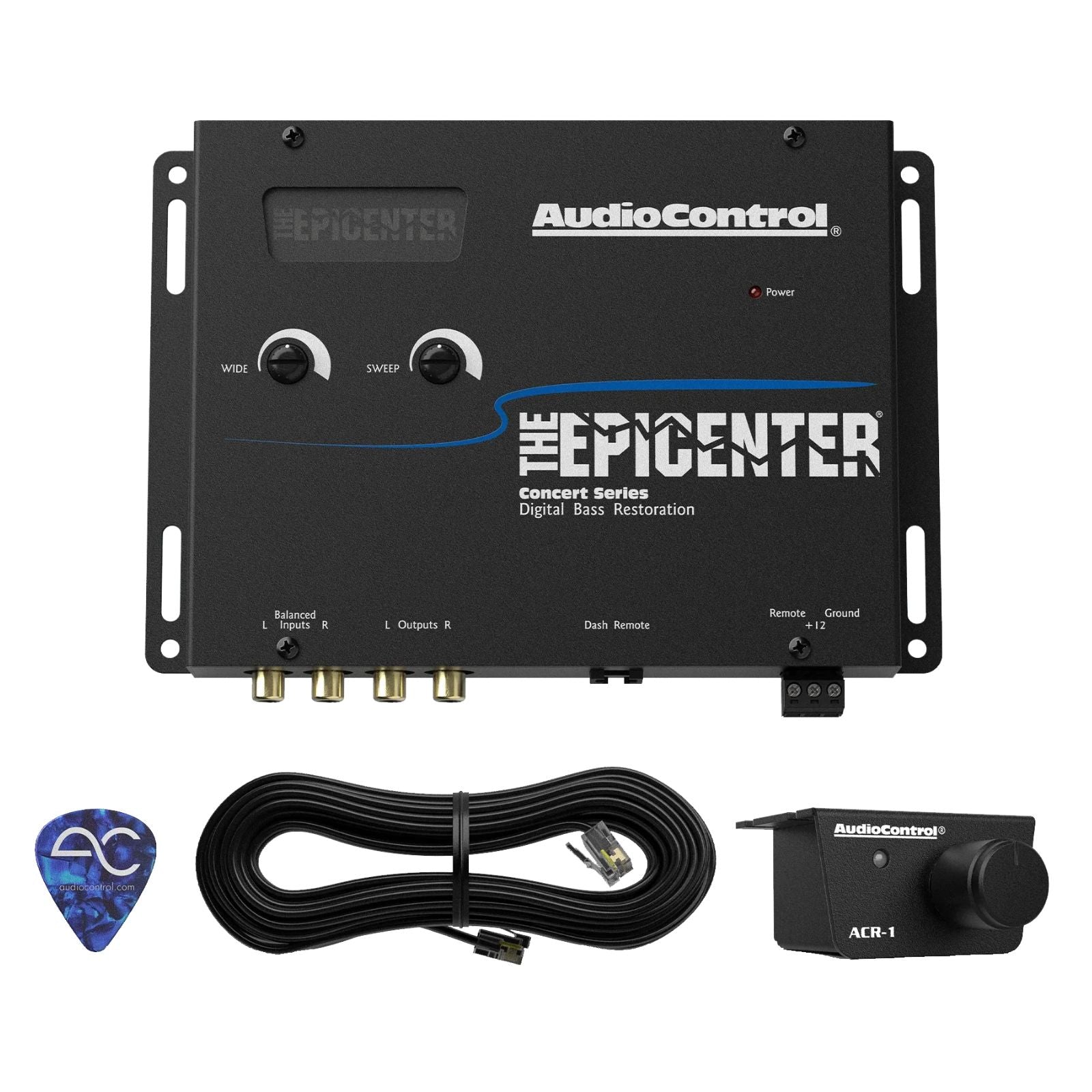

What's Included
- The Epicenter
- ACR-1 Remote
- Power Connector
- Manual
- Warranty
AudioControl
About the AudioControl The Epicenter
From our tech experts at CEN
The Epicenter, AudioControl’s bass restoration processor, which rebuilds the low frequencies that compressed music and factory systems roll away.
Who it suits
Anyone running a subwoofer from a factory head unit or streaming compressed audio, where the deepest content has effectively been thrown away before it reaches your amplifier. It is one of the few products in car audio with a genuine cult following.
Our tech experts advise
It is a processor rather than an amplifier: it needs setting up carefully against your system, and overdone it draws attention to itself. We set these up as part of an install. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.
Explore the full AudioControl range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all AudioControl
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Looking for Installation?
At CEN we take pride in being able to share the quality of our work as well as being able to show what incredible products we have installed week on week.
More from Line Drivers / Converters
More options from the same range, in stock and ready to go
Save 3% Popular AudioControl LC2i Pro 2 Channel Active Line Out Converter accubass with ACR-1 RRP£169.99£164.99 / Save 3%In stock
Save 29% Best Seller JL Audio LoC-22 Fully Active 2 Channel Speaker Level to Line Output Converter RRP£139.00£99.00 / Save 29%In stock
Save 8% Best Seller AudioControl LC2i 2 Channel RCA Line Out High to Low Converter with Accubass RRP£129.99£119.99 / Save 8%In stock
Best Seller Wavtech Link2 2 Channel LOC Line Output Converter OEM Load Detect Compatible £89.95 /In stock
Frequently Asked Questions
Q: What does the EPICENTER do?
A: It analyses the incoming audio signal from your source unit, recreates bass tones that are missing, and sends this low-frequency information back into the signal path to increase bass response. Parametric bass control and a subsonic filter allow fine tuning.
Q: Does the EPICENTER come with a remote?
A: Yes. The ACR-1 dash mount control is included, along with a power connector and manual.
Q: Does the EPICENTER have speaker-level inputs?
A: No. The EPICENTER has one balanced preamp input (2 channels) and one preamp output (2 channels). The EPICENTER Micro adds speaker-level inputs for factory systems.
Q: Can CEN fit the EPICENTER for me?
A: Yes. CEN offers professional installation from our Nottingham premises. Contact us to book an installation slot or ask for a fitting quote.
