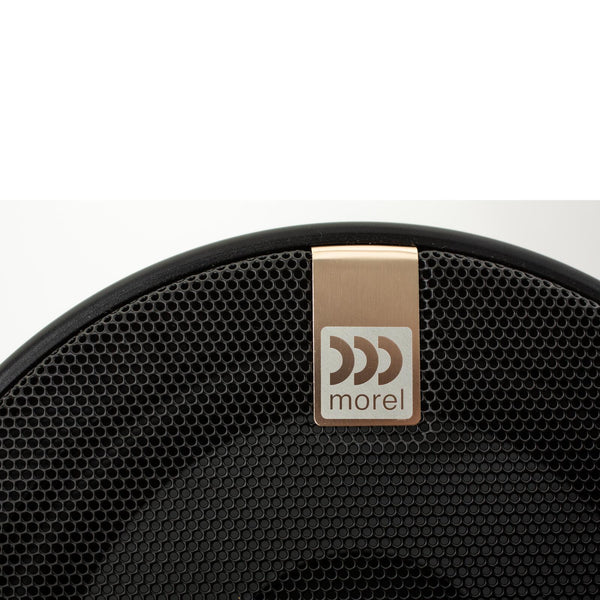

Morel Maximo Ultra 602 MKII 6.5 Inch 2 Way Component Car Door Speakers 100w RMS
Couldn't Load Pickup availability
The Morel Maximo Ultra 602 MKII is a 6.5-inch 2-way component car speaker set from Morel's Maximo Ultra MKII range, rated at 100W RMS. It features treated paper composite woofers with rubber surrounds and 1-inch fabric dome tweeters, designed to fit factory speaker locations in most vehicles.
This listing is the component version. The Maximo Ultra 602 MKII is also available as a 6.5-inch coaxial speaker set.
Key specifications
- Size: 6.5-inch (6 1/2-inch), 2-way component
- Power handling: 100W RMS, 180W peak
- Sensitivity: 90.5 dB (2.83V)
- Frequency response: 50 Hz to 20 kHz
- Impedance: 4 ohms
- Tweeter: 1-inch fabric dome
- Woofer: treated paper composite cone, rubber surround
- Top-mount depth: 2 5/16 in; cut-out diameter: 5 5/8 in
Morel Maximo Ultra 602 MKII 2-way component speaker set
The Morel Maximo Ultra MKII is the latest evolution of the long-running Maximo range, bringing high-resolution sound quality to car audio enthusiasts at an affordable price.
The updated component system improves on its predecessor's sound while cosmetic revisions give it a cleaner, more refined appearance.
Designed to fit factory speaker locations in most vehicles, the Maximo Ultra MKII delivers excellent off-axis dispersion, high resolution and crisp detail — helping to overcome the acoustic limitations that come with standard OEM speaker placement.

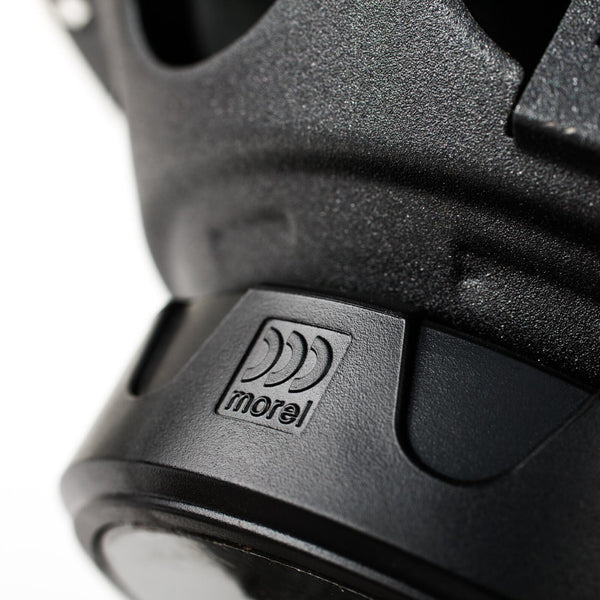

DMM motor
Morel's double drive system uses two magnets to generate more magnetic energy than a single magnet of similar size, increasing efficiency and dynamic range. The secondary magnet is fixed above the top plate in the motor, controlling stray magnetic flux and producing a more focused magnetic field — which also contributes to the shielded characteristic of Morel speakers.
EVC motor
Morel's EVC™ technology uses large-diameter voice coils for improved heat dissipation, power handling and linearity. The motor system is positioned within the voice coil, directing all magnetic energy inward and eliminating stray flux. The result is a highly efficient, magnetically shielded and compact motor architecture.
Paper cone
Morel's latest paper composite cones are ultra-lightweight, making them well suited to drivers using smaller motors and voice coils. Paper remains an exceptional cone material, offering a natural balance of rigidity and damping that has been used in loudspeaker design since the very beginning.
Explore the full range in Morel Maximo Ultra.
Specification
| Impedance | (Ohms) 4 |
|---|---|
| Sensitivity | (1W at 1 meter) N/A |
| Sensitivity | at 2.83 volts 90.5 |
| Frequency Response | 50 - 20k Hz |
More specs
| |

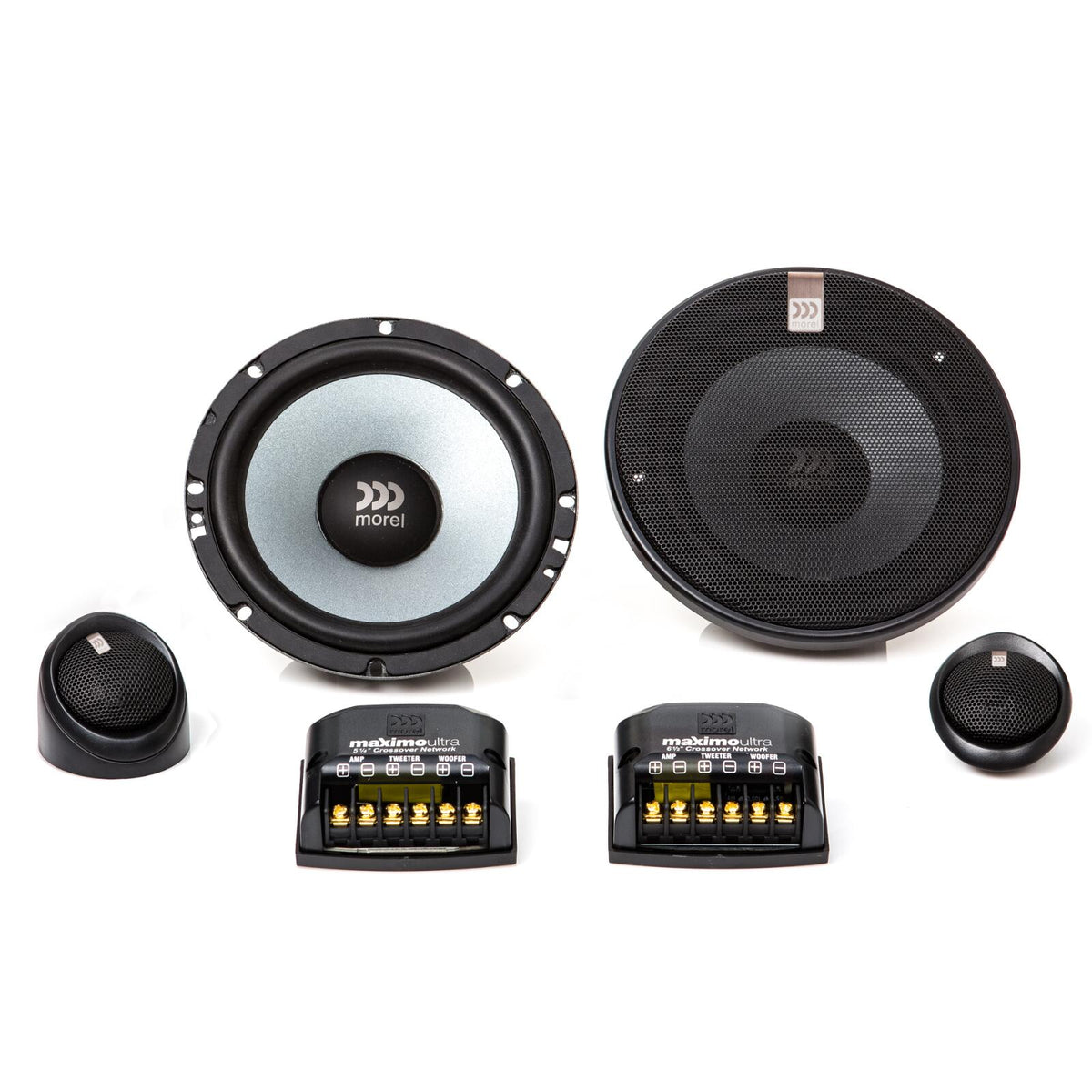

What's Included
- Maximo Ultra 602 MKII
- Tweeters

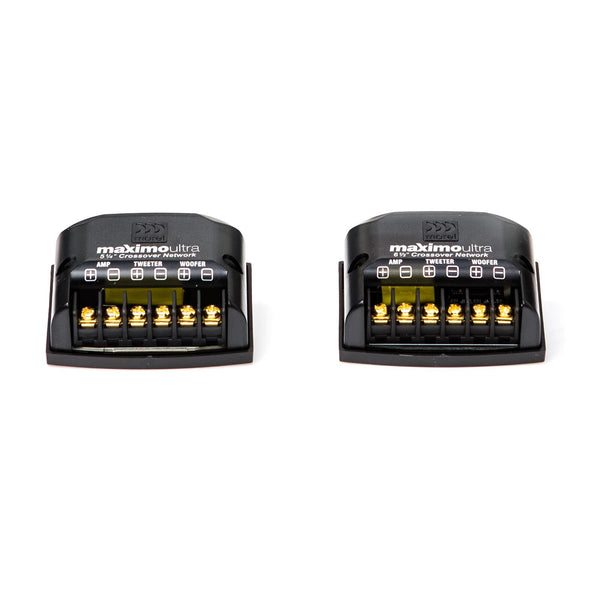

- Crossovers
- Grills
Morel
About the Morel Maximo Ultra 602 MKII
From our tech experts at CEN
Morel Maximo Ultra 6.5 inch component speakers, with separate tweeters that can be mounted where you will actually hear them, rated at 100w RMS.
Who it suits
Drivers building a front stage who care about staging and detail rather than volume. Morel is a brand people move to when they have outgrown their first upgrade.
Our tech experts advise
Sizes, adapter rings and harnesses vary by vehicle, year and trim, so we confirm what your car takes before ordering rather than guessing. Door treatment and tweeter placement change the result as much as the driver does, and speakers at this level deserve an amplifier. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.
Explore the full Morel range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Morel
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Looking for Installation?
At CEN we take pride in being able to share the quality of our work as well as being able to show what incredible products we have installed week on week.
More from Morel Maximo Ultra
More options from the same range, in stock and ready to go

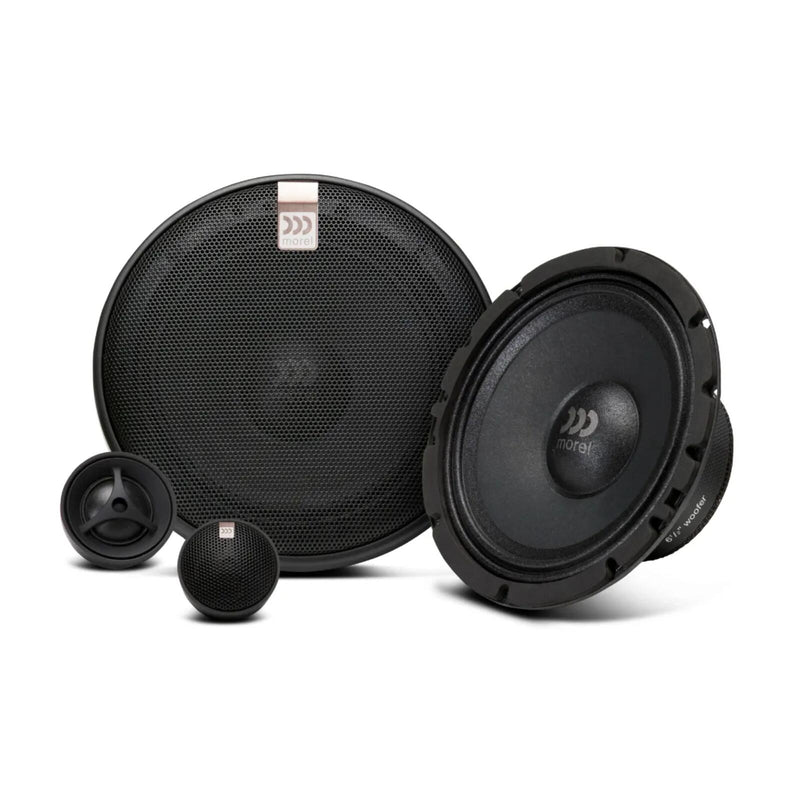

Morel Maximo Ultra 602 HE MKII 6.5 Inch 2 Way Component Car Door Speakers 90w
£329.00
View product

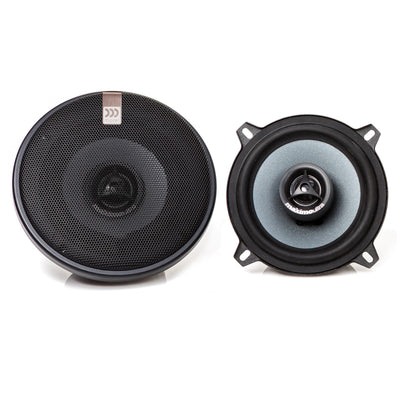

Morel Maximo Ultra 502 MKII 5.25" 2 Way Coaxial Car Door Speakers 80w RMS Pair
£219.00

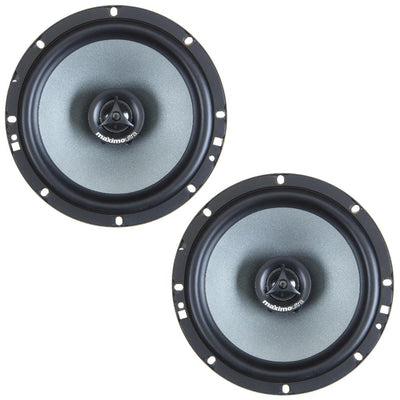

Morel Maximo Ultra 602 MKII 6.5 Inch 2 Way Coaxial Car Van Door Speakers 90w RMS
£219.00£319.00

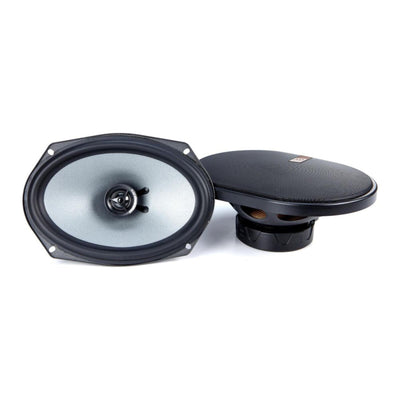

Morel Maximo Ultra 692 MKII 6x9 Inch Coaxial Car Parcel Shelf Speakers 110w RMS
£229.00

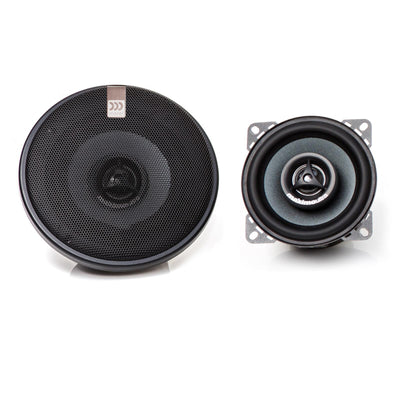

Morel Maximo Ultra 402 MKII 4 Inch 2 Way Coaxial Car Van Door Speakers 50w RMS
£199.00
Frequently Asked Questions
Q: Will these speakers fit my car?
A: Most car speakers are standard sizes, but mounting depth and fitting rings vary by vehicle. Check the size in the Specification tab against your vehicle, or contact CEN with your registration and we will confirm fitment and any adapters or fitting kits you need.
Q: Do I need an amplifier to run these speakers?
A: Not always. Most speakers will run from a standard head unit, but a dedicated amplifier lets them perform at their best, particularly for component sets and higher power handling models. The RMS figure in the Specification tab is the guide to how much clean power they can use.
Q: What is the difference between coaxial and component speakers?
A: Coaxial speakers combine the tweeter and woofer in one unit for a simple like-for-like upgrade. Component sets separate the tweeter and woofer with a crossover for better imaging and detail, and suit installs where sound quality is the priority.
Q: Do these come as a pair?
A: Unless stated otherwise, car speakers are sold in pairs. Check the product title and What's Included tab, which lists exactly what is in the box.
Q: Can CEN fit these speakers for me?
A: Yes. CEN offers professional installation from our Nottingham premises. Contact us to book an installation slot or ask for a fitting quote.
Q: How much power do the Morel Maximo Ultra 602 MKII speakers handle?
A: They are rated at 100W RMS and 180W peak, with a 4 ohm impedance and 90.5 dB sensitivity (2.83V).
Q: What mounting depth do the Maximo Ultra 602 MKII woofers need?
A: The top-mount depth is 2 5/16 inches, the bottom-mount depth is 2 1/2 inches and the cut-out diameter is 5 5/8 inches.
Q: What comes in the box with the Morel Maximo Ultra 602 MKII?
A: The Maximo Ultra 602 MKII woofers, tweeters, crossovers and grilles.
