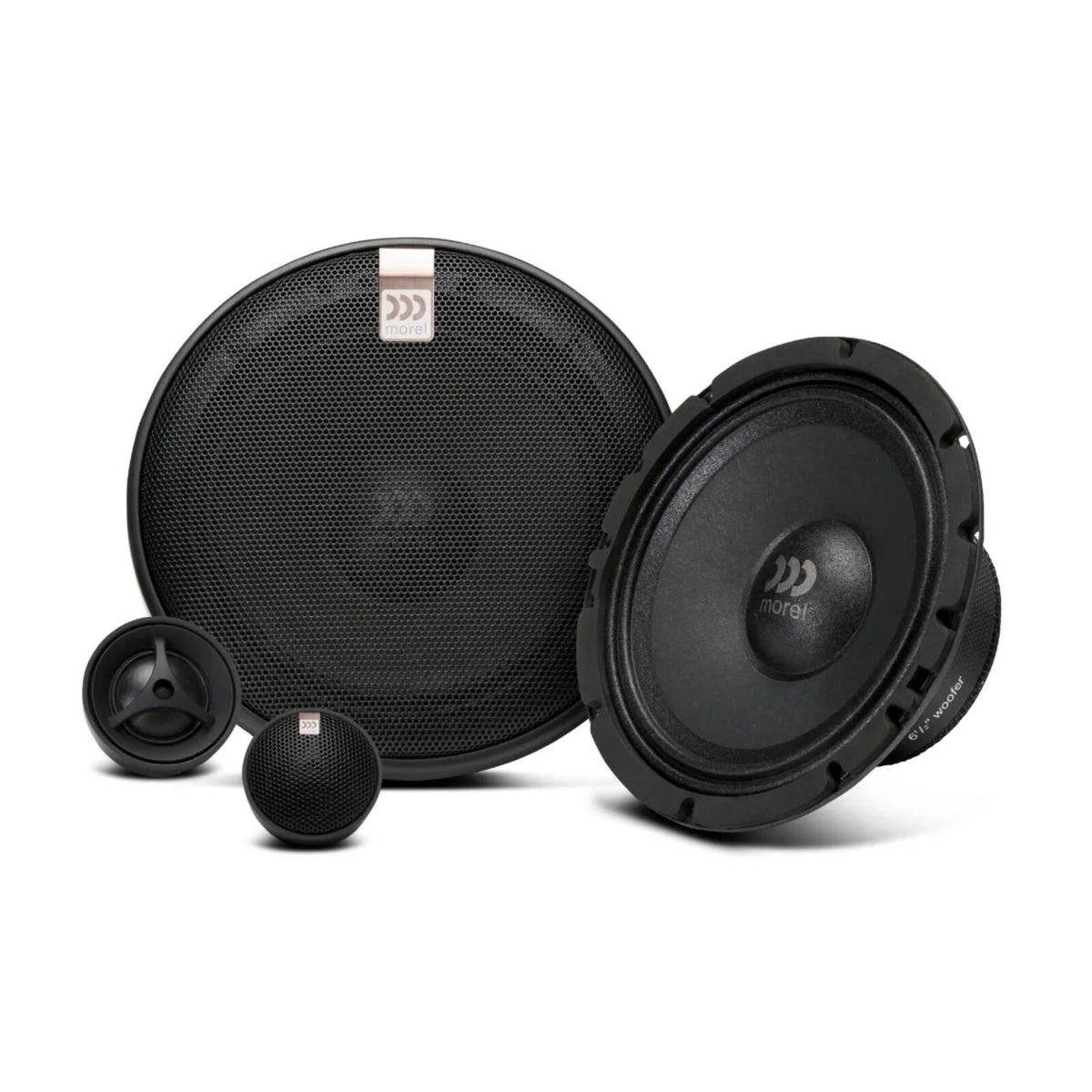

Morel Maximo Ultra 602 HE MKII 6.5 Inch 2 Way Component Car Door Speakers 90w
Couldn't Load Pickup availability
The Morel Maximo Ultra 602 HE MKII is a 6.5-inch 2-way component car speaker set from Morel's Maximo Ultra range, rated at 90W RMS (180W peak). It is engineered for high efficiency, making it well suited to factory-amplified or low-power systems.
This listing is the 602 HE MKII component set. The Maximo Ultra range is also available as a 6.5-inch coaxial (Maximo Ultra 602 MKII).
Key specifications
- Size: 6.5" 2-way component set

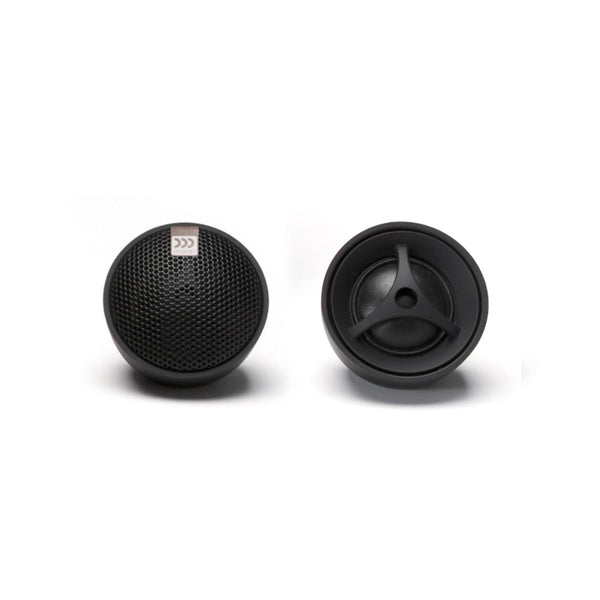

- Tweeter: 1" (25mm) fabric soft dome

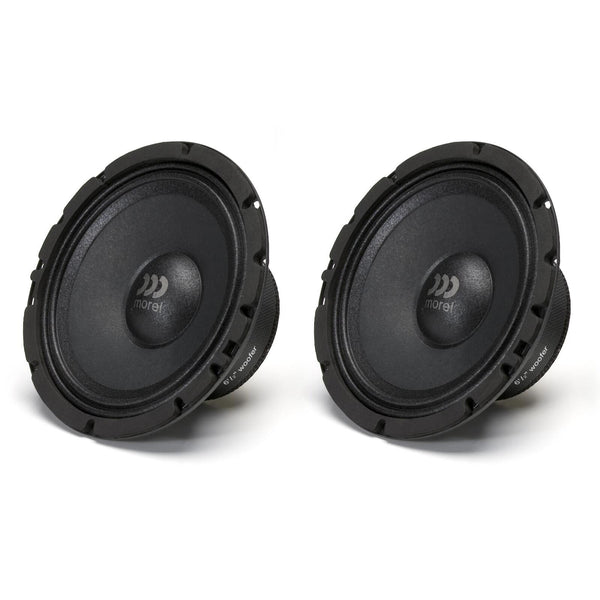

- Woofer: treated paper composite cone, rubber surround
- Power handling: 90W RMS, 180W peak
- Sensitivity: 94dB (2.83V)
- Frequency response: 60Hz–22kHz
- Impedance: 4 ohms
- Woofer grilles: optional, not included
Maximo Ultra 602 HE MKII
The high-efficiency design suits factory-amplified or low-power audio systems. The 2-way component set delivers substantial output and a full, natural sound without requiring a large or costly amplifier. The hybrid magnet motor, composite paper cone and 25mm soft dome tweeter combine for a dynamic, musical performance at an affordable price point.
High-grade ferrite magnet
Morel uses only the highest-intensity ferrite magnets available. This keeps the magnetic system compact while delivering high magnetic flux — a step above the standard ferrite magnets found in most speakers.
Hybrid magnet motor
The hybrid motor combines a ferrite magnet with a powerful neodymium magnet, creating a compact, lightweight and powerful motor system. More amplified power is converted into sonic energy, giving flawless performance even in a small driver.
MXR crossover
The Morel Crossover Resolution (MXR) system uses high-quality components to ensure the drivers integrate seamlessly. Signal loss is minimised, preserving the natural tonal balance of the speakers.
Paper cone
Morel's latest paper composite cones are ultra-lightweight, making them an excellent match for drivers using smaller motors and voice coils. Woofer grilles are optional and not included.
Explore the full range in Morel Maximo Ultra.
Specification
| Impedance | (Ohms) 4 |
|---|---|
| Sensitivity | (1W at 1 meter) N/A |
| Sensitivity | at 2.83 volts 94 |
| Frequency Response | 60 - 22k Hz |
More specs
| |
What's Included
- Two Woofers
- Two Tweeters (with attached 38" length of speaker wire)
- 2 Crossovers
- 2 Mesh tweeter grilles (installed)
- 2 Oval flush mount tweeter housings (with tweeters installed)
- 2 Flush mount brackets
- 2 Large angled surface mount tweeter housings
- 2 Small angled surface mount tweeter housings
Morel
About the Morel Maximo Ultra 602 HE MKII
From our tech experts at CEN
Morel Maximo Ultra 6.5 inch component speakers, with separate tweeters that can be mounted where you will actually hear them.
Who it suits
Drivers building a front stage who care about staging and detail rather than volume. Morel is a brand people move to when they have outgrown their first upgrade.
Our tech experts advise
Sizes, adapter rings and harnesses vary by vehicle, year and trim, so we confirm what your car takes before ordering rather than guessing. Door treatment and tweeter placement change the result as much as the driver does, and speakers at this level deserve an amplifier. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.
Explore the full Morel range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Morel
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Looking for Installation?
At CEN we take pride in being able to share the quality of our work as well as being able to show what incredible products we have installed week on week.
More from Morel Maximo Ultra
More options from the same range, in stock and ready to go

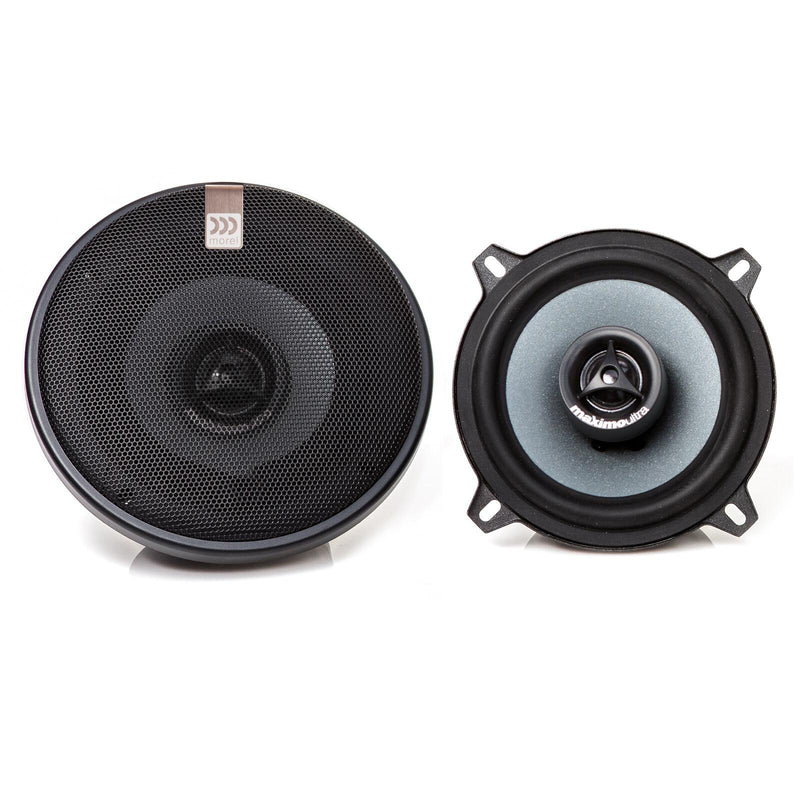

Morel Maximo Ultra 502 MKII 5.25" 2 Way Coaxial Car Door Speakers 80w RMS Pair
£219.00
View product
Morel Maximo Ultra 602 MKII 6.5 Inch 2 Way Coaxial Car Van Door Speakers 90w RMS
£219.00£319.00
Morel Maximo Ultra 692 MKII 6x9 Inch Coaxial Car Parcel Shelf Speakers 110w RMS
£229.00
Morel Maximo Ultra 402 MKII 4 Inch 2 Way Coaxial Car Van Door Speakers 50w RMS
£199.00

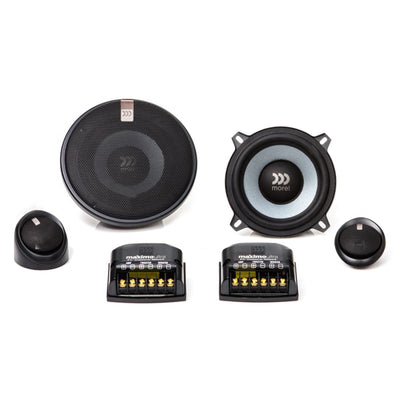

Morel Maximo Ultra 502 MKII 5.25 Inch 2 Way Component Car Door Speakers 90w RMS
£319.00
Frequently Asked Questions
Q: Will these speakers fit my car?
A: Most car speakers are standard sizes, but mounting depth and fitting rings vary by vehicle. Check the size in the Specification tab against your vehicle, or contact CEN with your registration and we will confirm fitment and any adapters or fitting kits you need.
Q: Do I need an amplifier to run these speakers?
A: Not always. Most speakers will run from a standard head unit, but a dedicated amplifier lets them perform at their best, particularly for component sets and higher power handling models. The RMS figure in the Specification tab is the guide to how much clean power they can use.
Q: What is the difference between coaxial and component speakers?
A: Coaxial speakers combine the tweeter and woofer in one unit for a simple like-for-like upgrade. Component sets separate the tweeter and woofer with a crossover for better imaging and detail, and suit installs where sound quality is the priority.
Q: Do these come as a pair?
A: Unless stated otherwise, car speakers are sold in pairs. Check the product title and What's Included tab, which lists exactly what is in the box.
Q: Can CEN fit these speakers for me?
A: Yes. CEN offers professional installation from our Nottingham premises. Contact us to book an installation slot or ask for a fitting quote.
Q: Will the Maximo Ultra 602 HE MKII work without an amplifier?
A: It is designed for factory-amplified and low-power systems. Its high-efficiency design (94dB at 2.83V) gives substantial output without a large, costly amplifier, and it can handle up to 90W RMS if you add one.
Q: Are grilles included with the Maximo Ultra 602 HE MKII?
A: Woofer grilles are optional and not included. The tweeters come with mesh grilles installed.
Q: What tweeter mounting options come with the 602 HE MKII?
A: Two oval flush-mount tweeter housings (with tweeters installed), two flush-mount brackets, and two large and two small angled surface-mount tweeter housings. Two crossovers are also included.
