Hertz H8 DSP 8 Channel Processor 31 Band EQ Time Align + DRC HE Remote Control
Couldn't Load Pickup availability

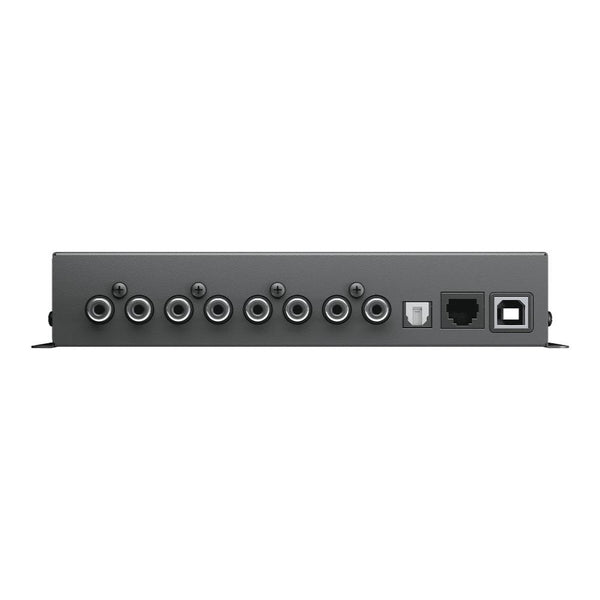

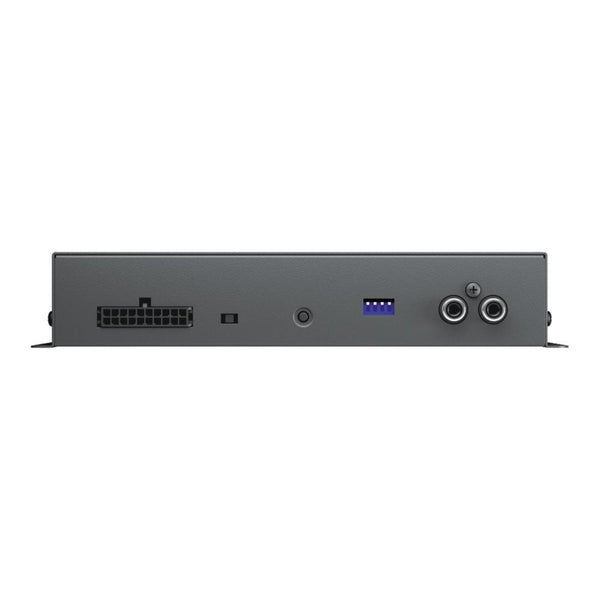

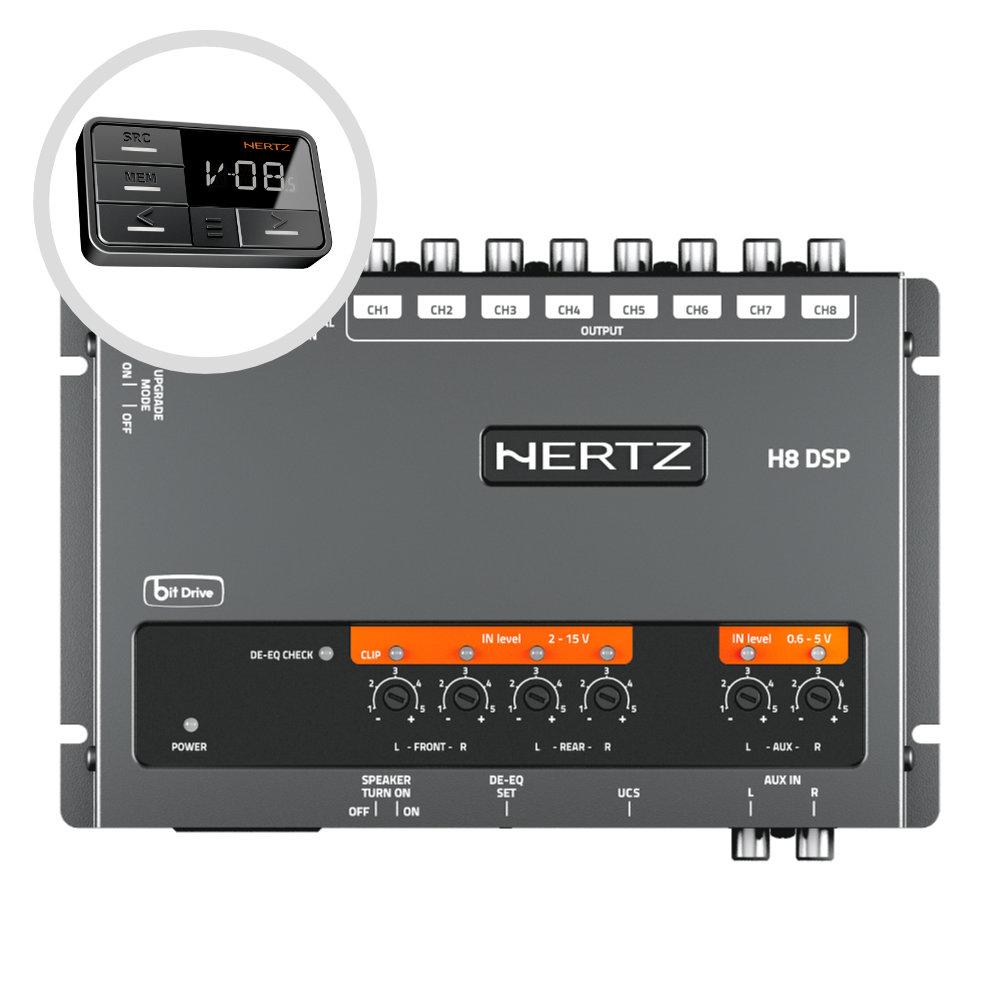

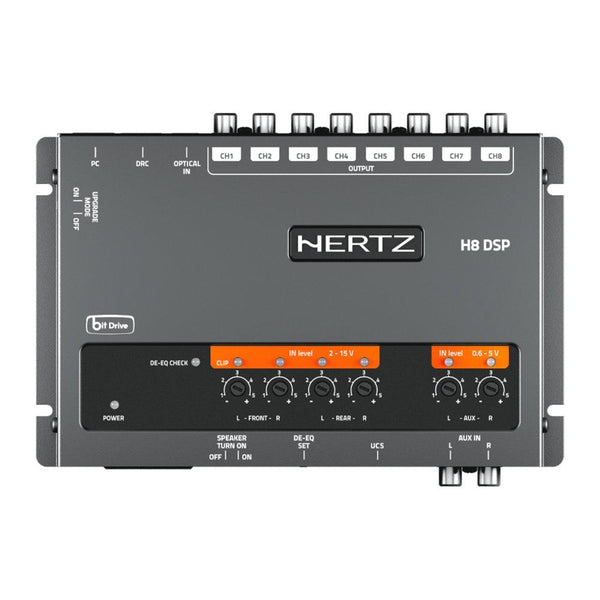

The Hertz H8 DSP is an 8-channel car audio digital signal processor with a 31-band graphic EQ and time alignment on every output, from Hertz's H8 DSP range. The DRC HE remote control is included.
Key specifications
- Outputs: 8 pre-amp channels, each with its own crossover
- Equaliser: 31-band graphic, 1/3 octave, per output
- Time alignment: 0 to 15 ms (0 to 510 cm)
- Inputs: 4 speaker-level, AUX and optical S/PDIF (up to 96 kHz/24-bit)
- Crossovers: Linkwitz 12/24 dB, Butterworth 6 to 24 dB, 68 steps
- THD: 0.005%
- Operating voltage: 10.8 to 14.4 V DC
- Dimensions: 191 x 34 x 131 mm
- Setup: Windows PC software over USB
Any Source, Properly Processed
The H8 DSP works with both analogue and digital sources, turning a factory system into a high-performance integrated setup. It accepts speaker-level inputs from your head unit as well as AUX and optical S/PDIF signals. Tune each channel's level, delay and EQ precisely to your car's acoustics. The DRC HE remote control is included in the box.
Explore the full range in Hertz Amplifiers & DSP.
Specification
| Outputs N.8 Graphic | -12 dB @ 31 Band |
|---|---|
| Weight | kg/lb 0.6 / 1.322 |
| Fine set 0.02 ms | 0.7 cm / 0.27 inch |
| Graphic card min. resolution | 800 x 600 |
| Ambient operating temperature range | 0 C to 55 C |
More specs
| |
What's Included
- H8 DSP - Signal Interface Processor
- Power supply cable / Remote / Inputs
- 3.0 m / 9,84 ft USB cable
- 4.5 m / 177.16 in. cable

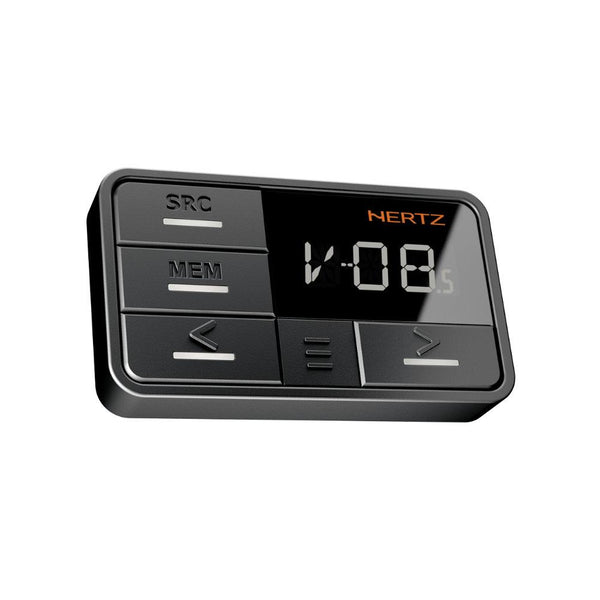

- DRC HE remote control
Hertz
About the Hertz H8 DSP
From our tech experts at CEN
An 8-channel digital sound processor with equalisation and time alignment, the piece that corrects for the fact that a car is an acoustically awful place to listen to music.
Who it suits
Anyone who has bought good speakers and amplification and still feels the sound arrives from the wrong place. A DSP is also what makes a factory-fit system usable as a signal source when the head unit cannot be replaced.
Our tech experts advise
A processor is only worth what the tuning puts into it: the hardware does nothing until someone measures the car and sets delays, crossovers and EQ for where you sit. We tune DSPs in the vehicle at our Beeston workshop. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.
Explore the full Hertz range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Hertz
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Hertz Car Audio Range
Hertz produces high-performance car audio systems driven by research.Music fans who attend live concerts know well the emotions that low undistorted frequencies without dynamic compression can arouse.
Looking for Installation?
At CEN we take pride in being able to share the quality of our work as well as being able to show what incredible products we have installed week on week.
Elettromedia Brands
Evolution of technology and art of sound
More from Hertz Amplifiers & DSP
More options from the same range, in stock and ready to go

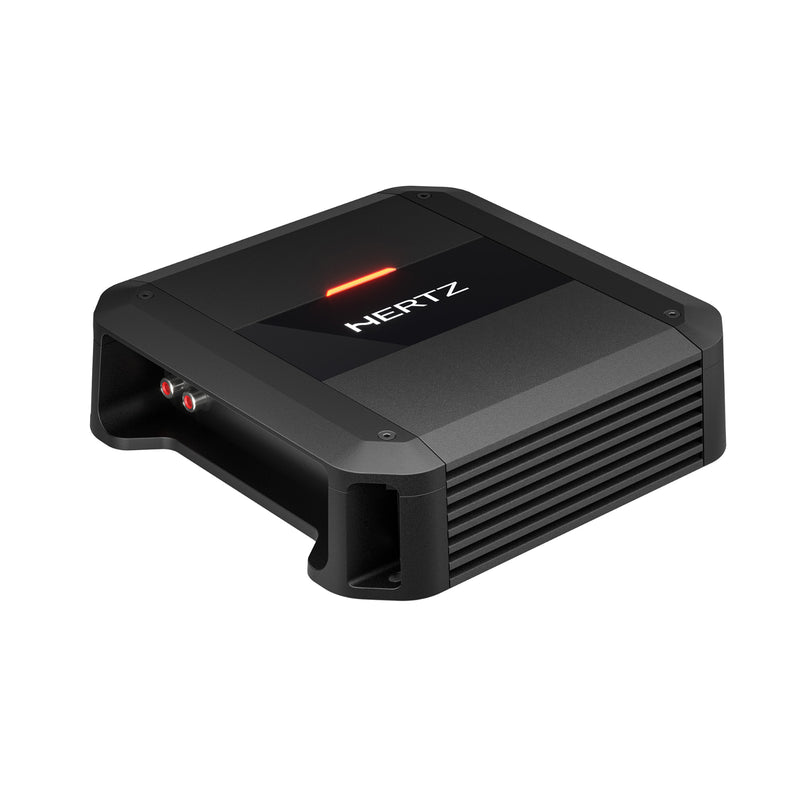

Hertz Dieci DP 1.500 Mono 1 Channel Sub Amp Subwoofer Amplifier 500w RMS
(1)£199.99
View product

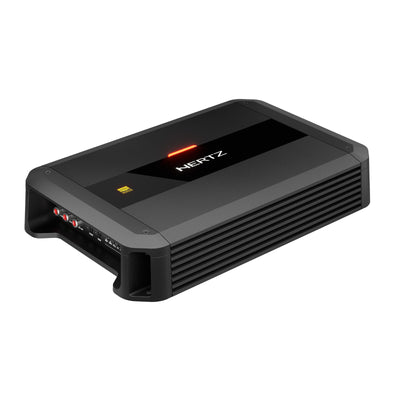

Hertz Dieci DP 4.300 4 Channel Stereo Amp Hi Res Class A B Amplifier 340w RMS
£199.99

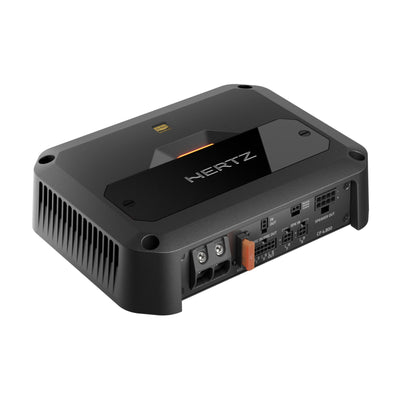

Hertz Cento Power CP 4.800 4 Channel Stereo Amp Class D Amplifier 760w RMS
£389.99

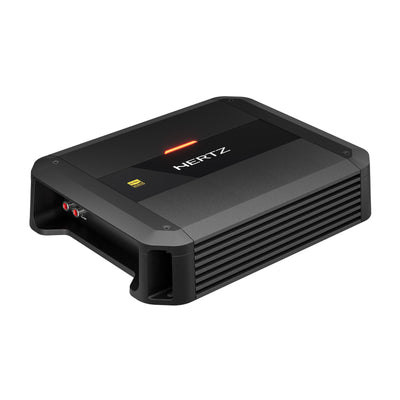

Hertz Dieci DP 2.200 2 Channel Stereo Amp Hi Res Class A B Amplifier 220w RMS
£159.99

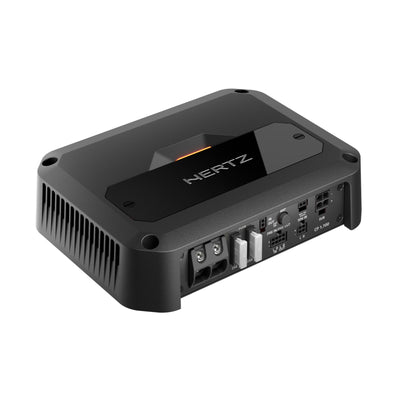

Hertz Cento Power CP 1.700 Mono 1 Channel Sub Amp Subwoofer Amplifier 700w RMS
£339.99
Frequently Asked Questions
Q: Does the Hertz H8 DSP work with a factory head unit?
A: Yes. It has four speaker-level inputs with automatic de-equalisation, so it can take the signal from a factory system.
Q: How is the H8 DSP tuned?
A: It connects to a Windows PC (XP to Windows 10) by USB and is set up with the PC software. Level, delay, EQ and crossover can be adjusted for each of the eight outputs.
Q: Does the H8 DSP have a digital input?
A: Yes. It has an optical S/PDIF input that accepts signals up to 96 kHz/24-bit.
Q: Can CEN fit and tune the H8 DSP?
A: Yes. CEN offers professional installation from our Nottingham premises. Contact us to book an installation slot or ask for a quote.
