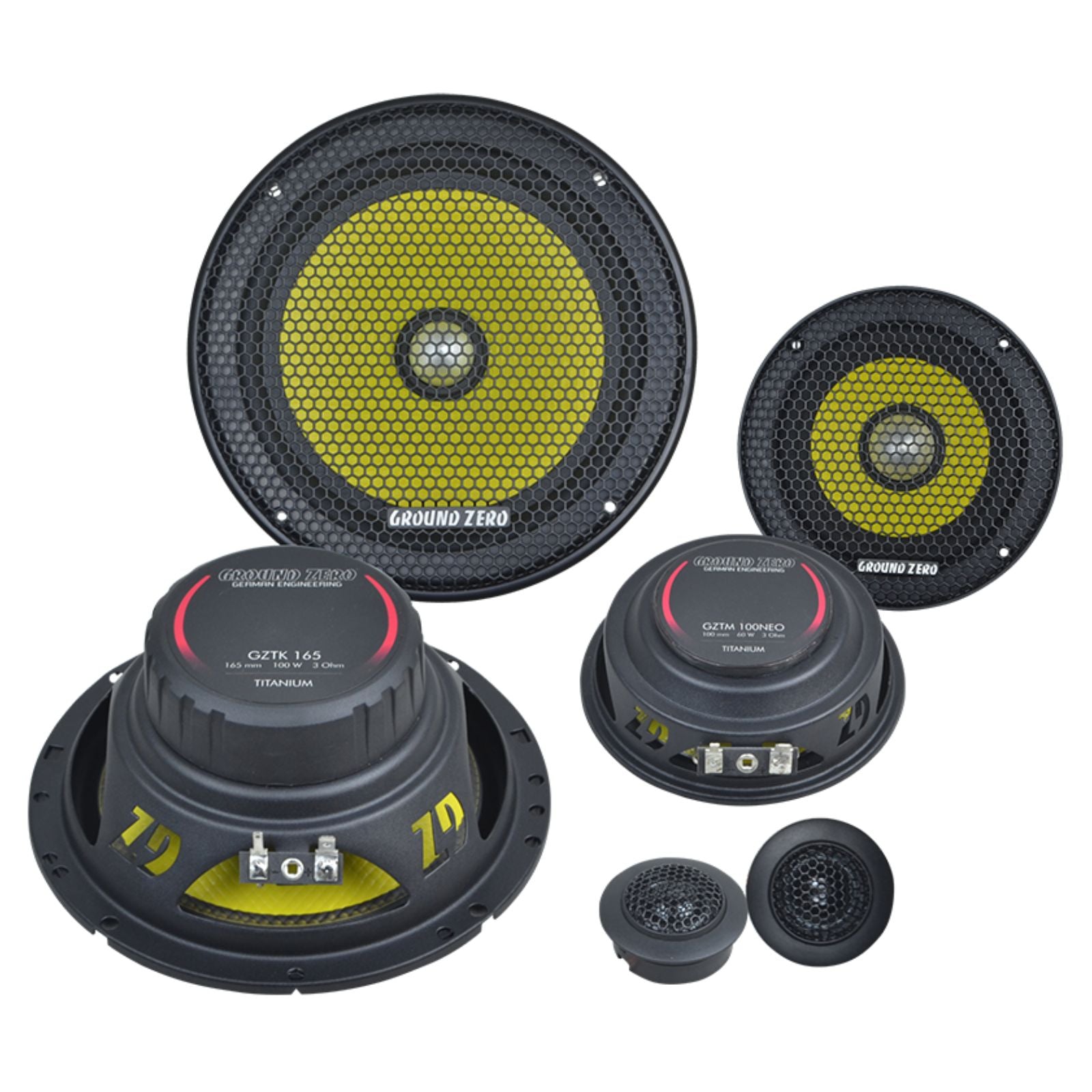

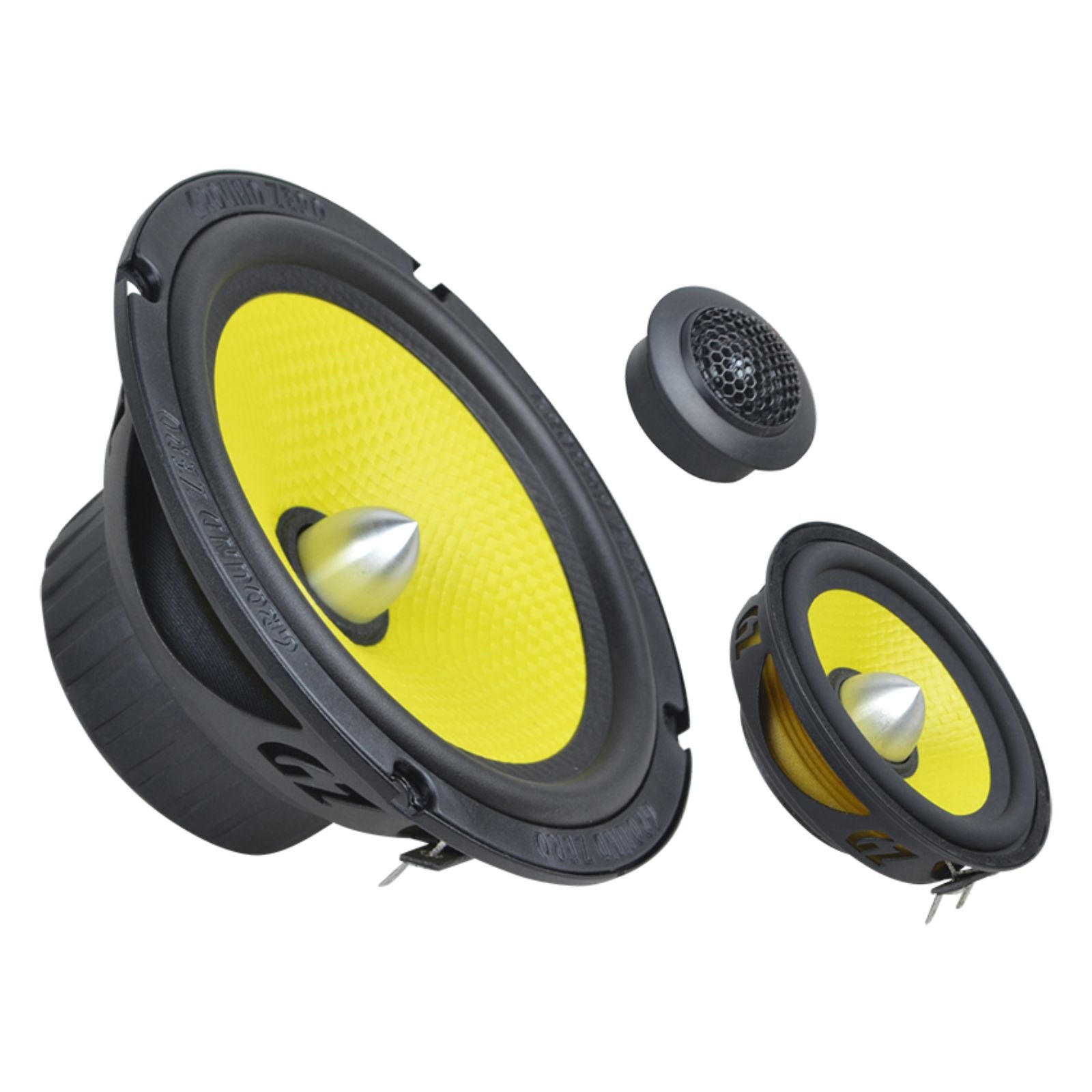

The Ground Zero GZTC 165.3X-ACT is a 6.5 inch (165 mm) 3-way component speaker system designed for active use, rated at 150W RMS (200W max). It combines an HQPP cone midwoofer, a GZTM 100NEO midrange and a 19 mm silk dome tweeter, each 3 ohm.
Built for active setups, with recommended crossover points of 430 Hz (midwoofer to midrange) and 6000 Hz (midrange to tweeter).
Key specifications
- Size: 165 mm / 6.5″, 3-way
- Power handling: 150W RMS, 200W max (system)
- Impedance: 3 ohm per driver
- Frequency response: 50 Hz – 22 kHz
- Recommended crossover points: 430 Hz and 6000 Hz

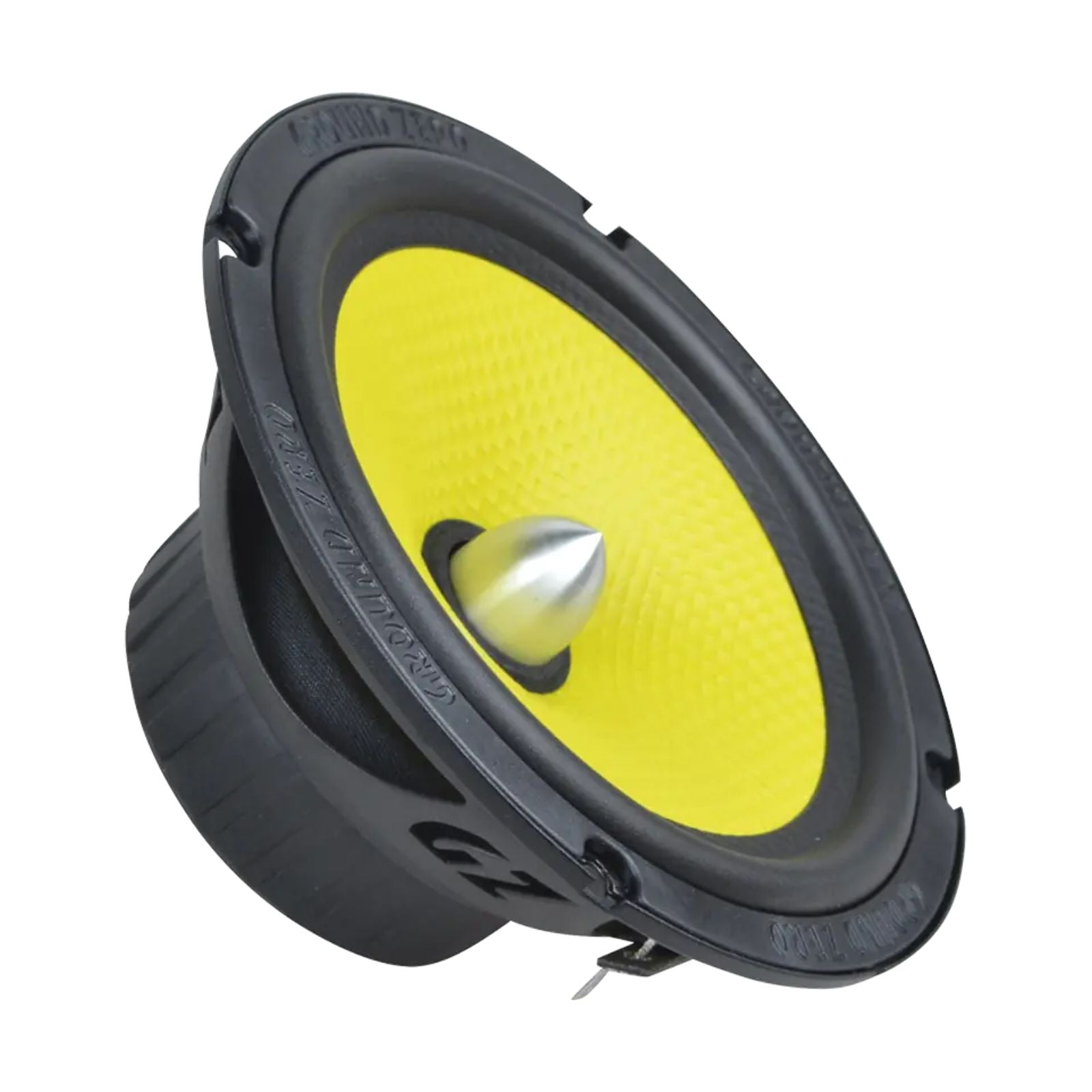

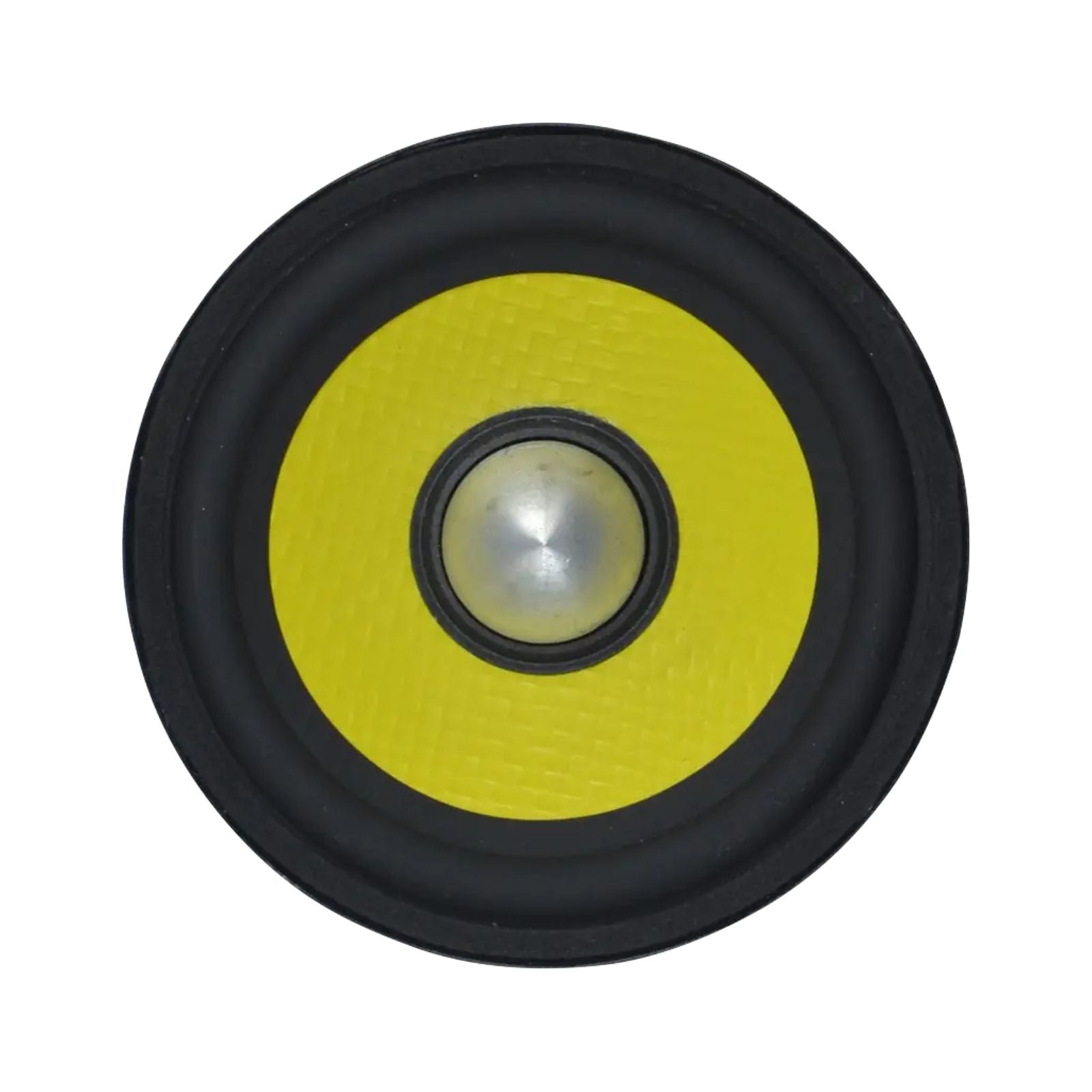

- Midwoofer: 80W RMS, 142.5 mm mounting diameter, 68 mm depth
- Midrange: GZTM 100NEO, 40W RMS, 94 mm mounting diameter, 32 mm depth

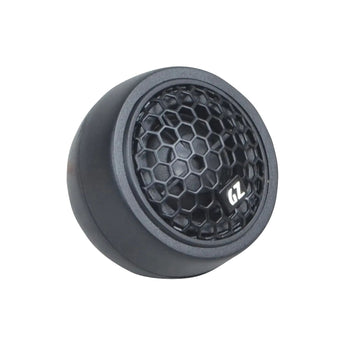

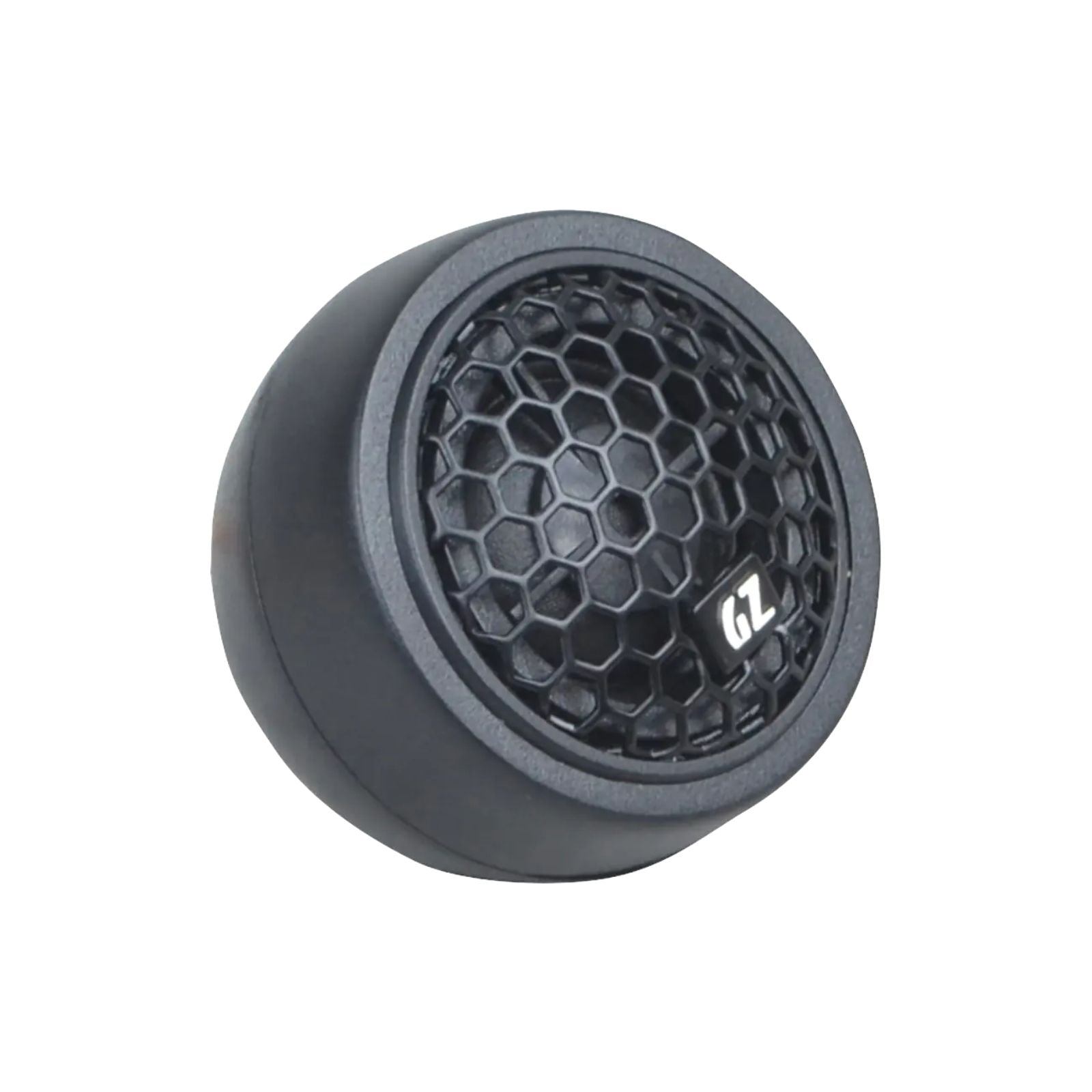

- Tweeter: 19 mm / 0.75″ silk dome, ferrite motor
165 mm / 6.5″ 3-way component speaker system for active use
A 6.5″ 3-way component kit built for active setups, featuring a structured HQPP cone and 150w handling for clean, detailed sound.
Features
- 3-way component speaker system
- HQPP cone with 3D structure
- Rubber surround
- Euro-DIN basket
- Resonance free steel basket
- For active use
- 19 mm / 0.75″ silk dome tweeter
- Ferrite motor
- Incl. hexagon style protection grill
Explore the full range in Ground Zero.
Specification
| Cut-off frequency (WF/MID) | 430 Hz (recommended) |
|---|---|
| Cut-off frequency (MID/TW) | 6000 Hz (recommended) |
| Power handling | (RMS/max.) 150 / 200 Watts |
| Frequency Response | 50 Hz – 22 kHz |
| Woofer Impedance | 3 Ohms |
| Woofer Power handling (RMS) | 80W |
| Woofer Power handling (max.) | 110W |
| Woofer Outer diameter | 165mm / 6.5″ |
| Woofer Mounting diameter | 142.5mm / 5.61″ |
| Woofer Mounting depth | 68mm / 2.68″ |
| Midrange Impedance | 3 Ohms |
| Midrange Power handling (RMS) | 40W |
| Midrange Power handling (max.) | 50W |
| Midrange Outer diameter | 102mm / 4.02″ |
| Midrange Mounting diameter | 94mm / 3.70″ |
| Midrange Mounting depth | 32mm / 1.26″ |
| Tweeter Impedance | 3 Ohms |
| Tweeter Power handling (RMS) | 30W |
| Tweeter Power handling (max.) | 40W |
| Tweeter Outer diameter | 37mm / 1.46″ |
| Tweeter Mounting diameter | 37mm / 1.46″ |
| Tweeter Mounting depth | 18mm / 0.71″ |
What's Included
- GZTC 165.3X-ACT
Ground Zero
About the Ground Zero GZTC 165.3X-ACT
From our tech experts at CEN
Ground Zero 6.5 inch component speakers, with separate tweeters for mounting where you will actually hear them, rated at 150w RMS.
Who it suits
Drivers building a proper front stage and happy for tweeters to be mounted separately, which usually means a professional fit.
Our tech experts advise
Sizes, adapter rings and harnesses vary by vehicle, year and trim, so we confirm what your car takes before ordering rather than guessing. Door treatment matters as much as the speaker, and these repay an amplifier. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.
Explore the full Ground Zero range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Ground Zero
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Looking for Installation?
At CEN we take pride in being able to share the quality of our work as well as being able to show what incredible products we have installed week on week.
More from Ground Zero
More options from the same range, in stock and ready to go
Frequently Asked Questions
Q: How do I choose the right amplifier for my speakers or subwoofer?
A: Match the amplifier's RMS output per channel to the RMS handling of your speakers or subwoofer at the same impedance. The Specification tab lists the power figures. If in doubt, contact CEN with your setup and we will recommend a match.
Q: Can the GZTC 165.3X-ACT run from a head unit?
A: It is designed for active use, so each driver is fed from its own amplifier channel with the crossover set by an active processor or amplifier at the recommended 430 Hz and 6000 Hz points, rather than run directly from a head unit.
Q: What crossover frequencies should I use with the GZTC 165.3X-ACT?
A: Ground Zero recommends 430 Hz between the midwoofer and midrange, and 6000 Hz between the midrange and tweeter.
Q: How much space do the GZTC 165.3X-ACT drivers need?
A: The midwoofer needs a 142.5 mm mounting diameter and 68 mm depth, and the midrange a 94 mm mounting diameter and 32 mm depth.
Q: Can CEN fit these speakers for me?
A: Yes. CEN offers professional installation from our Nottingham premises. Contact us to book an installation slot or ask for a fitting quote.
