AudioControl Epicenter Micro Bass Restoration Processor
Couldn't Load Pickup availability

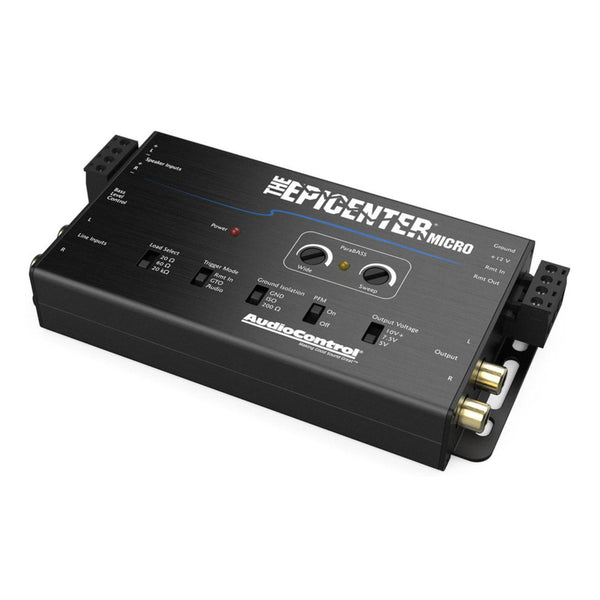

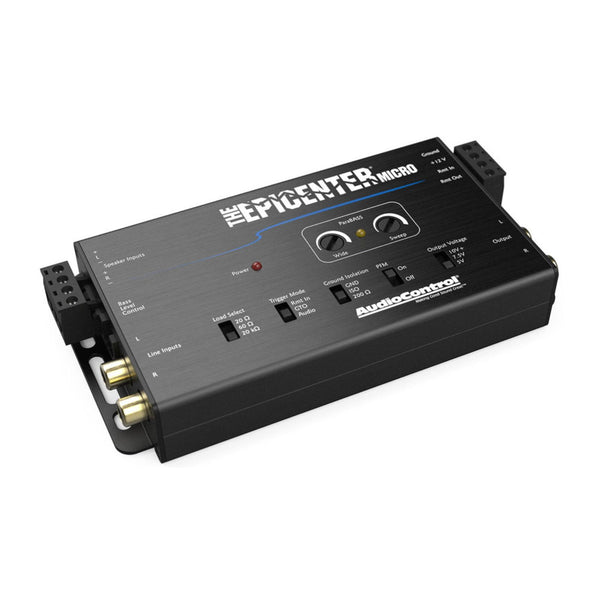

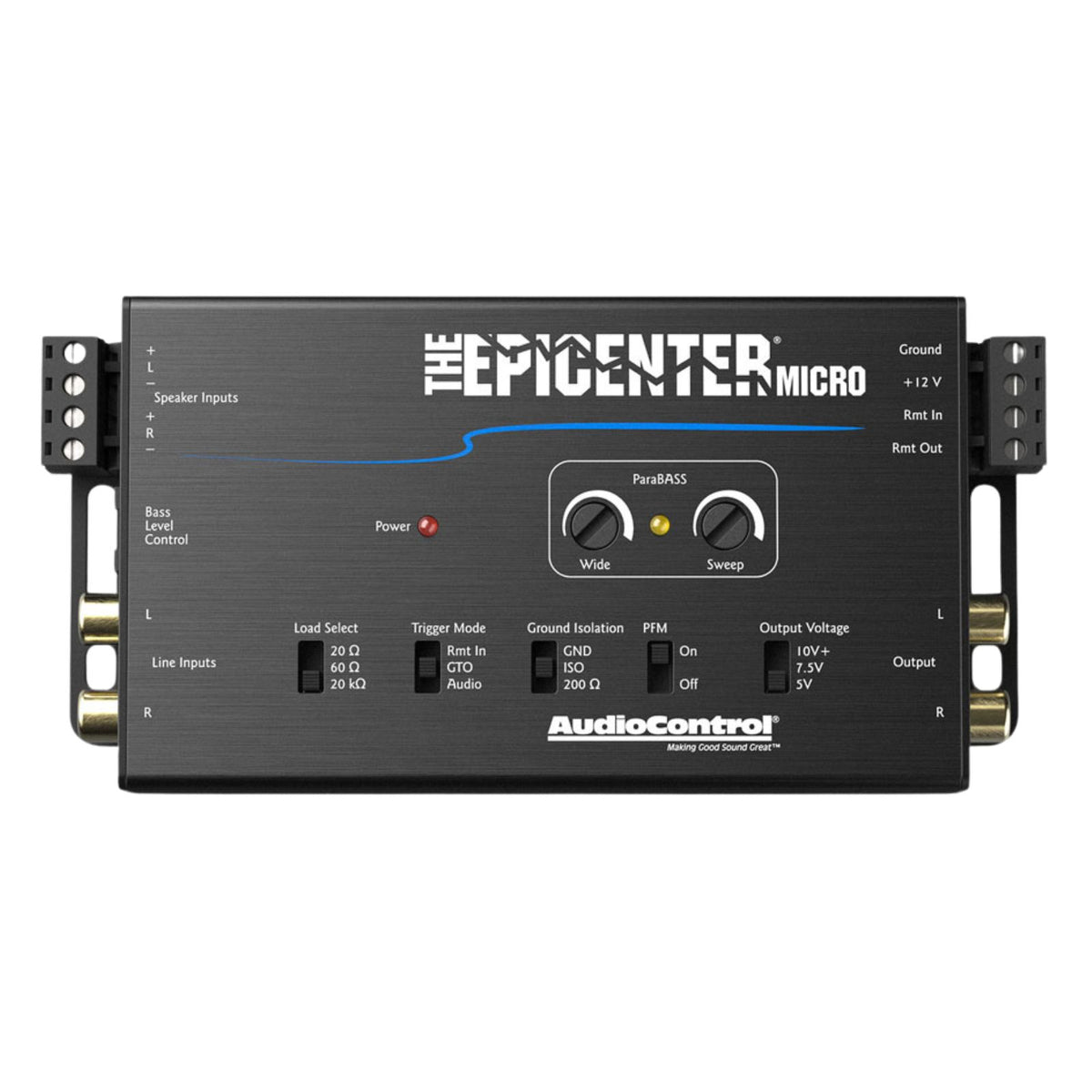

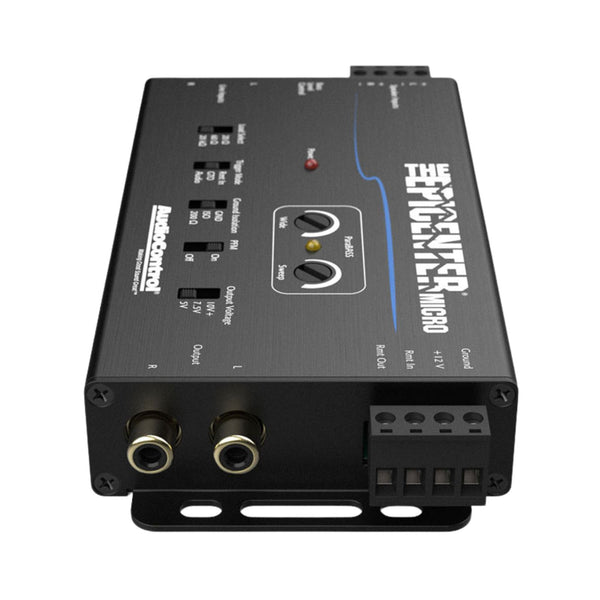

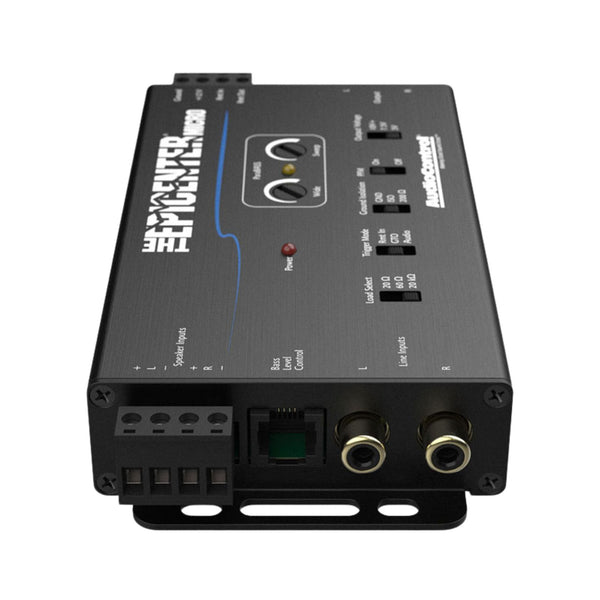

The AudioControl Epicenter Micro is a compact digital bass restoration processor and line output converter, accepting both speaker-level inputs (up to 40 Vrms / 400W) and line-level inputs, with a 9.5 Vrms preamp output. It is part of AudioControl's Epicenter and OEM integration range and includes the ACR-4 dual-knob dash mount remote.
This listing is for the Epicenter Micro with ACR-4 dual knob dash mount control. The AudioControl line output converter range also includes the LC2i 2-channel line out converter and the LC7i 6-channel line out converter with Accubass.
Key specifications
- Function: bass restoration processor and line output converter
- Speaker-level input: 2 channels, up to 40 Vrms / 400W (20k ohm setting)
- Selectable input impedance: 20 ohm, 60 ohm, 20k ohm
- Line-level input: 2 channels
- Preamp output: 2 channels, up to 9.5 Vrms (13V peak)
- Frequency response: 10 Hz to 22 kHz +/-1 dB
- Signal to noise: over 105 dB
- Turn-on: 12V remote, GTO Signal Sense or Audio Sense
- Remote: ACR-4 dual knob control included
Overview
The Epicenter Micro combines AudioControl's digital bass restoration with OEM integration. The speaker-level input stage offers selectable impedance loads (20 ohm, 60 ohm, 20k ohm), and traditional line-level inputs are also supported, making it compatible with most factory and aftermarket systems.

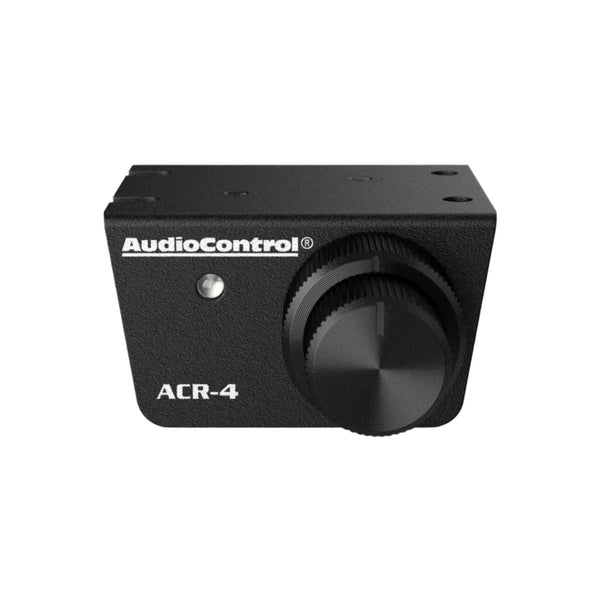

Trigger modes include +12V remote in, GTO Signal Sense and Audio Sense. The PFM subsonic filter can be bypassed, and a 10V+ output voltage setting is available for demanding systems. The included ACR-4 remote allows independent adjustment of bass restoration and output level.
Features
- Patented digital bass restoration
- ParaBASS bass shaping
- Speaker and line-level inputs
- Load matching circuit
- Multiple trigger modes
- ACR-4 dual knob dash mount control included
- Conformally coated PCB for increased resistance to the elements
Explore the full range in AudioControl Line Output Converters.
Specification
| Speaker Level Input | 1 (2 channels) |
|---|---|
| Maximum Speaker Level Input | 40 Vrms / 400 W (20kΩ setting) |
| Line Level Input | 1 (2 channels) |
| Line Level Input Impedance | 7kΩ |
| Preamp Outputs | 1 (2 channels) |
| Maximum Output Level | 9.5Vrms/13V peak |
| Output Impedance | 150Ω |
| Total Harmonic Distortion | 0.03% |
| Signal to Noise | >105 dB |
| Frequency Response | 10 Hz – 22 kHz ±1 dB |
| Current Draw | 300 mA |
| Recommended Fuse Rating | 1 A |
| Dimensions | 5.9″L x 3″D x 1″H |
| Weight | 0.6 lbs. (0.27 kg) |
More specs
| |
What's Included

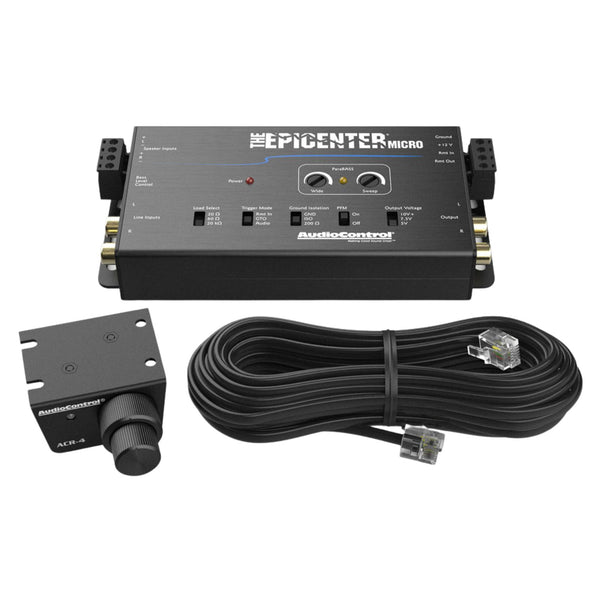

- The Epicenter Micro
- ACR-4
- Remote Cable
- Speaker and Power Connectors
- Manual
- Warranty
AudioControl
About the AudioControl Epicenter Micro
From our tech experts at CEN
The AudioControl Epicenter Micro is a compact digital bass restoration processor and line output converter. It accepts speaker-level inputs up to 40 Vrms (400W) and line-level inputs, delivering up to 9.5 Vrms on two RCA outputs. The included ACR-4 dual-knob remote provides independent dash-mounted control of bass restoration and output level.
Who it suits
The Epicenter Micro suits anyone adding an amplifier or subwoofer to a factory head unit that lacks RCA outputs. It also works well where bass restoration is needed alongside OEM integration. For a six-channel solution, see the AudioControl LC7i.
Our tech experts advise
Selectable input impedance (20Ω, 60Ω, 20kΩ) allows accurate signal matching to most factory speaker wiring. Three trigger options — 12V remote, GTO Signal Sense and Audio Sense — mean it works even without a dedicated remote wire. The subsonic filter can be bypassed if your amplifier handles its own filtering. Fitting is priced per vehicle; visit our Nottingham car audio installation page to discuss your setup.
Explore the full AudioControl range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all AudioControl
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Looking for Installation?
At CEN we take pride in being able to share the quality of our work as well as being able to show what incredible products we have installed week on week.
More from AudioControl Line Output Converters
More options from the same range, in stock and ready to go
AudioControl LC2i Pro 2 Channel Active Line Out Converter accubass with ACR-1
£164.99RRP £169.99Save 2%
AudioControl LC2i 2 Channel RCA Line Out High to Low Converter with Accubass
£119.99£129.99
AudioControl LC6i 6 Channel Speaker Level Line Out RCA Converter High to Low
£199.99
AudioControl LC8i 8 Channel Active Line Out Converter
£319.99
AudioControl LC7i Pro 6 Channel Active Line Out Converter AccuBASS with ACR-1
£264.99£299.99
Frequently Asked Questions
Q: Can the EPICENTER Micro connect to a factory head unit?
A: Yes. It has a 2-channel speaker-level input with selectable 20 ohm, 60 ohm or 20k ohm loads, handling up to 40 Vrms / 400W, and converts the signal to a preamp output. It also has a 2-channel line-level input.
Q: How does the EPICENTER Micro turn on?
A: It supports a traditional +12V remote input, GTO Signal Sense and Audio Sense, and provides a 12V remote output that is active whenever the unit is on.
Q: What is in the box with the EPICENTER Micro?
A: The EPICENTER Micro, ACR-4 remote, remote cable, speaker and power connectors, manual and warranty.
Q: Can CEN fit the EPICENTER Micro for me?
A: Yes. CEN offers professional installation from our Nottingham premises. Contact us to book an installation slot or ask for a fitting quote.
