AudioControl Epicenter Micro Bass Restoration Processor

£169.99 Out of stock
Out of Stock
SKU: 93325MPN: Epicenter Micro

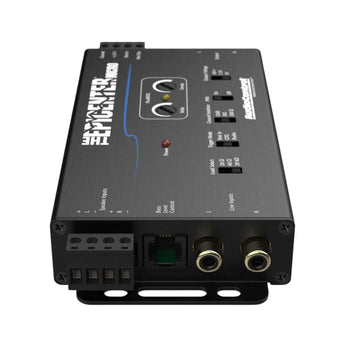

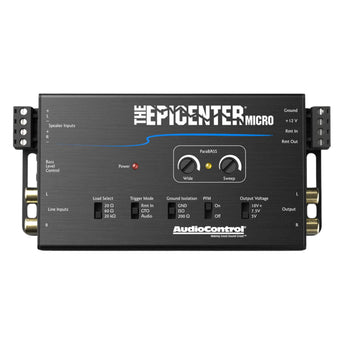

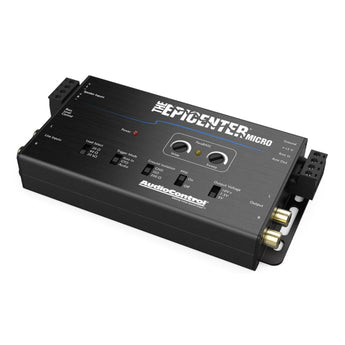

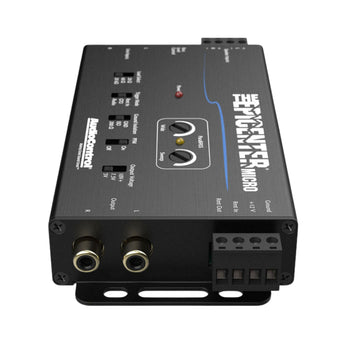

EPICENTER MICRO

Bass Restoration Processor & Line Output Converter

The EPICENTER Micro combines AudioControl’s legendary digital bass restoration with world-renowned OEM integration capabilities. Featuring a speaker-level input stage with selectable impedance loads, as well as traditional line-level inputs, The EPICENTER Micro brings out the best bass in any system. Trigger modes include traditional +12V remote in, GTO™ Signal Sense, and Audio Sense. The PFM Subsonic Filter can be bypassed for the truly dedicated, and the 10V+ output voltage setting beckons only the bravest among us. Use the included ACR-4 remote to independently adjust bass restoration and output level.

Features

  • Patented Digital Bass Restoration
  • ParaBASS® Bass Shaping
  • Speaker and Line Level Inputs
  • Load Matching Circuit
  • Multiple Trigger Modes
  • ACR-4 Dual Knob Dash Mount Control Included
  • Conformally Coated PCB for Increased Resistance to the Elements
Specification
Speaker Level Input1 (2 channels)
Maximum Speaker Level Input40 Vrms / 400 W (20kΩ setting)
Line Level Input1 (2 channels)
Line Level Input Impedance7kΩ
Preamp Outputs1 (2 channels)
Maximum Output Level9.5Vrms/13V peak
Output Impedance150Ω
Total Harmonic Distortion0.03%
Signal to Noise>105 dB
Frequency Response10 Hz – 22 kHz ±1 dB
Current Draw300 mA
Recommended Fuse Rating1 A
Dimensions5.9″L x 3″D x 1″H
Weight0.6 lbs. (0.27 kg)
More specs
  • Speaker Level Input Impedance (selectable): 20Ω, 60Ω, 20kΩ
  • Remote In / GTO™ Signal Sense / Audio Sense
  • 12VDC Remote Out (always active when unit is on)

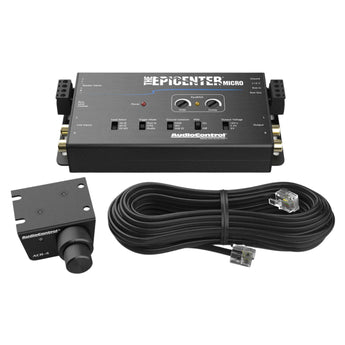

What's Included
  • The Epicenter Micro
  • ACR-4
  • Remote Cable
  • Speaker and Power Connectors
  • Manual
  • Warranty
