JL Audio CF-275MT Custom Fit Series 2.75" 7cm Mid-Tweeter Speaker System 30w RMS
Couldn't Load Pickup availability

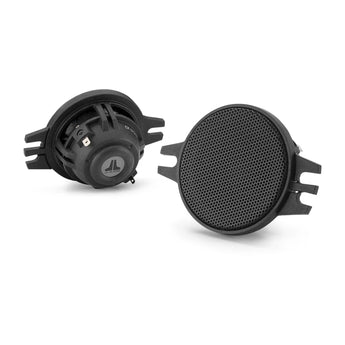

CF-275MT 2.75" (70 mm) Mid-Tweeter Speaker System
Custom-fit (CF) Speaker System: 2.75" (70 mm) Mid-Tweeter

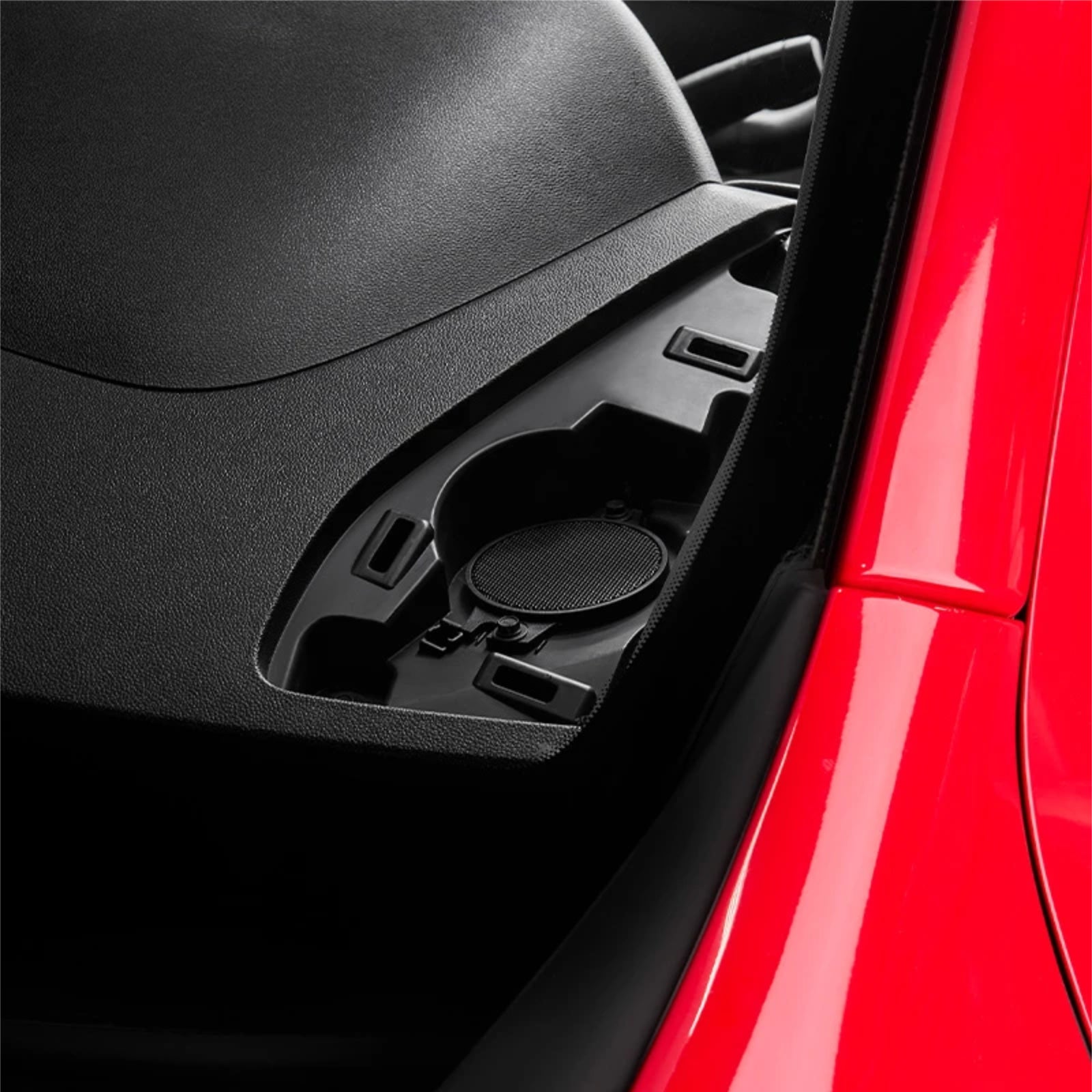

Engineered to deliver amazing sound from factory locations, CF speakers are designed with shallow polymer frames and breakaway mounting tabs for maximum compatibility in today's most popular vehicles, including those from Chevrolet, GMC, Cadillac, Dodge, Jeep, RAM, Toyota and many more.

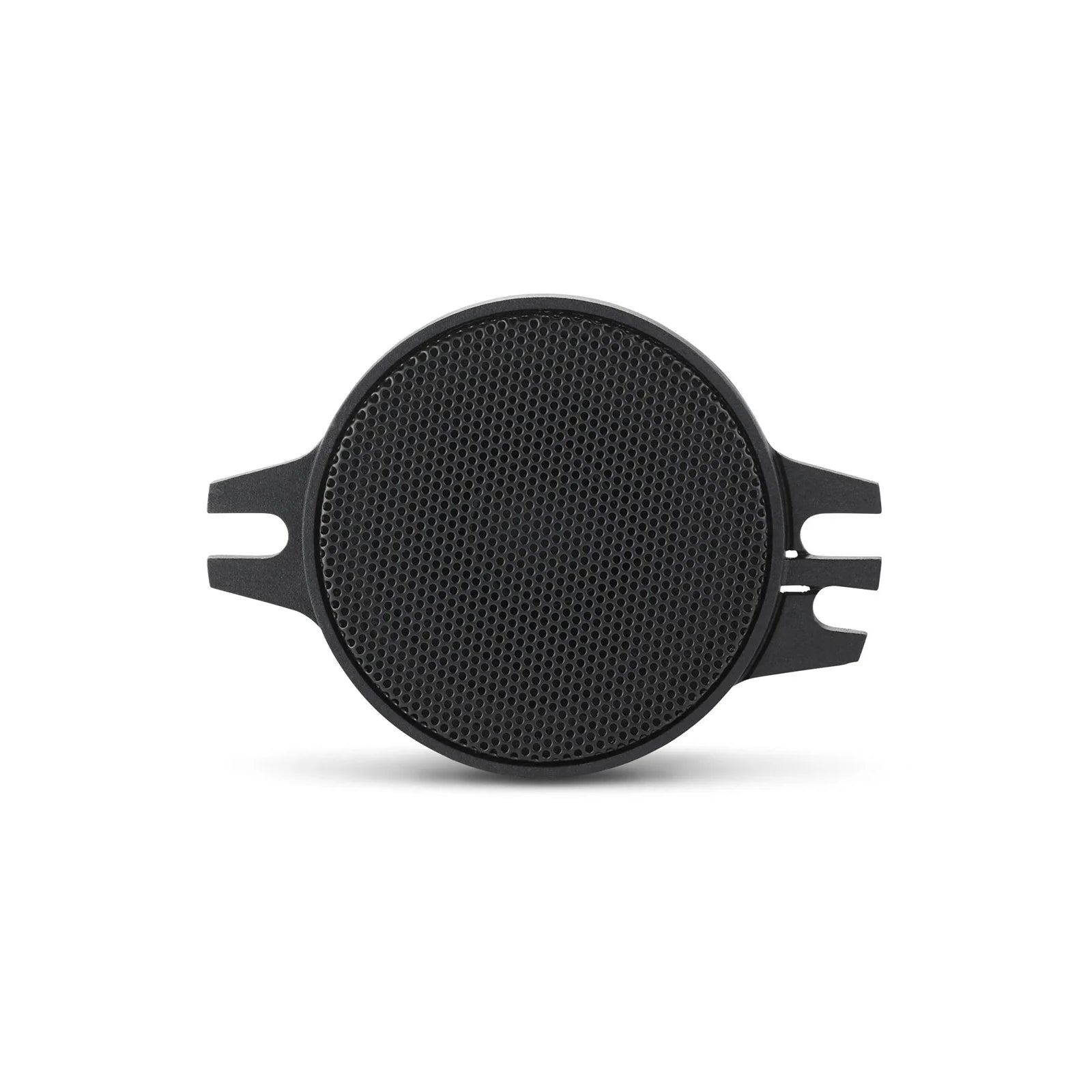

CF drivers benefit from our proprietary FEA modeling and expertise in loudspeaker design. This knowledge is used to create speakers that can play loudly while maintaining a smooth, dynamic low-distortion sound. At the core of the CF-275mt mid-tweeter is a proprietary, 2.75" (70 mm) composite frame and a DMA-optimized motor system. An ultralight, fiber-reinforced pulp cone with a custom "S" roll surround delivers excellent efficiency and extended high-frequency response. A flat, progressive-roll spider ensures linear compliance, while the neodymium motor packs astonishing energy from an ultracompact and lightweight package. Each speaker's glass-filled, high-temperature polymer frame is outfitted with insert-molded terminals and a low-profile perforated metal grille to easily fit behind factory trim while providing excellent UV protection in exposed dashboard locations.

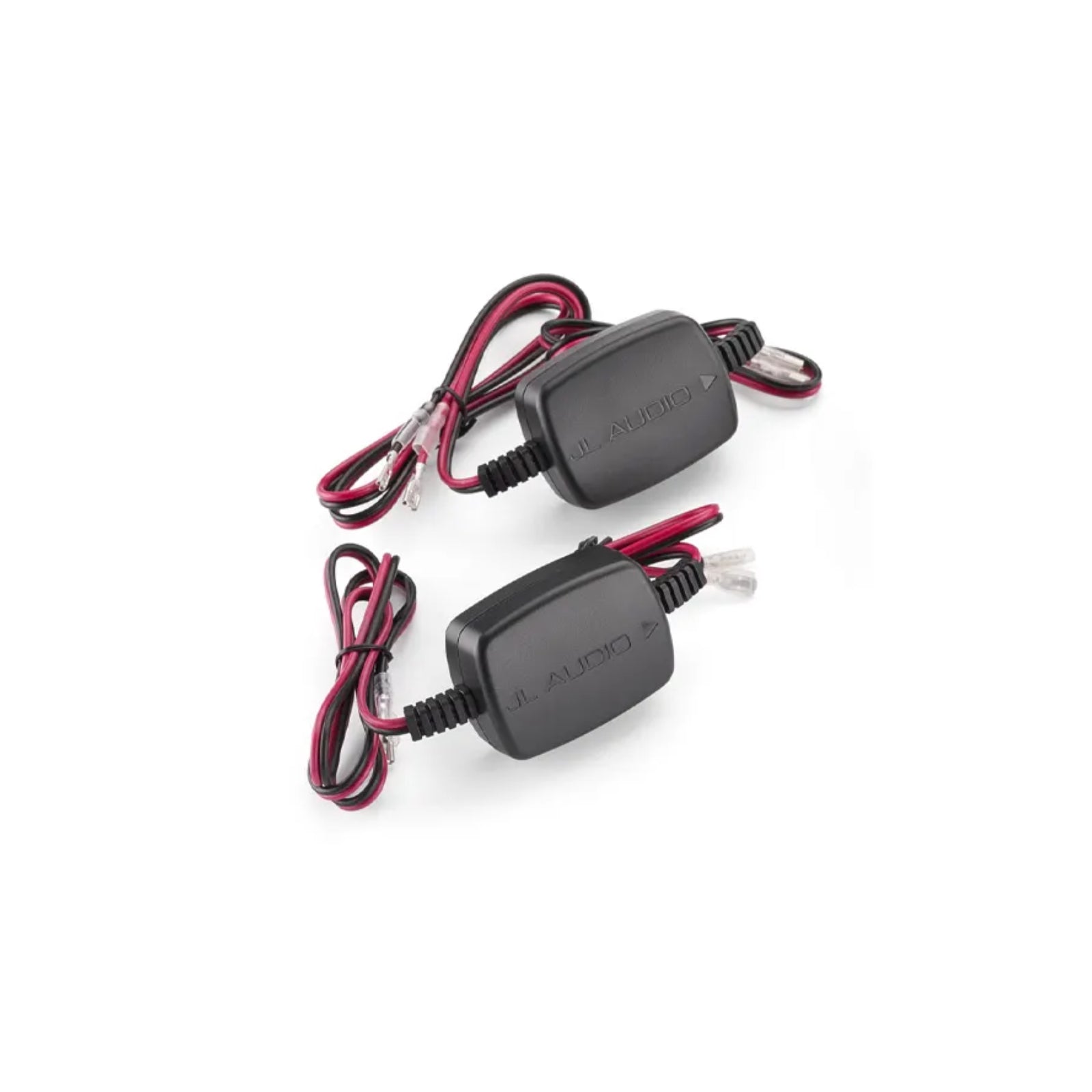

For passive applications as midtreble speakers, in-line, second order high-pass filters are included to enhance smoothness and improve power handling. CF-275mt speakers can also be used actively, as true midrange or mid-tweeter drivers to create outstanding two-way or three-way systems. For active applications, we recommend a high-quality digital signal processor (DSP), such as the JL Audio TwK® DSP or a VXi amplifier with built-in DSP, and the recommended bandwidths below.
Enjoy factory-fit and next-level sound from OEM locations with CF speakers!
Speakers are sold as a pair and include built-in grilles.
Specification
| Continuous Power Handling (RMS) | 30 W |
|---|---|
| Recommended Amplifier Power (RMS) | 10 - 40 W / Ch. |
| System Efficiency | 82.0 dB @ 1 W / 1 m |
| System Nominal Impedance | 4 Ω |
| System Frequency Response | 450 Hz - 20 KHz ± 3 dB |
| Design Bandwidth | With 24 dB / octave filters: 400 Hz - 20 kHz; With 12 dB / octave filters: 500 Hz - 20 kHz |
What's Included
- CF-275MT Speakers are sold as a pair and include built-in grilles.
FAQs
Q: Will these speakers fit my car?
A: Most car speakers are standard sizes, but mounting depth and fitting rings vary by vehicle. Check the size in the Specification tab against your vehicle, or contact CEN with your registration and we will confirm fitment and any adapters or fitting kits you need.
Q: Do I need an amplifier to run these speakers?
A: Not always. Most speakers will run from a standard head unit, but a dedicated amplifier lets them perform at their best, particularly for component sets and higher power handling models. The RMS figure in the Specification tab is the guide to how much clean power they can use.
Q: What is the difference between coaxial and component speakers?
A: Coaxial speakers combine the tweeter and woofer in one unit for a simple like-for-like upgrade. Component sets separate the tweeter and woofer with a crossover for better imaging and detail, and suit installs where sound quality is the priority.
Q: Do these come as a pair?
A: Unless stated otherwise, car speakers are sold in pairs. Check the product title and What's Included tab, which lists exactly what is in the box.
Q: Can CEN fit these speakers for me?
A: Yes. CEN offers professional installation from our Nottingham premises. Contact us to book an installation slot or ask for a fitting quote.
