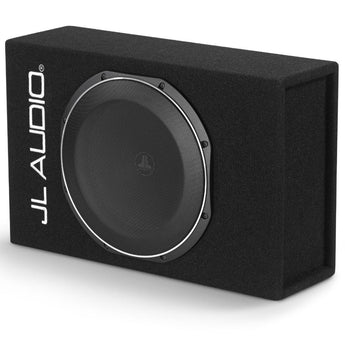

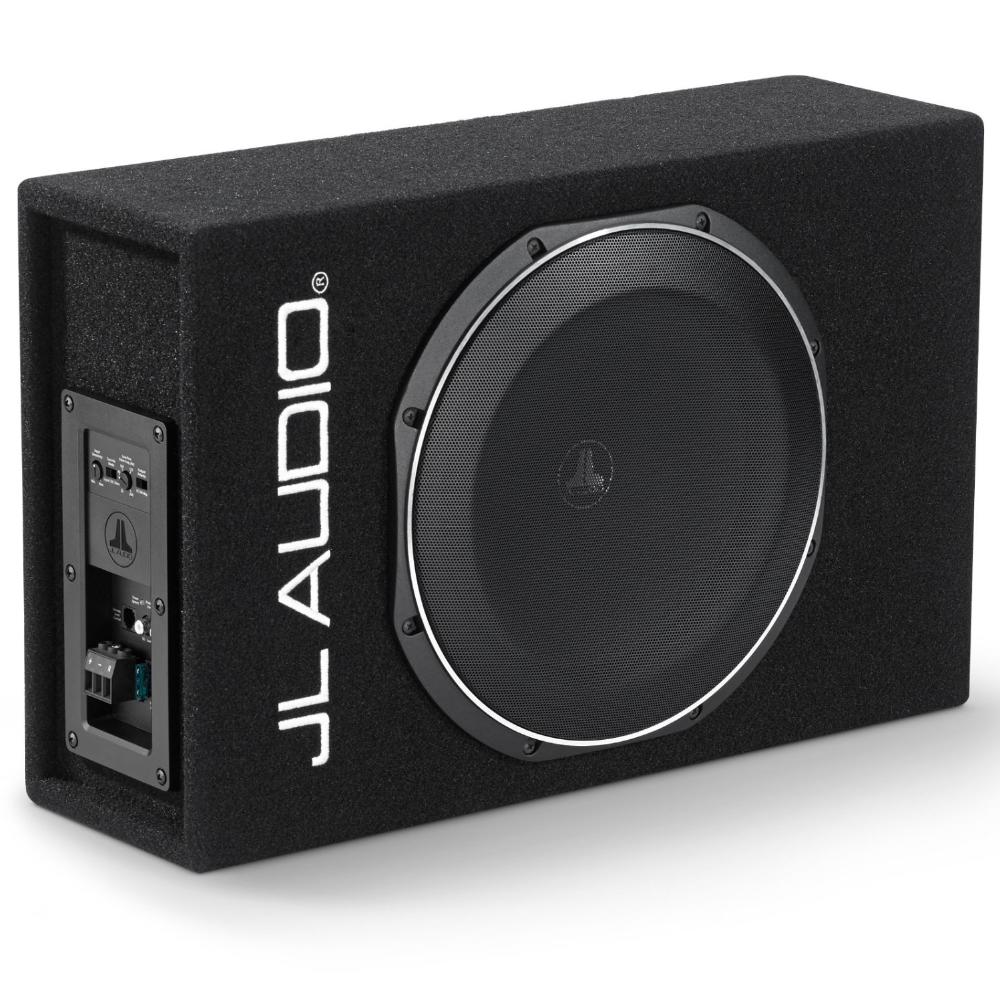

JL Audio ACS112LG-TW1 12” Active Subwoofer PowerWedge+ DCD Amplifier 400w RMS
Couldn't Load Pickup availability
ACS112LG-TW1
Single 12TW1 PowerWedge+™ with DCD™ Amplifier, Sealed, 0.25 Ω
Amplified Subwoofer System with Single 12TW1-0.25 Subwoofer, Built-In 400W Class D Amplifier, Black Carpet - Sealed Enclosure
In PowerWedge+™ systems, the power is built right into the subwoofer system. Housing a proprietary Class D amplifier, this subwoofer system employs our exclusive DCD™ amplifier technology to extract maximum output from its specially engineered, ultra low-impedance TW1 driver. By combining direct power conversion with an ultra-high current output section, DCD™ amplifiers are free of conventional switching power supplies, enabling them to generate remarkable power with unprecedented efficiency.
Harnessing the performance and insanely small box requirements of the TW1 Subwoofer, this subwoofer system is designed to deliver amazing sub-bass from an enclosure that is only 6.625 in. (168 mm) deep. Its low-profile enclosure design has been carefully engineered to the optimum sealed enclosure alignment for the 12TW1 driver and has been fine-tuned through extensive real-world listening.
Integration to OEM and aftermarket head units is a snap thanks to a variety of input options and automatic turn-on capability (via signal sensing or DC offset sensing). Also included is a variable frequency low-pass filter (50-200 Hz), along with output polarity control switch. Adding an optional RBC-1 remote level control (sold separately) lets you control subwoofer levels directly from the driver’s seat. A quick-disconnect power connector makes it easy to remove the subwoofer when you need the extra space.
Note: DCD™ amplified systems use very specific components. Never use a DCD™ amplifier or its companion subwoofer(s) with incompatible, non-DCD™ products. Doing so will void the warranty and may cause severe damage.
Finish: Black, high-grade automotive carpet with silver "JL AUDIO" embroidery on front baffle. A steel mesh grille is included to protect the Subwoofer.
Construction: CNC-Cut High-Grade MDF
Amplifier power: Built-in DCD™ Class D amplifier (400 W @ 0.25 Ω)
Nominal Impedance: 0.25 Ω
Enclosure and Subwoofer built in USA with global components
Specification
| Size | 12 Inch |
|---|---|
| RMS Power | 400W |
| Shape | Square |
| Voice Coil | Single |
| Type | Active Enclosure |
| Series | PowerWedge+ |
| Article Number | ACS112LG-TW1 |
| Country of Manufacture | China |
More specs
| |
What's Included
- JL Audio ACS112LG-TW1
- Black metal grilles (installed)
- Power connection plug (installed)
- 30-amp ATO fuse (installed)
- Speaker level input harness
- Owner's manual
FAQs
Q: Do I need an amplifier for this subwoofer?
A: Yes, unless it is an active (powered) subwoofer with a built-in amplifier. Passive subwoofers need an external amplifier matched to the RMS power and impedance shown in the Specification tab.
Q: What size enclosure does this subwoofer need?
A: The recommended enclosure volume is listed in the Specification tab where the manufacturer provides it. As a rule, sealed enclosures give tighter, more accurate bass while ported enclosures deliver more output. Contact CEN if you would like a recommendation for your build.
Q: What does RMS power mean?
A: RMS is the continuous power a subwoofer can handle, and it is the number that matters when matching an amplifier. Peak or max figures describe short bursts only. Match your amplifier output to the RMS rating in the Specification tab.
Q: Sealed or ported enclosure - which should I choose?
A: Sealed boxes are compact and produce tight, controlled bass suited to sound quality builds. Ported boxes are larger and produce more output at low frequencies, suited to those who want maximum impact. Either works well when built to the recommended volume.
Q: Can CEN build or supply an enclosure and fit everything?
A: Yes. CEN supplies enclosures and offers professional installation from our Nottingham premises, including amplifier wiring. Contact us to discuss your build.
