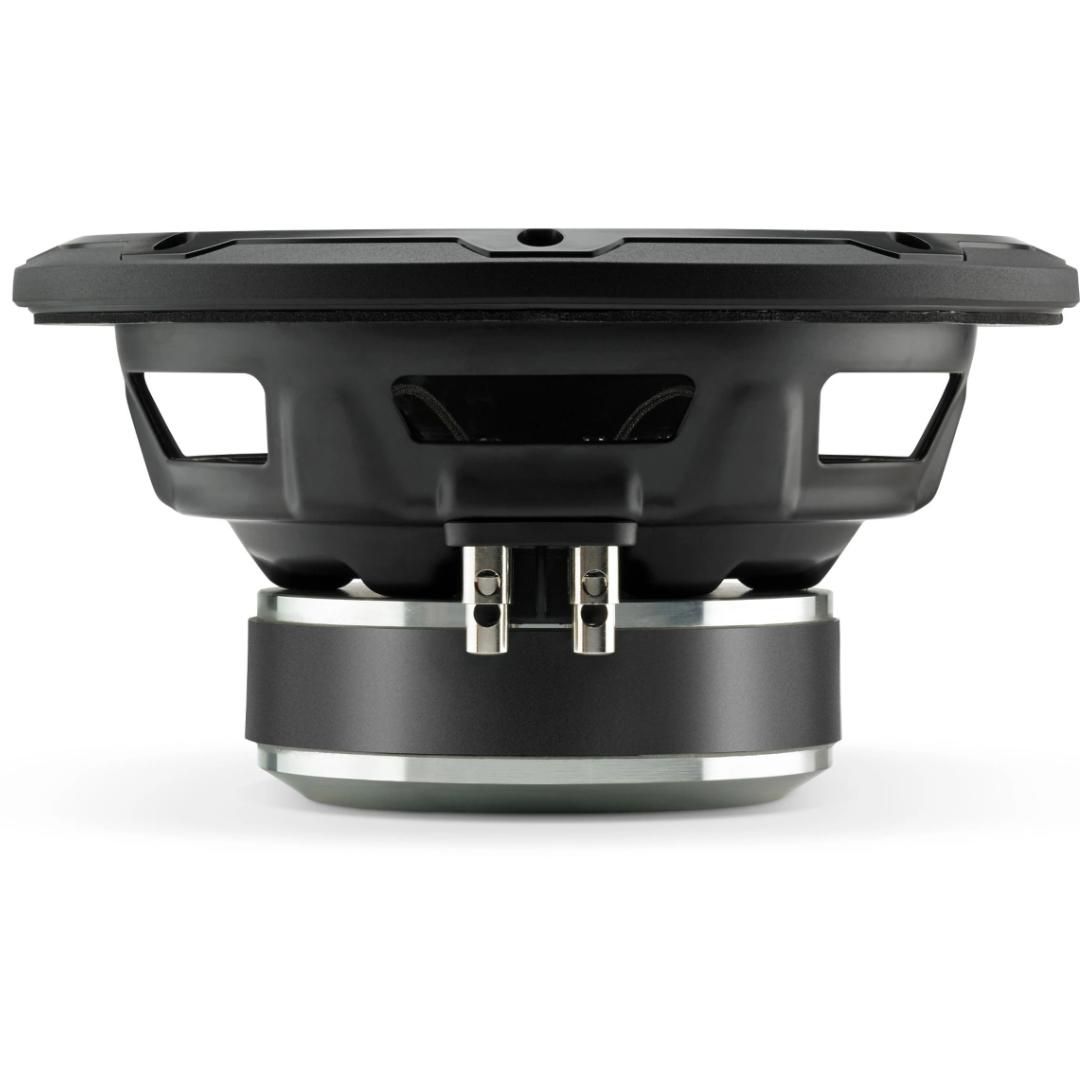

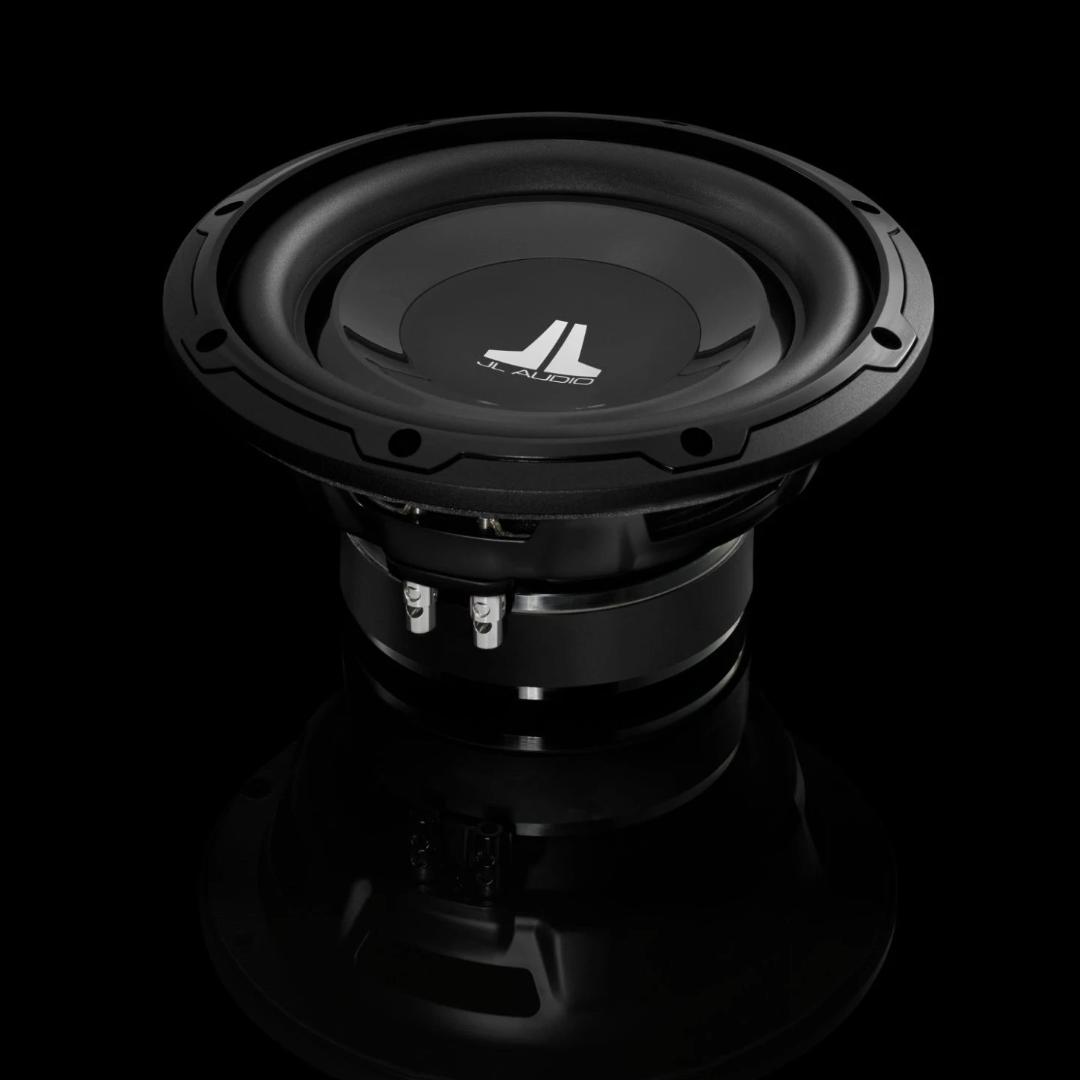

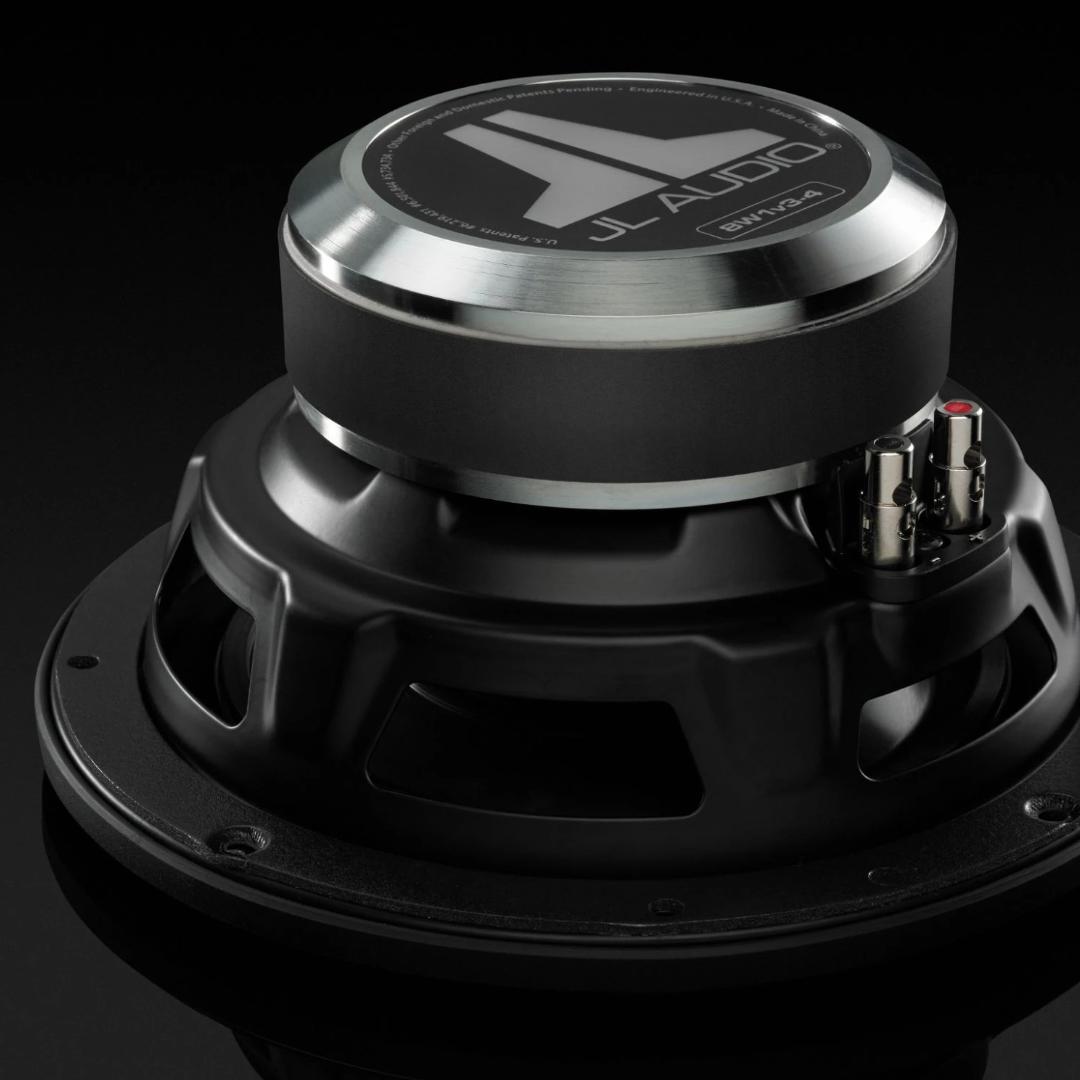

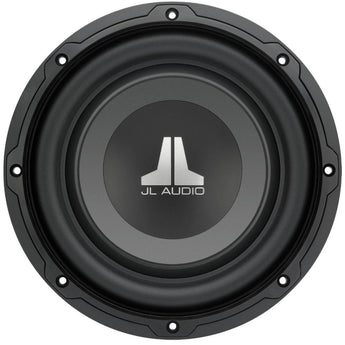

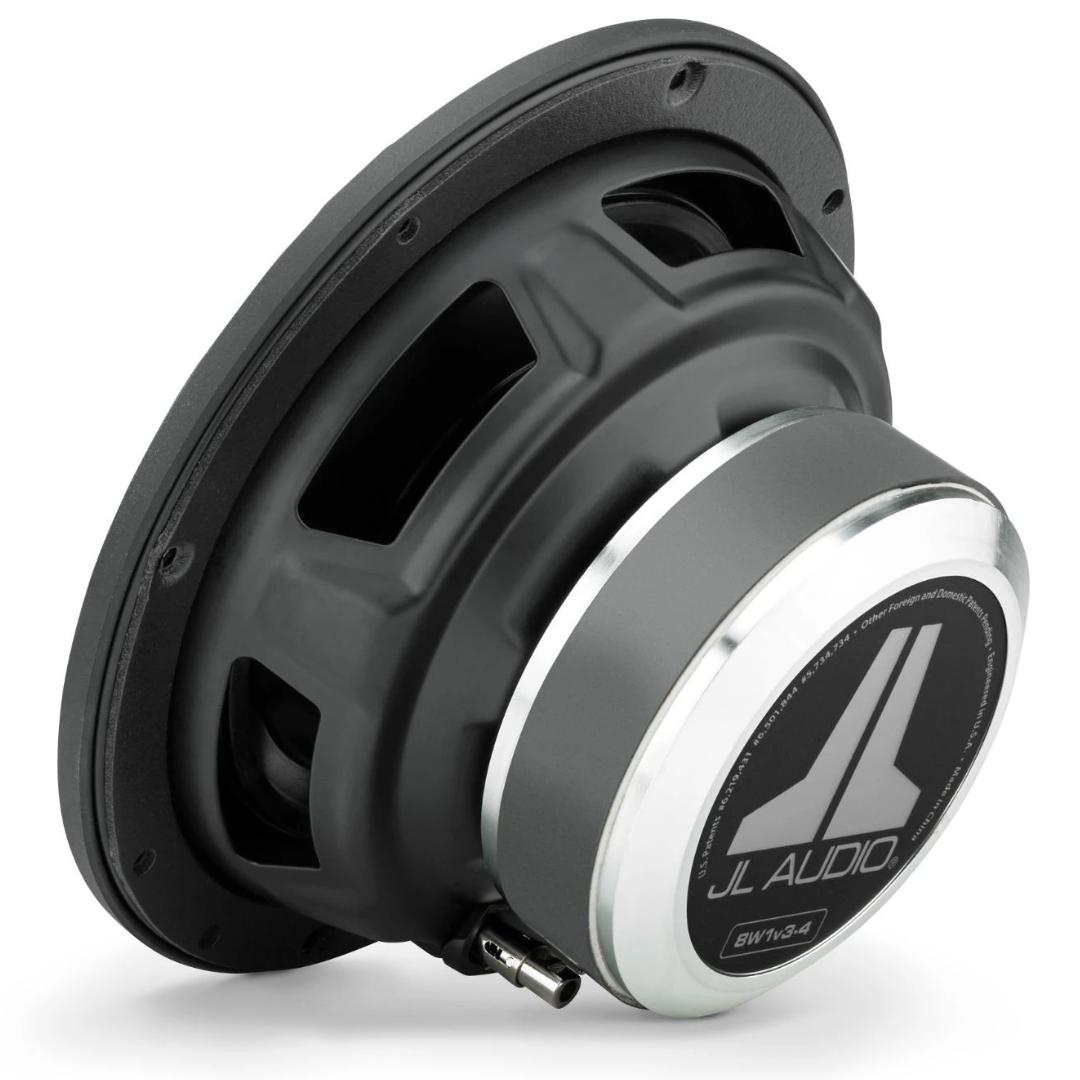

JL Audio 8W1v3-4 8" 20cm W1 Series Car Sub Subwoofer Driver 4ohm 150w RMS
Pickup Available at CEN
Usually ready in 1 hour

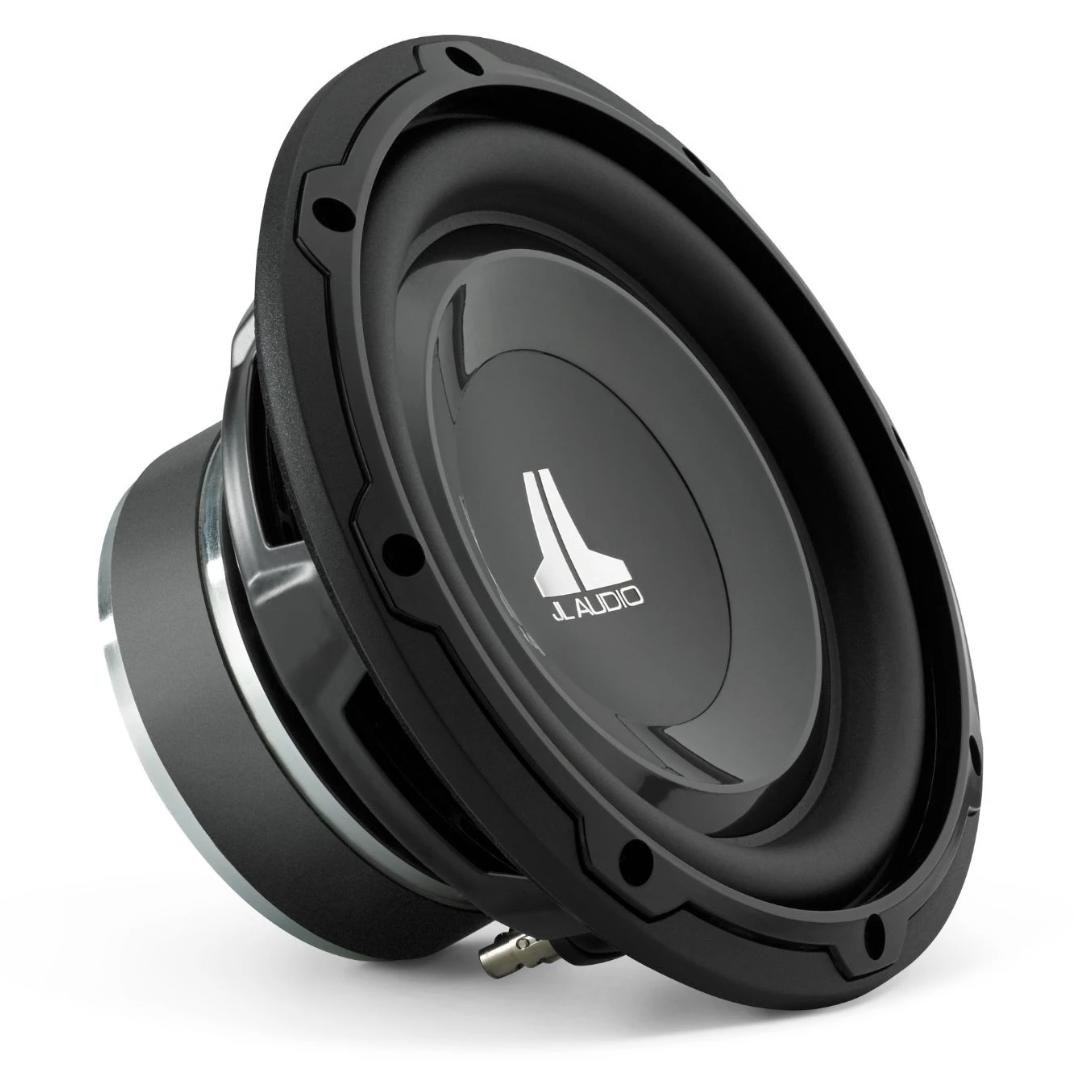

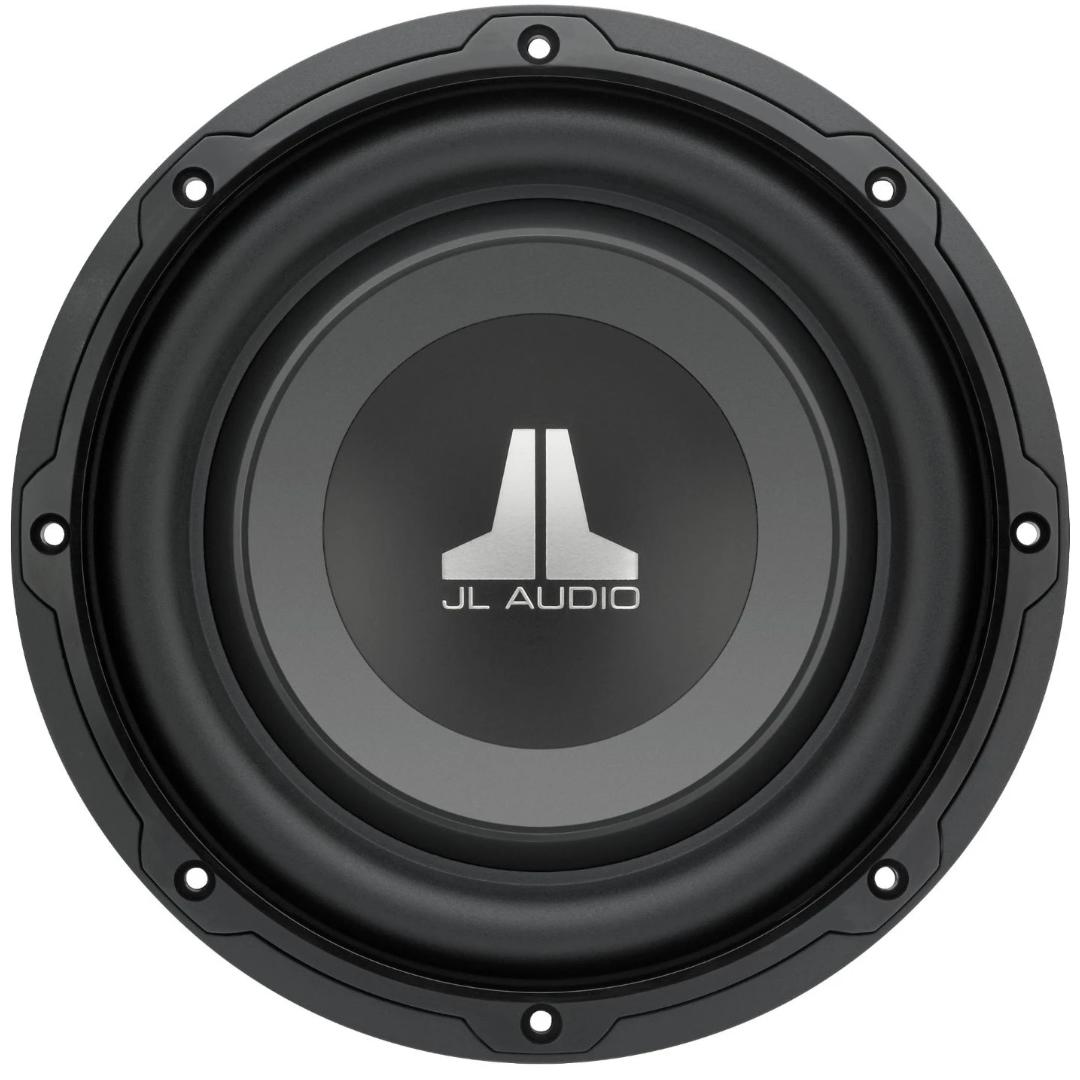

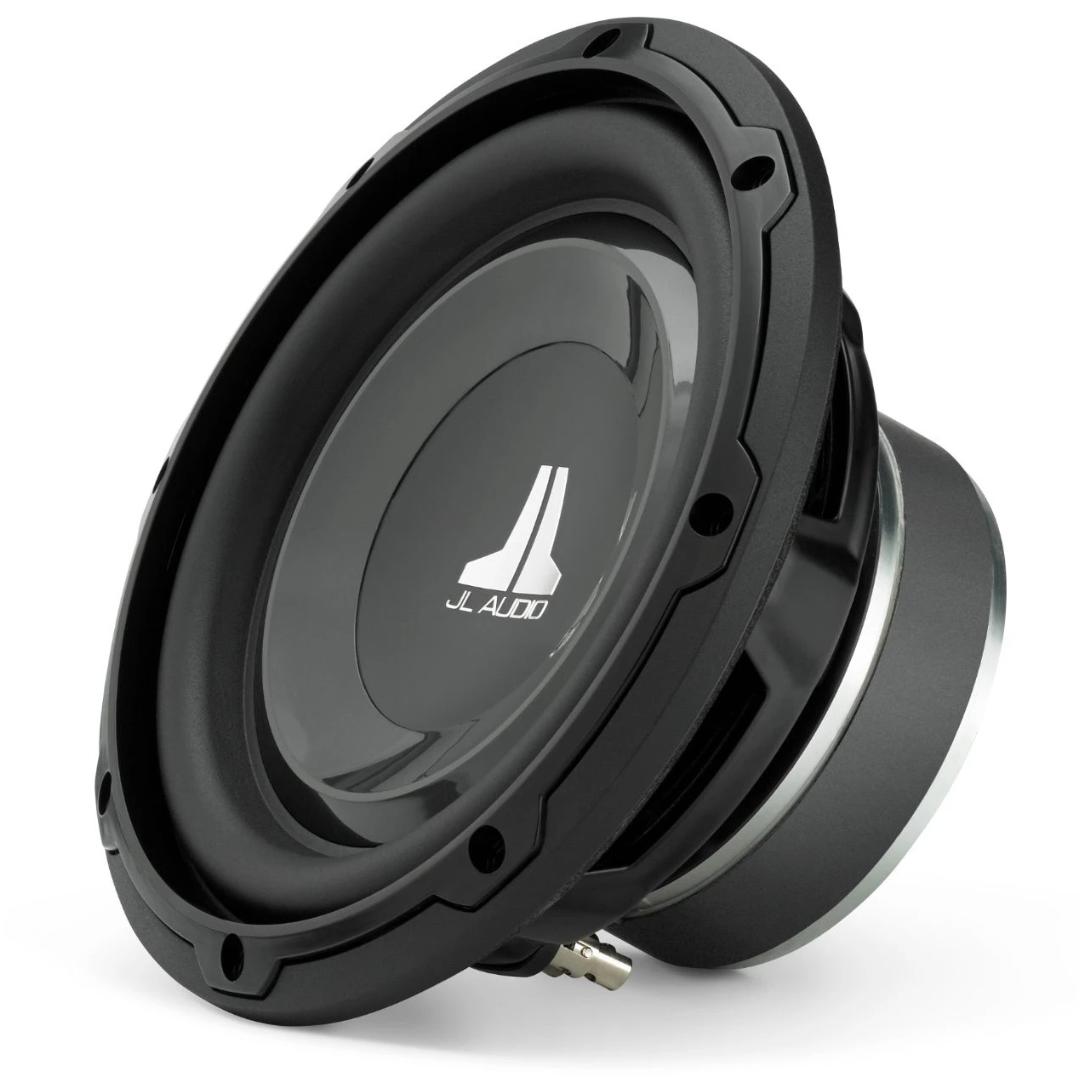

8W1v3-4
8-inch (200 mm) Subwoofer Driver, 4 Ω
W1v3 8-inch Subwoofer (150 W, 4 Ω)

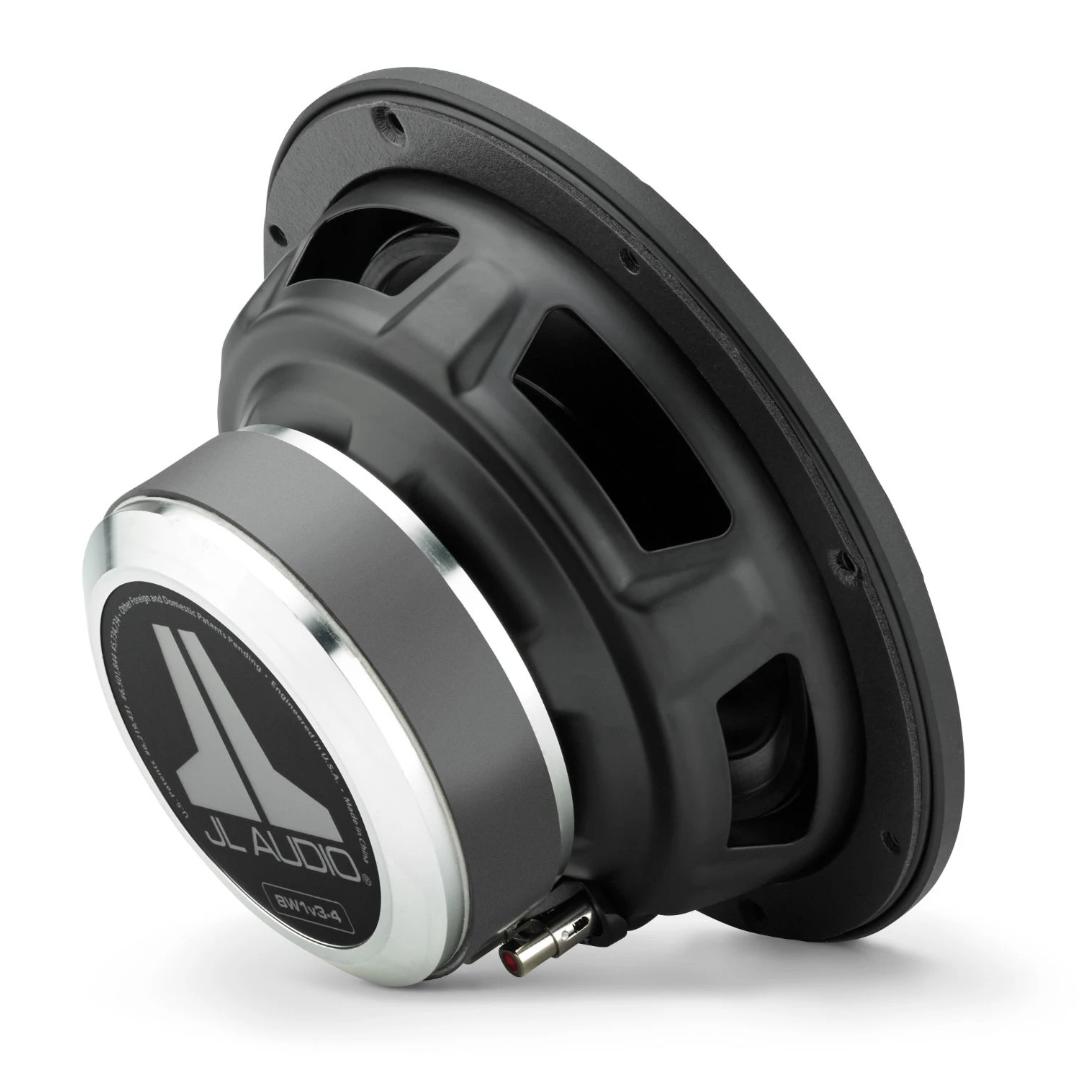

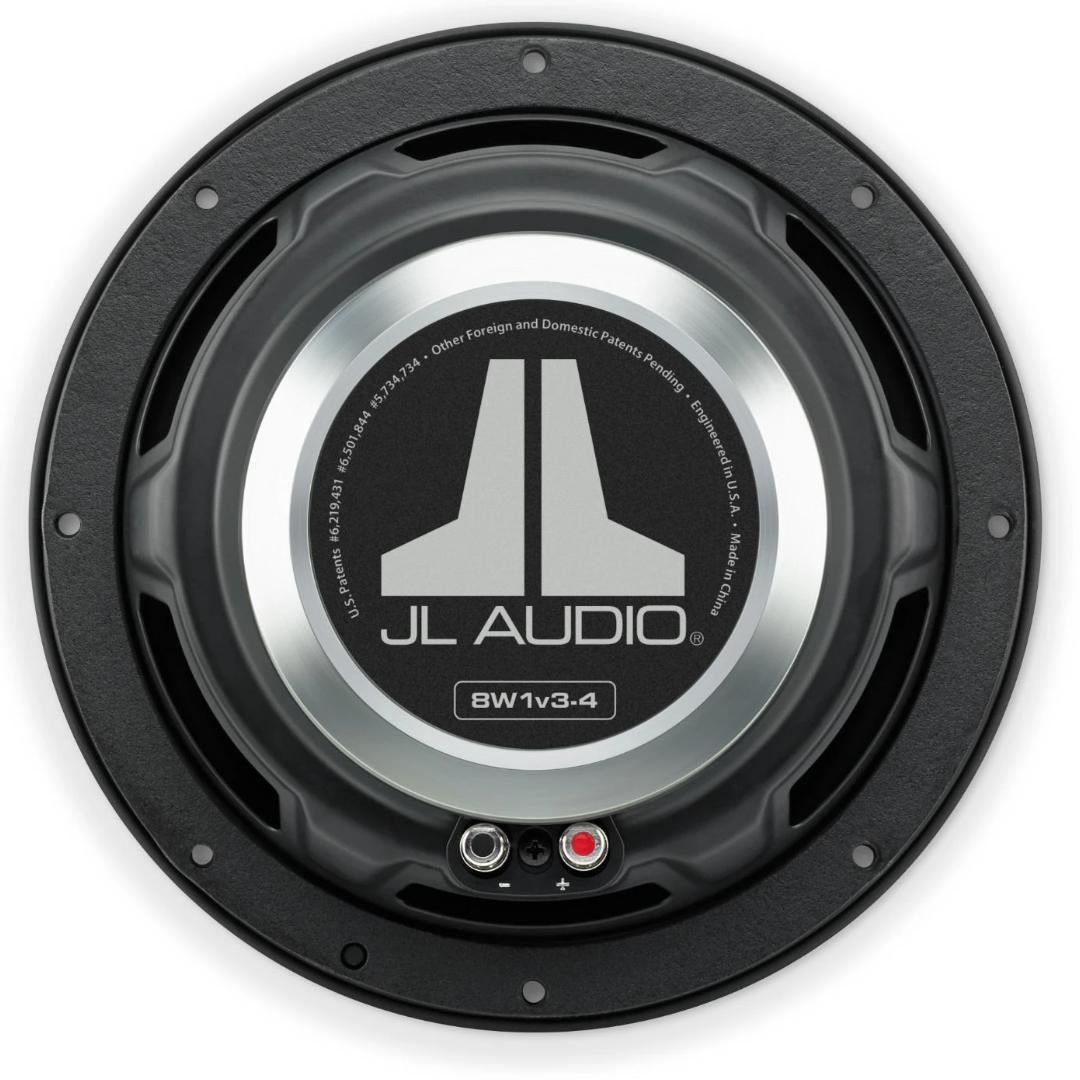

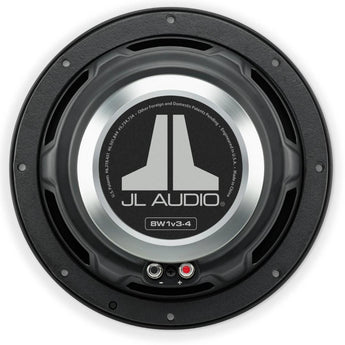

The 8W1v3 is an outstanding choice when space is very tight and amplifier power is moderate. It features shallow mounting depth (3.86 in. / 98 mm) and a compact motor structure, allowing it to comfortably fit in a lot of spaces where a typical 8-inch driver will not. Lacking a pole vent, the rear of the motor structure can be placed directly against an enclosure boundary. Excellent excursion capability and linearity allow it to reproduce sub-bass with shocking extension and quality. Several of JL Audio's proprietary technologies enhance its performance and reliability.
Specification
Part Number: 8W1V3-4
- Continuous Power Handling (RMS) 150 W
- Recommended Amplifier Power (RMS) 50 - 150 W
- Nominal Impedance (Znom) 4 Ω
- Nominal Diameter 8.0 in / 200 mm
- Overall Diameter (A) 8.5 in / 216 mm
- Mounting Hole Diameter (B) 7.09 in / 180 mm
- Bolt Hole Circle Diameter (C) 7.85 in / 199 mm
- Motor Outer Diameter (D) 4.72 in / 120 mm
- Mounting Depth (E) 3.86 in / 98 mm
- Driver Displacement 0.018 cu ft / 0.51 L
- Net Weight 7.4 lb / 3.4 kg
- Free Air Resonance (Fs) 35.40 Hz
- Electrical “Q” (Qes) 0.451
- Mechanical “Q” (Qms) 5.791
- Total Speaker “Q” (Qts) 0.418
- Equivalent Compliance (Vas) 0.68 cu ft / 19.26 L
- One-Way Linear Excursion (Xmax)* 0.3 in / 8 mm
- Reference Efficiency (no) 0.18%
- Efficiency (1 W / 1 m)** 84.8 dB SPL
- Effective Piston Area (Sd) 32.67 sq in / 0.0211 sq m
- DC Resistance (Re) 4.06 Ω
* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied.
** Efficiency (1 W / 1 m) is not an accurate indicator of a subwoofer’s output capability and should not be used as a comparison to other subwoofers to determine which one is “louder”.
What's Included
2 Year Warranty
- 10W1v3-4
- Black plastic trim ring
- Owner's manual
