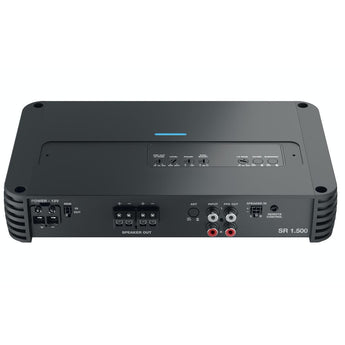

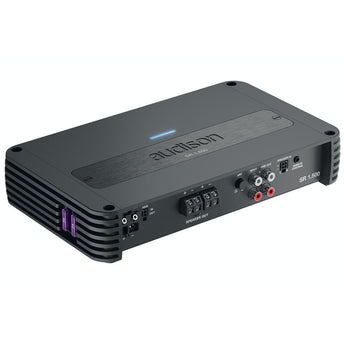

Audison SR 1.500 V2 Amp Class D High Power Mono Block Subwoofer Amplifier 500w
£449.99
/
In stock
Pickup Available at CEN
Usually ready in 1 hour
SR 1.500 V2
Amplifier | 1000 W | 1×500 W | D-class
SR AMPLIFIERS
A sophisticated design distinguishes the SR amplifiers, a complete line that ranges from 5 channels to monophonic, all featuring the use of the most advanced D Class technology, for exceptional audio performance within compact dimensions.
- Elegant and functional design with rounded corners to minimize space, facilitating installation.
- Built-in USS (Universal Speakers Simulator).
- Full built-in crossover section.
- Optional VCR-S1 remote control offers the possibility to adjust the subwoofer level (-20 / + 6 dB) to your musical preference.
- Balanced high-level inputs for connecting to the OEM head unit speaker output
- Low-level RCA for after-market speakers.
- ART (Automatic Remote On/Off) function.
- Remote IN / OUT socket to allow control of multiple amplifiers.
- PRE-OUT allows for system expansion.
The Audison SR 1.500 is a 1-ohm stable mono amplifier with a built-in crossover featuring compact dimensions and an impressive RMS power of 1000 W.
Specification
Part Number: SR 1.500
- Channels 1
- Class D-Class
- Hi Level Input Yes
- Low Level Input Yes
- Digital Input No
- Power supply voltage / fuse 11 ÷ 15 VDC / 2 x 35A
- Operating power supply voltage 6.5 ÷17 VDC
- Idling current 0.8 A
- Idling current when off 0.02 mA
- Consumption @ 14.4 VDC, 2Ω, Max Musical Power 40 A
- Remote OUT 6.5 ÷ 15 VDC (150 mA)
- Remote IN 6.5 ÷ 15 VDC (1 mA)
- ART - Automatic Remote Turn on/off from OUTPUT BTL speakers (Selectable) 1.5 ÷ 7 VDC
- Distortion - THD @ 100 Hz, 4Ω, 70% Rated Power 0.1 %
- Bandwidth A (-3 dB, 2 VRMS, 4 Ω): 10Hz ÷ 500 Hz
- S/N ratio A (A weighted @ 1 V): 100 dBA
- Damping factor A > 300
- Input sensitivity Pre-In 0.2 ÷ 5 VRMS
- Input sensitivity Speaker-In 0.8 ÷ 20 VRMS
- Total Power RMS 1000 W
- Minimum load impedance 1Ω
- Output Power (RMS) @12.0 ÷ 14.4 VDC, 1% THD 1Ch 500 W x 1 (4Ω)
- 1Ch 800 W x 1 (2Ω)
- 1Ch 1000 W x 1 (1Ω)
- Adjustable Crossover No
- Input Type Pre-In / Speaker-In
- Filters Outputs PRE OUT Hi-Pass filtered 50 ÷ 250Hz @ 12 dB/Oct.
- Filter Pass A Filters: Full LP 50 ÷ 250Hz @ 24 dB/Oct.
- Inputs/Outputs Phase (0 ÷ 180) deg
- Inputs/Outputs Bass Boost (0 ÷12) dB
- Inputs/Outputs Subsonic 25 Hz @ 24 dB/Oct.
- Remote Sub Volume (-20 ÷ 6) dB
- Weight 2.23 kg
What's Included
2 Year Warranty
- Audison SR 1.500 V2 Amplifier
90234
