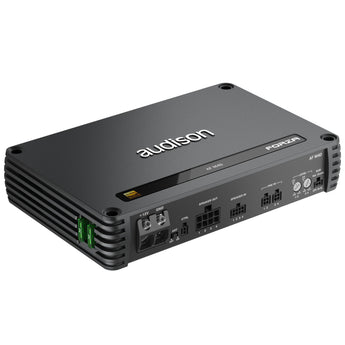

Audison Forza AF M4D Amplifier 4 Channel Bridgeable Class D Amp 1040w RMS

AF M4D 4 CHANNEL AMPLIFIER - 1040W

Amplifier | 1040 W | 4 x 260 W @ 2 ohm | D-class Fully Bridgeable

AUDISON FORZA, THE NEXT LEVEL OF OEM INTEGRATION AND TUNING

• Improved audio performance and power thanks to the latest generation of ADT (Audison D-Class) technology
• Unbeatable power/volume ratio up to 0.68 W RMS/cm³ reaching 83% of efficiency
• Hi-Res compatibility performance, with an extended audio band up to 40 kHz
• Maximum versatility thanks to the possibility of using the bridging option for each pair of power outputs

AUDIOPHILE SOUND YOU EXPECT FROM AUDISON

AF M4D boasts four high-fidelity amplified channels 160W x 4 @4Ω*, 260W x 4 @2Ω* with the audiophile sound of the latest generation Audison D-Class technology. Higher switching frequencies, steeper filtering, and higher-tolerance components deliver sound above and beyond the expectation of Class D – in an amazingly compact package! The audio band is extended up to 40 kHz earning the coveted High-Resolution certification. Bridging channel pairs results in 520W x 2 @4Ω*, guaranteeing flexible and powerful performance.

*Output Continuous Power (RMS) @14.4 VDC, 1% THD, all channels driven.

All in one state-of-the-art platform!

AF companion amplifiers are designed to add powerful amplifier channels to AF bit processor amplifiers. A plug-and-play signal input harness is included to make connection to AF bit amplifiers straightforward. AF companion amplifiers are also perfect for use with systems controlled and managed by a standalone bit processor, such as a bit One HD Virtuoso.

AF companions have a “straight wire” architecture, without analog preamp functions such as crossover filtering, and are intended for use with external processors. AF M4D boasts four high-fidelity amplified channels 160W x 4 @4Ω*, 260W x 4 @2Ω* with the audiophile sound of the latest generation Audison D-Class technology. Higher switching frequencies, steeper filtering, and higher-tolerance components deliver sound above and beyond the expectation of Class D – in an amazingly compact package!

The audio band is extended up to 40 kHz earning the coveted High-Resolution certification. Bridging channel pairs results in 520W x 2 @4Ω*, guaranteeing flexible and powerful performance. *Output Continuous Power (RMS) @14.4 VDC, 1% THD, all channels driven.
