Kicker 53PL7TDF10 10 Inch Sub Powered Down Firing Subwoofer Enclosure 500w RMS
Couldn't Load Pickup availability
53PL7TDF10

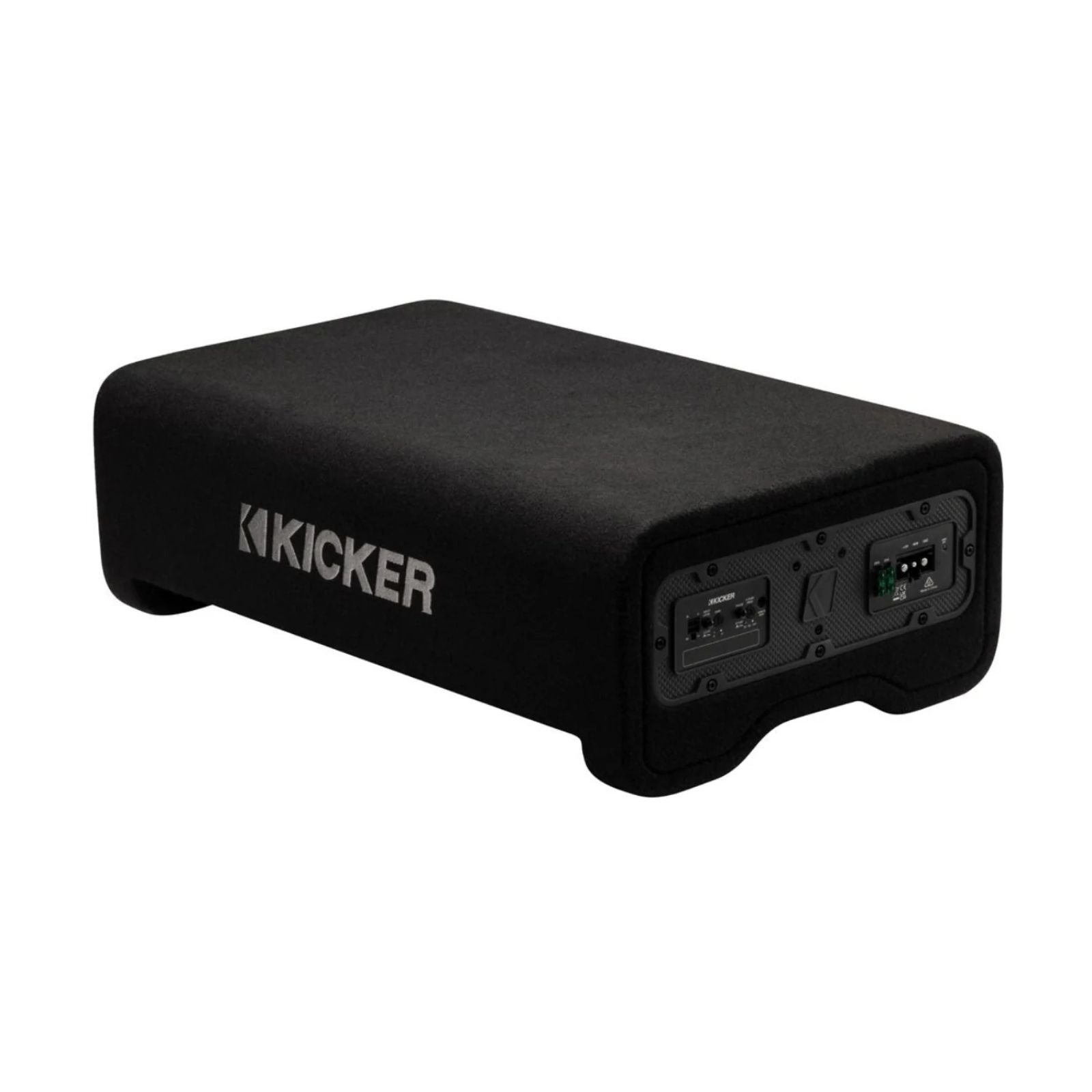

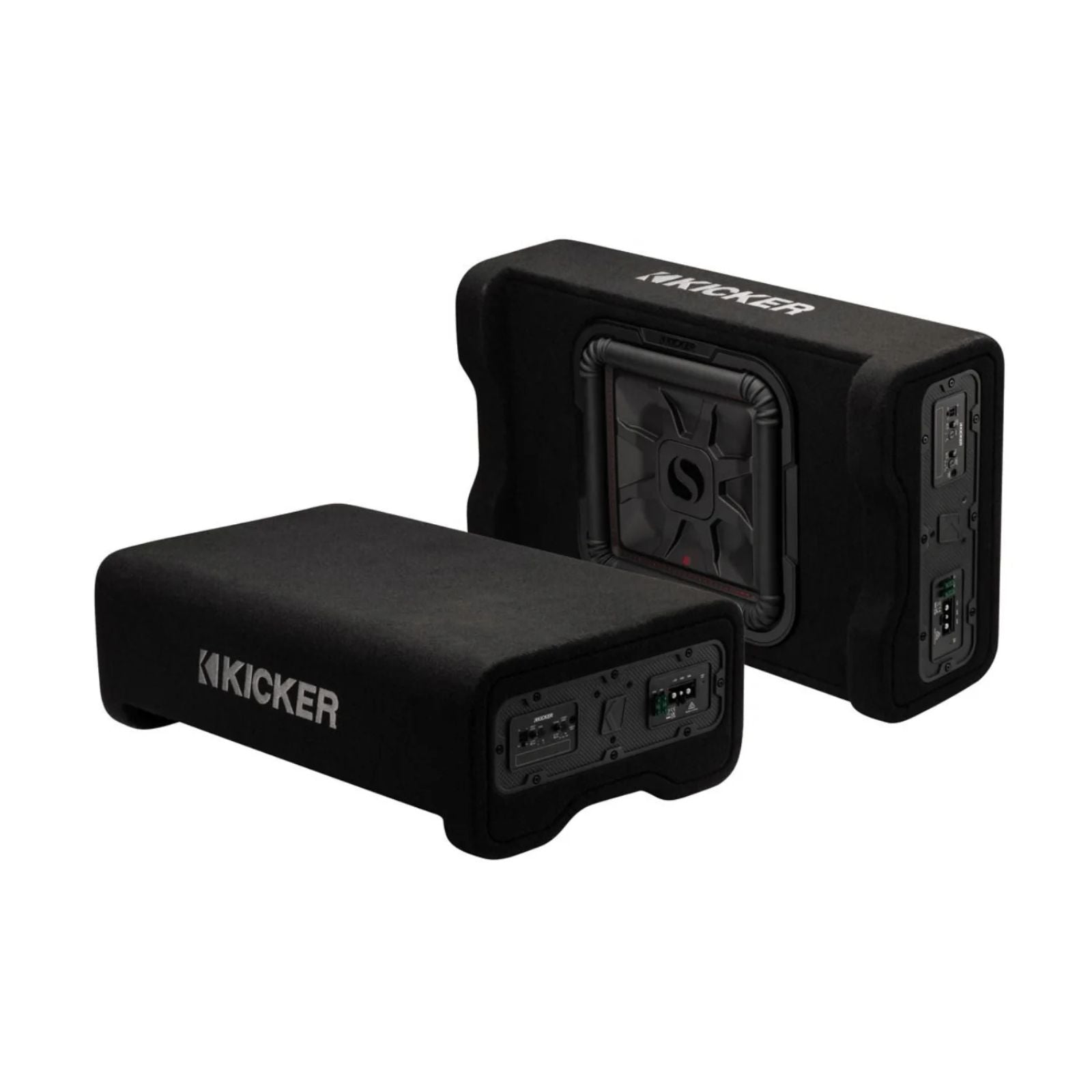

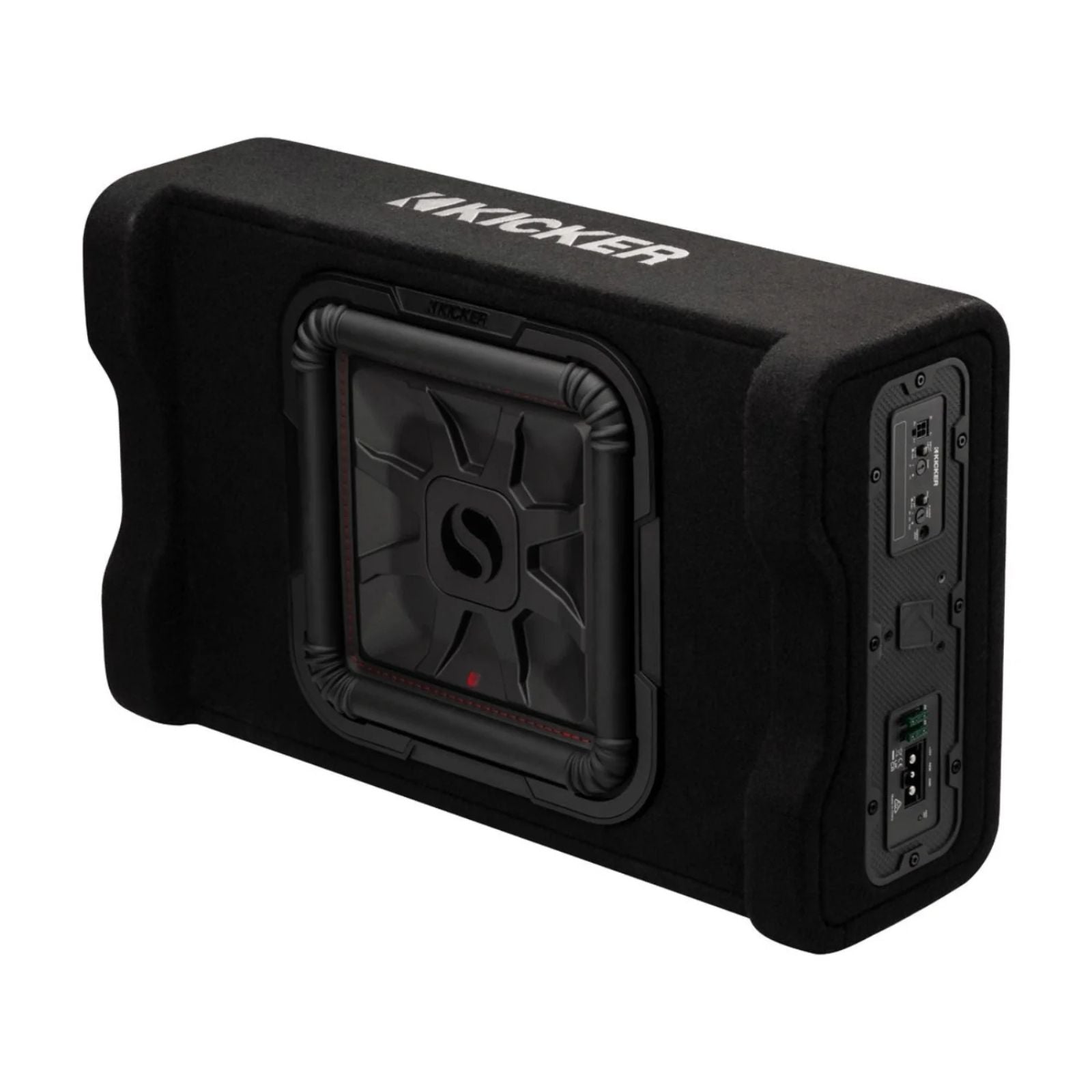

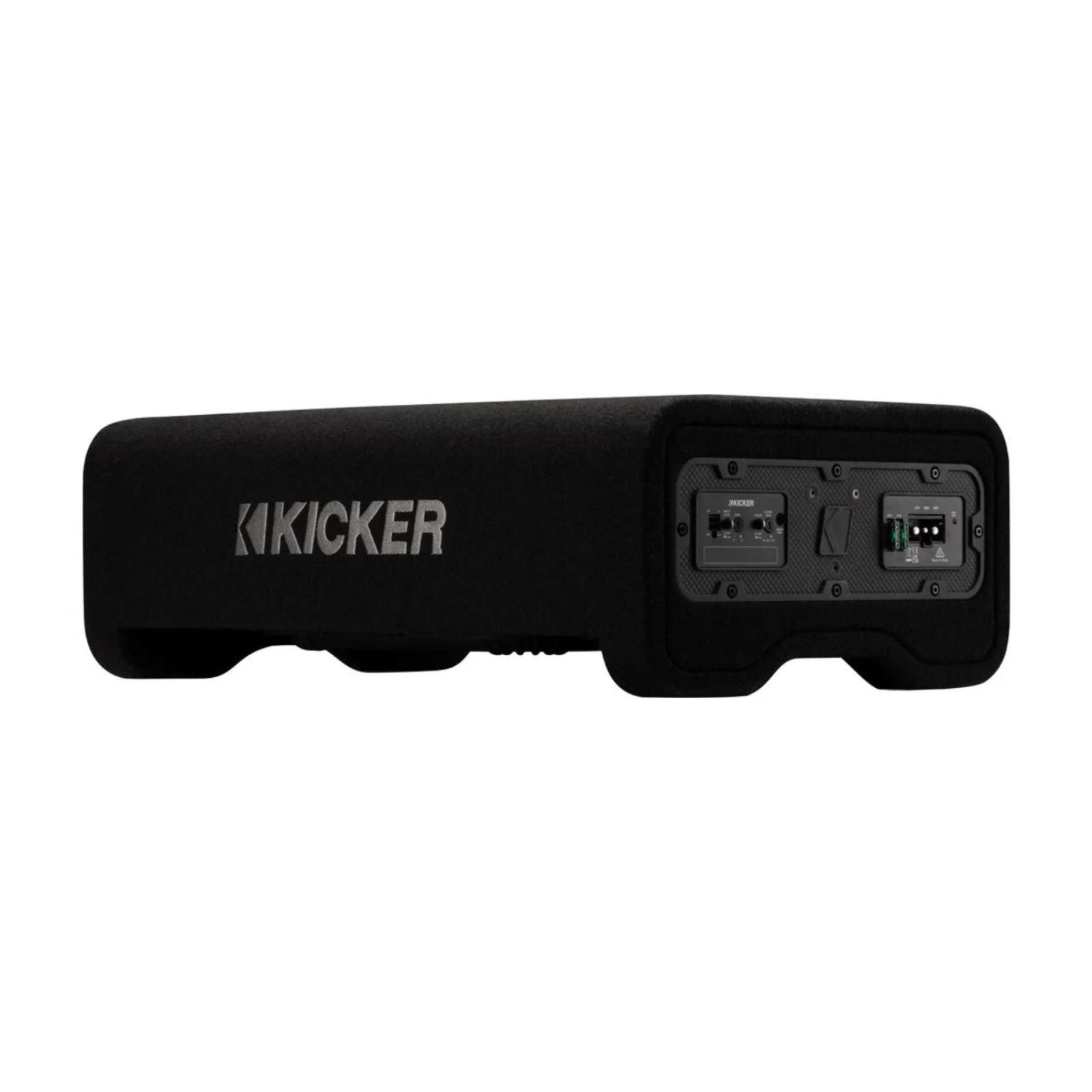

PL7TDF Powered Down-Firing 10" Enclosure
Everything you need in one package, and then some! Award-winning Solo-Baric L7 Subwoofers in a tough but convenient, down-firing enclosure, and big power from an internal amplifier providing big bass to your vehicle.
Features
- Compact, factory-tuned enclosure for tight locations to fit many trucks and SUVs
- Two models available – 12-inch sub with 600-watt amp, or a 10-inch sub with 500-watt amp
- Amp is built-in and power-matched for the hardest-hitting bass
- Easily integrates with factory system
- Down-firing for ultimate subwoofer protection
- Thick, tough internal bracing to resist stacking weight
- Solo-Baric L7 square technology for moving more air and creating more bass
- Start/Stop-System Compatible
- Remote bass control included
Specification
| Style | Sealed Enclosure |
|---|---|
| Woofer Quantity | 1 |
| Voice Coils | Dual |
| RMS Power | 500w |
| Frequency Response | (Hz) 25 - 120 |
| Height | 19.1cm |
| Width | 59.5cm |
| Top Depth | 36.5cm |
| Input Type | High Level / Low Level |
| Input Sensitivity High Level | 1V-40V |
| Input Sensitivity | Low Level 125mV-5V |
More specs
| |
What's Included
- Kicker PL7TDF Powered Down-Firing 10" Enclosure
FAQs
Q: Do I need an amplifier for this subwoofer?
A: Yes, unless it is an active (powered) subwoofer with a built-in amplifier. Passive subwoofers need an external amplifier matched to the RMS power and impedance shown in the Specification tab.
Q: What size enclosure does this subwoofer need?
A: The recommended enclosure volume is listed in the Specification tab where the manufacturer provides it. As a rule, sealed enclosures give tighter, more accurate bass while ported enclosures deliver more output. Contact CEN if you would like a recommendation for your build.
Q: What does RMS power mean?
A: RMS is the continuous power a subwoofer can handle, and it is the number that matters when matching an amplifier. Peak or max figures describe short bursts only. Match your amplifier output to the RMS rating in the Specification tab.
Q: Sealed or ported enclosure - which should I choose?
A: Sealed boxes are compact and produce tight, controlled bass suited to sound quality builds. Ported boxes are larger and produce more output at low frequencies, suited to those who want maximum impact. Either works well when built to the recommended volume.
Q: Can CEN build or supply an enclosure and fit everything?
A: Yes. CEN supplies enclosures and offers professional installation from our Nottingham premises, including amplifier wiring. Contact us to discuss your build.
