Option Audio AIR-D4 Amp 4 Channel Class D Compact Amplifier 330w RMS
Pickup Available at CEN
Usually ready in 1 hour
OPTION AIR-D4 4-Channel Amplifier
Massive sound upgrade: The OPTION AIR-D4 is a powerful 4-channel Class-D power amplifier that breathes new life into your vehicle speakers. Enjoy significantly more dynamics, brilliance and enormous volume reserves compared to operating directly on the standard radio.
Ultra-compact design: Thanks to the extremely small dimensions (micro format), this amplifier can be installed almost anywhere in the vehicle. It fits easily behind the dashboard, glove box or under the seat - ideal for modern vehicles with limited space.
Perfect for original radios: With built-in high-level inputs and the auto-turn on function, the power amplifier is optimised for easy integration into factory installations. A separate remote cable is not required as the amplifier detects the signal directly.
Versatile 4-channel configuration: Take full flexibility: Power your front and rear systems simultaneously, or bridge two channels to power a front system and an additional subwoofer with powerful power.
High-efficiency Class-D technology: The modern digital circuit guarantees maximum performance with minimal heat generation and low power consumption. This ensures a permanently stable sound quality and protects the on-board electronics of your vehicle.
Specification
Part Number: AIR-D4
- Class-D power amplifier: Yes
- Operating voltage: 10-16V
- RMS power (4 ohms): 100 watts
- RMS power (2 ohms): 165 watts
- RMS power bridged (4 ohms): 30 watts
- RMS power bridged (2 ohms): not possible
- Frequency response: 20Hz-20kHz
- High-pass filter: 40Hz-400Hz
- Low-pass filter: 40Hz-400Hz
- Total harmonic distortion (THD): <0.1%
- Minimum loudspeaker impedance: 2 ohms
- Signal-to-noise ratio (A-weighted): >90 dB
- Security: 60A
- Dimensions (W x H x D): 105.7mm x 41.7mm x 208mm
- Cable cross-section (recommended): 10mm²

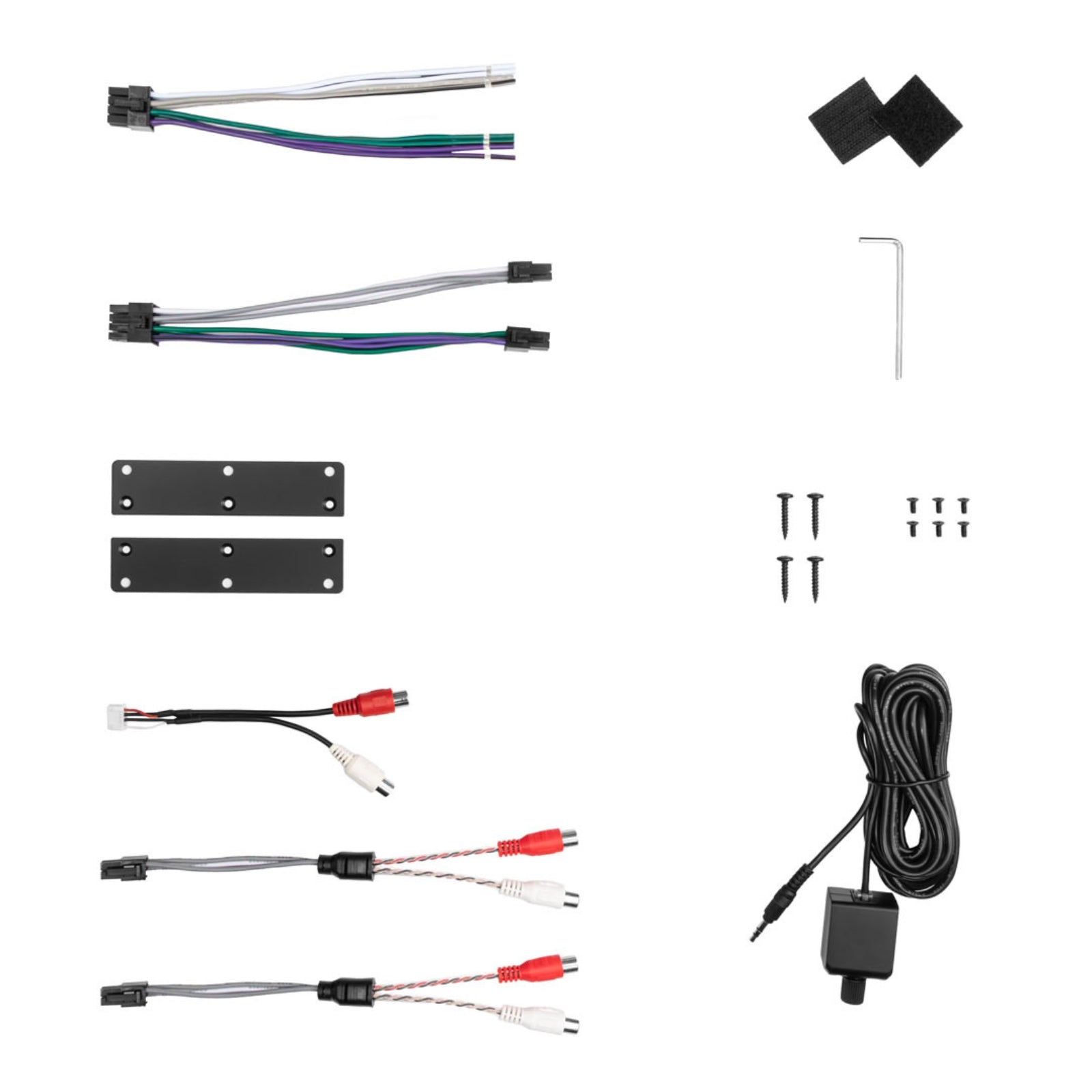

What's Included
2 Year Warranty
- OPTION AIR-D4 4-channel amplifier
- Subwoofer level remote control including Velcro strap for flexible mounting
- 2x Plug & Play adapters for input signal to RCA
- 1x Plug & Play adapter for output signal to Molex
- 1x Plug & Play adapter for output signal to loose ends
- 1x Plug & Play Adapter Line Out for connecting an additional power amplifier/active subwoofer
- Mounting/fastening plates including 6 screws (for mounting on the amplifier) and 4 screws (for mounting in the vehicle)
- Allen key
