Kicker CXA1200.1 Amp 1 Channel Mono Subwoofer Car Amplifier up to 1200w RMS
Couldn't Load Pickup availability

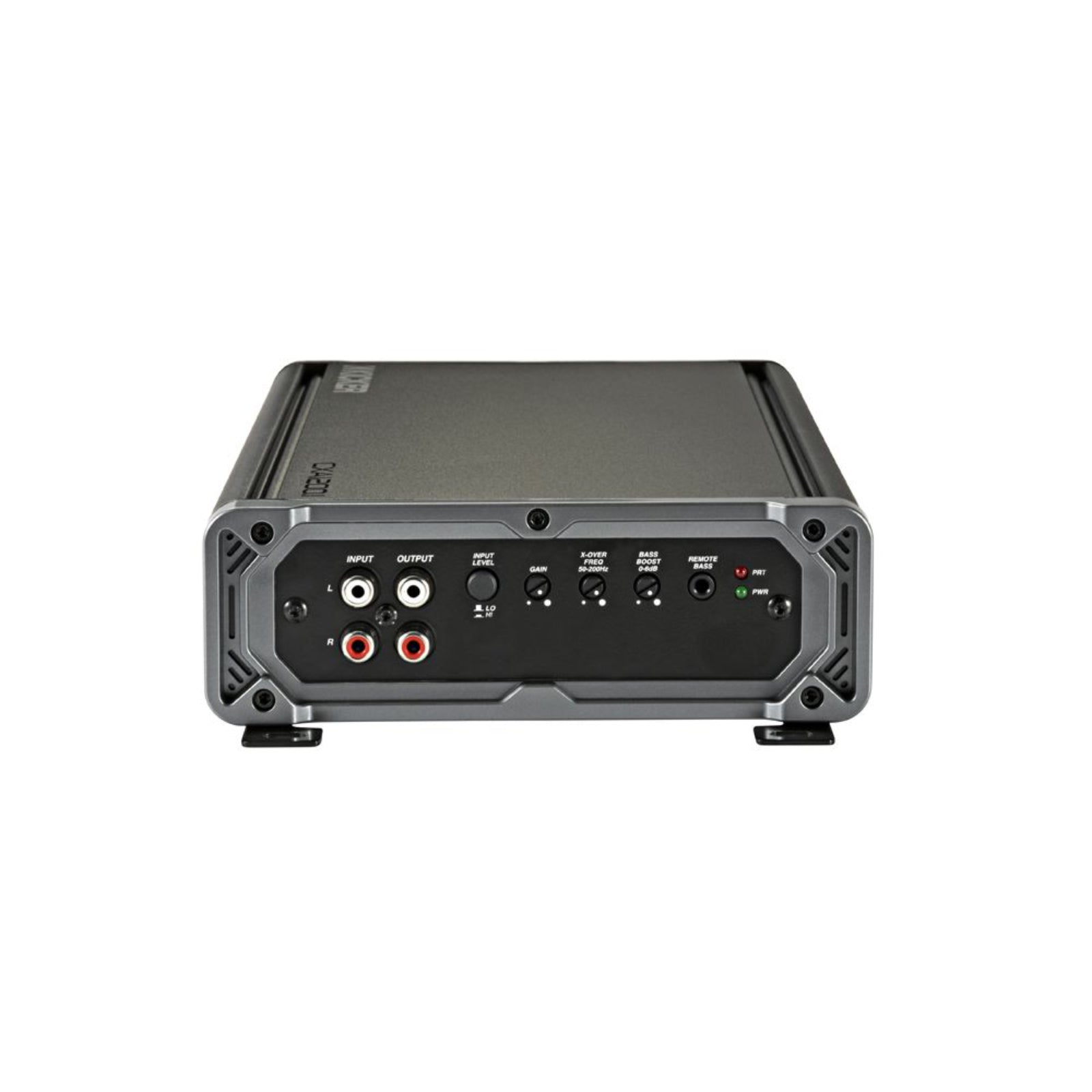

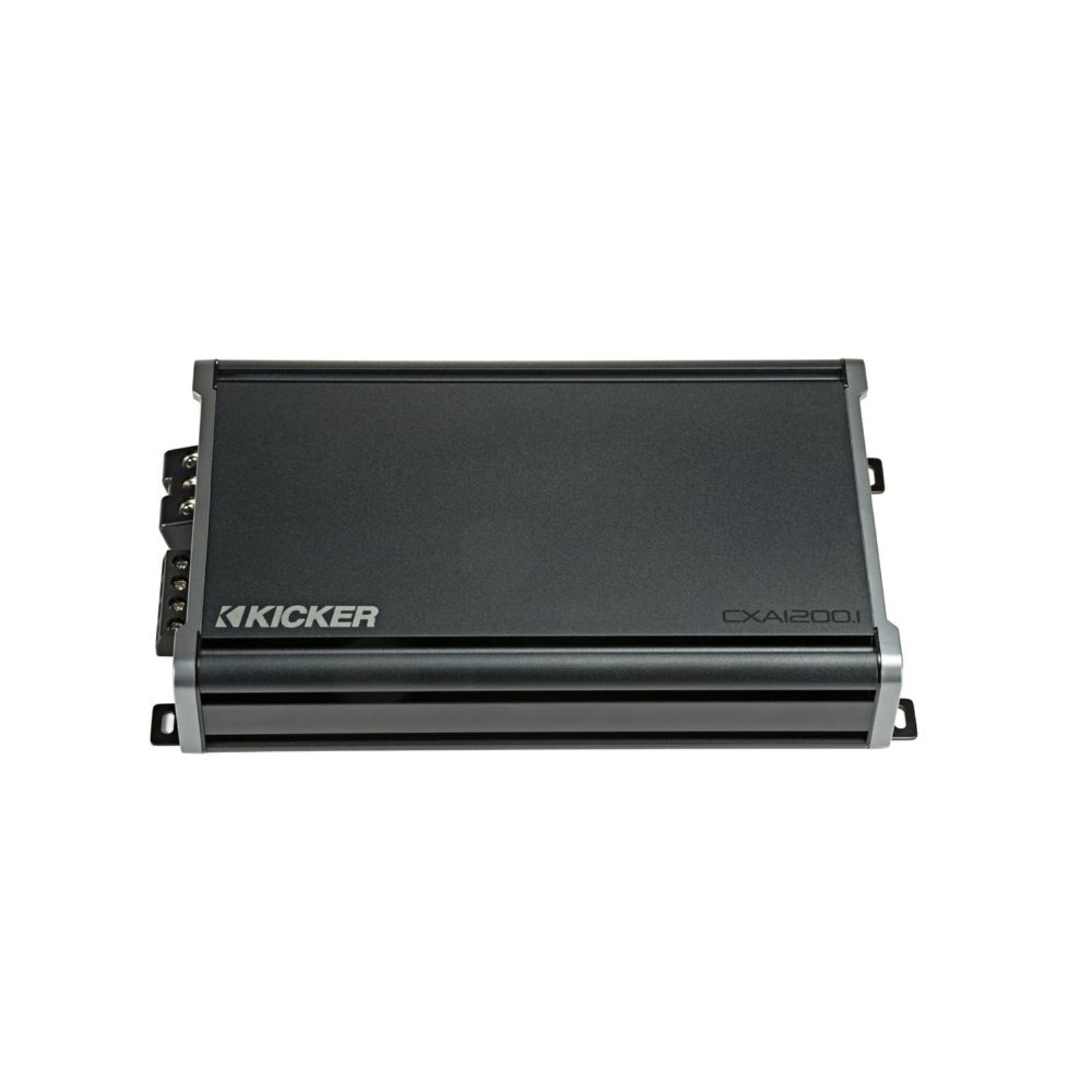

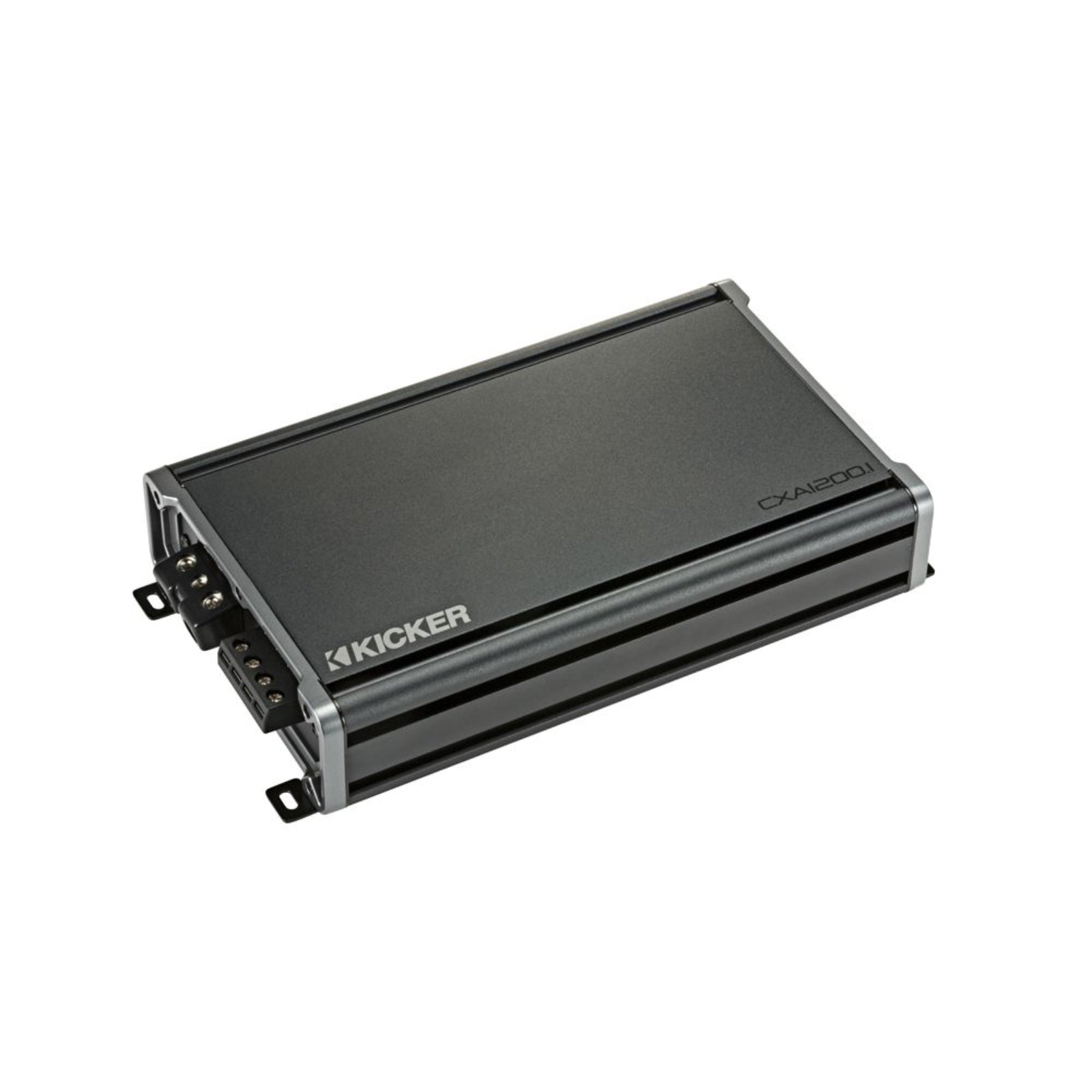

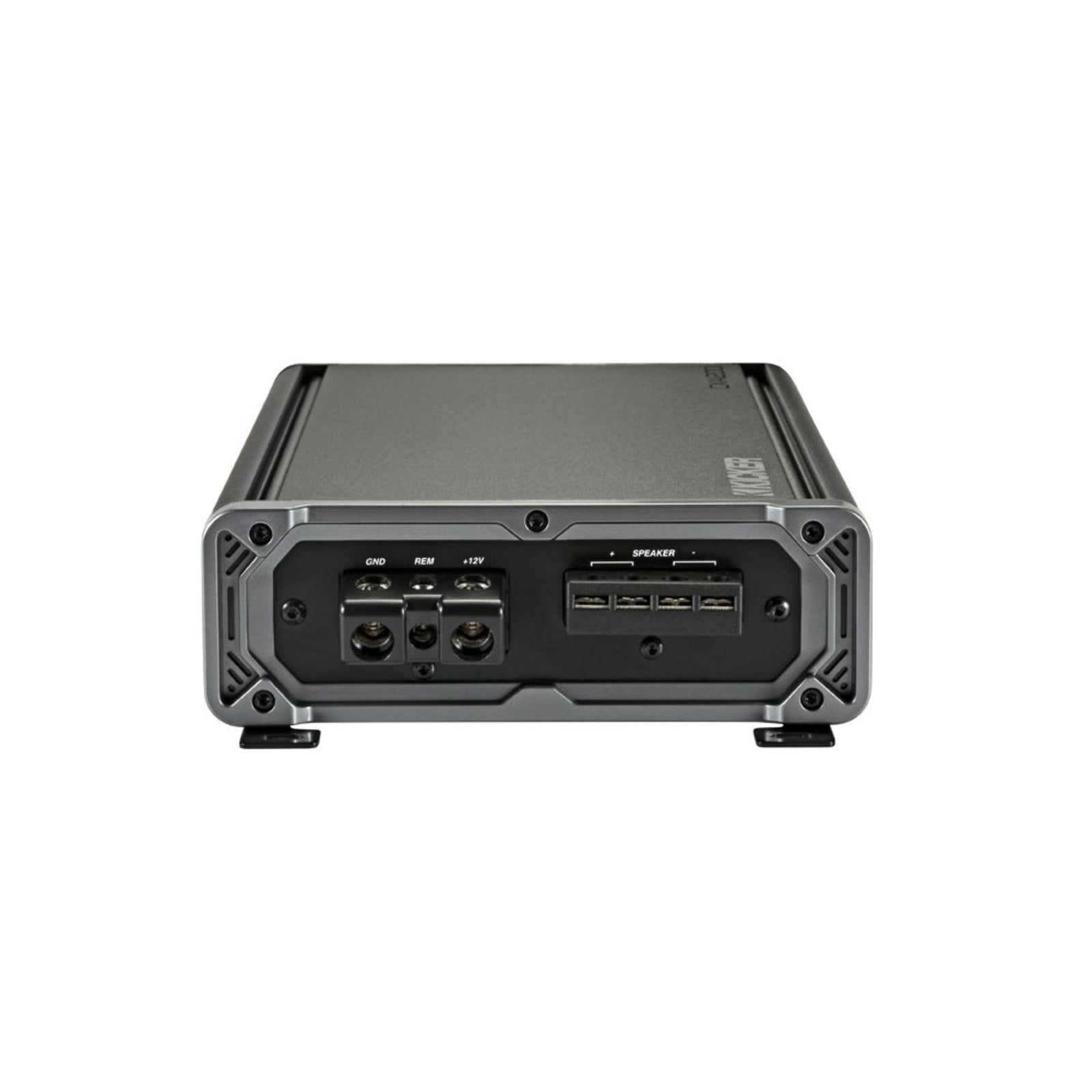

CX1200.1 Mono Amplifier
The CXA1200.1 Mono Amplifier is built for affordable power and performance, thanks to an optimized circuit layout and the high-grade internal components.
Mono Monster
- Efficient Class-D amplifier
- Three-second turn-on/off delay to eliminate unwanted interference
- Variable 12dB crossovers provides control to dial in perfect sound
- KickEQ™ 6dB variable bass boost for those additional low frequencies
- 24dB subsonic filter for protection from potentially damaging frequencies
- FIT+™ (Fail-safe Integration Technology-PLUS) means it works with nearly every radio
- Accepts up to 40-volt input signal
- Small footprint for easier installation
- Vertical mounting hardware included for another unique look
This mono CX-Series Amp is now one-ohm stable, giving you even more wiring options for your system! The Class-D CXA1200.1 features a variable bass boost with KickEQ™, giving you as much as a 6dB of extra bump. A powerful 12dB crossover and 24dB subsonic filter is included, letting you quickly tune your system to perfection. From your dash, a simple turn of the optional CXARC Remote Bass Controller (sold separately) increases your output to fit your choice of music.
CX-Series Amplifiers accept up to 40 volts (400 watts) of speaker-level input signal. This kind of flexibility both makes line-out converters unnecessary and optimizes your sound quality at the same time!
Use the full-range outputs to expand your system with other bass amps, or add a full-range amp to complete your system.
This CX.1 Amplifier delivers as much as 1,200 watts into one bass channel. See below for more details.
Specification
| Dimensions | (in, cm) (all models 2-3/8, 5.9H x 6-3/4, 17W x ...L) 12, 30.6 |
|---|---|
| Frequency Response | (Hz) 25-200Hz |
| Input Sensitivity | 125mV–5V (Low Level) 1V–40V (High Level) |
| Signal-to-Noise Ratio | 95dB |
| Active Crossover | Variable Lo-pass 50Hz–200Hz, 12dB/octave |
| Subsonic Filter | 25Hz @24dB/octave |
More specs
| |
What's Included
- CX1200.1 Mono Amplifier
FAQs
Q: How do I choose the right amplifier for my speakers or subwoofer?
A: Match the amplifier's RMS output per channel to the RMS handling of your speakers or subwoofer at the same impedance. The Specification tab lists the power figures. If in doubt, contact CEN with your setup and we will recommend a match.
Q: What wiring do I need to install this amplifier?
A: You will need an amplifier wiring kit sized to the amplifier's power draw, typically including power and earth cable, a fuse, RCA leads and a remote wire. CEN stocks complete wiring kits, and the amplifier's fuse rating is the guide to the cable gauge required.
Q: What class of amplifier is this and does it matter?
A: Class D amplifiers are compact and efficient, ideal for subwoofers and modern installs. Class AB designs are traditionally favoured for outright sound quality on mid and high frequencies. The class is listed in the Specification tab where provided.
Q: Will an amplifier work with my factory head unit?
A: Yes, in most cases. If your head unit has no RCA outputs you will need a line output converter to feed the amplifier a clean signal. CEN stocks line output converters and can advise the right one for your vehicle.
Q: Can CEN install this amplifier?
A: Yes. CEN offers professional amplifier installation from our Nottingham premises, including secure mounting, wiring and setup. Contact us to book.
