XD500/3v2
3-Channel Class D System Amplifier, 75 W x 2 @ 4 Ω + 300 W x 1 @ 2 Ω - 14.4V
This compact amplifier is ideal for a simple audiophile-grade, subwoofer / satellite system. With the XD500/3v2, you can drive a pair of quality component speaker systems with plenty of clean power, while also delivering a stout 300 W to your subwoofer system. The breakthrough that makes this much power possible in such a small chassis is our NexD™ switching design.
The XD500/3v2 includes a 12 dB / octave high-pass filter for its main channels, plus a variable slope low-pass filter for its subwoofer channel. Both filters offer continuously variable cutoff frequency selection from 50-500 Hz.
The XD500/3v2 also features the v2 Spec feature set, which consists of automatic turn-on capability (via signal sensing or DC-offset sensing), and a dual-range differential-balanced input section able to handle a wide range of input voltage levels. With the addition of an HD-RLC remote level control (sold separately), the amplifier's level can be directly controlled from the driver's seat.

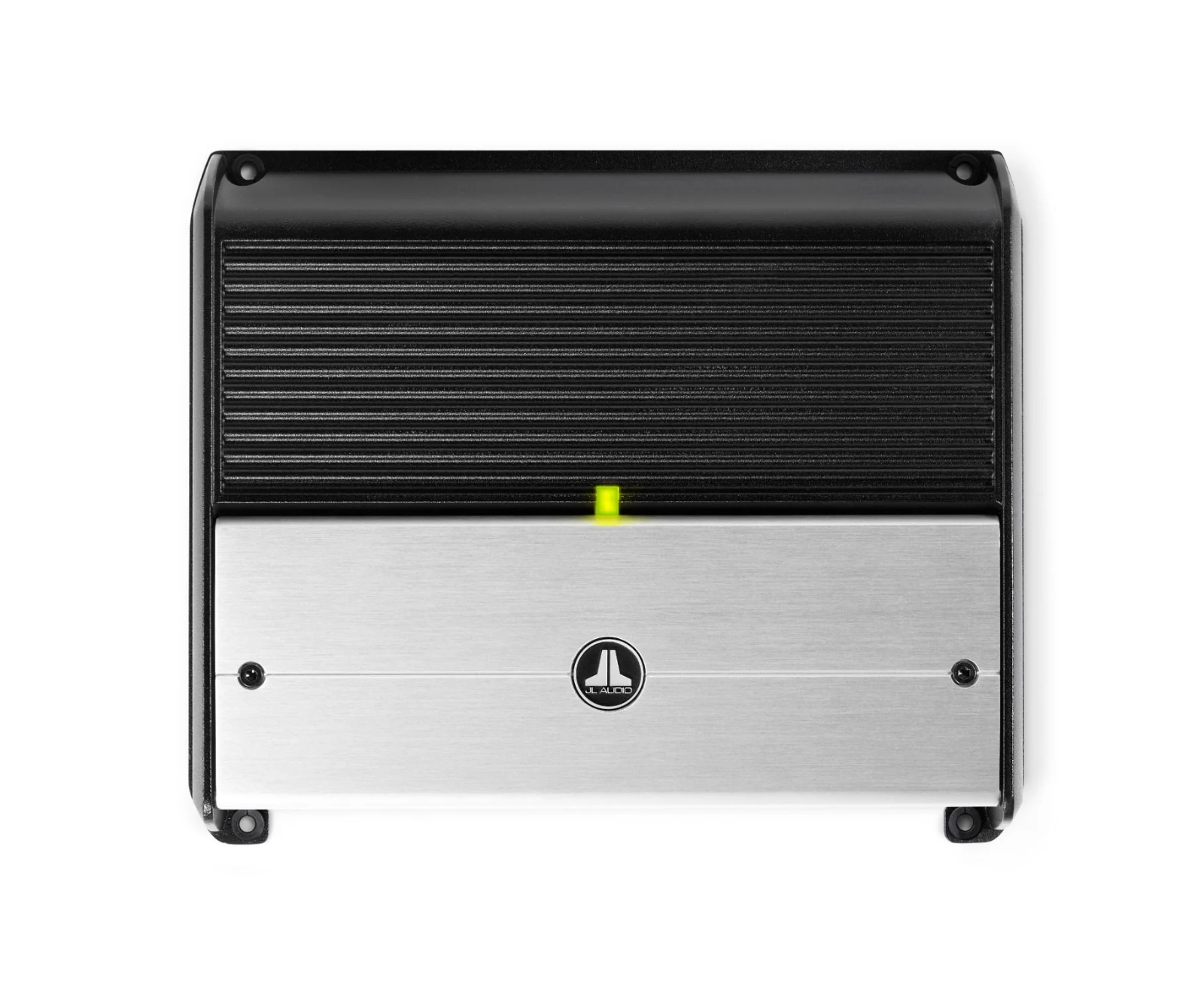

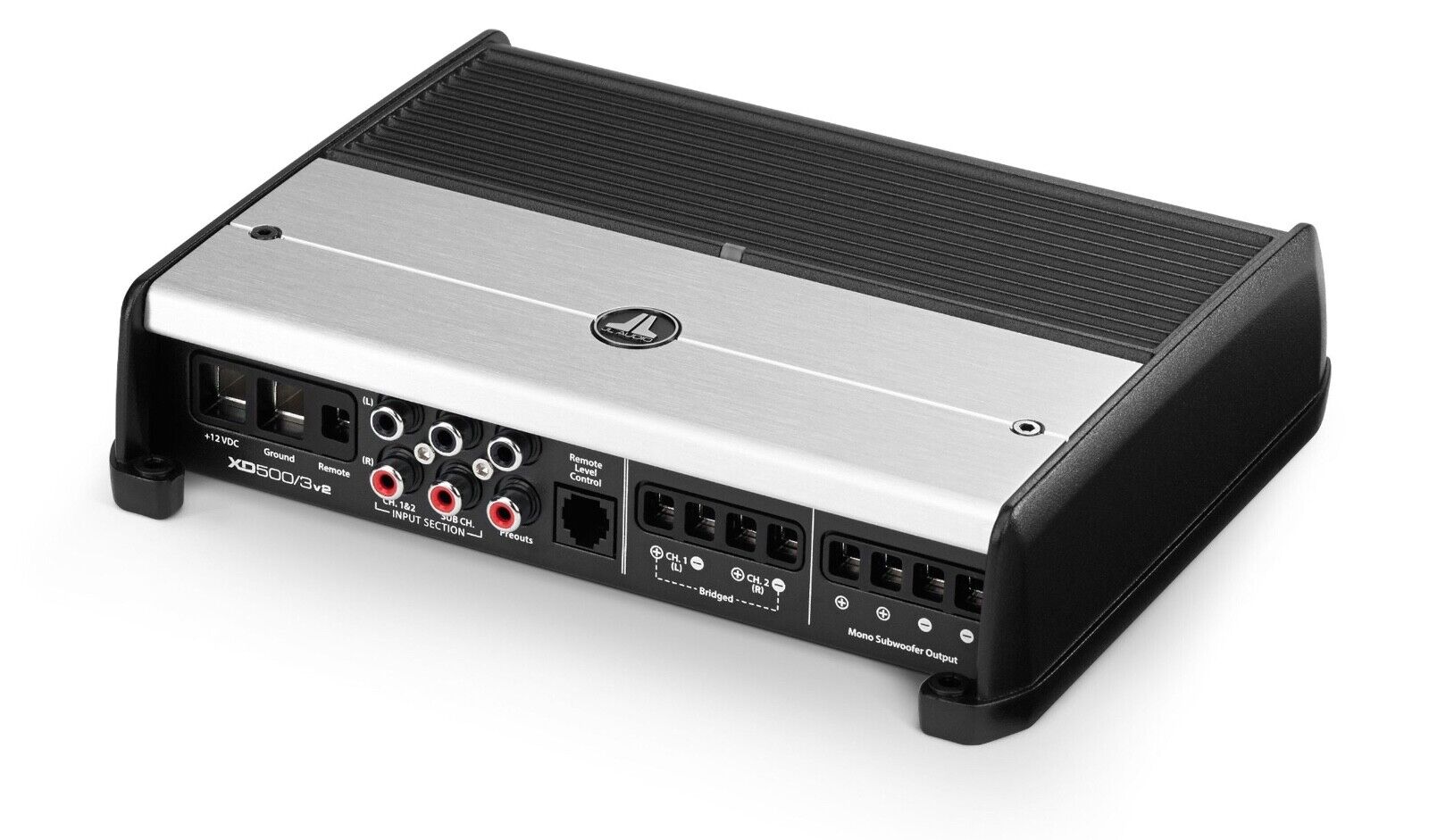

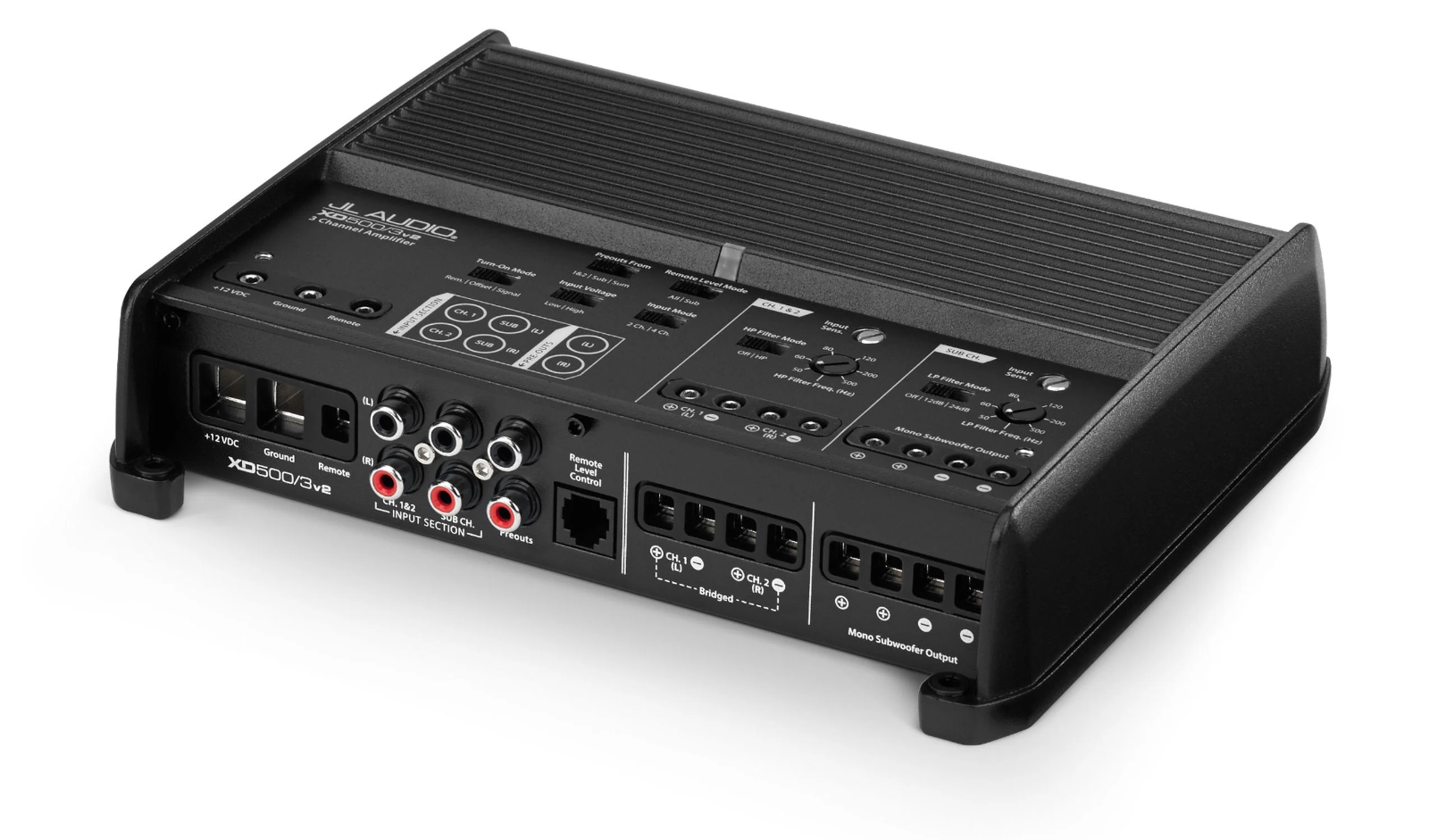

This amplifier features a black powder-coat finish and a gasketed, brushed aluminum cover for the controls.
Specification
Part Number: XD500/3v2
- Rated Continuous (RMS) Power @ 14.4 V
- Main Channels @ 4 Ω 75 W RMS x 2
- Main Channels @ 2 Ω 100 W RMS x 2
- Main Channels - Bridged @ 4Ω 200 W RMS x 1
- Subwoofer Channel @ 4 Ω 180 W RMS x 1
- Subwoofer Channel @ 3 Ω 240 W RMS x 1
- Subwoofer Channel @ 2 Ω 300 W RMS x 1
- Subwoofer Channel @ 1.5 Ω N/A
- Rated Continuous (RMS) Power @ 12.5 V
- Main Channels @ 4 Ω 60 W RMS x 2
- Main Channels @ 2 Ω 90 W RMS x 2
- Main Channels - Bridged @ 4Ω 180 W RMS x 1
- Subwoofer Channel @ 4 Ω 180 W RMS x 1
- Subwoofer Channel @ 3 Ω 240 W RMS x 1
- Subwoofer Channel @ 2 Ω 300 W RMS x 1
- Subwoofer Channel @ 1.5 Ω N/A
- General Specifications
- Frequency Response (Main Channels) 12 Hz - 22 kHz (+0, -1dB)
- Frequency Response (Subwoofer Channel) 10 Hz - 1 kHz (+0, -1dB)
- S/N Ratio, referred to highest rated power (Main Channels) >104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
- S/N Ratio, referred to 1 W >84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
- Damping Factor @ 4 Ω >120 / 50 Hz
- Damping Factor @ 2 Ω >60 / 50 Hz
- THD+N @ Rated Power (Main Channels) <1% @ 2 Ω per Ch.
- THD+N @ Rated Power (Subwoofer Channels) <1% @ 2 Ω per Ch.
- Input Voltage Range @ RCA Inputs Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High)
- Min.Copper Power / Ground Wire Gauge 4 AWG wire
- Fuse Rating 50 A (AFS, AGU or MaxiFuse™)
- Signal Processing
- Filter Mode(s): Channels 1 & 2 (front) High-Pass only
- Filter Slope(s): Channels 1 & 2 (front) 12 dB/octave
- Filter Frequency Range: Channels 1 & 2 (front) 50 Hz - 500 Hz
- Filter Mode(s): Channels 3 & 4 (rear) N/A
- Filter Slope(s): Channels 3 & 4 (rear) N/A
- Filter Frequency Range: Channels 3 & 4 N/A
- Filter Mode(s): Subwoofer Channel Low-Pass only
- Filter Slope(s): Subwoofer Channel 12/24 dB/octave
- Filter Frequency Range: Subwoofer Channel 50 Hz - 500 Hz
- Detented, Calibrated Filter Freq. Potentiometers Yes
- Filter Defeat Function Yes
- Infrasonic Filter: Subwoofer Channel none
- Remote Level Control Optional (HD-RLC)
- Remote Level Modes Sub Ch. or All Channels
- Channel Input Mode Switch Yes (2/4 ch.)
- Pass-Through Preamp Output Buffered
- Source Channel Selection for PreOuts Yes (1&2/Sum/Sub)
What's Included
2 Year Warranty
- XD500/3v2
