JL Audio CP108LG-W3V3 Sub 8" MicroSub Ported Subwoofer Enclosure 250w RMS
Couldn't Load Pickup availability
CP108LG-W3v3
Single 8W3v3 MicroSub, Ported, 4 Ω
Enclosed Subwoofer System with Single 8W3v3-4 Subwoofer Driver, Black Carpet (250 W, 4 Ω) - Ported Enclosure
CP108LG Product Spotlight
This incredible MicroSub™ subwoofer system delivers the kind of output and extension that is normally possible with only much larger systems. The key to its performance lies in the precise tuning of its 8W3v3 subwoofer driver into an efficient slot-ported design.

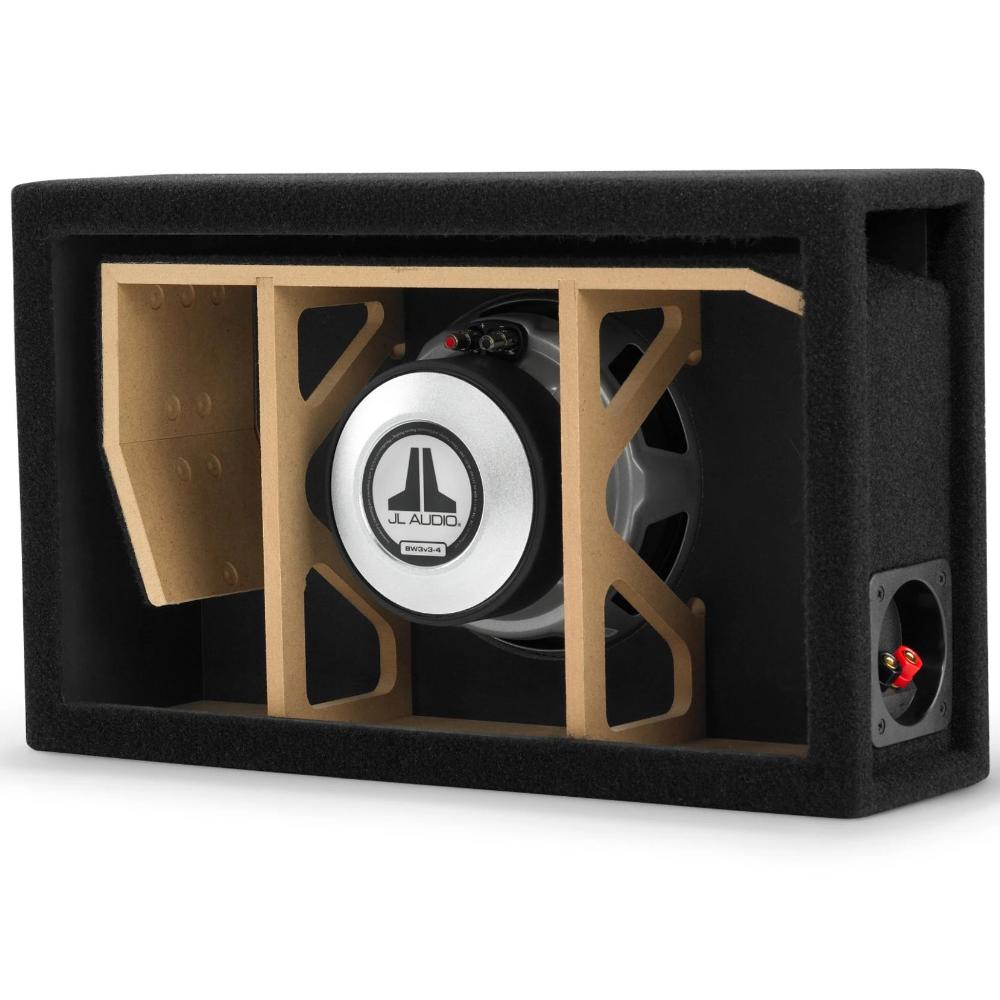

Extensive interior bracing permits the use of thinner wall material that maximizes the enclosure's internal volume relative to its exterior volume. The port wraps around two walls of the enclosure to produce the necessary low tuning frequency that ensures excellent extension and response smoothness. The flared port entry and exit further enhance sound quality by minimizing air-flow noises through the port.
This subwoofer system is shipped wired, loaded and ready to connect via a five-way binding post terminal.

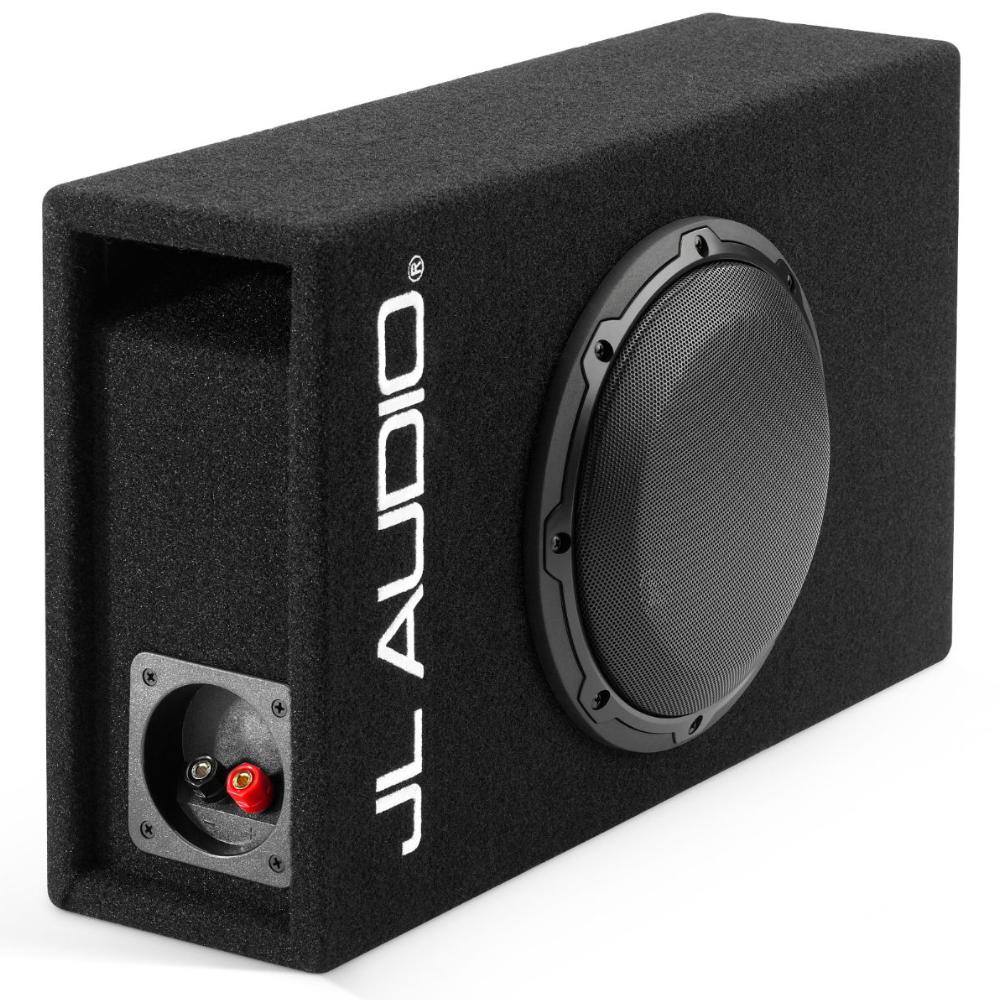

Finish: Black, high-grade automotive carpet with silver "JL AUDIO" embroidery on front baffle. A steel mesh grille is included to protect the subwoofer driver.
Construction: CNC-Cut High-Grade MDF
Recommended amplifier power: 100 - 250W
Nominal Impedance: 4 Ω
Specification
| Size | 8 Inch |
|---|---|
| RMS Power | 250w |
| Shape | Square |
| Voice Coil | Single |
| Type | Passive Enclosure |
| Series | MicroSub |
| Article Number | CP108LG-W3V3 |
| Country of Manufacture | China |
More specs
| |
What's Included
- CP108LG-W3v3 Slot-ported subwoofer enclosure (loaded with one 8W3v3-4 woofer)
Black metal grille (installed)
FAQs
Q: Do I need an amplifier for this subwoofer?
A: Yes, unless it is an active (powered) subwoofer with a built-in amplifier. Passive subwoofers need an external amplifier matched to the RMS power and impedance shown in the Specification tab.
Q: What size enclosure does this subwoofer need?
A: The recommended enclosure volume is listed in the Specification tab where the manufacturer provides it. As a rule, sealed enclosures give tighter, more accurate bass while ported enclosures deliver more output. Contact CEN if you would like a recommendation for your build.
Q: What does RMS power mean?
A: RMS is the continuous power a subwoofer can handle, and it is the number that matters when matching an amplifier. Peak or max figures describe short bursts only. Match your amplifier output to the RMS rating in the Specification tab.
Q: Sealed or ported enclosure - which should I choose?
A: Sealed boxes are compact and produce tight, controlled bass suited to sound quality builds. Ported boxes are larger and produce more output at low frequencies, suited to those who want maximum impact. Either works well when built to the recommended volume.
Q: Can CEN build or supply an enclosure and fit everything?
A: Yes. CEN supplies enclosures and offers professional installation from our Nottingham premises, including amplifier wiring. Contact us to discuss your build.
