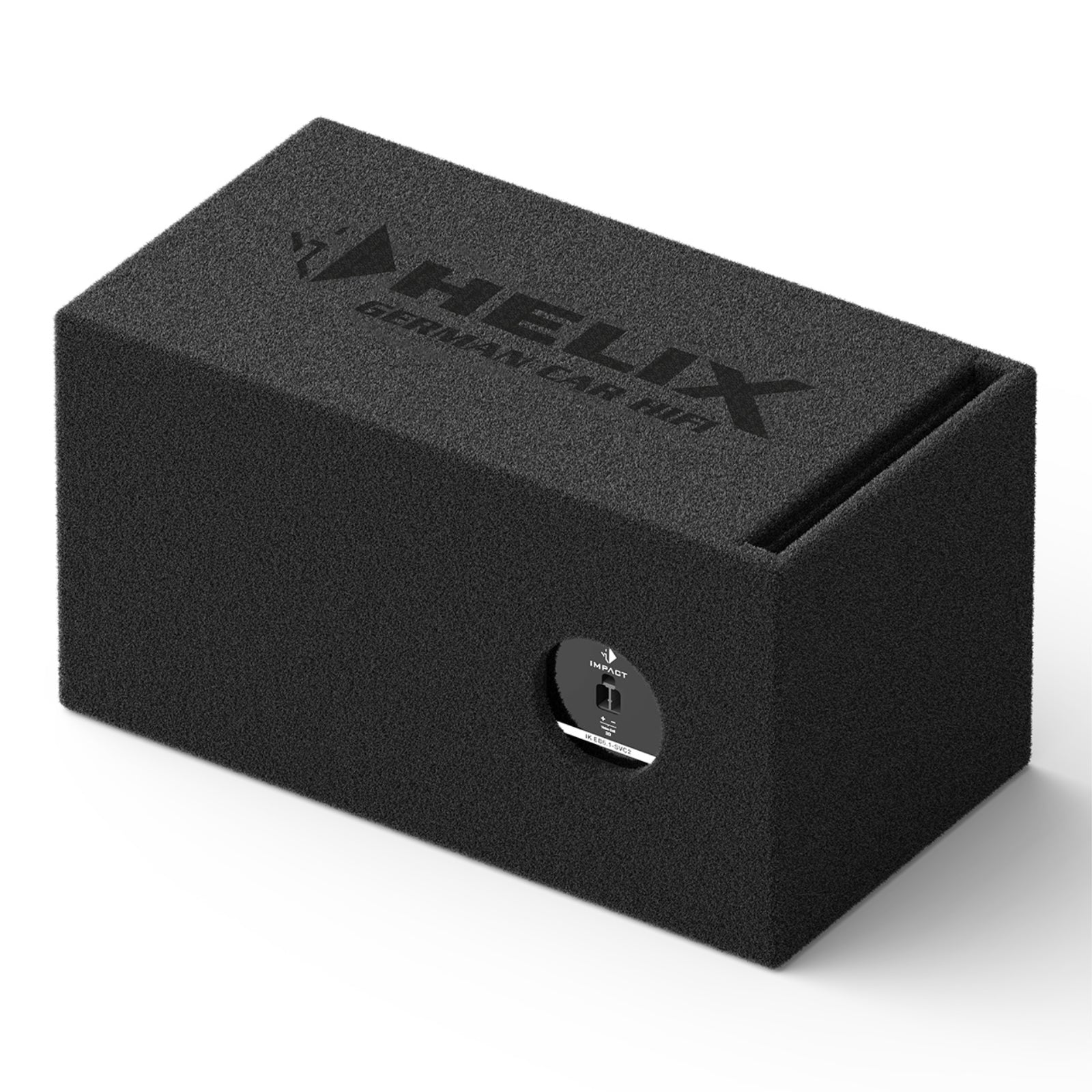

Helix IK EB6.1-SVC2 Sub Ported 6 Inch Ultra Compact Subwoofer Enclosure 150w RMS
Couldn't Load Pickup availability
HELIX IK EB6.1-SVC2
The IK EB6.1 proves that outstanding bass performance can come in a remarkably compact package. Thanks to its diminutive design, this subwoofer is the ideal problem solver for particularly space-saving installations, with its form factor making it perfect for integration into unused battery compartments in vehicle interiors.
Compact design, impressive performance
Despite its small dimensions, the IK EB6.1 delivers incredible sound pressure and audio performance comparable to much larger subwoofers. Equipped with a powerful 6” (160 mm) high-excursion woofer featuring an ultra-stiff, hand-scooped paper cone, this subwoofer provides rich, deep bass with impressive dynamics.
Optimized bass reflex enclosure
The sophisticated bass reflex enclosure maximizes sound pressure and low-frequency performance, ensuring a full-bodied bass experience inside the vehicle.
- Impressive sound pressure and audio performance comparable to larger subwoofers
- Ultra-compact subwoofer in car battery format allows installation in unused battery compartments in vehicle interiors
- Bass reflex enclosure technology for maximum sound pressure
- Powerful 6” / 160 mm high excursion woofer with extremely stiff, hand-scooped paper cone and single voice coil ensures rich, deep bass
1 x 2 Ohms impedance for maximum power output of the amplifier

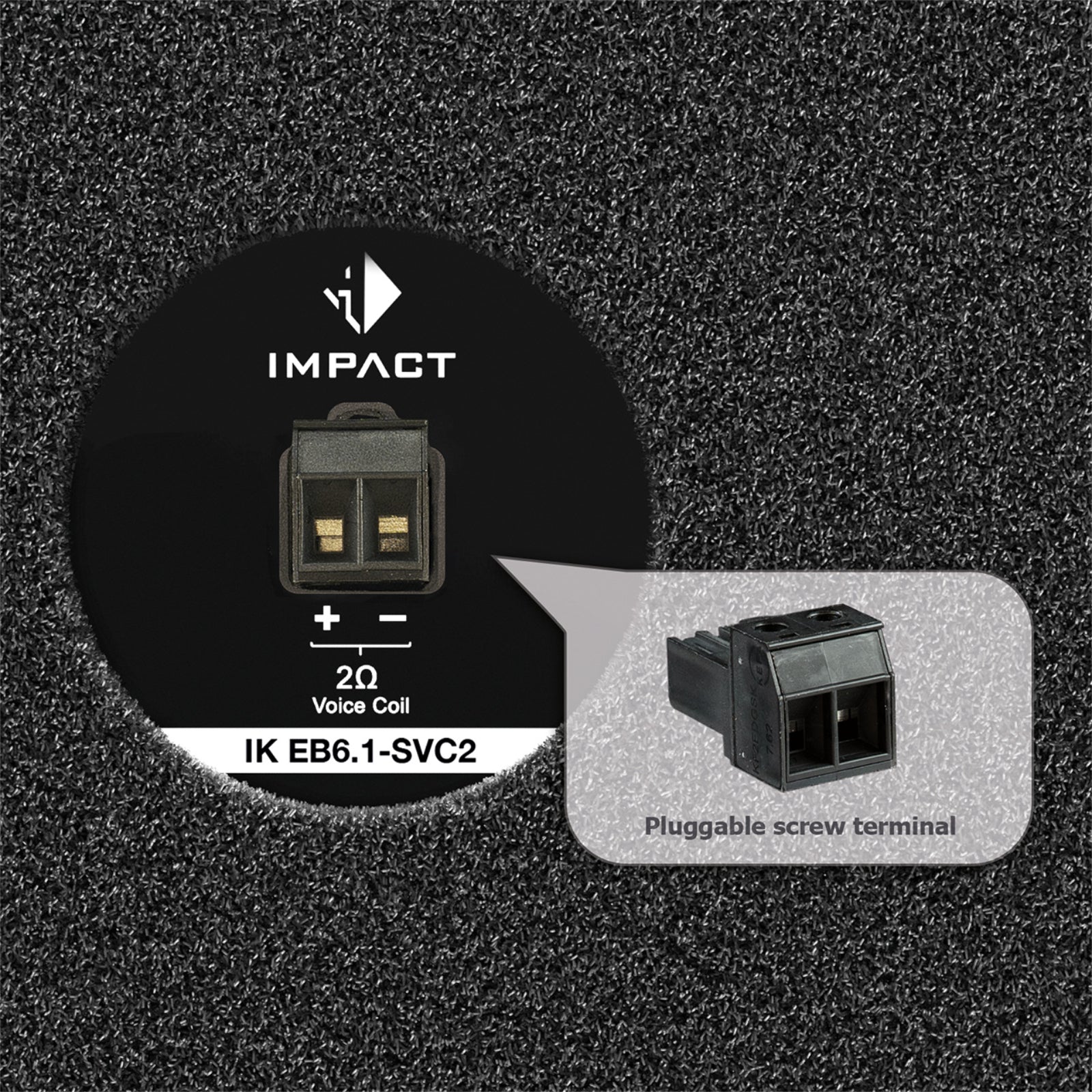

- Pluggable screw terminal for quick and safe installation and removal
- Sturdy carpet surface with embroidered HELIX logo

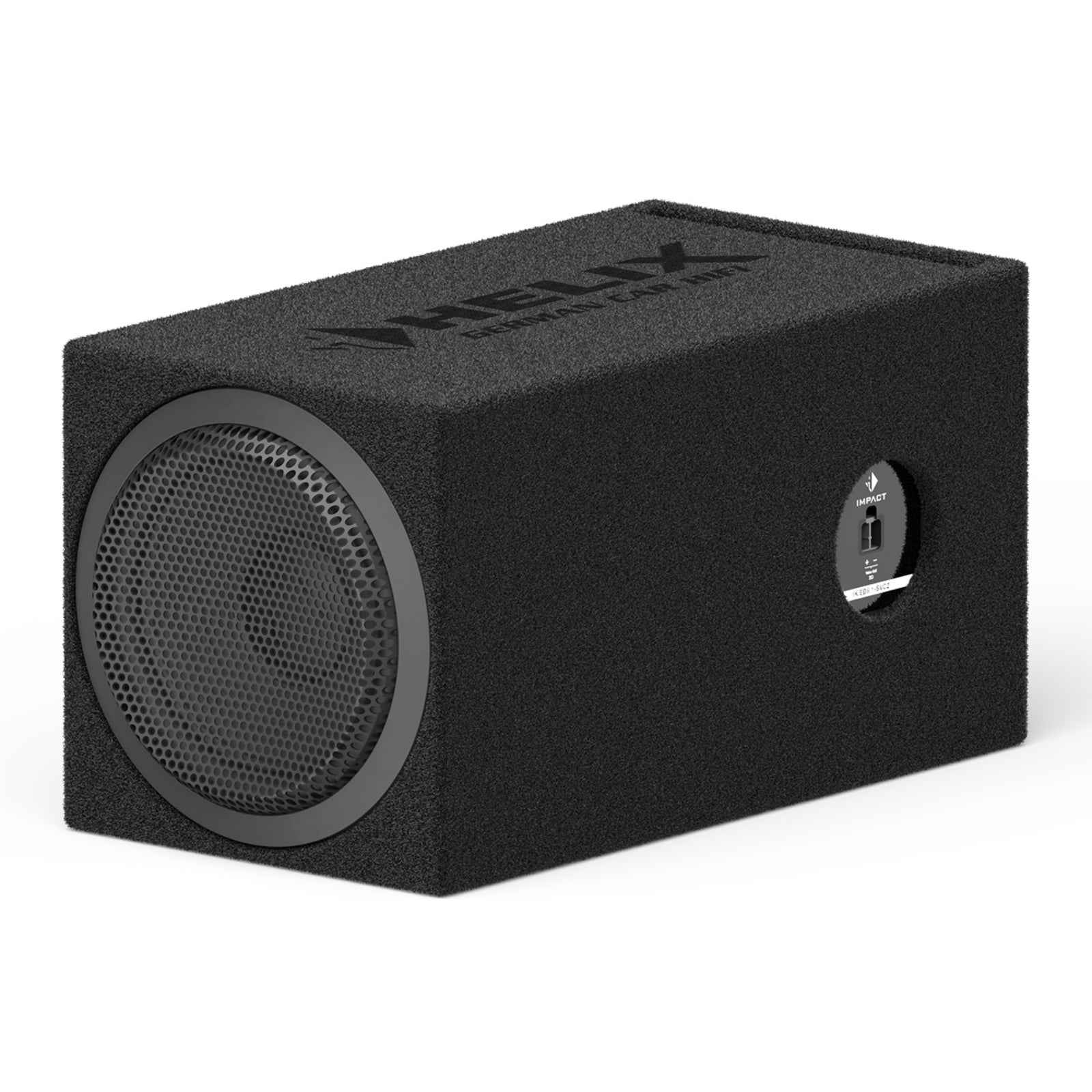

- Solid metal grille for perfect protection of the woofer cone
Flexible connection
With the option of a 1 x 2 Ohms (SVC2) or 2 x 2 Ohms (DVC2) configuration, there is a perfect deep bass specialist for every amplifier setup to maximize power output.
Easy installation and robust build
Thanks to the pluggable screw terminal, installation and removal are quick and secure. The sturdy carpet surface with the embroidered HELIX logo adds a touch of style, while the solid metal grille protects the woofer cone from damage, ensuring long-lasting reliability.
Specification
| Power handling | RMS P 150 Watts |
|---|---|
| Impedance | z 1 x 2 Ω |
| Sensitivity | SPL 92 dB @ 2.83V / 1m |
| Dimensions | (H x W x D) 175 x 175 x 340 mm / |
| EQ filter | 55 Hz / Q = 2.0 / -2 dB |
More specs
| |
What's Included
- Vented enclosure subwoofer HELIX IK EB6.1-SVC2
FAQs
Q: Do I need an amplifier for this subwoofer?
A: Yes, unless it is an active (powered) subwoofer with a built-in amplifier. Passive subwoofers need an external amplifier matched to the RMS power and impedance shown in the Specification tab.
Q: What size enclosure does this subwoofer need?
A: The recommended enclosure volume is listed in the Specification tab where the manufacturer provides it. As a rule, sealed enclosures give tighter, more accurate bass while ported enclosures deliver more output. Contact CEN if you would like a recommendation for your build.
Q: What does RMS power mean?
A: RMS is the continuous power a subwoofer can handle, and it is the number that matters when matching an amplifier. Peak or max figures describe short bursts only. Match your amplifier output to the RMS rating in the Specification tab.
Q: Sealed or ported enclosure - which should I choose?
A: Sealed boxes are compact and produce tight, controlled bass suited to sound quality builds. Ported boxes are larger and produce more output at low frequencies, suited to those who want maximum impact. Either works well when built to the recommended volume.
Q: Can CEN build or supply an enclosure and fit everything?
A: Yes. CEN supplies enclosures and offers professional installation from our Nottingham premises, including amplifier wiring. Contact us to discuss your build.
