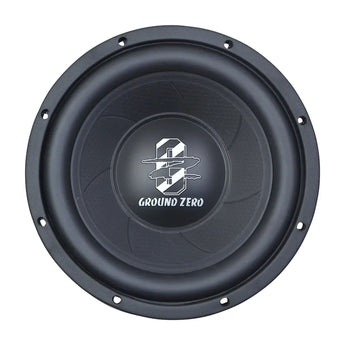

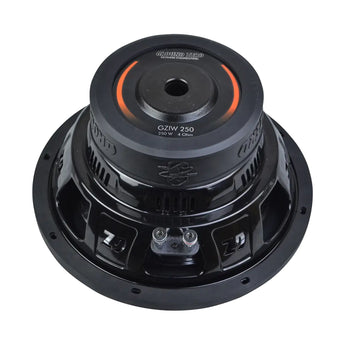

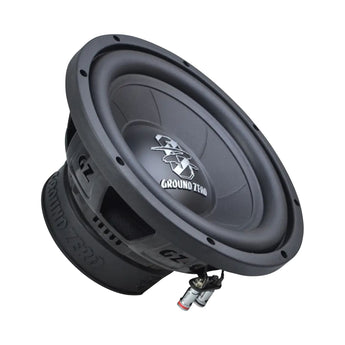

GZIW 250
25 cm / 10″ high quality subwoofer
10″ high quality subwoofer with solid 3D HQPP cone
Features
- 10″ subwoofer
- Klippel® optimized
- 3D HQPP cone
- Long stroke rubber surround
- Solid aluminum cast basket
- 50 mm / 2″ copper voice coil
- Polycot spider
- IMPP dust cap with 3D structure logo
Specification
| Model | High-Quality subwoofer |
|---|---|
| Diameter | 25 cm / 10″ |
| Power Handling | (RMS) 250 Watts |
| Impedance | 4 Ohms |
| Efficiency | 87 dB |
| Power recommendation | 200 – 300 Watts |
| Voice coil | 50 mm / 2″ copper |
| Membrane | HQPP cone with 3D-structure |
| Max. Excursion (Xmax) | 25 mm / 0.98″ |
| Mounting depth | 129 mm / 5.08″ |
| Resonance frequency (Fs) | 27 Hz |
| Overall quality (Qts) | 0.44 |
| Equiv. air volume (Vas) | 49.3 L / 1.74 cu.ft. |
What's Included
- GZIW 250
