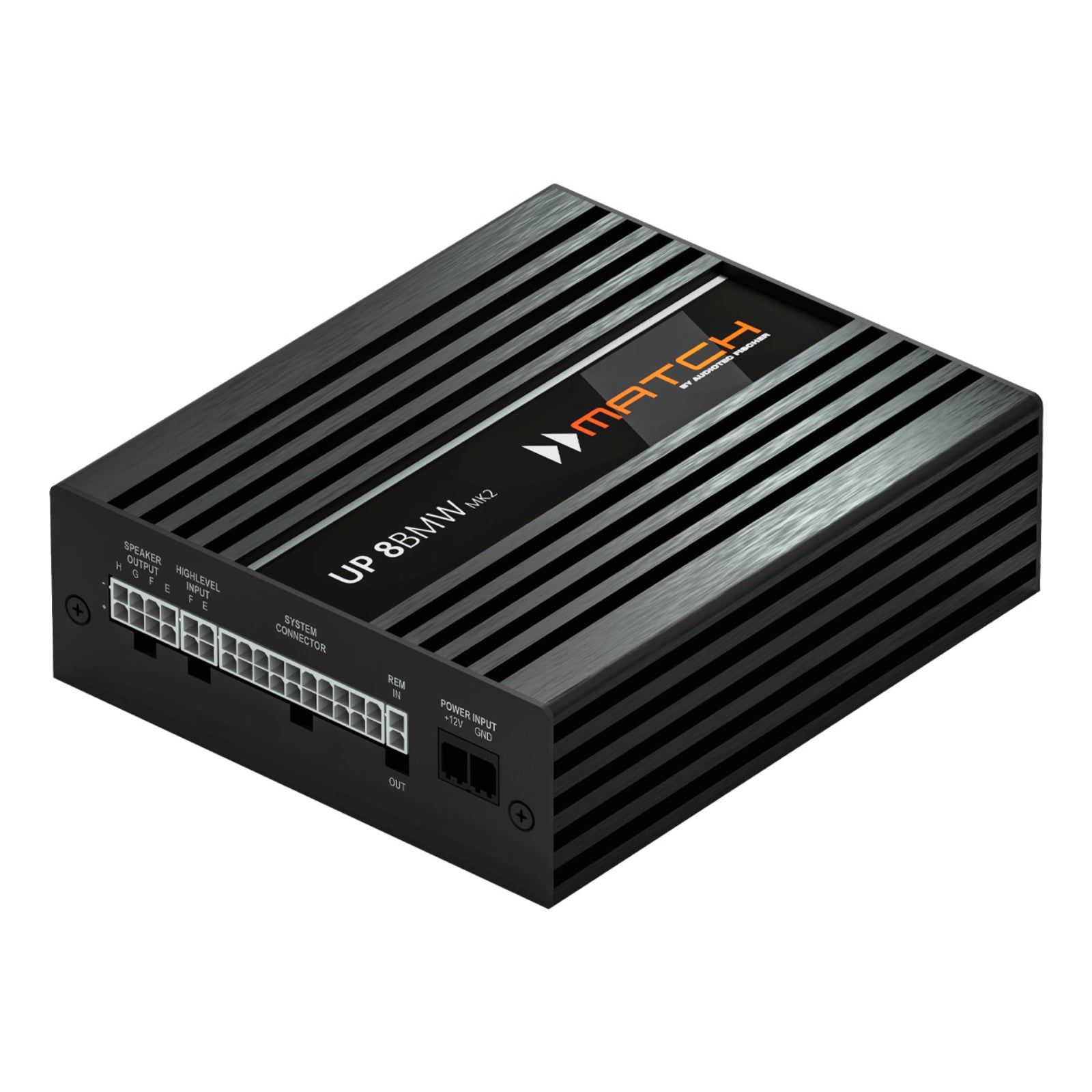

Match UP 8BMW Plug & Play 8 Channel Amplifier & DSP for BMW E, F, G30 Hi-Fi 676

RRP £729.99 £699.99 Save 4% Popular
In stock
SKU: 91154MPN: UP 8BMW

The MATCH UP 8BMW is a plug-and-play eight-channel DSP amplifier for BMW E, F and G30 series cars with the Hi-Fi 676 system. It upgrades the factory sound without cutting a single wire.

Power Save Mode

Built-in Power Save Mode drops consumption right down when no signal is present, protecting the car’s battery on long stands.

Factory Fit, Aftermarket Sound

Vehicle-specific connectors make installation straightforward, and the integrated DSP tunes the system precisely to the BMW cabin.
Specification
- @ 4 Ohms    Channels A - F6 x 65 Watts
Frequency response   10 Hz - 22,000 Hz
Signal converters    A/DBurrBrown
D/ABurrBrown
Operating temperaturerange    -40° C to +70° C
Dimensions(H x W x D)    46 x 130 x 153 mm /
More specs
  • Output power RMS
  • - @ 2 Ohms    -
  • - @ 1 Ohm    -
  • - bridged @ 4 Ohms    -
  • - bridged @ 2 Ohms    -
  • - Subwoofer output @ 4 Ohms    Kanal G - H: 2 x 90 Watts
  • - Subwoofer output @ 2 Ohms    Kanal G - H: 2 x 160 Watts
  • Amplifier technology    Class GD
  • Inputs    6 x Highlevel speaker input
  • 1 x Optical SPDIF (12 - 96 kHz)
  • 1 x MEC
  • 1 x Remote In
  • Input sensitivity    2.8 - 11 Volts
  • Input impedance RCA / Cinch    -
  • Input impedance highlevel    9 - 33 Ohms with ADEP.3
  • Outputs    8 x Speaker output
  • 1 x RCA / Cinch
  • 1 x Remote Out
  • Output voltage RCA / Cinch    3 Volts RMS
  • DSP resolution    64 Bit
  • DSP power    295 MHz (1.2 billion MAC operations/second)
  • Sampling rate    48 kHz
  • DSP type    Audio signal processor
  • Signal-to-noise ratio digital input    106 dB (A-weighted)
  • Signal-to-noise ratio analog input    104 dB (A-weighted)
  • Distortion (THD)    < 0.03 %
  • Damping factor    > 100
  • Operating voltage    10.5 - 17 Volts (max. 5 sec. down to 6 Volts)
  • Power rating    DC 12 V ⎓ 40 A max.
  • Idle current    380 mA
  • Max. remote output current    500 mA
  • Fuse    1 x 25 A LP-Mini-fuse (APS)
  • Additional features    Class GD technology with dynamically controlled
  • power supply, 32 Bit CoProcessor, ADEP.3 circuit, Start-Stop capability, Smart Control Port, USB, MEC slot, Auto Remote switch, galvanically isolated Line Out
  • 1.81 x 5.12 x 6.02"
What's Included
  • Amplifier MATCH UP 8BMW
  • BMW HiFi Plug & Play connection cable
  • Mounting plate & material for BMW vehicles
  • USB cable
  • Instruction manual
