Audison Prima APK 570 5x7" 2 Way Car Component Door Speakers 100w RMS Pair
Couldn't Load Pickup availability

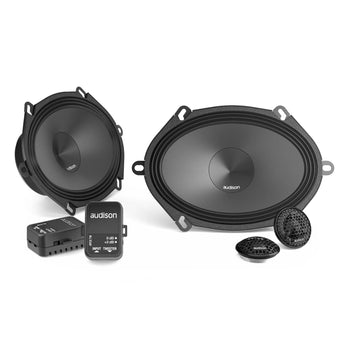

Prima APK 570
Kit | 300 W Peak Power | Kit 2 way 4 ohm | AP 1 + AP 570 + Crossover
Audison Prima
Audison Prima was designed to meet the interest of the car model enthusiasts who like to appreciate all the nuances of the musical message with components that are perfectly integrated in the car OEM system, preserving the most precious Prima on Audison requirement of OEM integration: space.
APK 570 systems is ideal for car models with doors equipped to house elliptical speakers featuring 5×7 in. woofers and AP 1 tweeter with dedicated crossovers APCX TW 570.The crossovers are ultra-compact to facilitate their installation, and include an attenuation of the tweeter output level for outstanding fine-tuning.

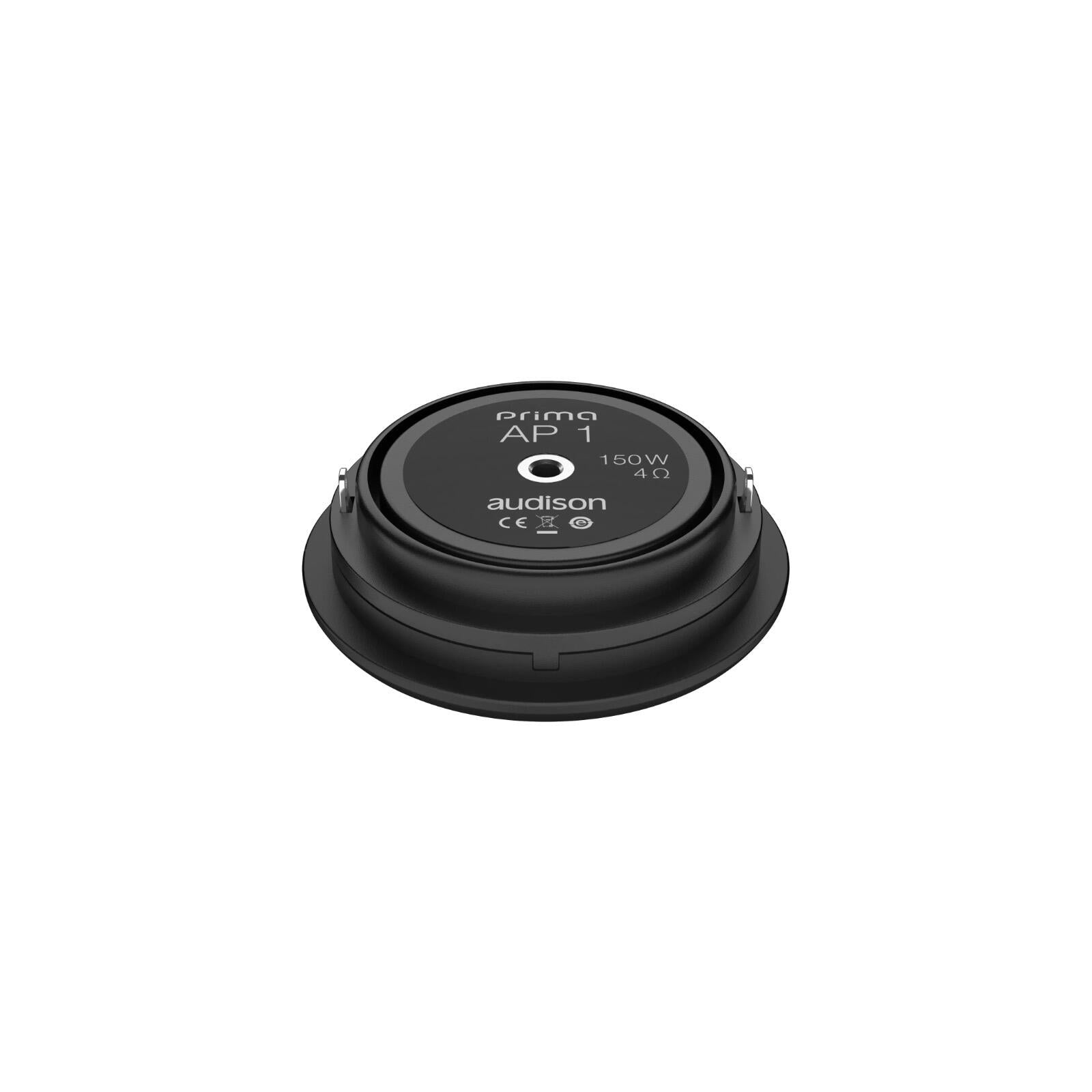

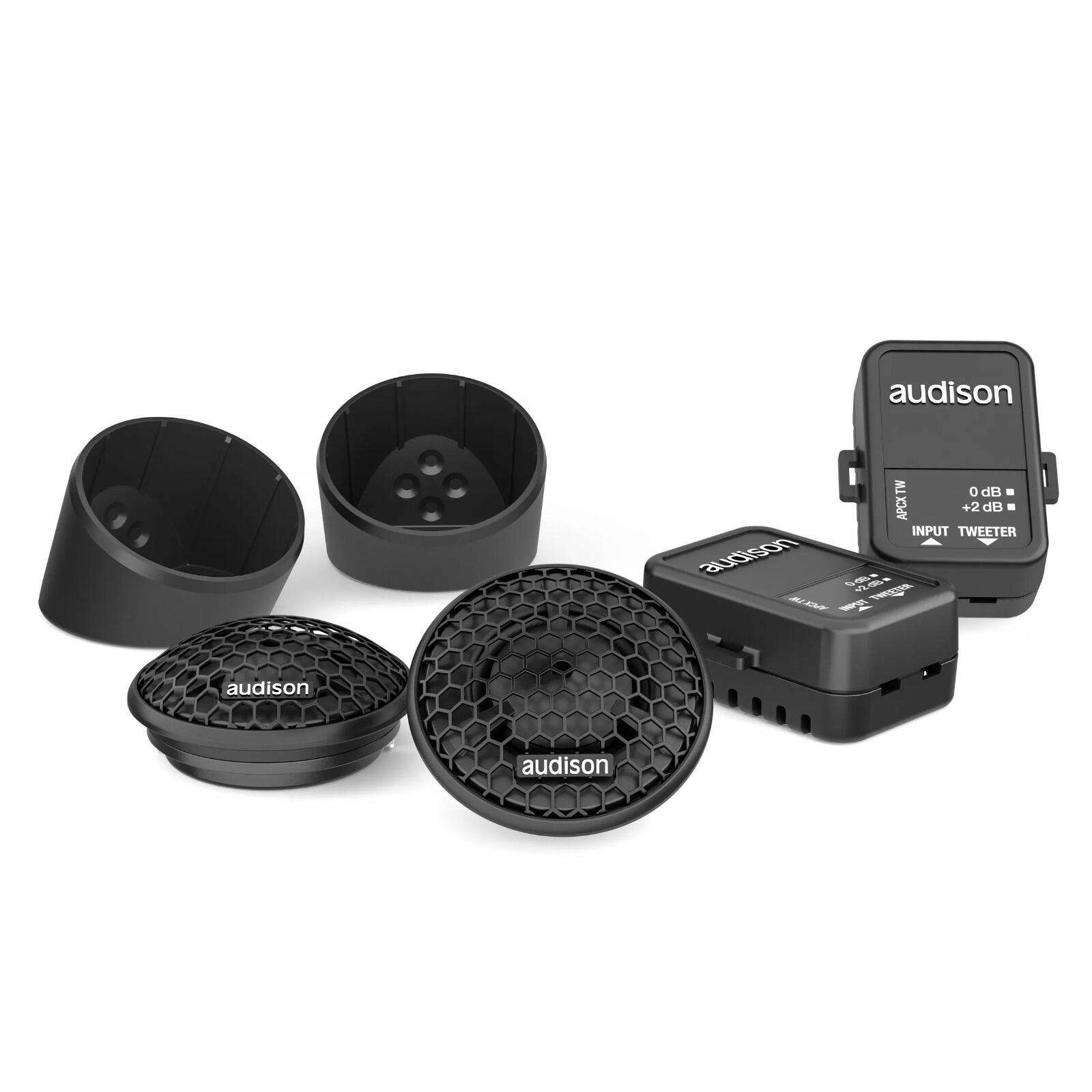

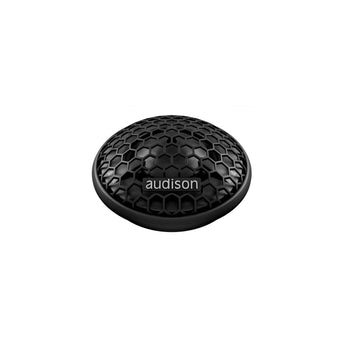

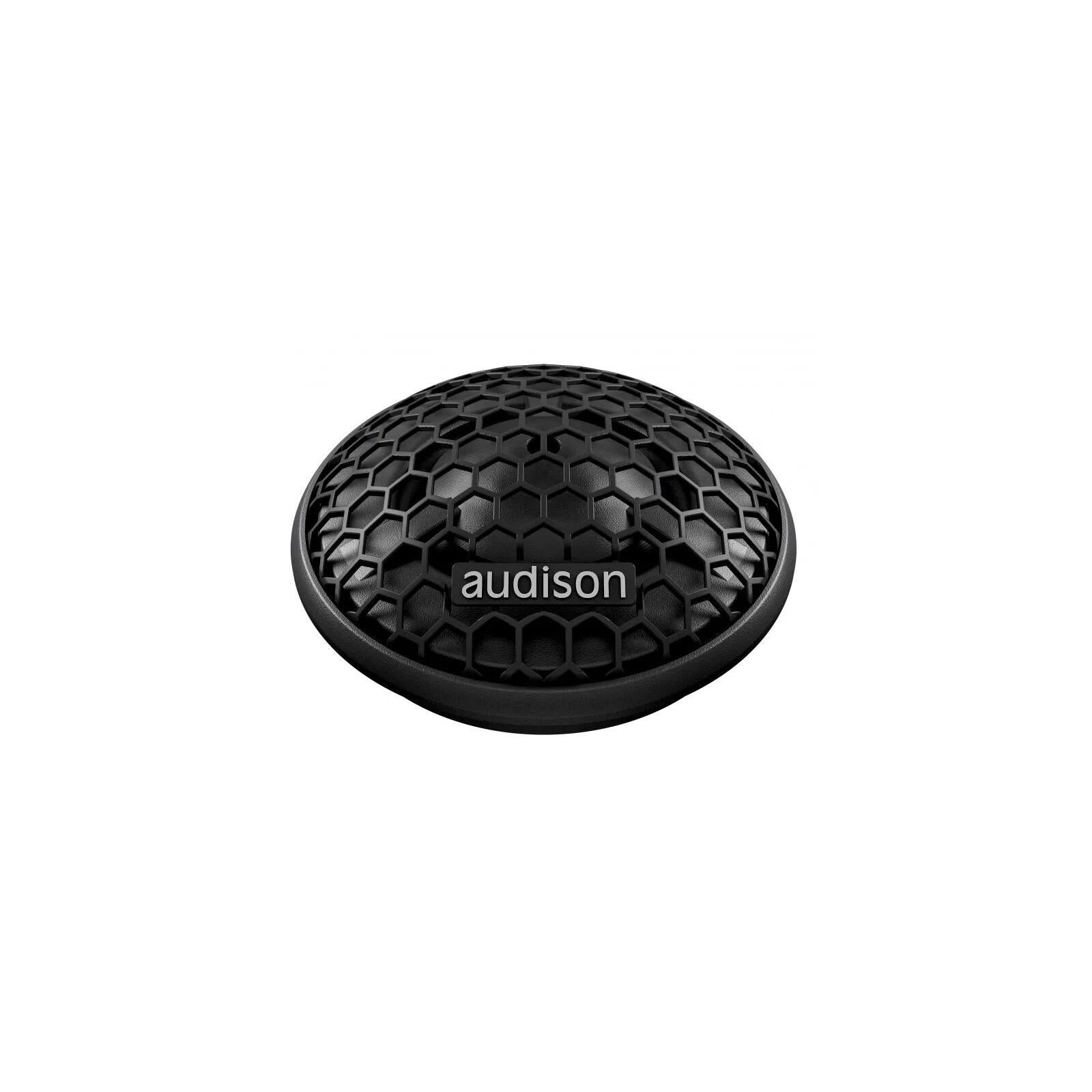

AP 1 Tweeter
1. 26 mm diameter diaphragm combined with a wide-roll surround provides maximum efficiency and reduced resonance frequency.
2. Acoustic lens designed to compensate for the in-car frequency response in the 10kHz – 13kHz bandwidth caused by critical OEM placements.
AP 570 Woofer
1. 32 mm pure copper voice coil, for high power handling and outstanding low frequency control.
2. Water-repellent treated paper cone, featuring a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel R&D Scan Vibrometer.
3. Reduced mounting depth, providing ease of installation in OEM placements.
4. “Triple Wave” surround profile for maximum excursion linearity.
5. Compact basket, protected by abrasion-resistant and scratch-proof coating, the motor affixed with damping epoxy adhesive.
6. High current fast-on terminal with double contact on positive and negative poles for high flexibility and quick connection.
APCX TW 570 Crossover
1. Optimized for OEM Integration featuring an attenuation switch (0 dB, +2dB) to tune the in-car response according to different installation conditions.
2. Supplied with fast-on connectors that eliminate any possible connection errors.
The R&D team optimized the electro-acoustic parameters of the new woofers for installation in the car door, respecting all the characteristics of the Prima speakers, such as the compact size of the basket to facilitate installation.The mechanical cut-off of the woofer cone-dust cap system ensures they can be used without a filter, maximizing efficiency to be easily driven by any type of amplifier.The large voice coil ensures high power handling and impeccable control even in the most aggressive dynamic transients.The double Faston connectors with direct link to the tweeter speed up the speakers connection, always ensuring a perfect contact.
Specification
| Magnet | Size Woofer 85 x 40 x 15 |
|---|---|
| Power Handling | - Peak 300 W |
| Power Handling | - Continuous 100 W |
| Impedance | 4 Ohm |
| Frequency Response | 55 - 20 k |
| Weight | Woofer 0.88 kg |
| Weight | Tweeter 0.04 kg |
More specs
| |
What's Included
- Audison Prima APK 570 Speakers
FAQs
Q: Will these speakers fit my car?
A: Most car speakers are standard sizes, but mounting depth and fitting rings vary by vehicle. Check the size in the Specification tab against your vehicle, or contact CEN with your registration and we will confirm fitment and any adapters or fitting kits you need.
Q: Do I need an amplifier to run these speakers?
A: Not always. Most speakers will run from a standard head unit, but a dedicated amplifier lets them perform at their best, particularly for component sets and higher power handling models. The RMS figure in the Specification tab is the guide to how much clean power they can use.
Q: What is the difference between coaxial and component speakers?
A: Coaxial speakers combine the tweeter and woofer in one unit for a simple like-for-like upgrade. Component sets separate the tweeter and woofer with a crossover for better imaging and detail, and suit installs where sound quality is the priority.
Q: Do these come as a pair?
A: Unless stated otherwise, car speakers are sold in pairs. Check the product title and What's Included tab, which lists exactly what is in the box.
Q: Can CEN fit these speakers for me?
A: Yes. CEN offers professional installation from our Nottingham premises. Contact us to book an installation slot or ask for a fitting quote.
