Alpine HCE-C1100D HDR CMOS Rear View Reversing Camera with Direct Connection
Couldn't Load Pickup availability
High Dynamic Range Cameras for Greater Safety

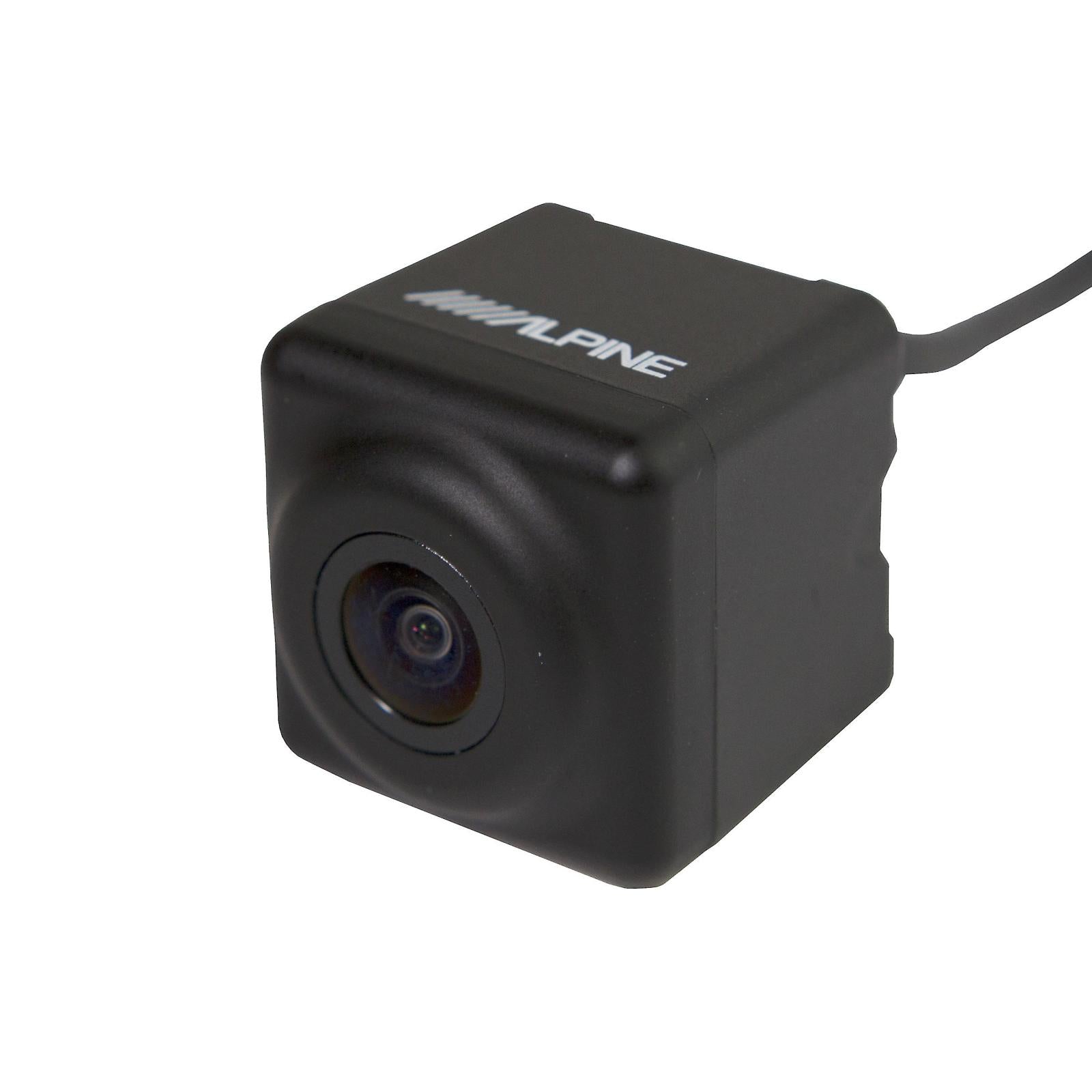

High Dynamic Range (HDR) Rear View Camera with Direct Camera Connection
HCE-C1100D
Thanks to HDR technology, the picture quality is much better compared to regular camera systems - for easier maneuvering and greater safety.
A rear view camera is a great way to improve your parking skills and make reversing safer. The camera image automatically comes on when you shift into reverse.
The cameras are very small, so they’re easy to install and don’t change the appearance of the car.
Works with Alpine products featuring Direct Camera Input.
All New Alpine HDR Cameras
Alpine’s all new HDR cameras are simply amazing and offer many new technologies that make manoeuvring your vehicle easier and safer.
- High-resolution camera for great picture quality and high details
- Amazing night-view capabilities in low-light environments
- Fast exposure adjustment when moving from dark to bright environments (for example underground parking, tunes, etc)
- New, small connectors for easy installation of camera and cables

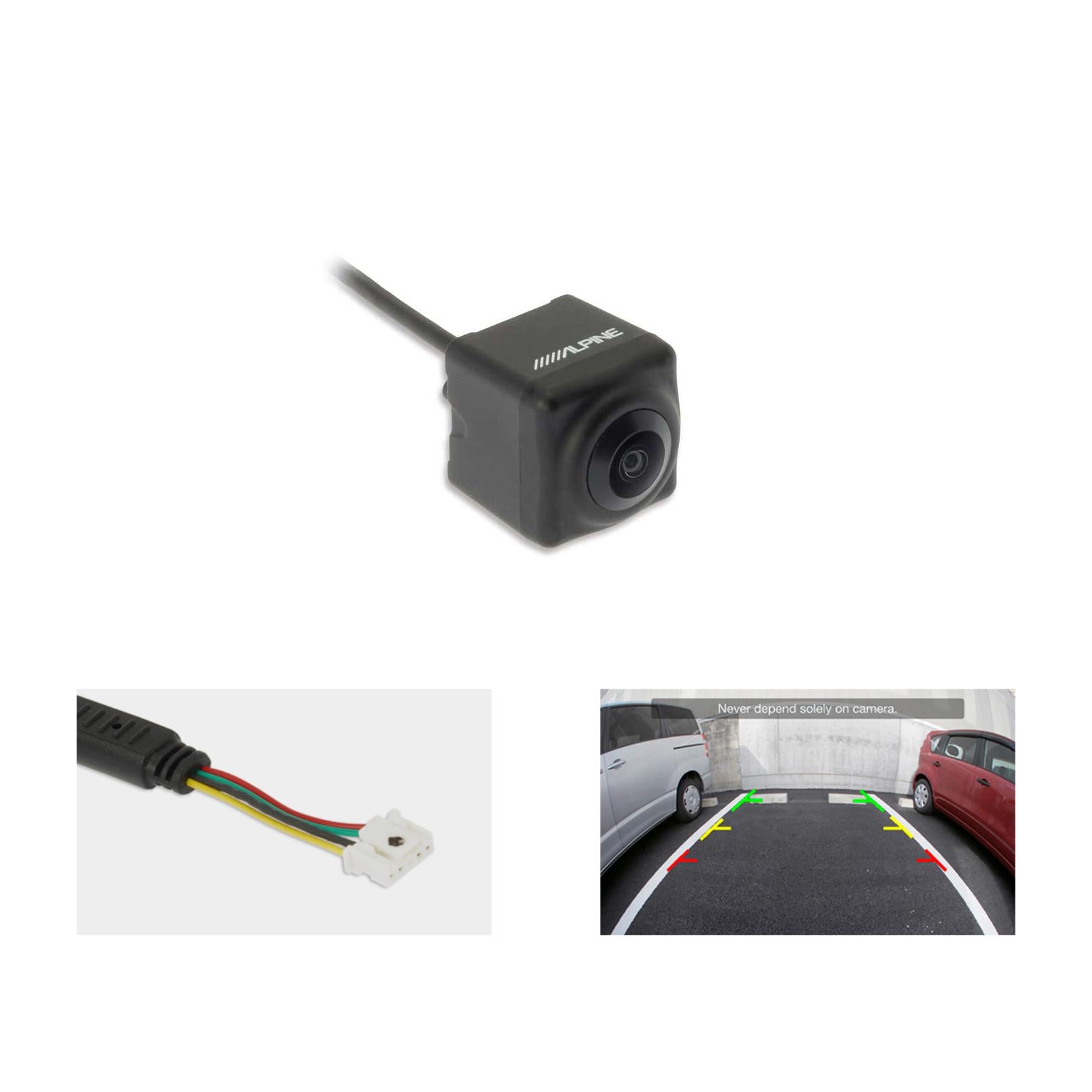

Distance Guides
This camera includes convenient distance guides that can be fully adjusted to match the width of your vehicle. This makes parking safer and more convenient compared to a regular rear-view camera.
Works with Alpine products featuring Direct Camera Input
This high performance camera connects via cable directly to the head unit (no black-box) for quick and easy installation.
Specification
| Camera | 23.6x 23.6x 24.0mm (excluding projection on the rear) |
|---|---|
| Camera Cable Length | 0.5m |
| Camera Extension Cable Length | 10.5m |
| Power Requirement | 6.0 V.DC |
| Max. Power Consumption | 0.5W |
| Weight | Camera 27g (including cable) |
| Output Image | Mirror Image, Composite Video (NTSC Color Signal System) |
| Image Output | 1 Vp-p (75 Ohms) |
| Image Sensor | 1/3.7 inch CMOS Image Sensor, Aspect Ratio 4:3 |
| Effective Number of Pixels | 640 (H) x 480 (V), Approximately 0.3 Mega pixels |
| Lens | Focal Length f=1.34mm |
| Lens | Brightness F=1:2.0 |
| Angle of Field | Horizontal = 131°, Vertical = 103° |
| S/N Ratio | 40.5 dB or more |
| Resolution (Horizontal. Center Area) | 330 TV Lines |
| Operating Temperature | -30°C - +70°C |
| Illumination Range | Approximately 1.5 to 100klx |
More specs
| |

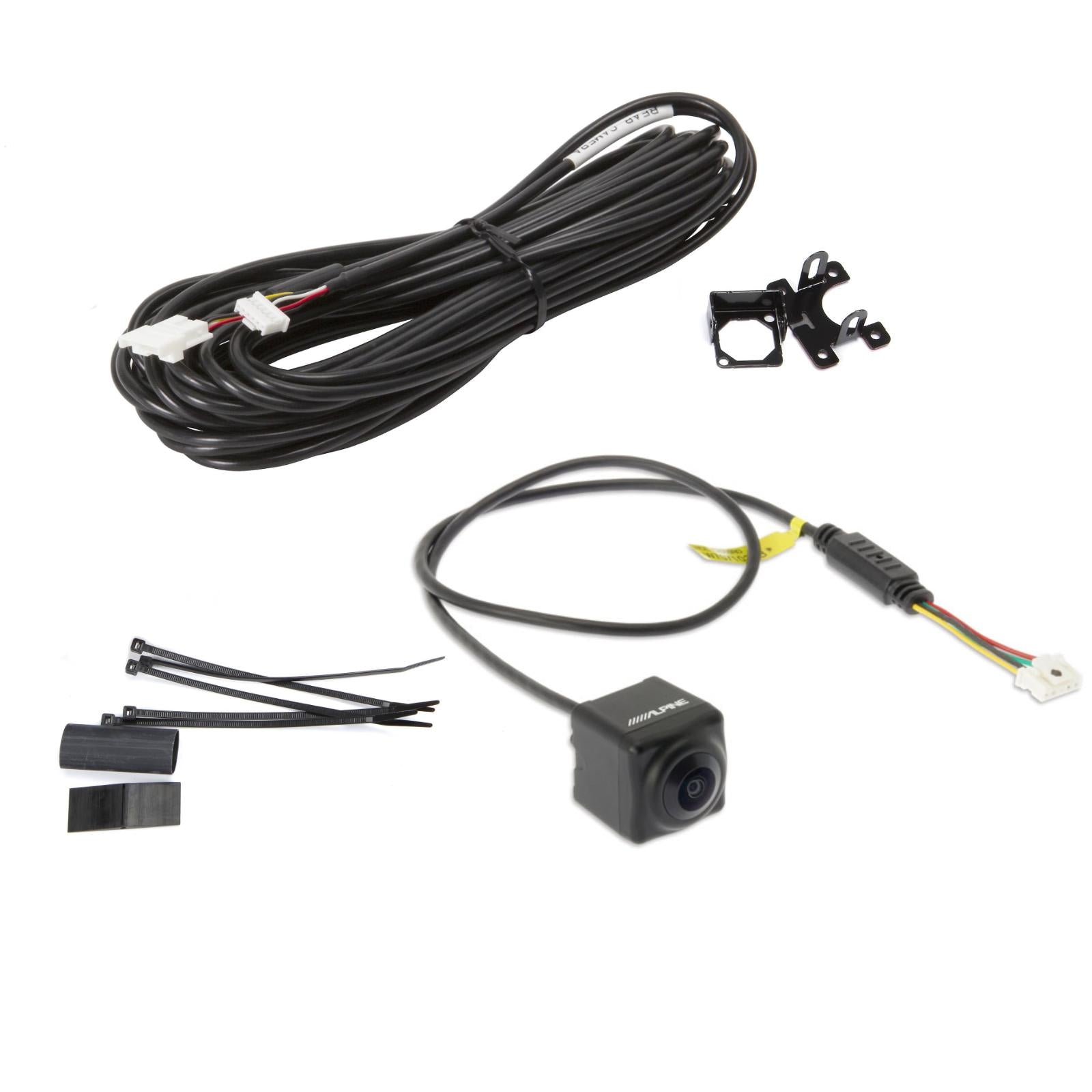

What's Included
- Rear-view camera
- Power/Ground/Signal harness
- Power/Ground/Signal harness
- 2-Piece mounting bracket
- 4 Machine screws
- 4 Self-tapping screws
- Rubber sleeve
- Rubber wedge
- 3M tape
- 5 Wire-ties
- Owner's Manual
FAQs
Q: Will this reversing camera work with my head unit?
A: Any head unit or monitor with a camera input will display a standard reversing camera. If your stereo lacks an input, we can recommend a standalone monitor or mirror option. Contact CEN with your setup and we will confirm.
Q: Does the camera come on automatically when I reverse?
A: Yes, when wired to the reversing light circuit the camera and screen trigger automatically as you select reverse. This is the standard installation method.
Q: Is this camera suitable for a van or motorhome?
A: Check the cable length and mounting style in the Specification tab. CEN stocks cameras suited to cars, vans and motorhomes, and can advise on extension leads for longer vehicles.
Q: Can CEN install the reversing camera?
A: Yes. CEN offers professional reversing camera installation from our Nottingham premises, including wiring to your existing screen where compatible. Contact us to book.
