Audison Prima APK 130 5" 13cm 130mm 2 Way Car Component Door Speakers 75w RMS
Couldn't Load Pickup availability
Prima APK 130
Kit | 225 W Peak Power | Kit 2 way 4 ohm | AP 1 + AP 5 + Crossover
Audison Prima
Audison Prima was designed to meet the interest of the car model enthusiasts who like to appreciate all the nuances of the musical message with components that are perfectly integrated in the car OEM system, preserving the most precious Prima on Audison requirement of OEM integration: space.

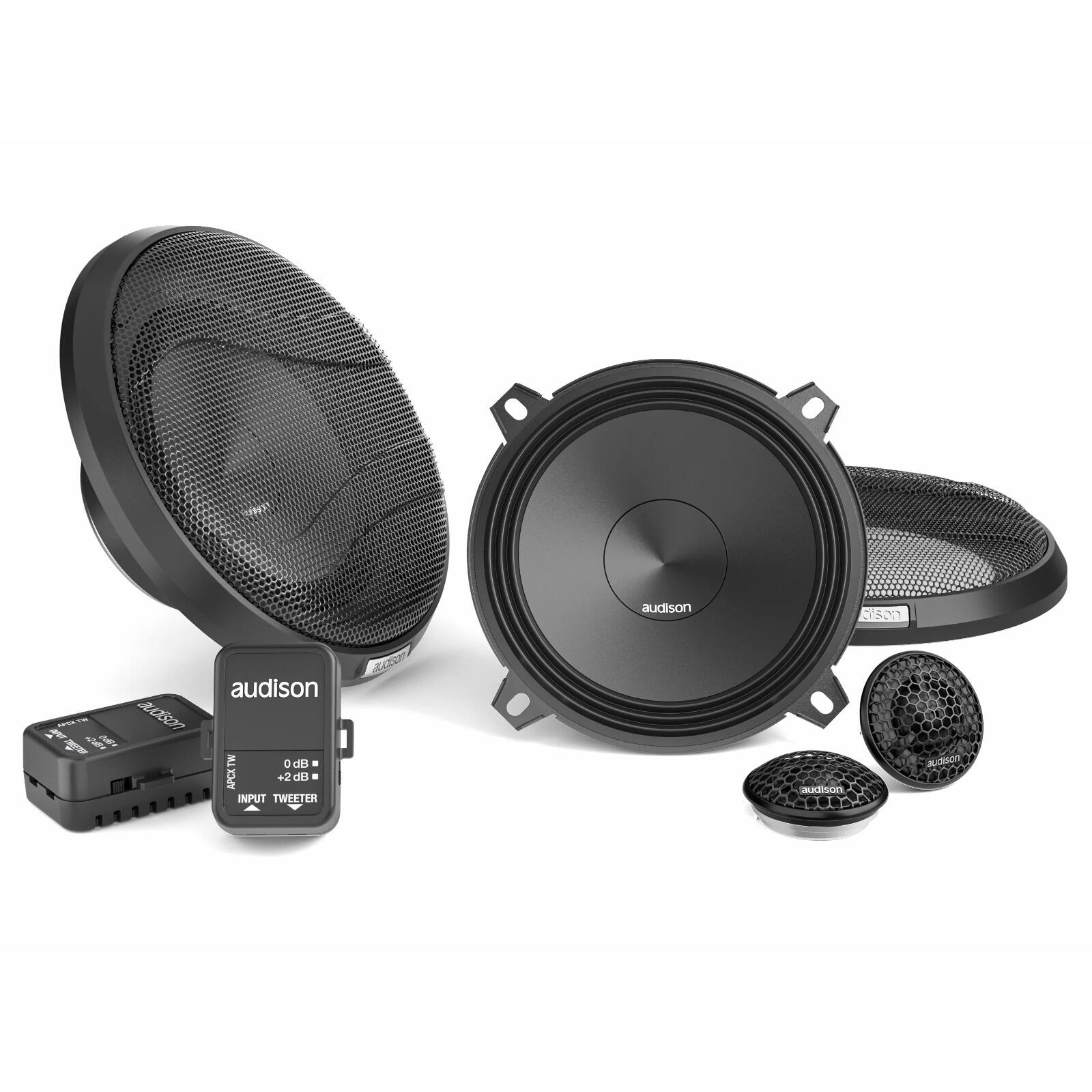

Two way system features AP 1 tweeter and AP 5 woofer. APCX TW crossover features a two-position level selector providing the ability to adapt its response to its two main applications: +2dB if installed behind the OEM grille, 0dB for an A-pillar installation without additional grilles between the tweeter and the listener.

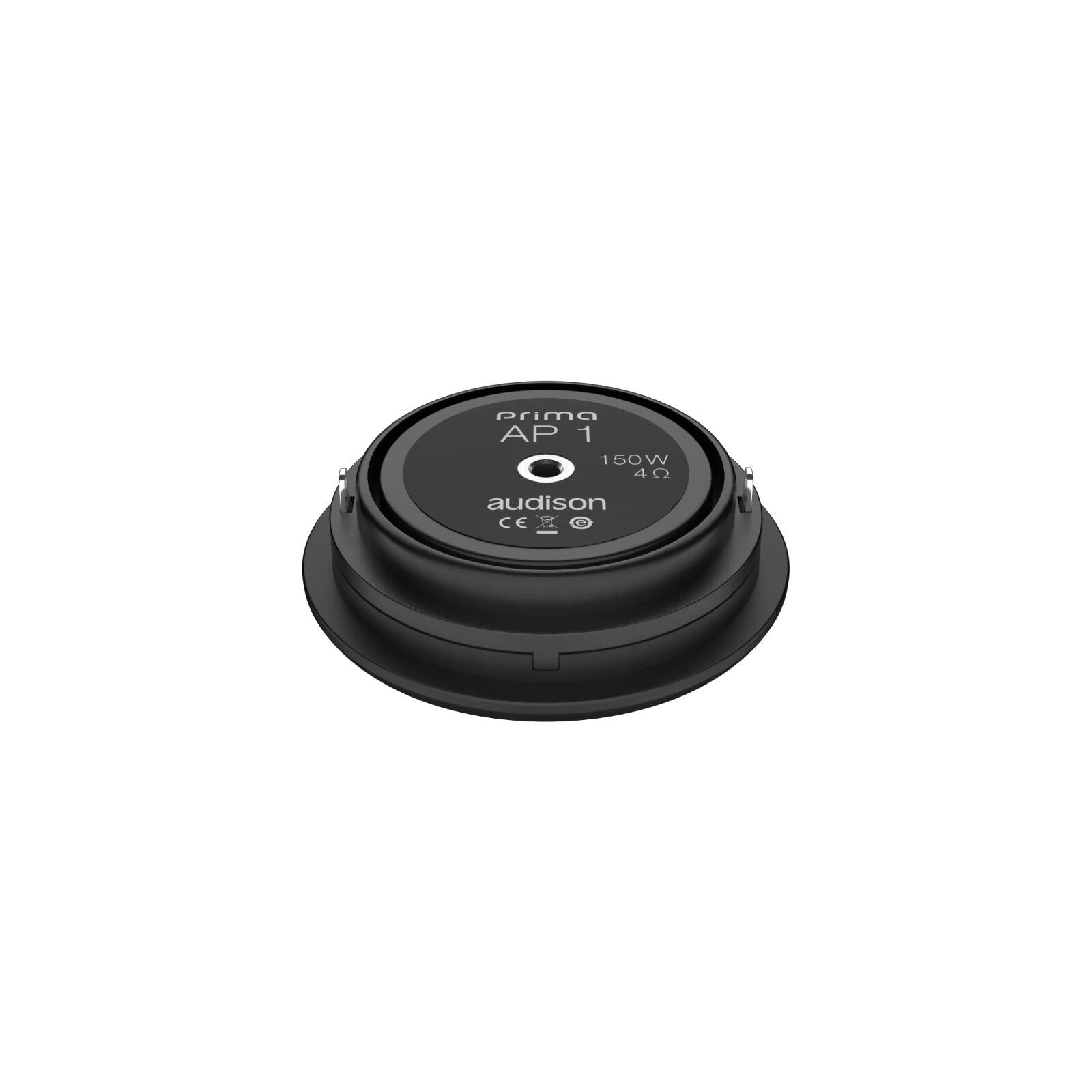

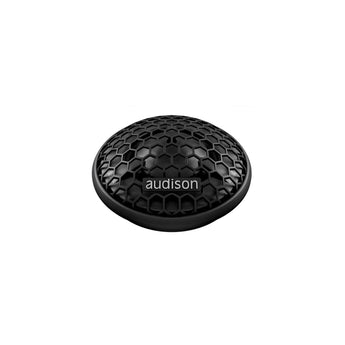

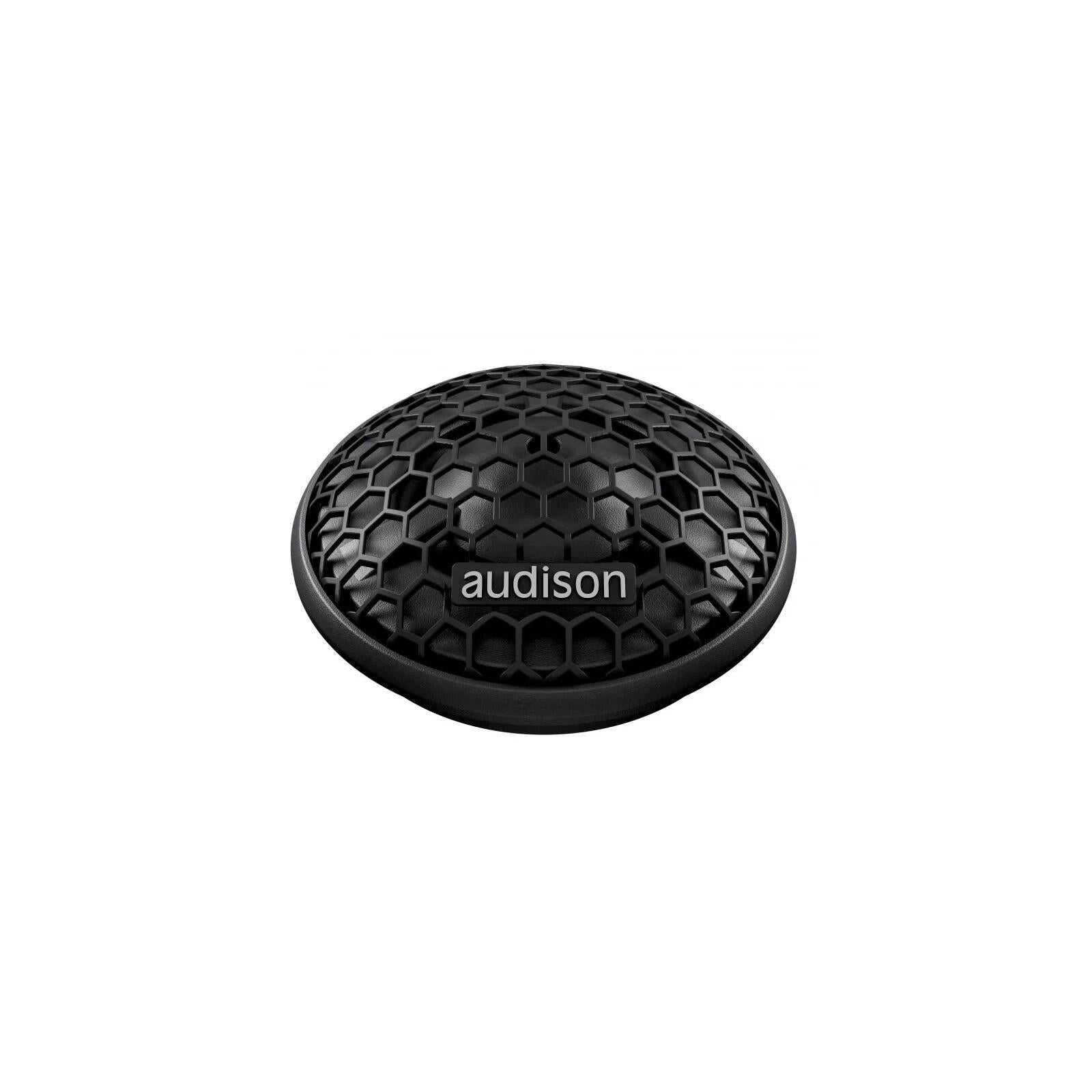

- AP1 tweeter with 26 mm diameter diaphragm combined with a wide-roll surround provides maximum efficiency and reduced resonance frequency.
- AP 1 tweeter with acoustic lens designed to compensate for and fine tune the in-car frequency response anomalies in the 10kHz-13kHz bandwidth caused by restrictive OEM grilles in critical OEM placements.

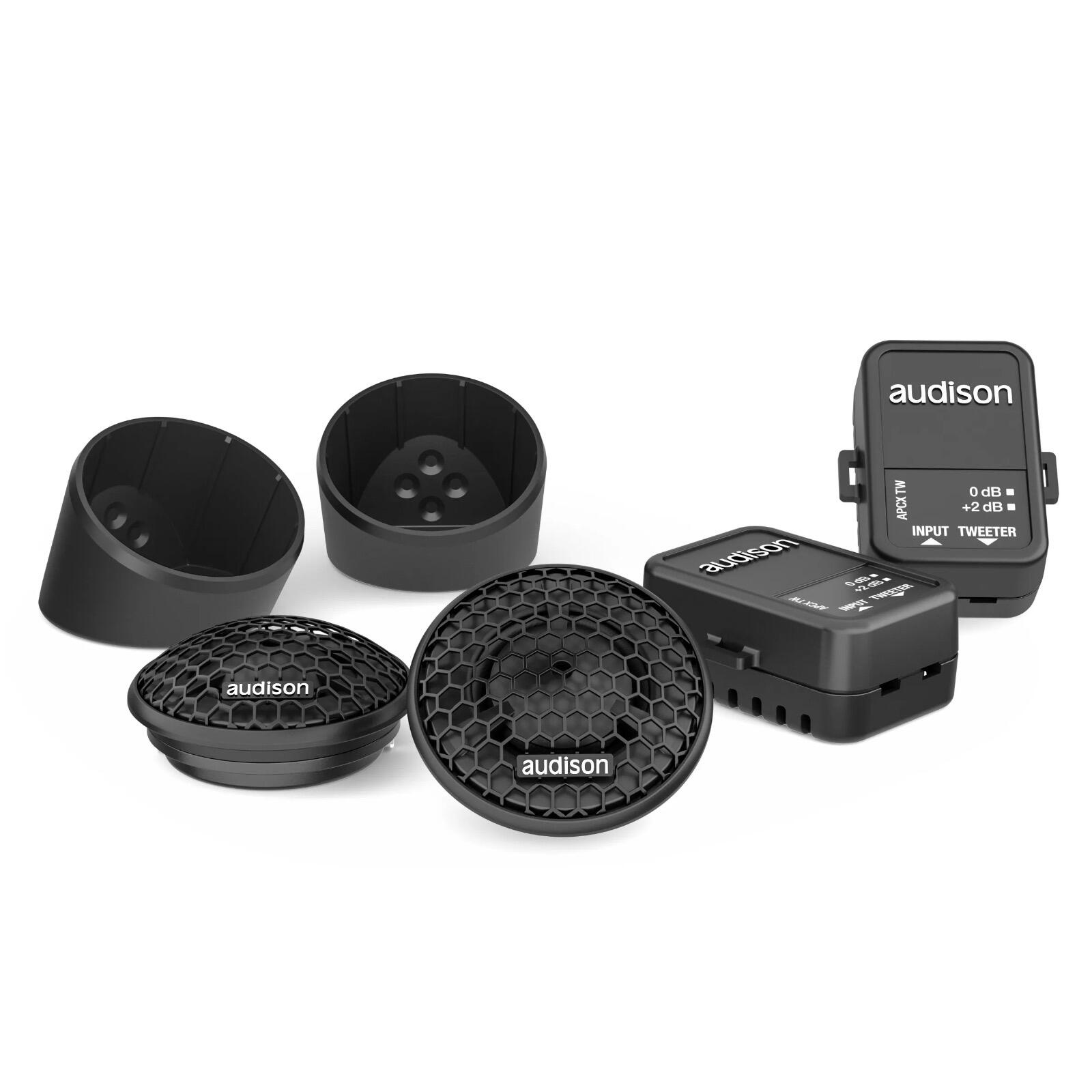

- APCX TW very compact tweeter passive crossover optimized for OEM Integration featuring an attenuation switch (0 dB, +2dB) to tune the in-car response according to different installation conditions.
- Passive crossovers are supplied with OEM Integration compliant fast-on connectors. The ends, different in each of the two poles, eliminate any possible connection errors and speed up the required installation time.

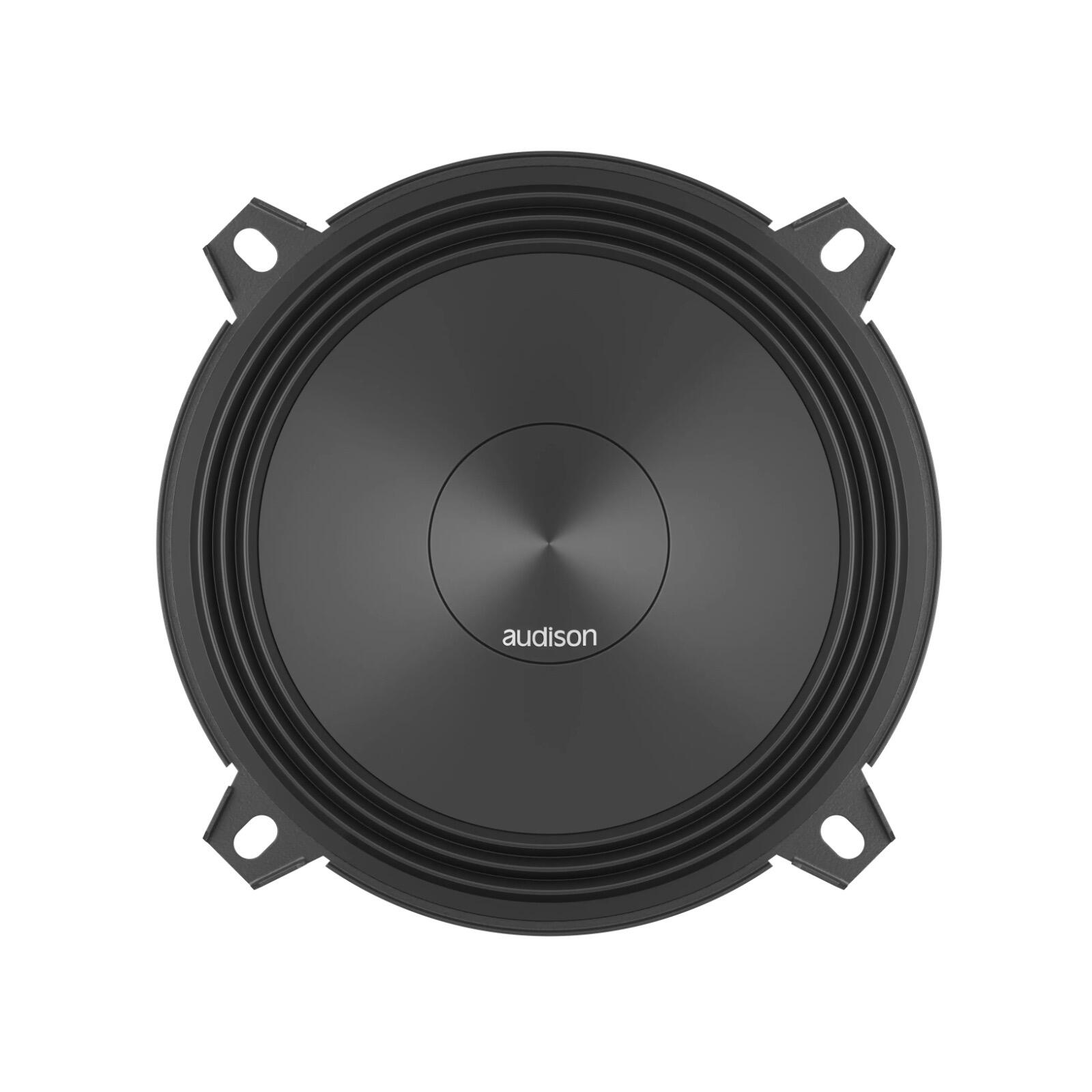

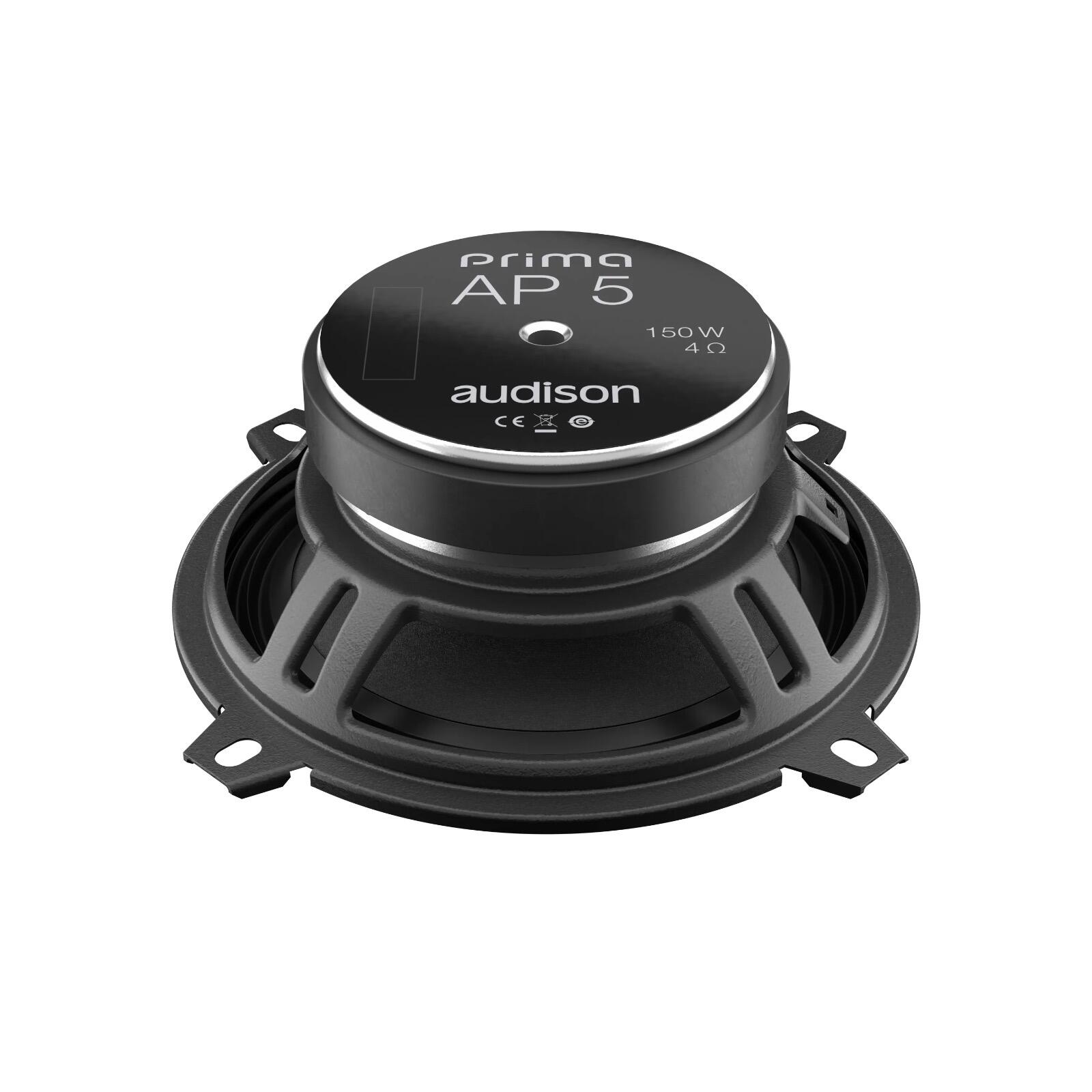

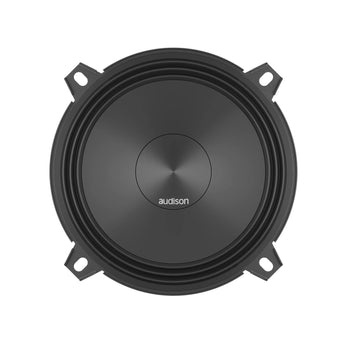

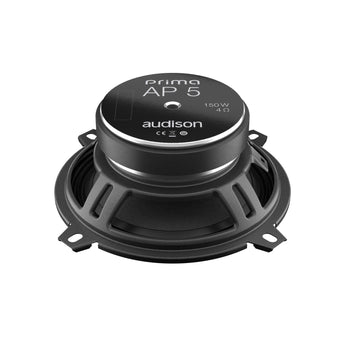

- AP 5 woofer with 32 mm pure copper voice coil, for high power handling and outstanding low frequency control.
- AP 5 woofer with water-repellent treated paper cone, featuring a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel R&D Scan Vibrometer.
- AP5 woofer with reduced mounting depth, providing ease of installation in OEM placements.
- AP5 woofer with TPU (Thermoplastic Polyurethane) surround, featuring the exclusive shallow Triple Wave profile, for maximum excursion linearity.
- AP 5 woofer with compact basket, protected by abrasion-resistant and scratch-proof coating, the motor affixed with damping epoxy adhesive.
- AP 5 woofer with high current fast-on terminal with double contact on positive and negative poles for high flexibility and quick connection. The terminal features a temperature resistant plastic cover, protecting it against accidental short circuits.
- Developed with the KLIPPEL suite.
To ease the installation in OEM placements the woofers are equipped with high current fast-on terminals with double contact on positive and negative poles for high flexibility and quick connection.
Specification
| Magnet | Size Woofer 85 x 40 x 13 |
|---|---|
| Power Handling | - Peak 225 W |
| Power Handling | - Continuous 75 W |
| Impedance | 4 Ohm |
| Frequency Response | 70 ÷ 20k |
| Weight | Woofer 0.65 kg |
| Weight | Tweeter 0.04 kg |
More specs
| |
What's Included
- Audison Prima APK 130 Speakers
About the brand
Audison
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Looking for Installation?
At CEN we take pride in being able to share the quality of our work as well as being able to show what incredible products we have installed week on week.
Elettromedia Brands
Evolution of technology and art of sound
More from Audison
More options from the same range, in stock and ready to go
Popular Audison B-CON II Hi-Res Bluetooth Audio Receiver 24bit 96kHz with Android L-DAC £229.99 /In stock
Staff Favourite Audison Voce II AVBX 10 D4 II Subwoofer Enclosure 10" Passive Sub Box 550w RMS £549.99 /Low stock
Popular Audison Voce II AV 12 D2 II Subwoofer Dual 2ohm 12 Inch Sub 550w RMS with Grill £449.99 /Low stock-
Popular Audison Voce II AV 12 D4 II Subwoofer Dual 4ohm 12 Inch Sub 550w RMS with Grill £449.99 /Low stock
Popular Audison Voce II AV 10 D4 II Subwoofer Dual 4ohm 10 Inch Sub 550w RMS with Grill £419.99 /Low stock-
Popular Audison Voce II AV 10 D2 II Subwoofer Dual 2ohm 10 Inch Sub 550w RMS with Grill £419.99 /Low stock
Frequently Asked Questions
Q: Will these speakers fit my car?
A: Most car speakers are standard sizes, but mounting depth and fitting rings vary by vehicle. Check the size in the Specification tab against your vehicle, or contact CEN with your registration and we will confirm fitment and any adapters or fitting kits you need.
Q: Do I need an amplifier to run these speakers?
A: Not always. Most speakers will run from a standard head unit, but a dedicated amplifier lets them perform at their best, particularly for component sets and higher power handling models. The RMS figure in the Specification tab is the guide to how much clean power they can use.
Q: What is the difference between coaxial and component speakers?
A: Coaxial speakers combine the tweeter and woofer in one unit for a simple like-for-like upgrade. Component sets separate the tweeter and woofer with a crossover for better imaging and detail, and suit installs where sound quality is the priority.
Q: Do these come as a pair?
A: Unless stated otherwise, car speakers are sold in pairs. Check the product title and What's Included tab, which lists exactly what is in the box.
Q: Can CEN fit these speakers for me?
A: Yes. CEN offers professional installation from our Nottingham premises. Contact us to book an installation slot or ask for a fitting quote.
