Audison Prima AP 1 Tweeter 1" 26mm Dome Teloton Fibre Neodymium Magnet 150w Peak

Prima AP 1 TWEETER

Tweeter | 150 W Peak Power | 26 mm | 4 ohm

Audison Prima

Audison Prima was designed to meet the interest of the car model enthusiasts who like to appreciate all the nuances of the musical message with components that are perfectly integrated in the car OEM system, preserving the most precious Prima on Audison requirement of OEM integration: space.

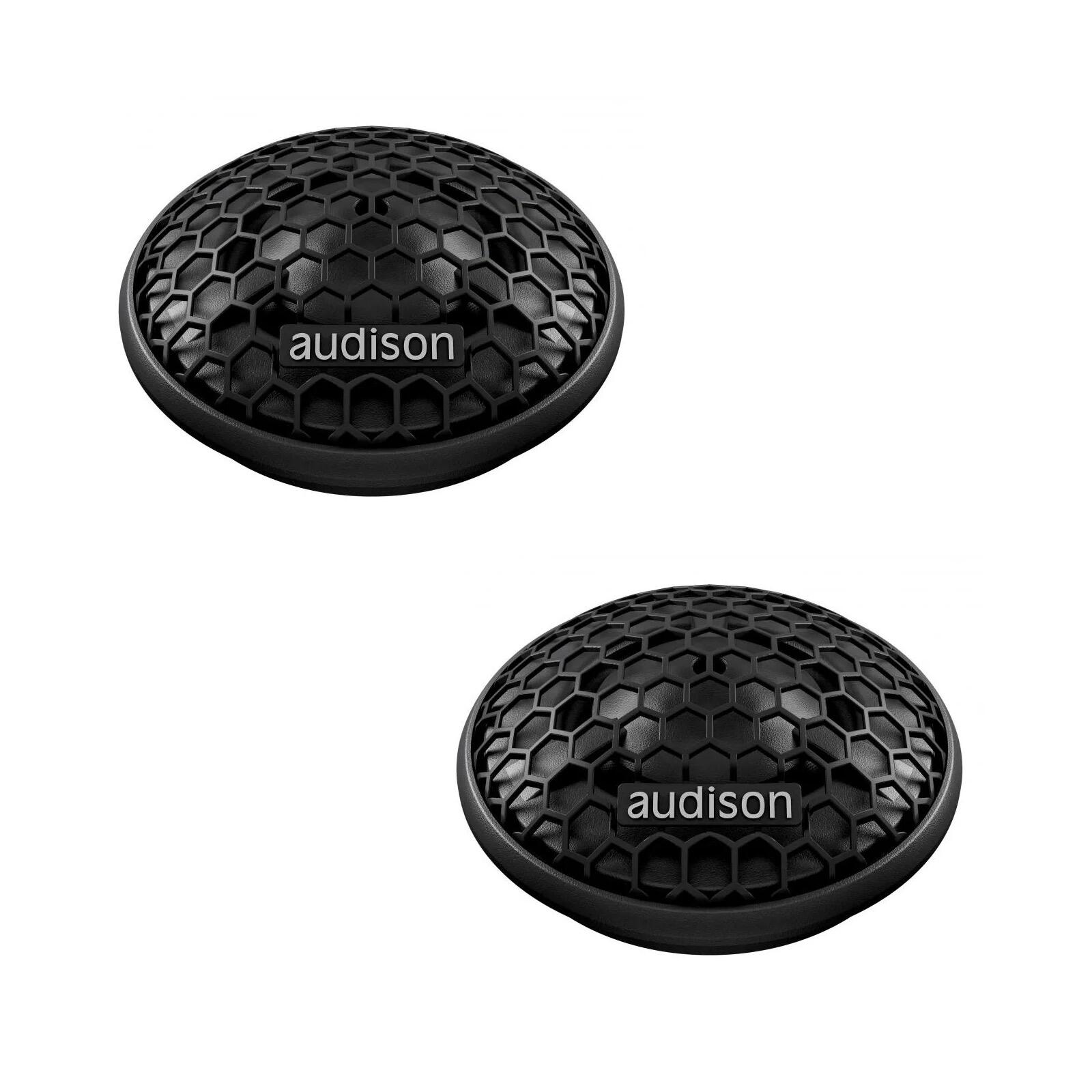

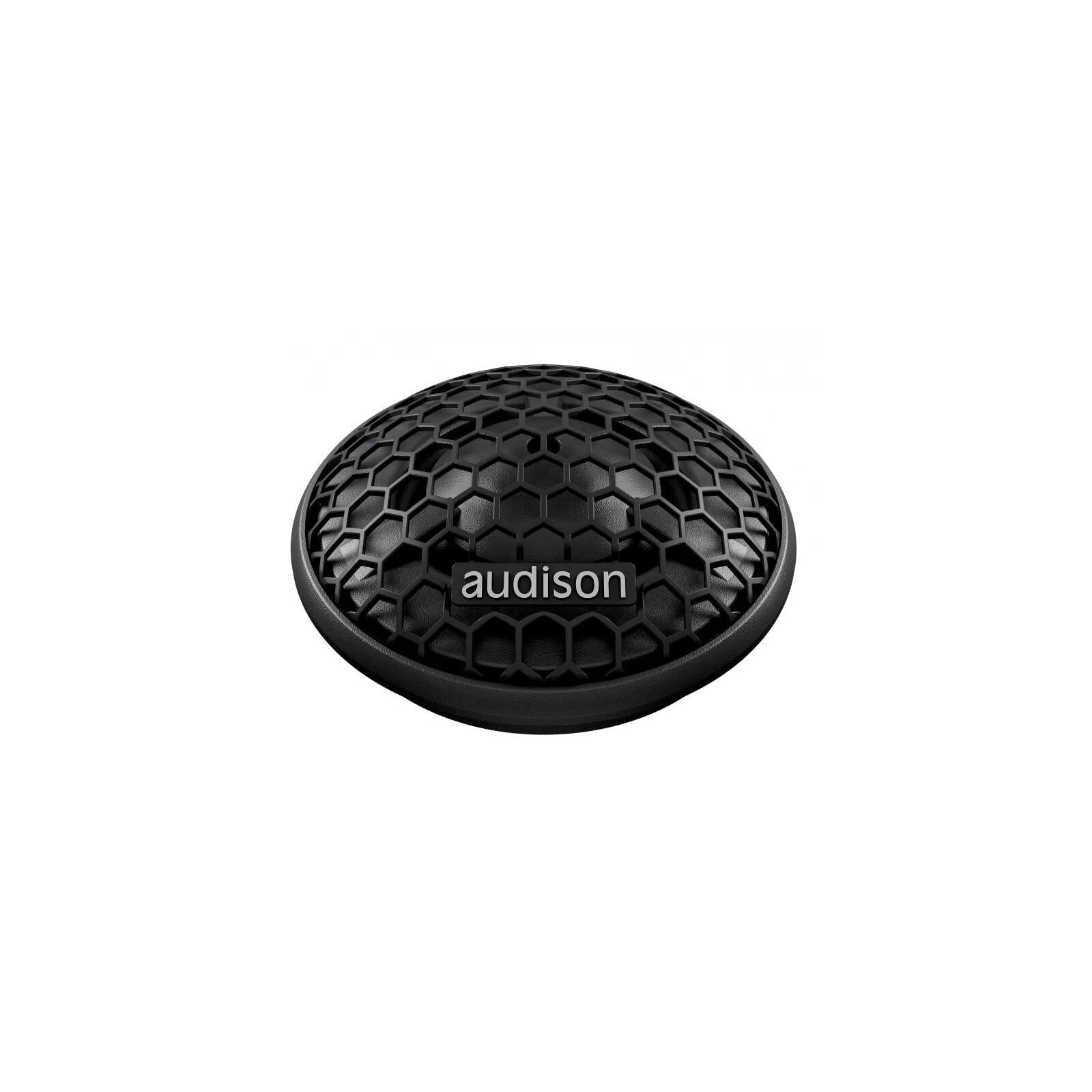

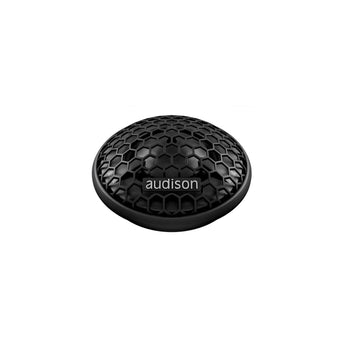

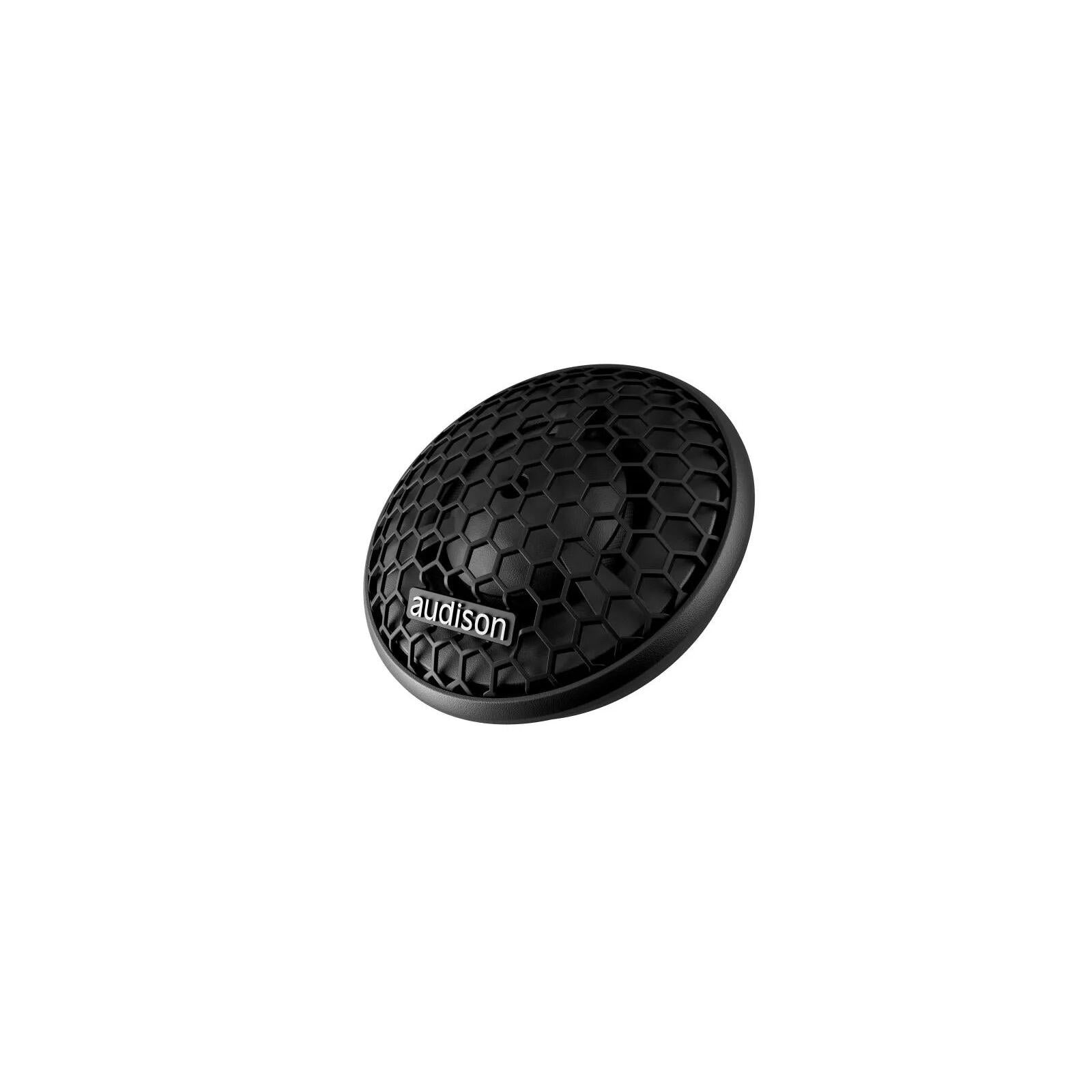

The AP 1 tweeter features an innovative design. The 26 mm diaphragm, combined with a wide external suspension, actively contributes to the overall emission, providing the ability to increase sound pressure while lowering the resonance frequency, all with extremely low moving mass.

• 26 mm diameter diaphragm combined with a wide-roll surround provides maximum efficiency and reduced resonance frequency.
• An acoustic lens designed to compensate for and fine-tune the in-car frequency response anomalies in the 10 kHz 13 kHz bandwidth caused by restrictive OEM grilles in critical OEM placements.
• Extremely compact dedicated passive crossover APCX TW supplied with the product, optimized
• for OEM Integration, featuring an attenuation switch (0 dB, +2 dB) to tune the in-car response according to different installation conditions.
• Passive crossovers are supplied with “OEM Integration compliant”, fast-on connectors. The ends, different in each of the two poles, eliminate any possible connection errors and speed up the required installation time.

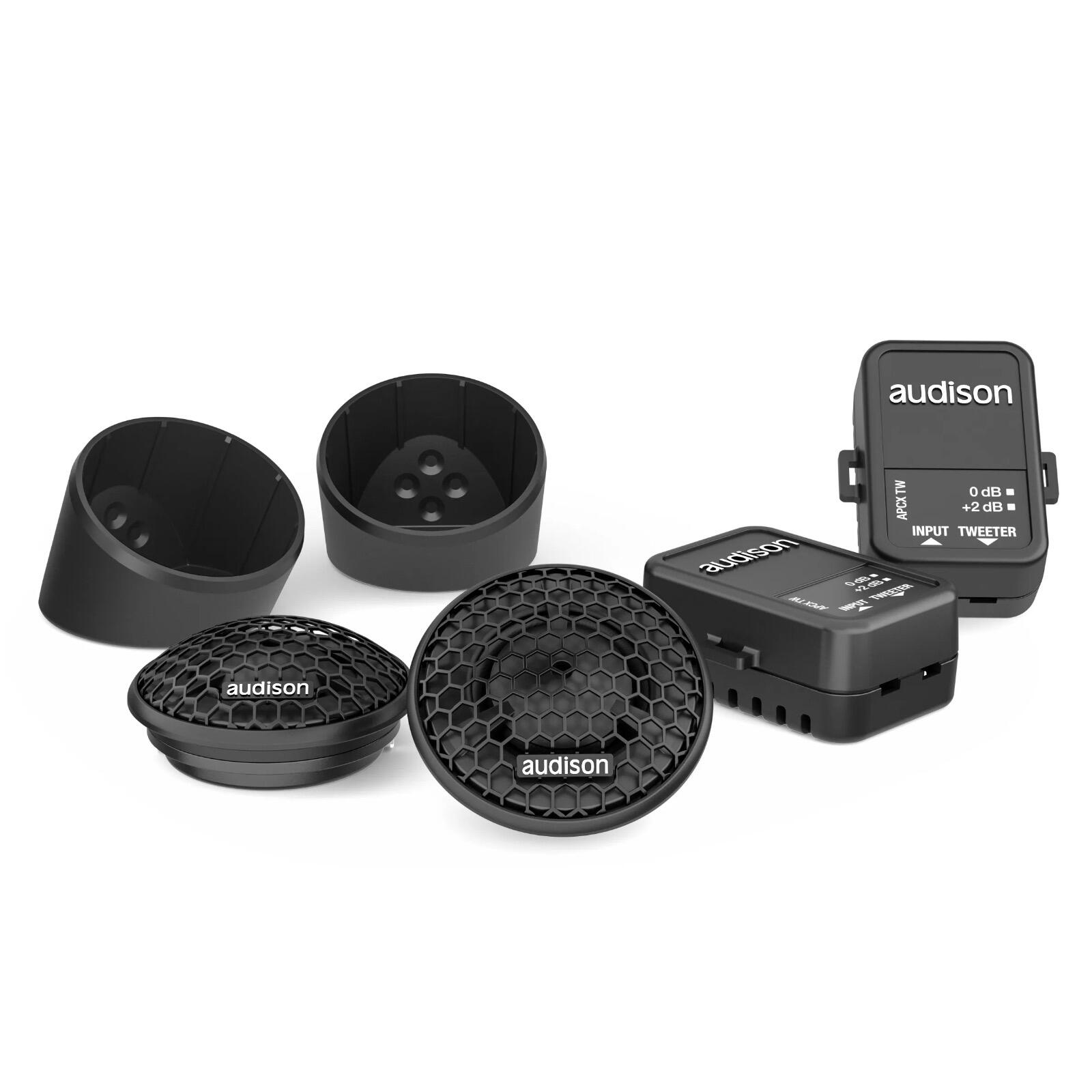

• A wide array of mounting accessories is supplied with the product, for high fitment flexibility in OEM Integration.
• CCAW (Copper Clad Aluminium Wire) ultra-light ferrofluid cooled voice coil is wound
• on a Kapton former, for better heat dissipation.

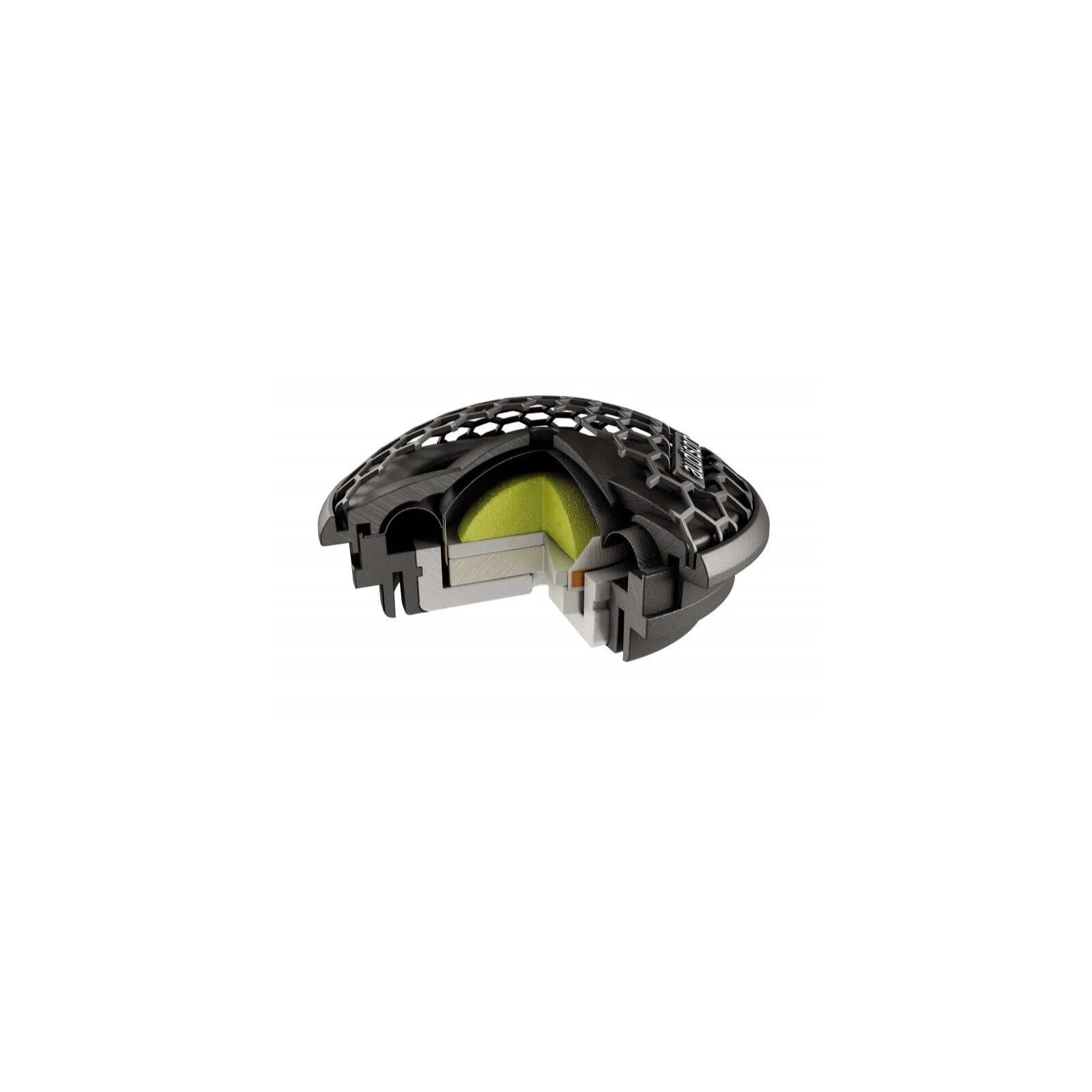

• The Dome profile and motor are optimized with FEM (Finite Element Method) simulation
• technology.
• Developed with the KLIPPEL suite.

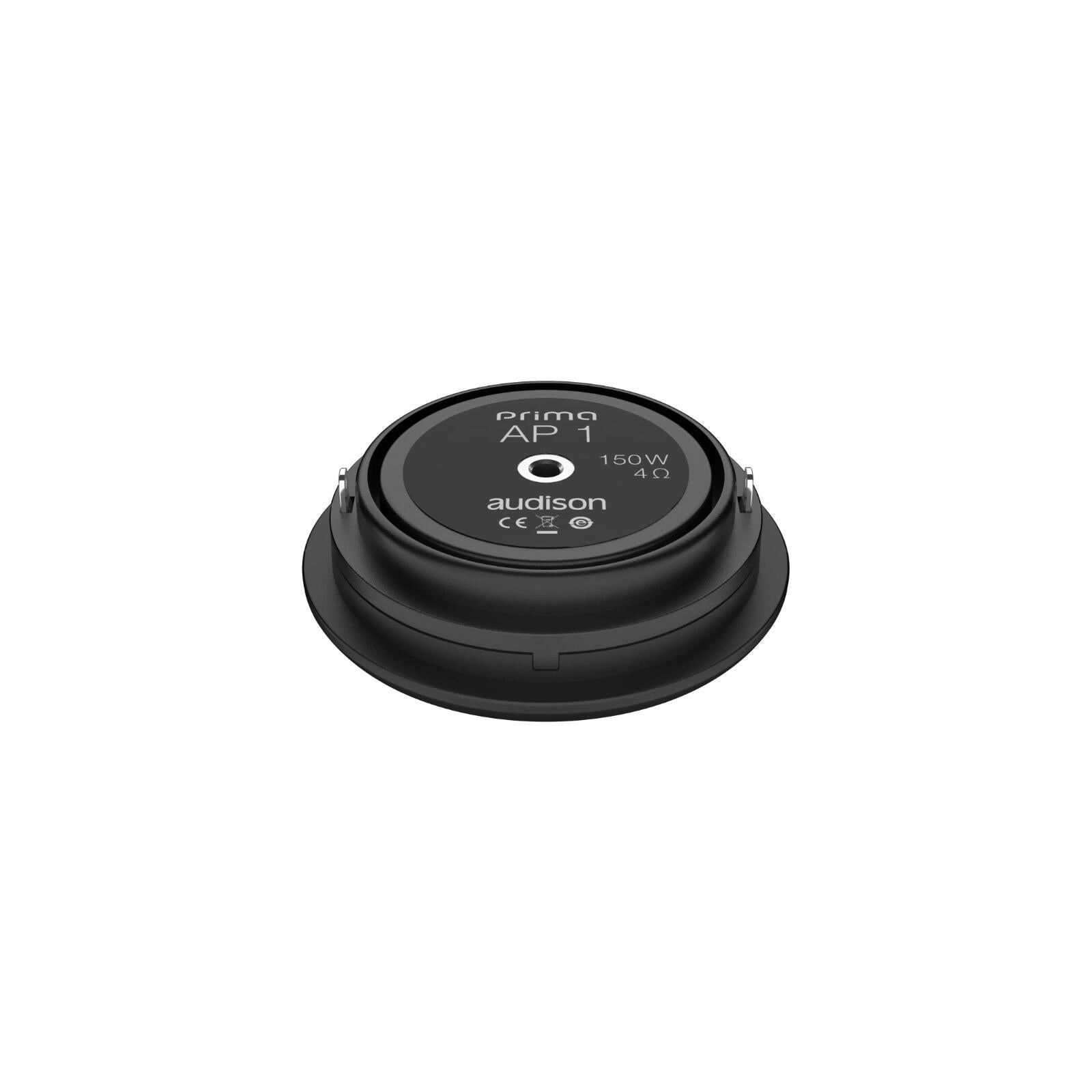

The powerful motor is characterized by a large Neodymium magnet.
