Alpine HDZ-653 Status Speakers Hi-Res 6.5 Inch 16.5cm 3 Way Component 100w RMS

Alpine Status Hi-Res 6-1/2" (16.5cm) 3-Way Component Speaker Set

HDZ-653 Superior Sound Performance

Alpine Introduces the all-new Alpine Status sound system: using the same engineering and design concepts drawn from the third generation, Ultra High-Resolution AlpineF#1Status system, Alpine created “Alpine Status” to achieve High-Resolution Sound at a more approachable and accessible price point. The Alpine Status system is also extreme flexible: all components can be purchased and used in “stand-alone” configuration.

• Hi-Res Audio certified 3-Way speaker system

• AlpineF#1Status speaker trickle-down technology

• Maximum Peak Power: 300 Watts

• Maximum RMS Power: 100 Watts

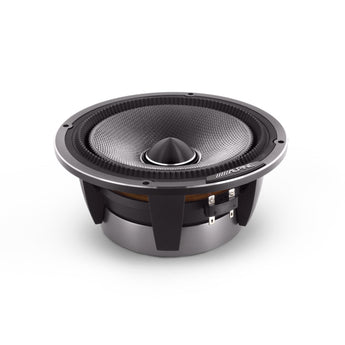

• Woofer diameter: 170mm (177mm with attached grill)

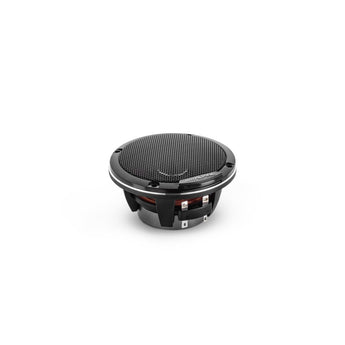

• Mid-range diameter: 96mm

• Tweeter diameter: 70mm (25mm voice coil)

• Aluminum die-cast baskets

• Ring-radiator tweeters

• Backed carbon fiber cones
• Double-gathered edge

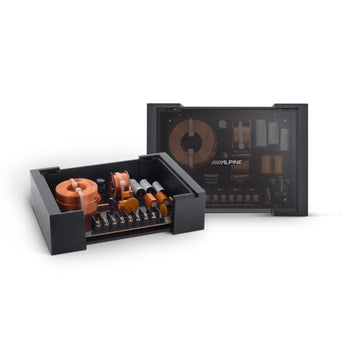

• High-end X-Over networks

• Included speaker grills

• Integrated Wave Guide on all speakers

For the audiophile that’s looking to build an ideal sound system, Alpine Status offers a wide range of Hi-Res Audio enabled speakers. The HDZ-653 3-Way speaker set with a high-resolution bandwidth of 55Hz – 40kHz includes a 170mm door woofer, 96mm mid-range, and 70mm ring-radiator tweeter with 25mm voice coil. They also include high-end speaker x-overs.

All speaker cones are made from the same Carbon Composite material to create a unified timbre identity during playback. Theyget very close to the AlpineF#1Status speakers look and feel, using a very similar constructing and motor assembly, as well as the identical build-materials for highest sound quality.

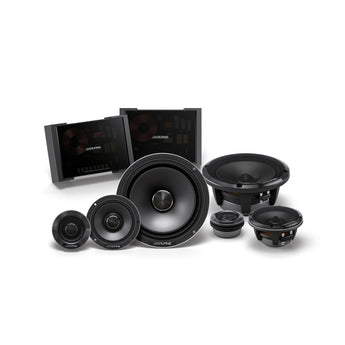

Audiophile 3-Way Speaker System

Drawing from AlpineF#1Status trickle-down technology and materials, these Hi-Res Audio certified speakers deliver highest audiophile sound quality up to 40kHz in your vehicle. The 3-way system consists of 170mm door woofers, 96mm mid-range speakers and 70mm ring-radiator tweeters with 25mm voice coil. They also include high-end X-over networks in the set.

Carbon Fiber Cones

All speakers in this set (as well as the HDZ-110 Alpine Status subwoofer) use backed carbon composite cones to achieve a fully unified timbre identity – resulting in excellent harmonics. Carbon is very lightweight and stiff, resulting in high dynamics and low distortion. Backed carbon composite technology is also used in race-car monocoques for its light weight and high crash resistance.

Double-Gathered Edge

Yet another trickle-down technology from the AlpineF#1Status speakers: the double-gathered edge allows maximum cone excursion with excellent cone control and stability. This reduces sound distortion caused by cone wobble at higher volume levels.

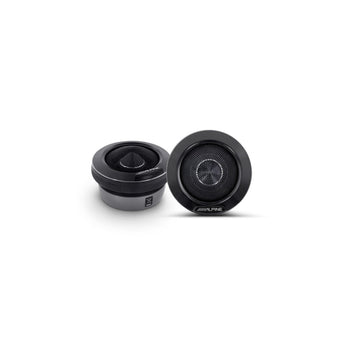

High-End Ring-Radiator Tweeter

The included 70mm Hi-res Audio ring-radiator tweeters sound simply amazing and play up to 40kHz. They feature a 25mm carbon fiber diaphragm that is tuned to perfectly harmonize with the mid-range speaker and woofer to achieve a fully unified timbre identity. They also include an integrated wave-guide, tuned-back chamber and a powerful neodymium magnet.
