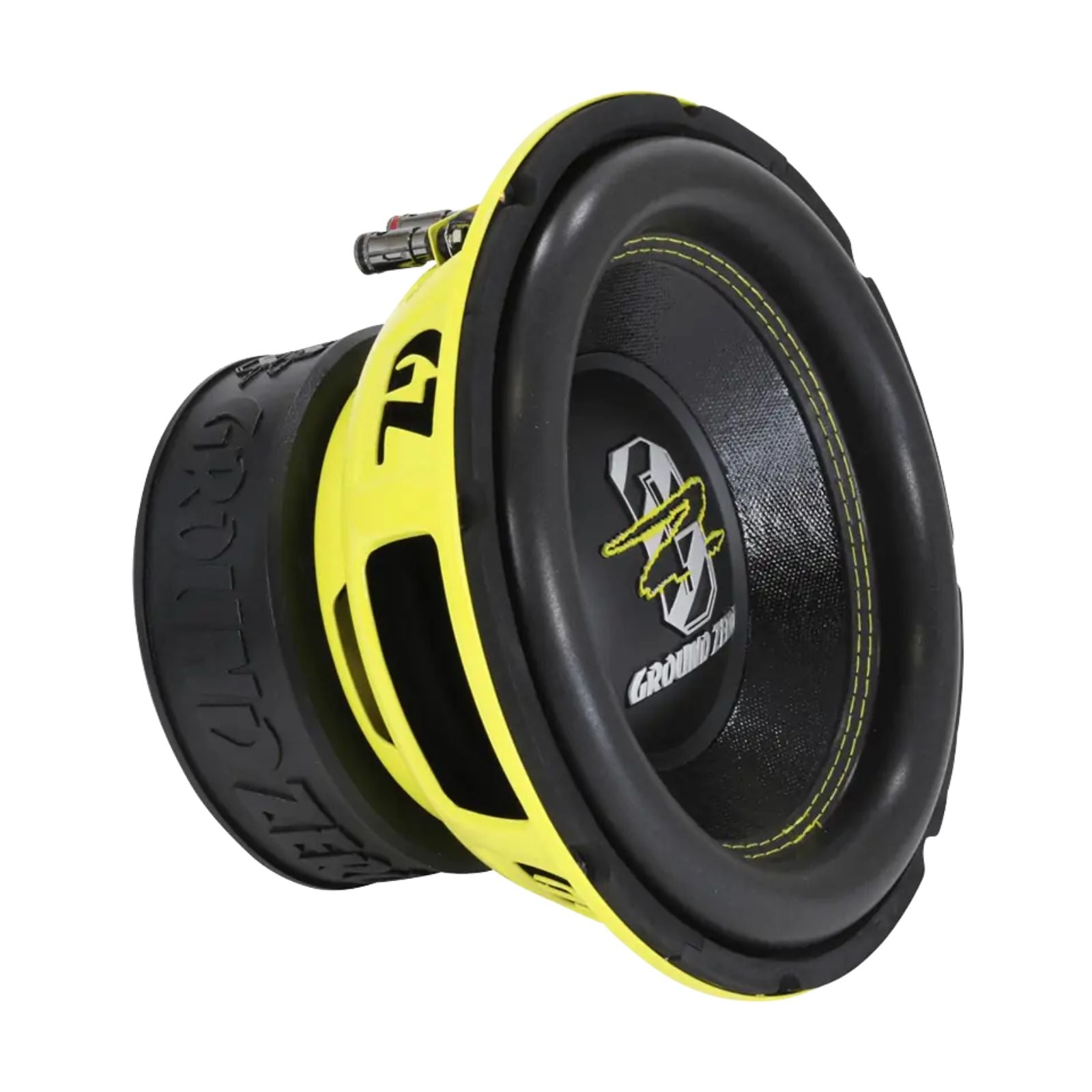

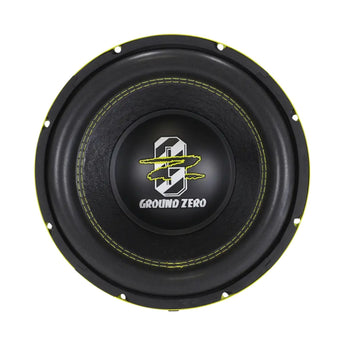

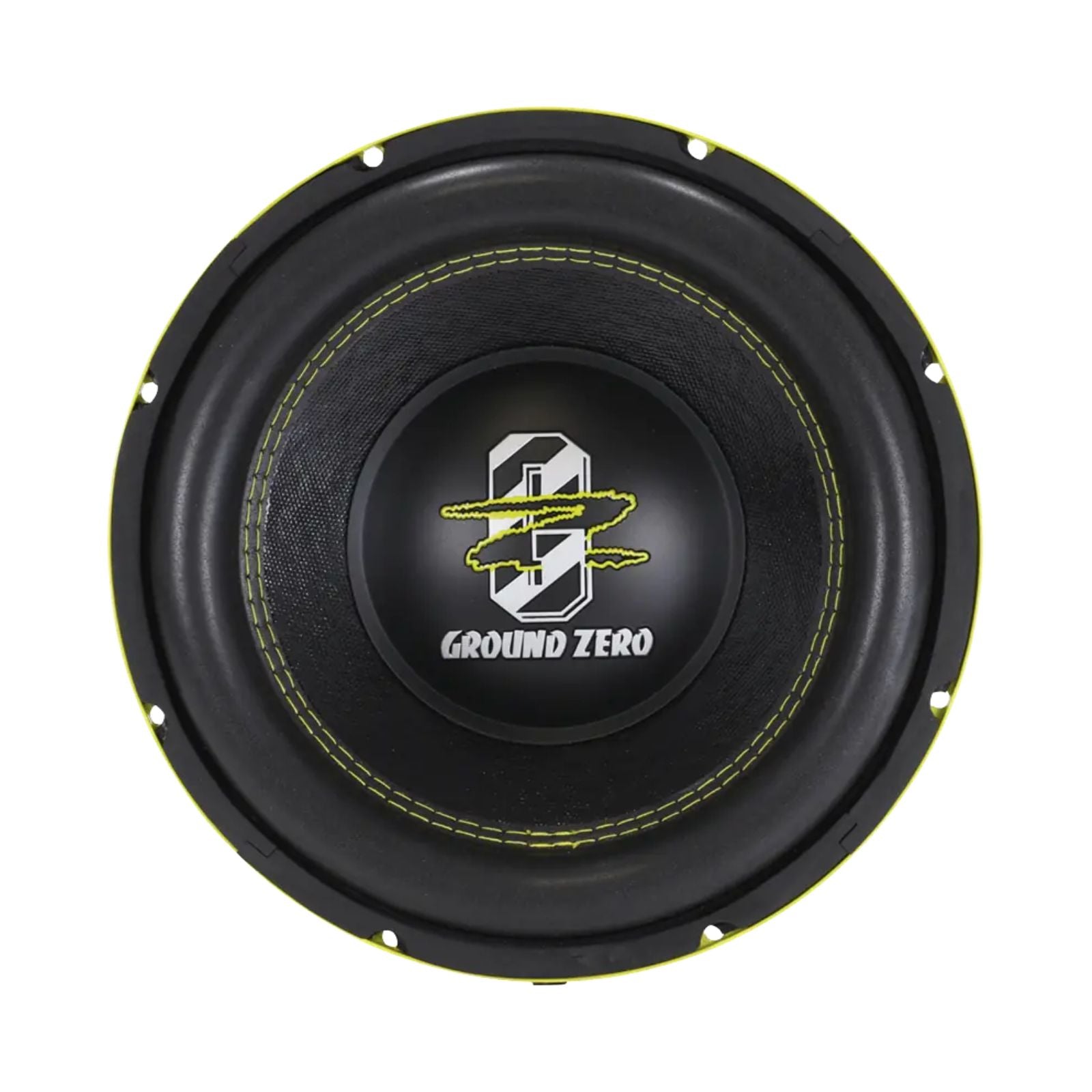

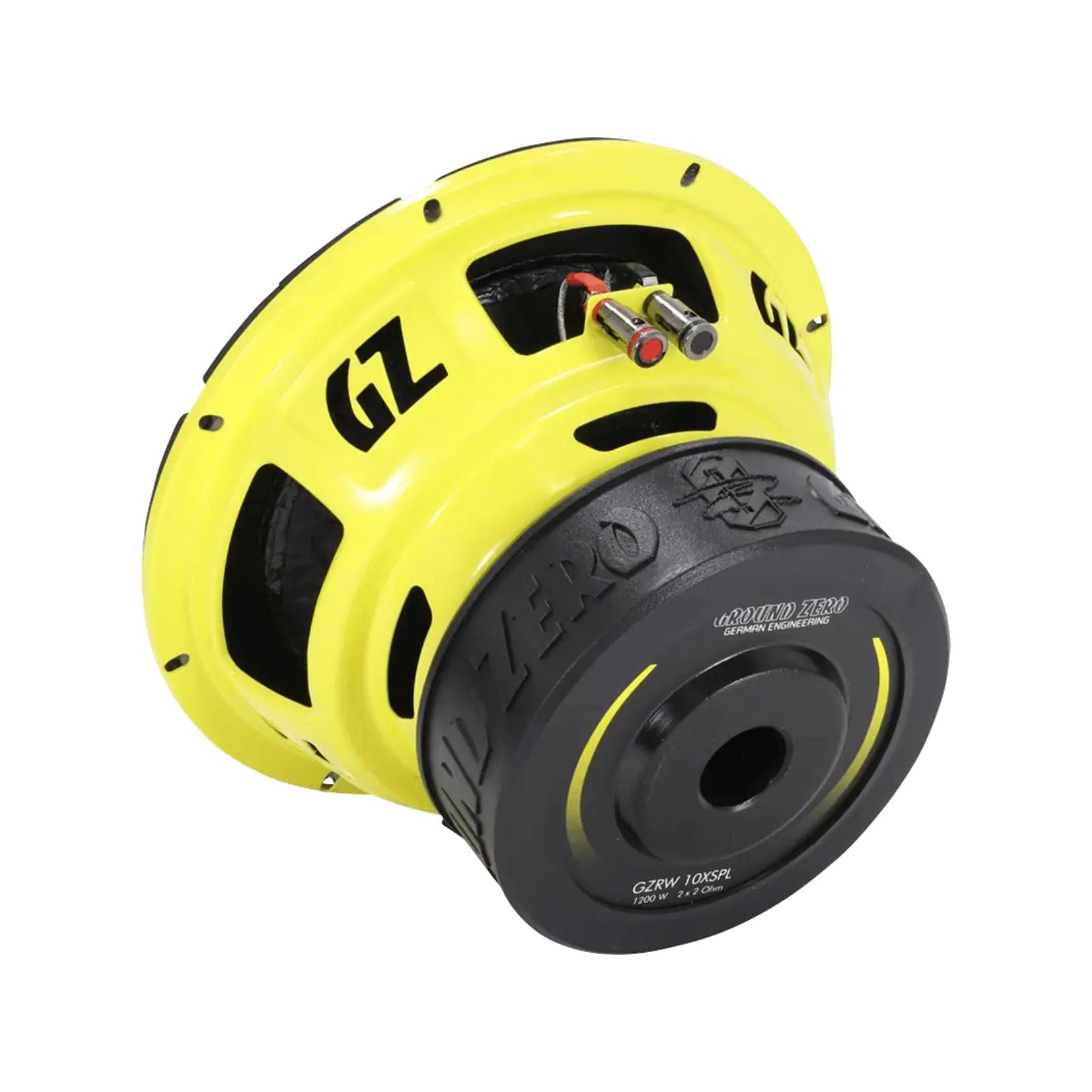

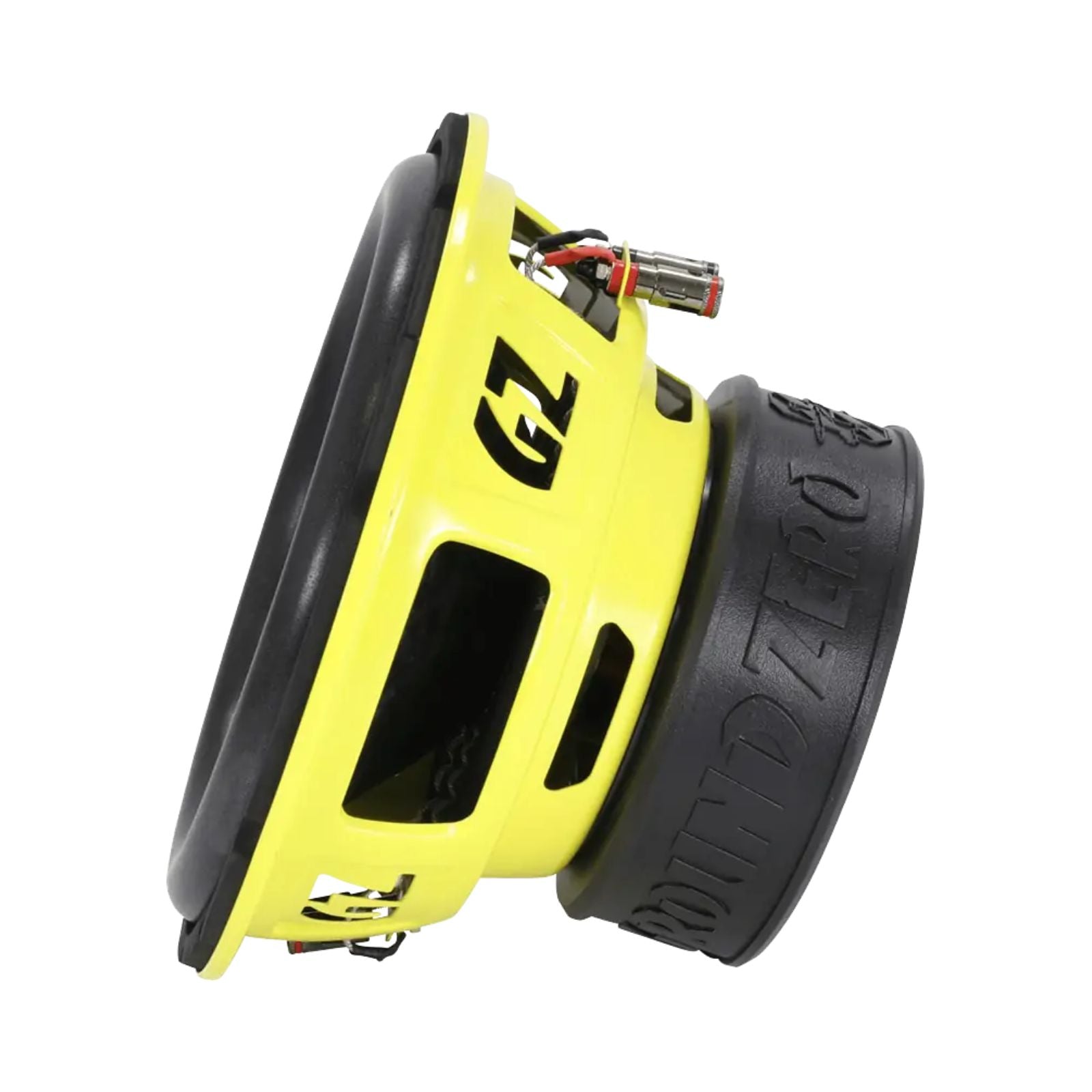

GZRW 10XSPL
25 cm / 10″ high quality SPL subwoofer
10″ high quality SPL subwoofer with reinforced paper cone
Features
- 10″ high quality SPL subwoofer
- Klippel® optimized
- Reinforced paper cone
- Long stroke compound surround
- Solid aluminum cast basket
- 63 mm / 2.5″ copper voice coil
- 2-layer Polycot spider
- IMPP dust cap with 3D structure logo
Specification
| Model | High-Quality SPL Subwoofer |
|---|---|
| Diameter | 25 cm / 10″ |
| Power handling | (RMS/SPL) 800 / 1200 Watts |
| Impedance | 2x2 Ohms |
| Efficiency | 82 dB |
| Power recommendation | 600 – 1200 Watts |
| Voice coil | 63 mm / 2.5″ copper |
| Cone | Reinforced paper |
| Max. Excursion (Xmax) | 30 mm |
| Mounting depth | 150 mm |
| Resonance frequency (Fs) | 44.3 Hz |
| Damping ratio (Qts) | 0.749 |
| Equiv. air volume (Vas) | 9.0 L |
What's Included
- GZRW 10XSPL
