ESB HR 11 SW Harmony Series 11 Inch Car Spare Wheel Active Subwoofer 200w RMS
Couldn't Load Pickup availability
HR 11 SW

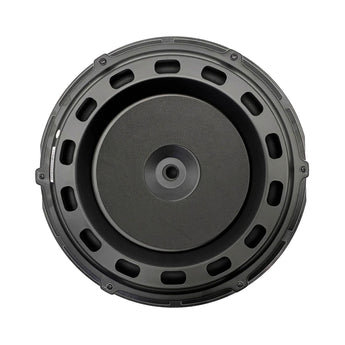

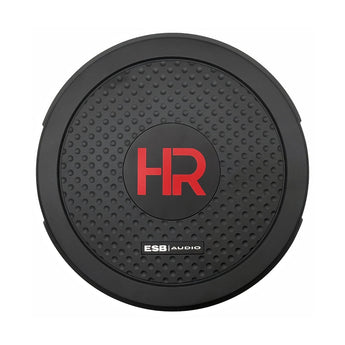

11"/260 mm Active Spare Tyre Subwoofer
The HR 11 SW is an active subwoofer that fits inside the rim of the spare tyre! Its die-cast aluminum case makes it sturdy and long-lasting. Easy to install, the HR 11 SW provides a powerful and dynamic sound thanks to a dual voice coil speaker and a 200 Watt Class D digital amplifier. With the included remote control, the user can adjust the volume level, changes the phase (non-inverted or inverted), adjust the crossover frequency from 50 to 150Hz, and adjust the bass boost up to 12dB.
- Easy Spare Wheel Installation.
- Low Level and High-Level Inputs.
- Variable Gain Control, LP Filter, Bass Boost, Phase Control.
- Remote Control.
Specification
| Amplifier Class | D |
|---|---|
| Power | 400 W (Max), 200 W (RMS) |
| Frequency Response | 30 Hz ~ 160 Hz |
| Sensitivity | 92 dB 1W/1m |
| Dim. (mm) | 360 (L) x 360 (W) x 126 (H) |
What's Included
- ESB HR 11 SW
FAQs
Q: Do I need an amplifier for this subwoofer?
A: Yes, unless it is an active (powered) subwoofer with a built-in amplifier. Passive subwoofers need an external amplifier matched to the RMS power and impedance shown in the Specification tab.
Q: What size enclosure does this subwoofer need?
A: The recommended enclosure volume is listed in the Specification tab where the manufacturer provides it. As a rule, sealed enclosures give tighter, more accurate bass while ported enclosures deliver more output. Contact CEN if you would like a recommendation for your build.
Q: What does RMS power mean?
A: RMS is the continuous power a subwoofer can handle, and it is the number that matters when matching an amplifier. Peak or max figures describe short bursts only. Match your amplifier output to the RMS rating in the Specification tab.
Q: Sealed or ported enclosure - which should I choose?
A: Sealed boxes are compact and produce tight, controlled bass suited to sound quality builds. Ported boxes are larger and produce more output at low frequencies, suited to those who want maximum impact. Either works well when built to the recommended volume.
Q: Can CEN build or supply an enclosure and fit everything?
A: Yes. CEN supplies enclosures and offers professional installation from our Nottingham premises, including amplifier wiring. Contact us to discuss your build.
