JL Audio C2-075CT C2 Series 19mm Car Component Tweeters Crossovers 60w RMS Pair
C2-075ct
0.75-inch (19 mm) Component Tweeters, Pair

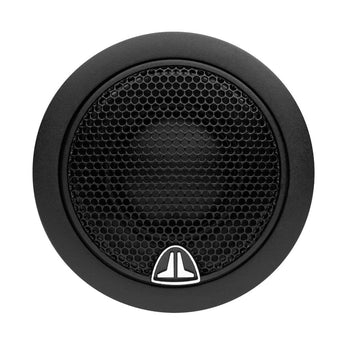

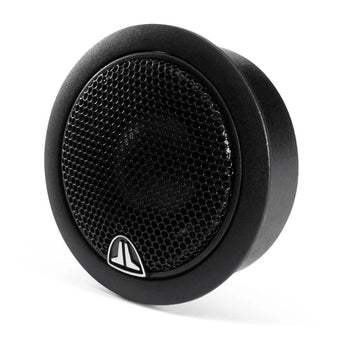

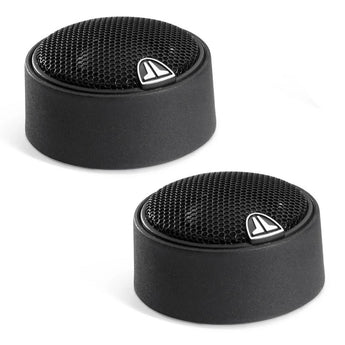

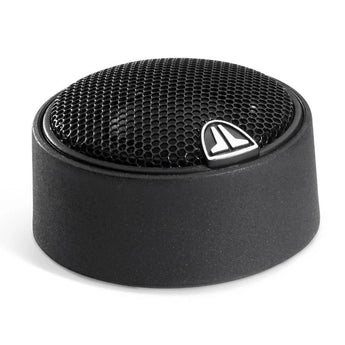

C2-075ct 0.75-inch (19 mm) Silk Dome Tweeters
The silk dome tweeter is prized by audiophiles for delivering realistic, non-fatiguing, high-frequency performance.
The C2 component tweeters are built with 0.75-inch silk dome diaphragms that deliver powerful, extended response, on and off axis. Flush-mounting and surface-mounting fixtures are included to fit a wide variety of installation needs.
Inline 12 dB / octave high-pass filters with tweeter protectors are included with this kit. The C2-075ct is designed to operate above 4 kHz with a minimum high-pass slope of 12 dB / octave.
Sonic character: Clean and Powerful
Sold as a pair.
Specification
Part Number: C2-075T
- Continuous Power Handling (RMS) 60 W
- Peak Music Power* 150 W
- Recommended Amplifier Power (RMS) 25 - 100 W / Ch.
- System Efficiency 91.0 dB @ 1 W / 1 m
- System Nominal Impedance 4 Ω
- System Frequency Response 4 kHz - 22 KHz ± 3 dB
- Flush Mount Fixture Diameter (A1) 1.87 in / 48 mm
- Surface Mount Fixture Diameter (A2) 1.69 in / 43 mm
- Flush Mount Mounting Hole Diameter (B) 1.625 in / 41 mm
- Flush Mount Mounting Depth (C) 0.76 in / 19 mm
- Flush Mount Tweeter Frontal Protrusion (D1) 0.29 in / 7 mm
- Surface Mount Tweeter Frontal Protrusion (D2) 0.92 in / 23 mm
*With supplied crossover
What's Included
2 Year Warranty
- 2 Tweeters (with 6" wires attached)
- 2 Crossovers
- 2 Flush mount housings (tweeters installed)
- 2 Surface mount housings
- 2 Metal spring clips (for flush mounting)
- Four 5/8" Flat head screws
- Two 25mm Stud bolts
- Two 10mm Stud bolts
- 2 M5 Nuts
- Owner's manual
