Hertz S8 DSP 8 Channel Compact HI Res App Controlled Digital Sound Processor

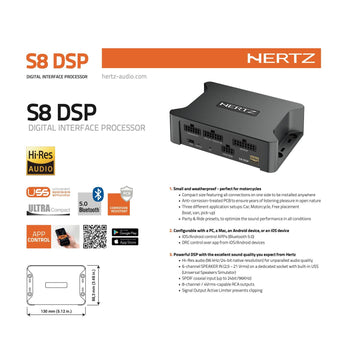

Hertz S8 DSP
The ultra-compact S8 DSP is the perfect solution for integrating any OEM source into your audio upgrade project for cars, motorcycles and boats!
The ultra-compact S8 DSP is the perfect solution for integrating any OEM source into your audio upgrade project for cars, motorcycles, and boats! S8 DSP is a distilled essence of technology at the service of the highest audio quality in a corrosion-free case cast in metal and composite materials.
- Small and weatherproof – perfect for motorcycles
- Compact size featuring all connections on one side to be installed anywhere
- Anti-corrosion-treated PCB to ensure years of listening pleasure in open nature
- Three different application setups: Car, Motorcycle, Free placement (boat, van, pick-up)
- Party & Ride presets, to optimize the sound performance in all conditions
- Configurable with a PC, a Mac, an Android device, or an iOS device
- IOS/Android control APPs (Bluetooth 5.0)
- DRC control over app from iOS/Android devices
- Powerful DSP with the excellent sound quality you expect from Hertz
- Hi-Res audio (96 kHz/24-bit native resolution) for unparalleled audio quality
- 6-channel SPEAKER IN (2,5 – 21 Vrms) on a dedicated socket with a built-in USS
- (Universal Speakers Simulator)
- SPDIF coaxial input (up to 24bit/96KHz)
- 8-channel / 4Vrms-capable RCA outputs
- Signal Output Active Limiter prevents clipping
S8 DSP processes the audio signal with 96 kHz / 24-bit resolution and has obtained the Hi-Res certification from the JAS (Japan Audio Society), an acknowledgment that certifies the extreme level of audio performance achieved.
The powerful 32-bit DSP manages 6 high/low-level analog input channels, one digital coaxial input, and 8 output channels, offering maximum freedom of configuration to the specialist. The SPDIF coaxial input is ideal for digital connection with a Hi-Res player, a solution that allows for maximum listening quality. For each of the eight output channels we have a level control, the 15-pole parametric equalizer, time delays, and crossover filter available. The 7-band parametric equalizer of the input signal allows obtaining a flat response from OEM sources, which often have an exaggerated emphasis on the low frequency.
Hi-Res audio
Hi-Res audio (96 kHz/24-bit native resolution) for unparalled audio quality
Bluetooth 5.0
Upload a setup file via BT through the Bluetooth 5.0* APP when in “Configurator” or “DRC” mode.
*Music streaming not supported

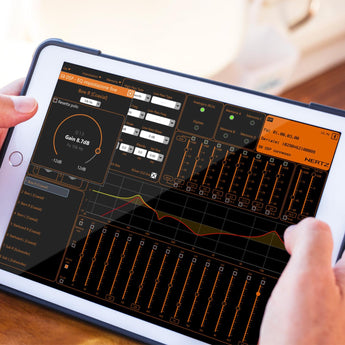

APP CONTROL
Configurable with a PC, a Mac, an Android device, or an iOS device
IOS/Android control APPs (Bluetooth 5.0)
DRC control over app from iOS/Android devices
USS
Thanks to the built-in USS technology (Universal Speakers Simulator), S8 DSP can also be correctly connected to head units with “speaker load detection” function that monitors the presence of a low-impedance load to enable the audio outputs.
ULTRA COMPACT
Compact size featuring all connections on one side to be installed anywhere.
Specification
Part Number: S8 DSP
- Nominal Power supply voltage / fuse: 7 ÷ 20 VDC / 1A
- Pulse operating voltage: 5 ÷ 24 VDC
- Idling current: 0.34 A
- OFF current (ART= OFF): <80 uA
- OFF current (ART= ON): <80 uA
- Remote IN 6 ÷ 20 VDC (10 mA)
- Remote OUT 4 ÷ 20 VDC (150 mA)
- ART - Automatic Remote Turn on/off from BTL speaker outputs (selectable): 1.5 ÷ 7 VDC
- Analog outputs (rca) 8 channels
- Max output level (rms) @ 0.05% THD 4V
- 95dBAAnalog outputs management The DSP controls each output channel: gain, crossover, EQ, delay, polarity
- Bandwidth 10Hz – 40KHz (+/-3db)
- Signal to noise ratio (A weighted) 105dBA (Analog Input) 112dBA (Digital Input)
- THD+N (@ 1Vrms out, @ 1Khz) <0.005%
- Crosstalk (channel separation) @ 1KHz >95dBA
- Analog low level Inputs 6 ch. (Differential input) (Molex microfit to RCAs)
- Analog high level Inputs 6 ch. (Differential input) (Molex microfit to tripped ends) + USS (Universal Speakers Simulator)
- Digital inputs Yes (Coaxial SPDIF; up to 24bit 96KHz) (Molex microfit to RCA)
- Input sensitivity (low level) 0.8V – 6V RMS
- Input sensitivity (high level) 2.5V – 21V RMS
- Analog inputs management Audio input routing matrix type
- Analog inputs eq 7 bands paragraphic for each input channel
- ART Automatic Remote Turn-On/Off with Speaker-In
- Sample rate 96KHz
- Bit depth 24
- Output equalizer 15 bands per channel w/ adjustable Q and Frequency
- Equalizer resolution 1/10th dB per step +12dB / -12dB
- Time alignment (distance) 0 ÷ 468.4 cm / 0 ÷ 184.4 inches
- Time alignment (time) 0 ÷ 13.5ms
- Time alignment (step) 0,08 ms; 2,8 cm / 1.1 inch
- Time alignment (fine set) 0,02 ms; 0,7 cm / 0.27 inch
- Crossovers AP/HP/LP/BP all channels
- Crossover type Butterworth, Linkwitz-Riley, Bessel (All Channels)
- Crossover slope From 6dB/oct. until 30dB/oct. (6dB step)
- Crossover steps 120 steps 20Hz-20KHz
- Mute function Each channel individually, or all channels.
- Presets 4 presets
- Presets selection 2 specific wires to control the 4 presets selection by extarnal switches.
- Input selection by wire One specific wire to select the desired input between Analog or Digital.
- Audio signal compressor on output stage Yes (enable/disable)
- DSP chipset Analog Device: ADAU1451
- DSP management by bt app (iOS/ Android) 1. CONFIGURATOR mode Mainly it’ll allow the DSP tuning. You can manage every DSP functon through your smartphone/ tablet/PC/MAC. 2. DRC mode The BT device becomes a remote control by using the dedicated app with a simple graphical user interface. Manage volume level, SUB level, select different setup files, upload a new setup file.
- Setup file sharing via bt Upload a setup file via BT through the BT APP when in “Configurator” or “DRC” mode.
- DSP management by pc / mac / ios / android Microsoft Windows (32/64 bit): Windows 10 (USB and BT BLE) Windows 11 (USB and BT BLE) Mac Os: 10.13 Hight Sierra or later (USB and BT BLE)

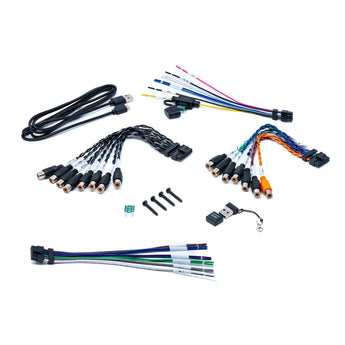

What's Included
2 Year Warranty
- S8 DSP - Signal Interface Processor
- Multipolar cable, Pre-IN/Digital-IN
- Multipolar cable, Speaker IN
- Multipolar cable PWR/REM
- Multipolar cable, Output
- USB cable 1.8 m
- Fuse 1 A
- Self-tapping, cross-head fixing screws (x4)
- USB Memory Dongle Setup
