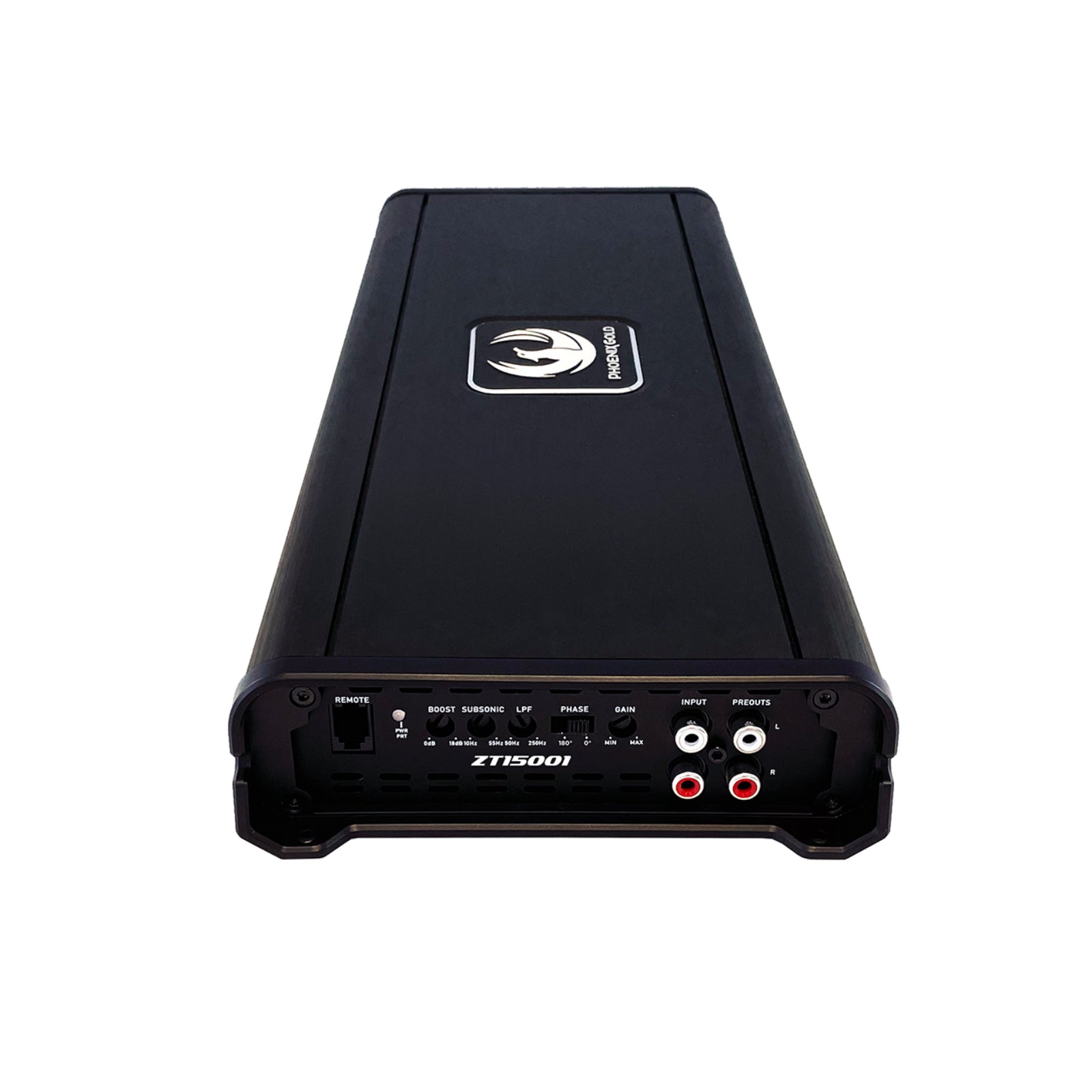

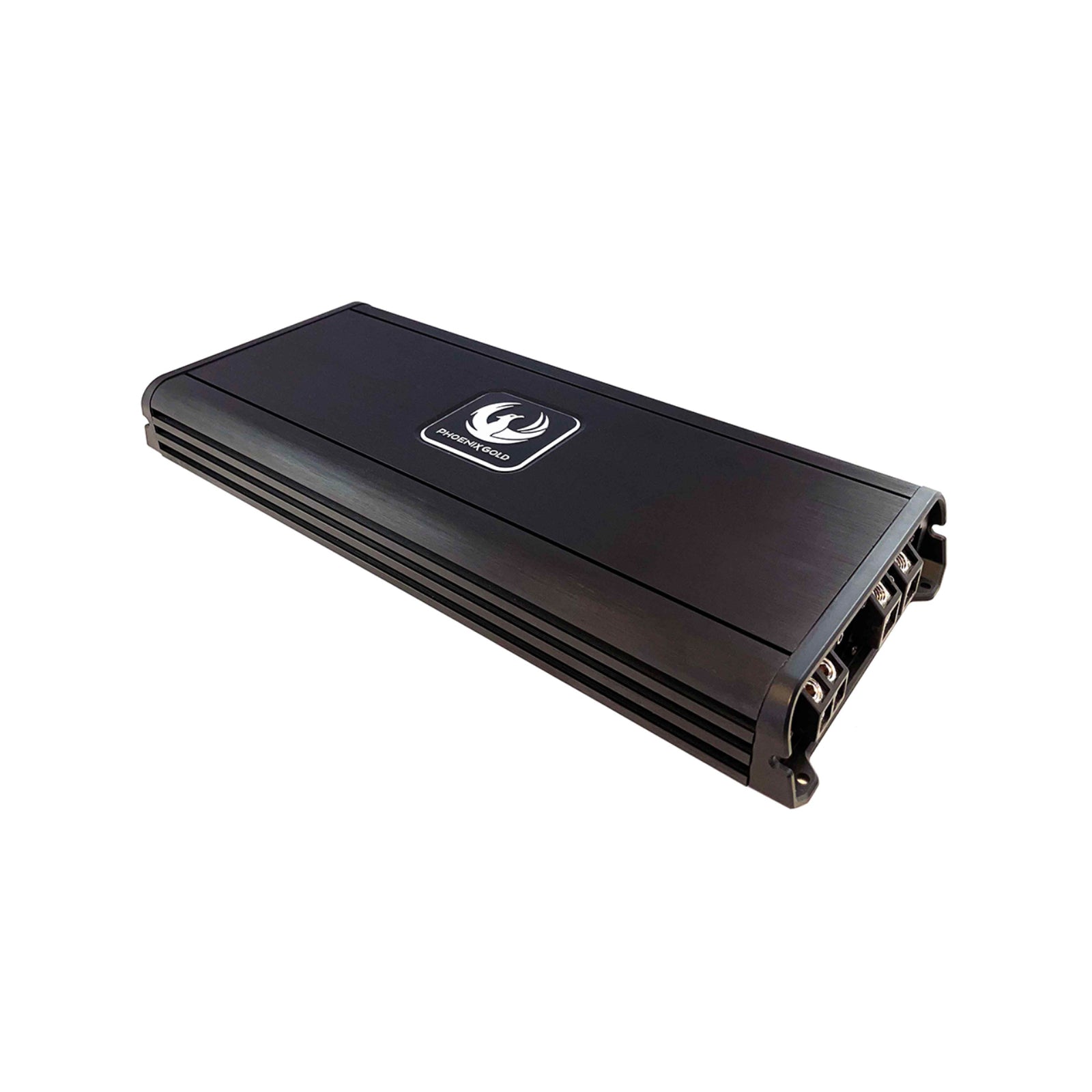

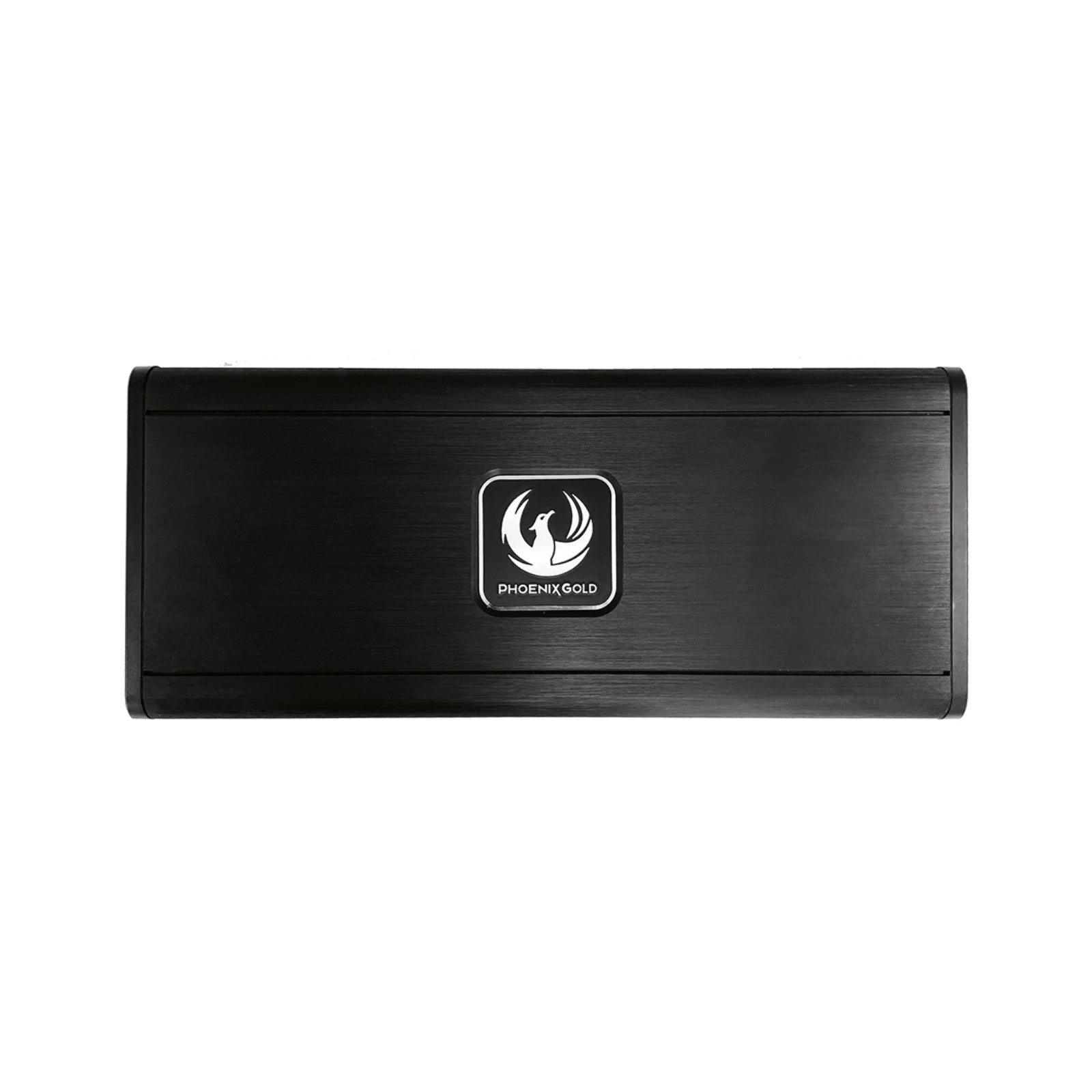

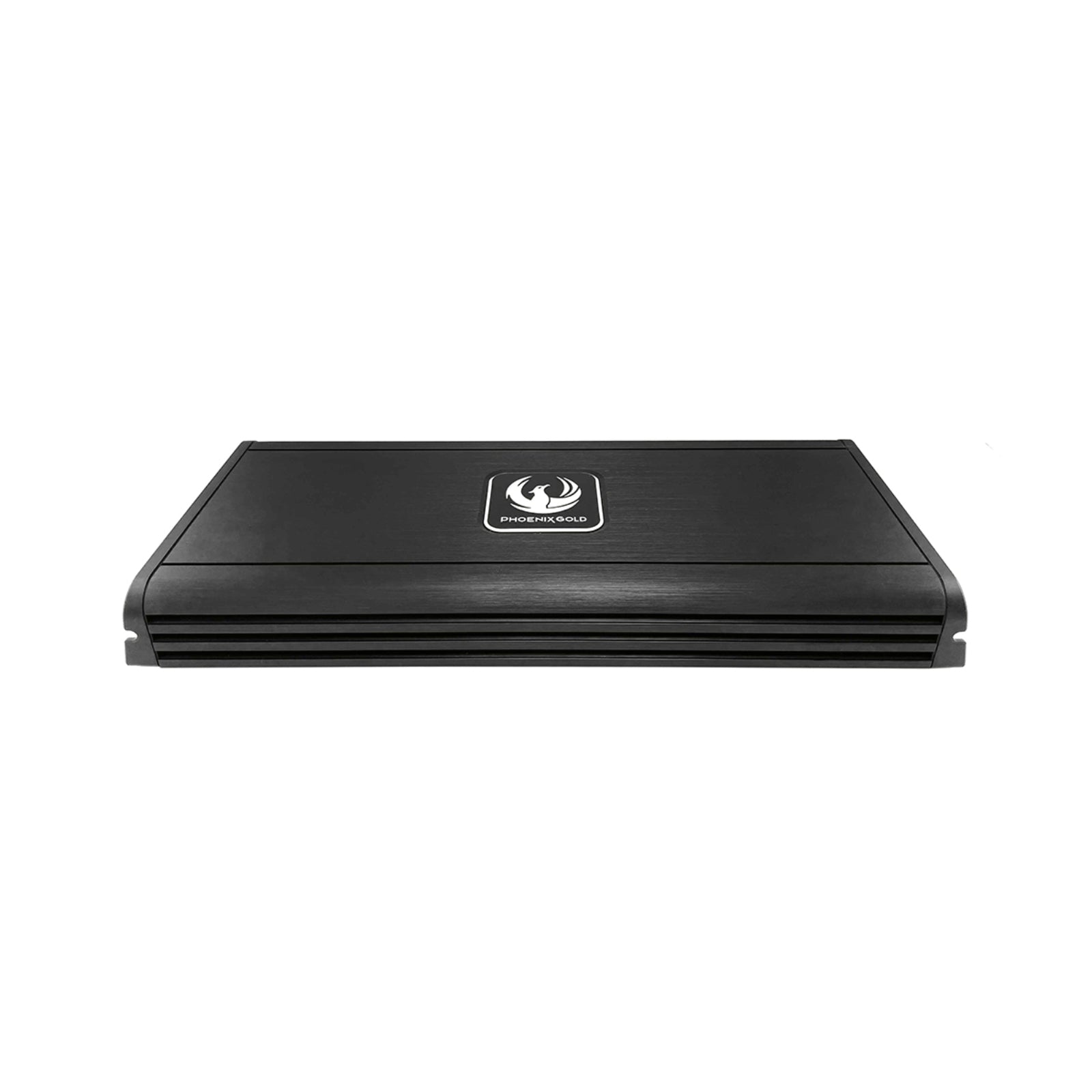

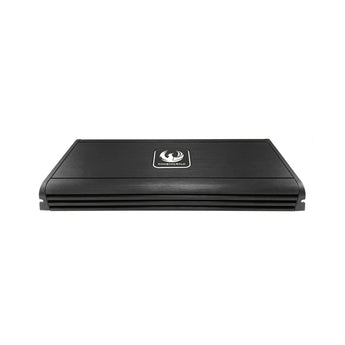

Phoenix Gold ZT Series ZT15001 Monoblock 24V Class-D Amplifier
Couldn't Load Pickup availability
ZT15001 Monoblock 24V Class-D Amplifier
The ZT15001, a 1500W monoblock 24V Class-D Amplifier engineered to redefine compact yet powerful sound delivery. This amplifier stands out with its sleek and compact design, perfect for installations where space is at a premium.
Elevate your audio experience to new heights with its cutting-edge features and high-grade components, ensuring unparalleled performance and reliability in any audio setup.
The ZT15001 doesn’t compromise on power. With a robust RMS power rating of 1500W x 1 @ 1Ohm, 1100W x 1 @ 2Ohm, and 600W x 1 @ 4Ohm, this amplifier delivers a dynamic audio output, allowing you to experience music with depth and clarity.
The ZT15001 amplifier offers control over your sound system. Featuring high and low pass crossover filters at 24dB per octave and a versatile crossover range of 50Hz to 250Hz, it enables precise frequency tailoring to suit your audio preferences.
The subsonic crossover filter further enhances the audio quality by eliminating frequencies below 10Hz to 55Hz, ensuring cleaner, distortion-free bass reproduction.
The ZT15001 offers seamless integration into your setup with low to high-level input range from 0.2V to 10V, providing versatile connectivity options. Its phase control feature (0-180) further refines audio precision, ensuring optimal sound synchronization.
The included bass controller adds convenience, allowing remote adjustments for bass levels from your listening position.
Crafted with dimensions of 383 x 160 x 48mm, this amplifier’s compact footprint does not compromise on performance. Its high-grade connection terminals guarantee clean power delivery to your audio components, promising a crisp and powerful audio output in even the most space-restricted installations.
Specification
| Frequency Response | 20Hz 400Hz |
|---|---|
| Signal to Noise Ratio | >96dB |
| Crossover Range | 50Hz 250Hz |
| Subsonic Crossover Filter | 10Hz 55Hz |
| Bass Boost | @ 45Hz 0 to +18db |
| Phase Control | 0-180 |
| Low-High Level Input Range | 0.2V to 10V |
| Min Load Impedance | 1Ohm |
| Dimensions | (LxWxH) 383 x 160 x 48mm |
More specs
| |
What's Included
- ZT15001
- Bass Controller
FAQs
Q: How do I choose the right amplifier for my speakers or subwoofer?
A: Match the amplifier's RMS output per channel to the RMS handling of your speakers or subwoofer at the same impedance. The Specification tab lists the power figures. If in doubt, contact CEN with your setup and we will recommend a match.
Q: What wiring do I need to install this amplifier?
A: You will need an amplifier wiring kit sized to the amplifier's power draw, typically including power and earth cable, a fuse, RCA leads and a remote wire. CEN stocks complete wiring kits, and the amplifier's fuse rating is the guide to the cable gauge required.
Q: What class of amplifier is this and does it matter?
A: Class D amplifiers are compact and efficient, ideal for subwoofers and modern installs. Class AB designs are traditionally favoured for outright sound quality on mid and high frequencies. The class is listed in the Specification tab where provided.
Q: Will an amplifier work with my factory head unit?
A: Yes, in most cases. If your head unit has no RCA outputs you will need a line output converter to feed the amplifier a clean signal. CEN stocks line output converters and can advise the right one for your vehicle.
Q: Can CEN install this amplifier?
A: Yes. CEN offers professional amplifier installation from our Nottingham premises, including secure mounting, wiring and setup. Contact us to book.
