Phoenix Gold ZLOC4.4 ZD Series 4 Channel Converter Including Bass Cube
Couldn't Load Pickup availability

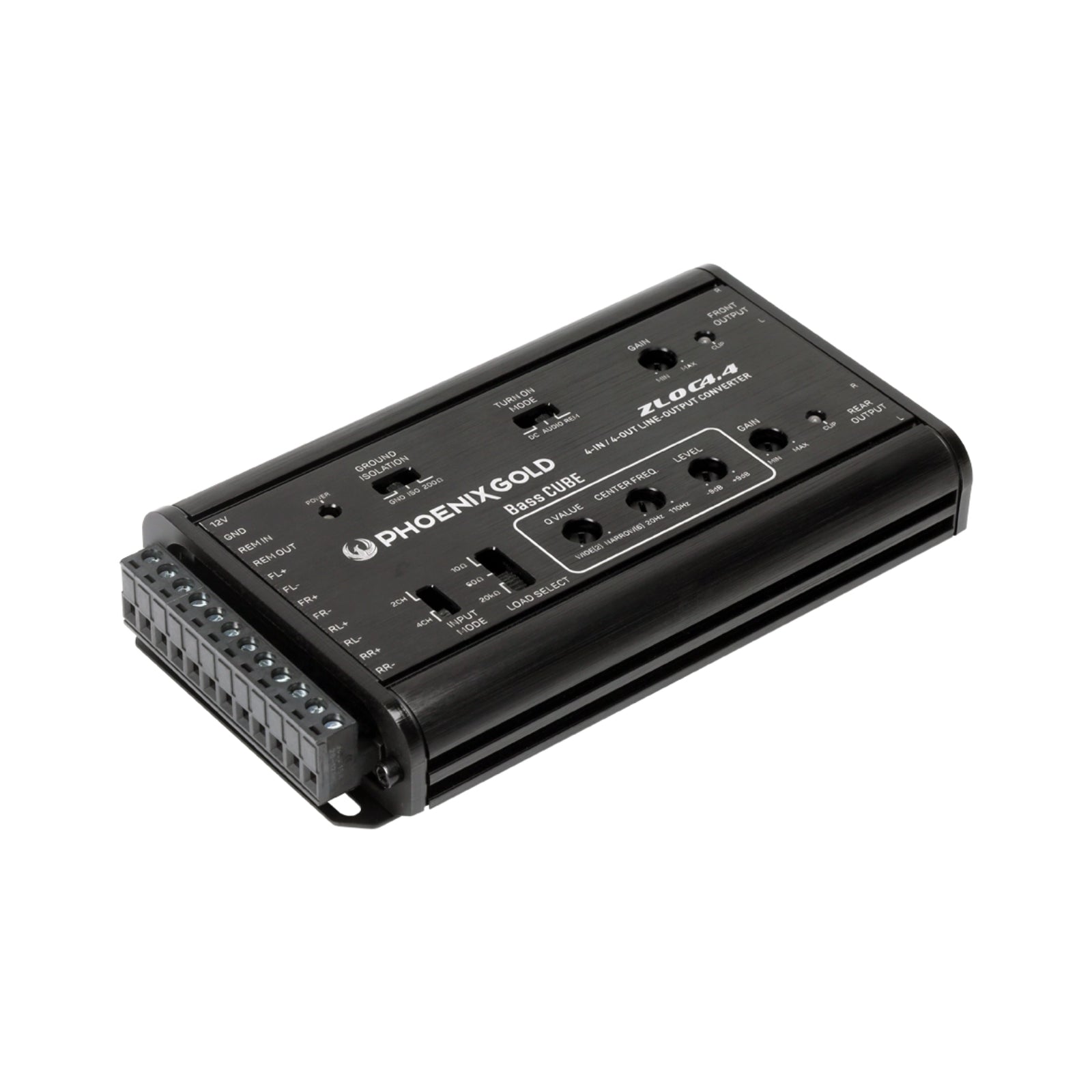

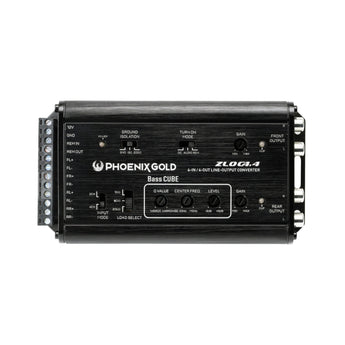

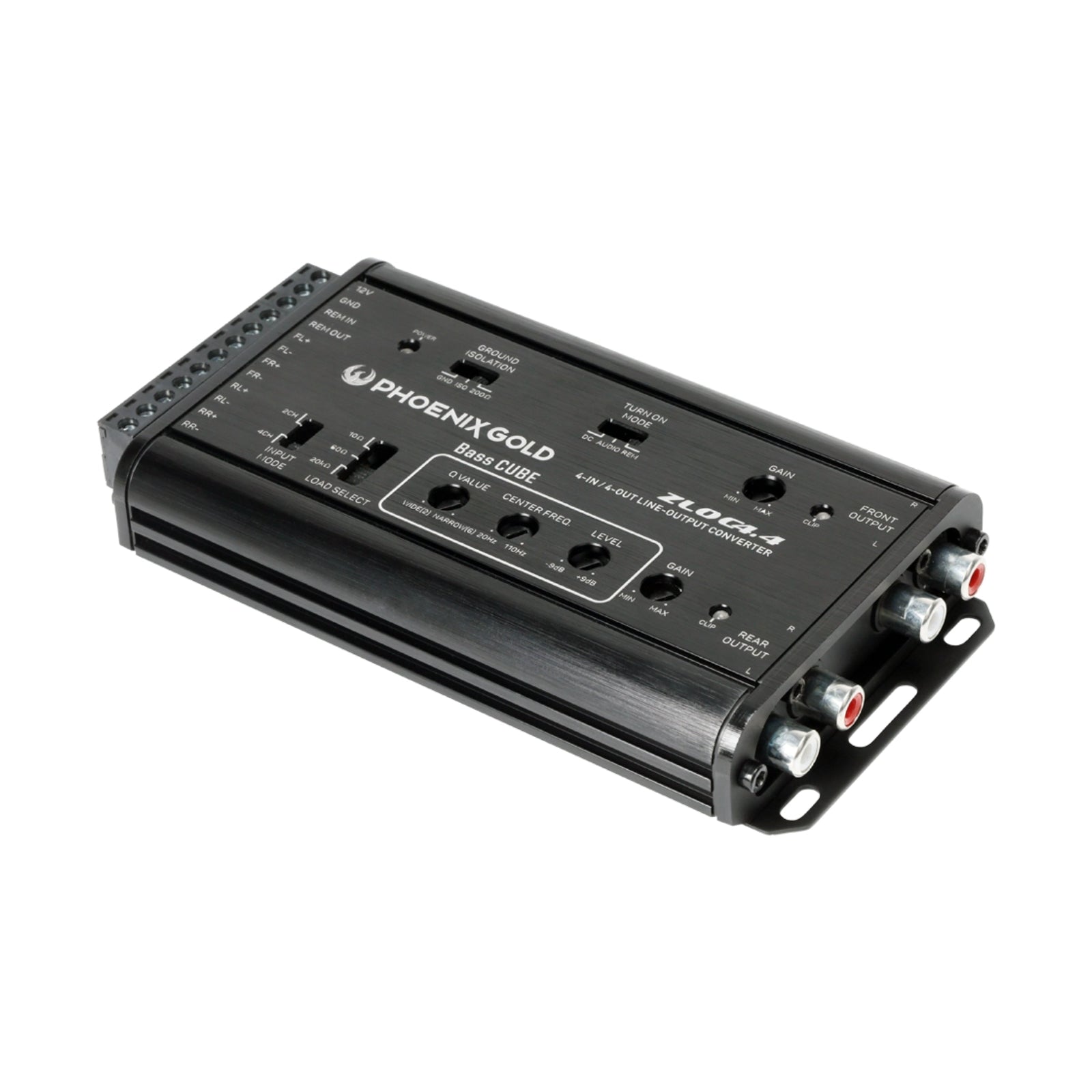

ZLOC4.4
The 4 Channel ZLOC4.4 Converter is the essential solution for enhancing your vehicles audio system. While many vehicles now come with integrated amplifiers, the original OEM system often falls short in terms of performance.
The 4 Channel ZLOC4.4 Converter emerges as a game-changing solution, bridging the gap between OEM systems and aftermarket audio components seamlessly. Its primary mission is to address the inherent constraints of factory-installed audio configurations. While vehicles nowadays boast built-in amplifiers, the original setup often falls short in delivering the desired sound.
The 4 Channel ZLOC4.4 Converter circumvents these limitations by bypassing OEM resistance whilst eradicating unwanted system noise, opening avenues for enhanced audio performance without compromising your vehicle’s factory settings.
At its core, the 4 Channel ZLOC4.4 Converter operates through two high-level inputs meticulously engineered to capture speaker signals originating from your OEM head unit or amplifier. These inputs serve as conduits, channeling the audio stream to a single low-level output. This transformative capability forms the cornerstone of the ZLOC4.4, allowing you to push the boundaries of your existing audio setup.
A standout feature of the 4 Channel ZLOC4.4 Converter is its built-in CLIP indicator, a testament to its user-centric design and commitment to audio perfection. This intuitive feature vigilantly monitors the input and output signals for any sign of distortion.
Beyond its core functionalities, the 4 Channel ZLOC4.4 Converter represents a new step in audio refinement, offering unparalleled control and precision in its design. By mitigating distortion and seamlessly integrating aftermarket components into your OEM setup, it not only enhances audio quality but also encapsulates an immersive auditory experience that transcends conventional boundaries.
Moreover, the 4 Channel ZLOC4.4 Converter frees you from restricted upgrades to your head unit, eliminating the constraints that previously hindered audio advancements in your vehicle. This solution allows you to elevate your driving experiences, embracing crystal-clear sound quality and immersive bass, courtesy of the 4 Channel ZLOC4.4 Converter’s pioneering engineering.
The 4 Channel ZLOC4.4 Converter offers a seamless, cost-effective solution to elevate your audio system’s performance. Elevate your driving experience to new auditory heights, embracing our advanced OEM integration solution. Experience the next level of audio excellenceupgrade your audio journey today with the sophistication and innovation embodied in the 4 Channel ZLOC4.4 Converter.
Beyond its core functionalities, the 4 Channel ZLOC4.4 Converter represents a new step in audio refinement, offering unparalleled control and precision in its design. By mitigating distortion and seamlessly integrating aftermarket components into your OEM setup, it not only enhances audio quality but also encapsulates an immersive auditory experience that transcends conventional boundaries.
Bass CUBE
Phoenix Gold Bass CUBE is built into the ZLOC4.4. This feature allows you to finely tune the bass level by choosing a centre frequency between 20Hz 110Hz to a level between -9dB to +9dB with a variable Q value.
Specification
| Speaker Input | 4CH |
|---|---|
| Outputs | 4CH |
| REM In | Yes |
| REM Out | Yes |
| Load Select | 10-Ohm / 60-Ohm / 20K-Ohm |
| Ground Isolation | GND/ISO/200-Ohm |
| Gain | Yes,X2 |
| Clipping | Yes,X2 |
| Center Frequency | 20Hz-110Hz |
| Bass Level | -9 ~ +9dB |
| Turn On Mode | REM/DC/AUDIO |
| Input Mode | 2CH/4CH |
| Remote | None |
| Dimensions | (LxWxH)mm 150.6x82x24.8mm |
| Chassis Body | Aluminum |
| Input Sensitivity | 0.5 to 32V |
| Operating Voltage | 9 to 32V |
| Output Voltage | Max. 7.5V @ 14.4V |
| Signal to Noise | >100dB @6.4V output |
| Input Impedance | 10-Ohm / 60-Ohm / 20K-Ohm |
| Frequency Response | 10-30kHz |
| THD+N | <0.01% |
| Output Impedance | < 120-ohm |
| Max Current Draw | 121 – 150 mA |
| Turn-On Trigger | DC 3 to 7V |
| Gain | -28 to 0dB |

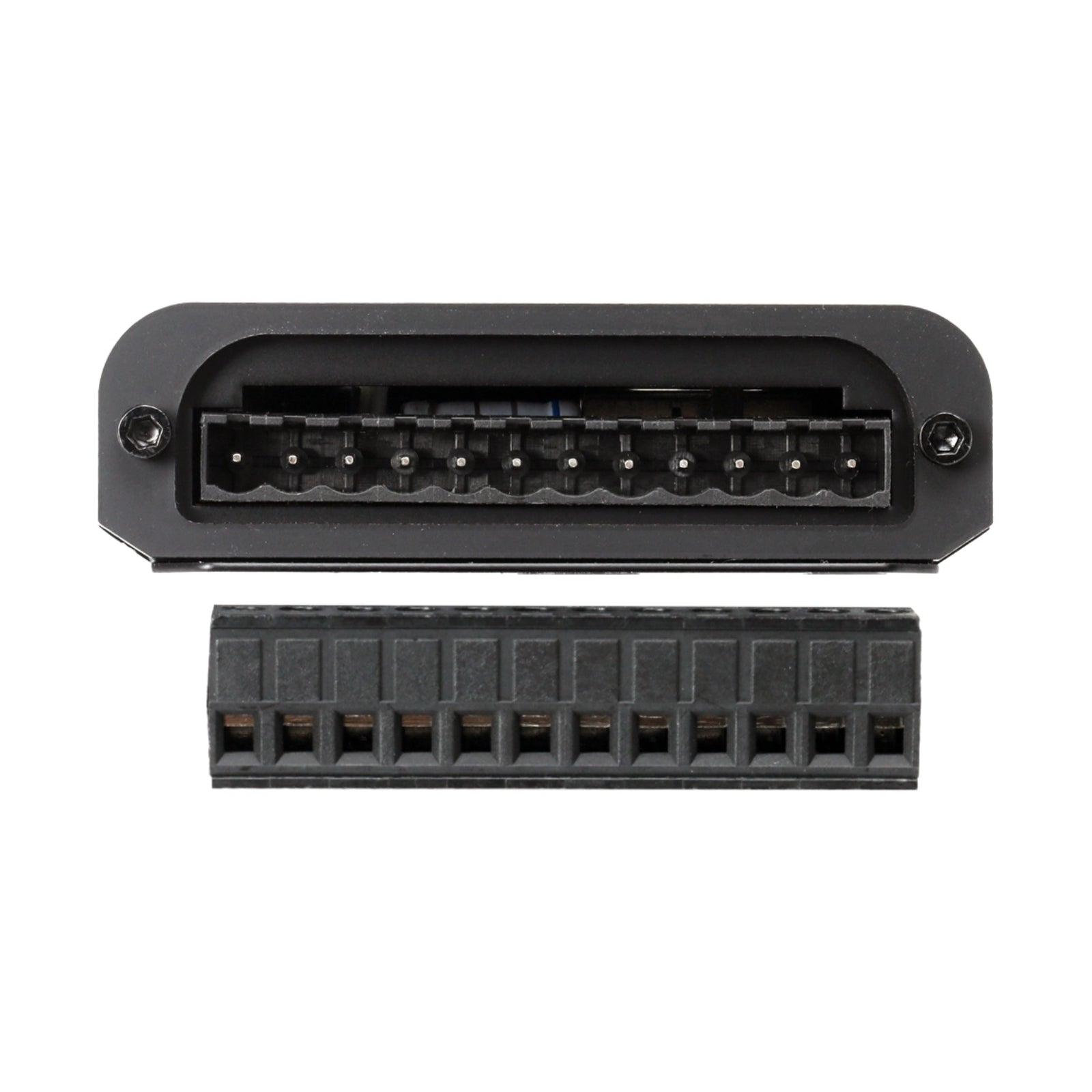

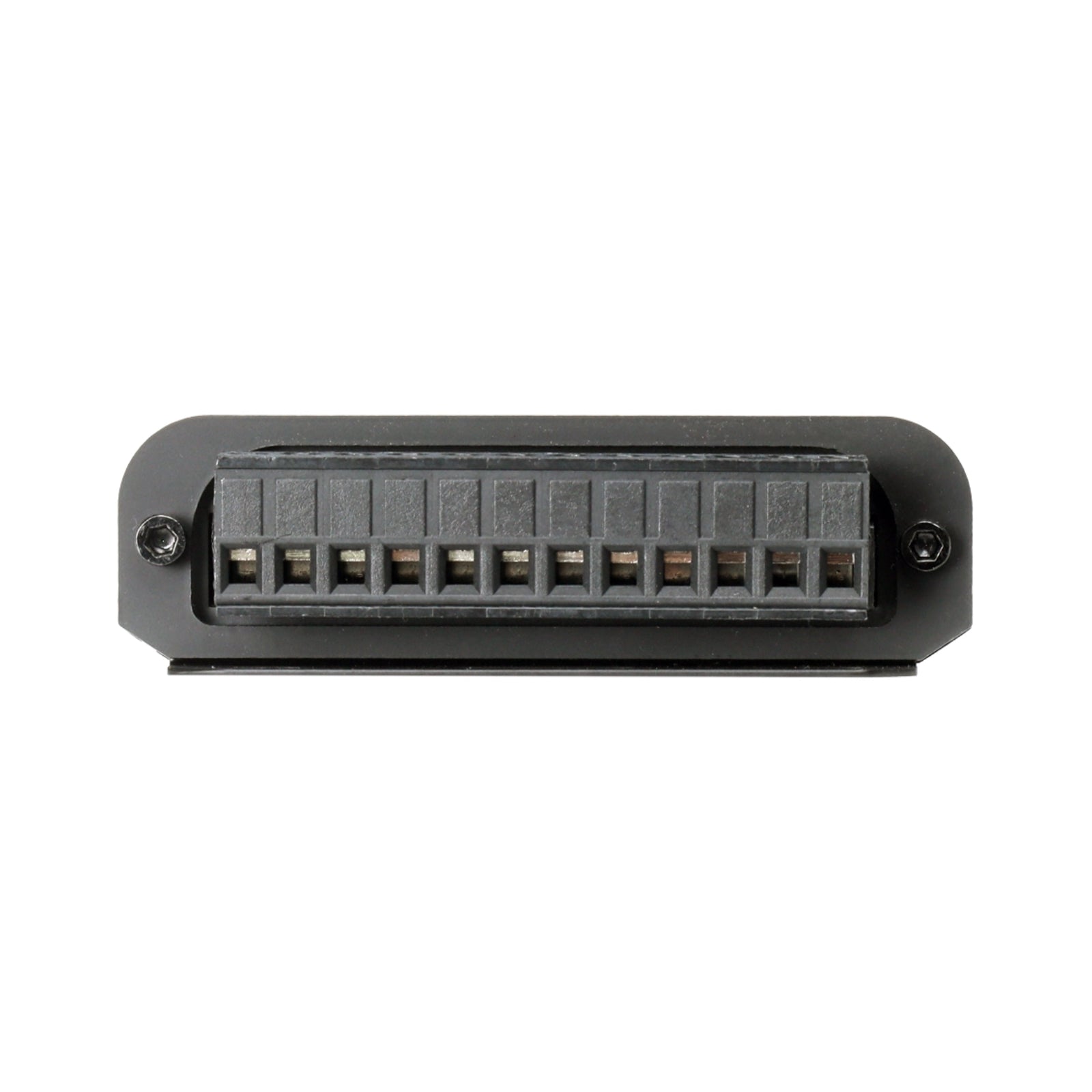

| Terminal Gauge | Quick Connect / 16# AWG |
More specs
| |
What's Included
- ZLOC4.4
FAQs
Q: How do I choose the right amplifier for my speakers or subwoofer?
A: Match the amplifier's RMS output per channel to the RMS handling of your speakers or subwoofer at the same impedance. The Specification tab lists the power figures. If in doubt, contact CEN with your setup and we will recommend a match.
Q: What wiring do I need to install this amplifier?
A: You will need an amplifier wiring kit sized to the amplifier's power draw, typically including power and earth cable, a fuse, RCA leads and a remote wire. CEN stocks complete wiring kits, and the amplifier's fuse rating is the guide to the cable gauge required.
Q: What class of amplifier is this and does it matter?
A: Class D amplifiers are compact and efficient, ideal for subwoofers and modern installs. Class AB designs are traditionally favoured for outright sound quality on mid and high frequencies. The class is listed in the Specification tab where provided.
Q: Will an amplifier work with my factory head unit?
A: Yes, in most cases. If your head unit has no RCA outputs you will need a line output converter to feed the amplifier a clean signal. CEN stocks line output converters and can advise the right one for your vehicle.
Q: Can CEN install this amplifier?
A: Yes. CEN offers professional amplifier installation from our Nottingham premises, including secure mounting, wiring and setup. Contact us to book.
