Alpine SPC-R100-DU Full Range 12cm Dash Pod Speakers for Fiat Ducato 3 45w RMS
Couldn't Load Pickup availability
Alpine Adventure Audio – Your journey to a new sound experience
SPC-R100-DU The Companion Ensemble 12 cm Radial On-Dash Speakers for Fiat Ducato 3, Citroën Jumper 2 and Peugeot Boxer 2
Alpine Adventure Audio - Sound Experience
Alpine Adventure Audio sound systems are designed to deliver excellent sound quality and match the needs of motorhomes and camping vans.
These systems feature new, innovative audio-technologies to achieve the best sound quality in your motorhome. Alpine offers a sound system upgrade in 3 stages for the Fiat Ducato 3 and the same platform of vehicles.
The SPC-R100-DU 12 cm Radial On-dash Speakers create an excellent sound stage in the cabin and strongly improve the vehicle’s sound quality. Especially vocals appear much clearer when listening to news or podcasts. They are compatible with Fiat Ducato 3, Citroën Jumper 2 and Peugeot Boxer 2.
Overcoming Limitations
The SPC-R100-DU is designed to overcome the audio limitations of the Fiat Ducato cabin. In the original system, the tweeter and woofer are placed far away from each other, resulting in an unbalanced audio appearance. Vocals are reproduced by the door speakers, which are covered by the legs of the driver and passenger. The Ducato doors have no internal sound-proofing, resulting in strong vibration noise of the inner door panel. Audio playback is also heard easily by neighboring motorhomes on a camping site, due to the missing sound-proofing. The basic concept of the SPC-R100-DU is adding full-range speakers on top of the dashboard, to overcome the mentioned issues from the ground up.
On-Dash Radial Speakers

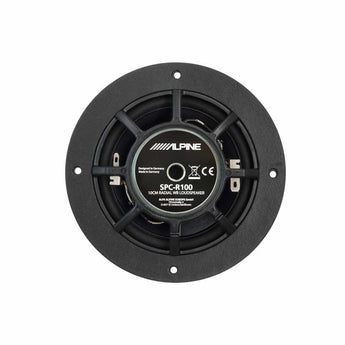

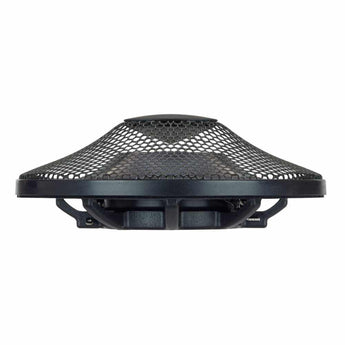

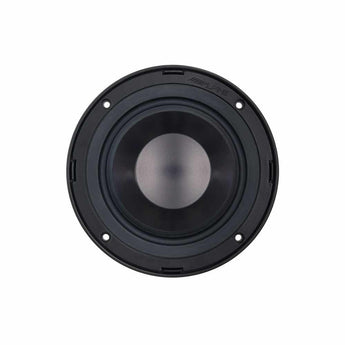

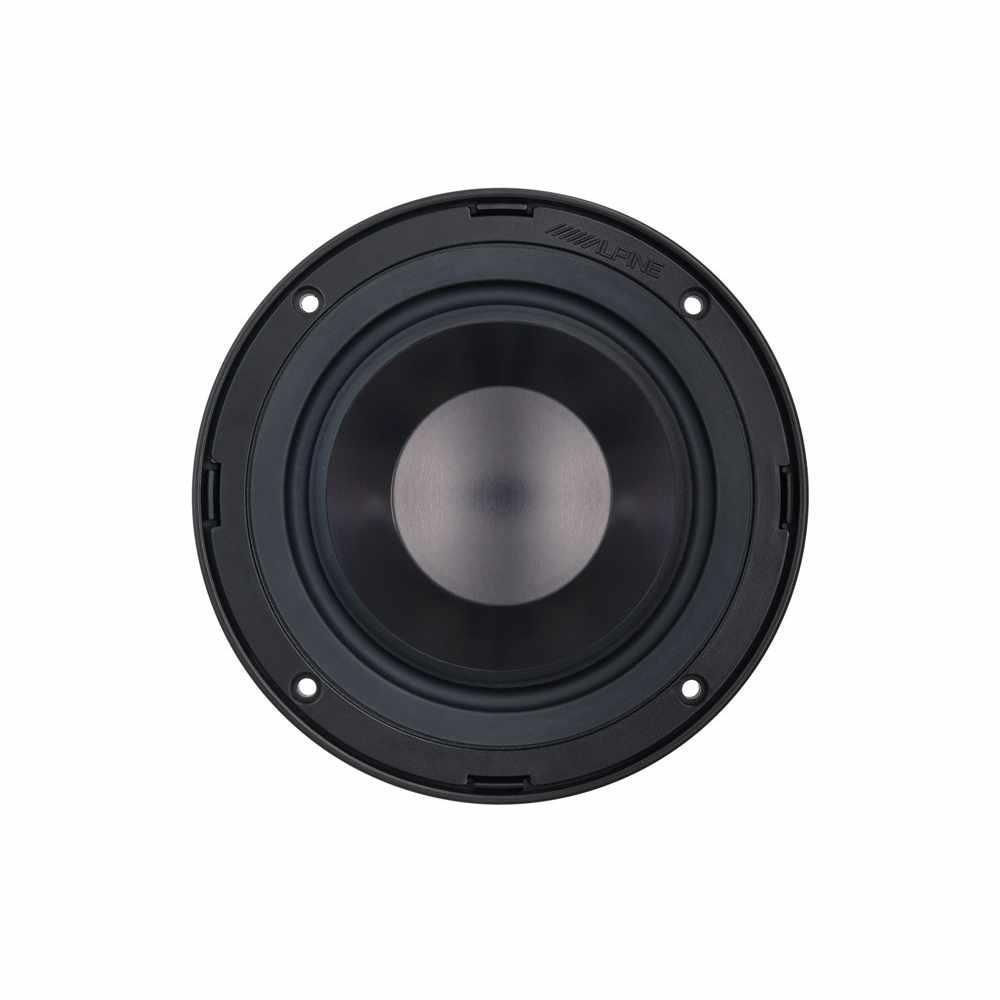

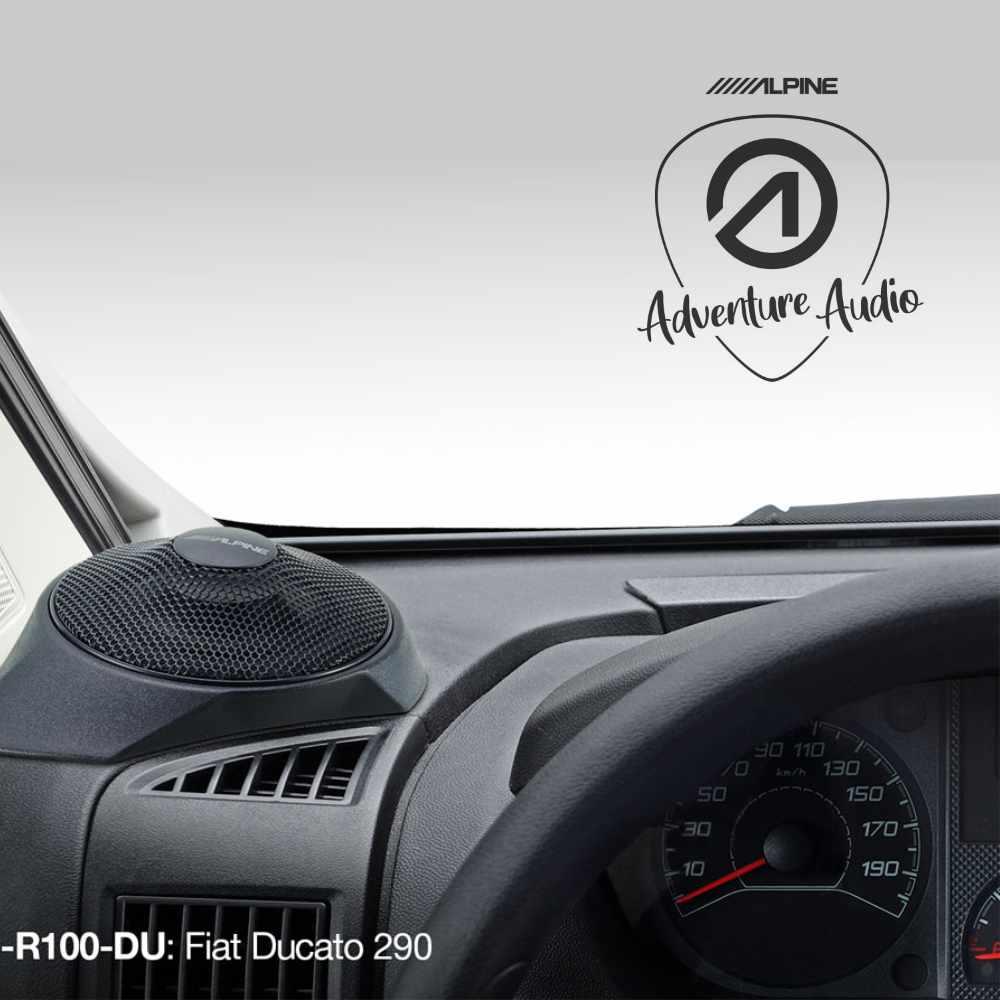

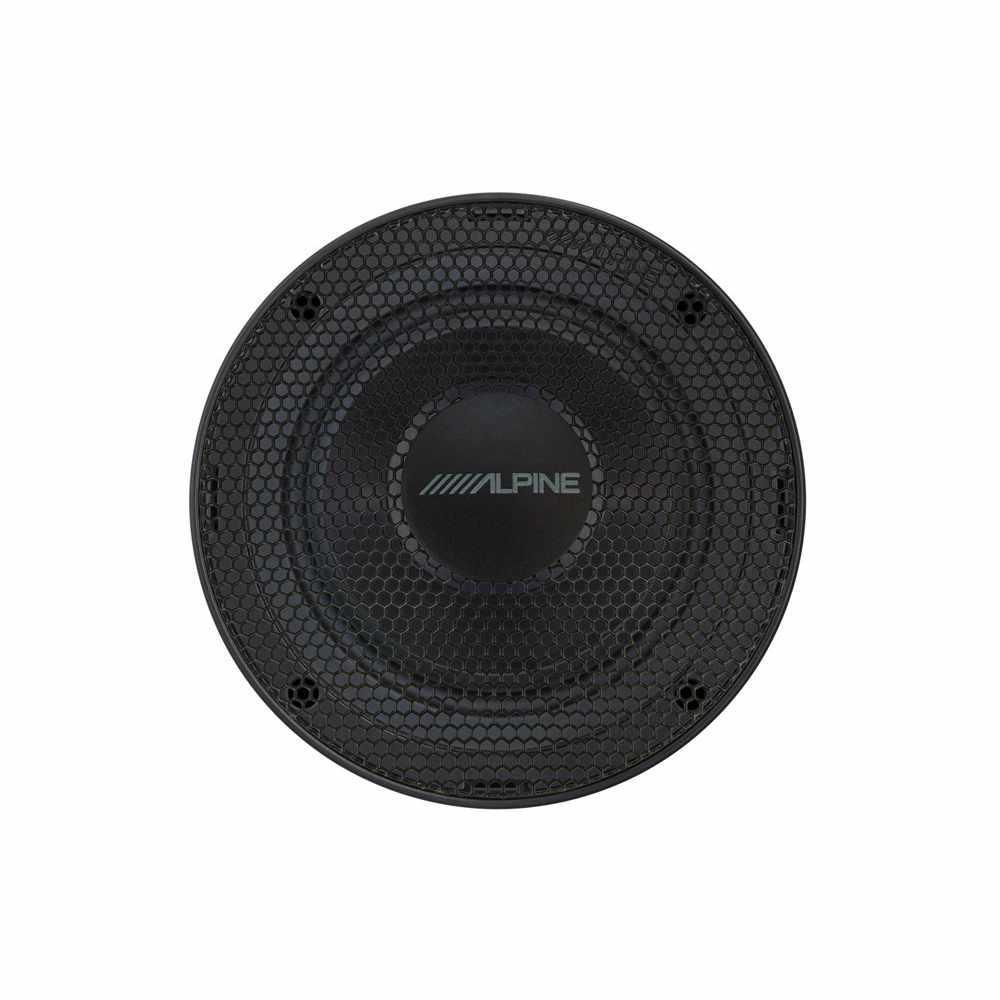

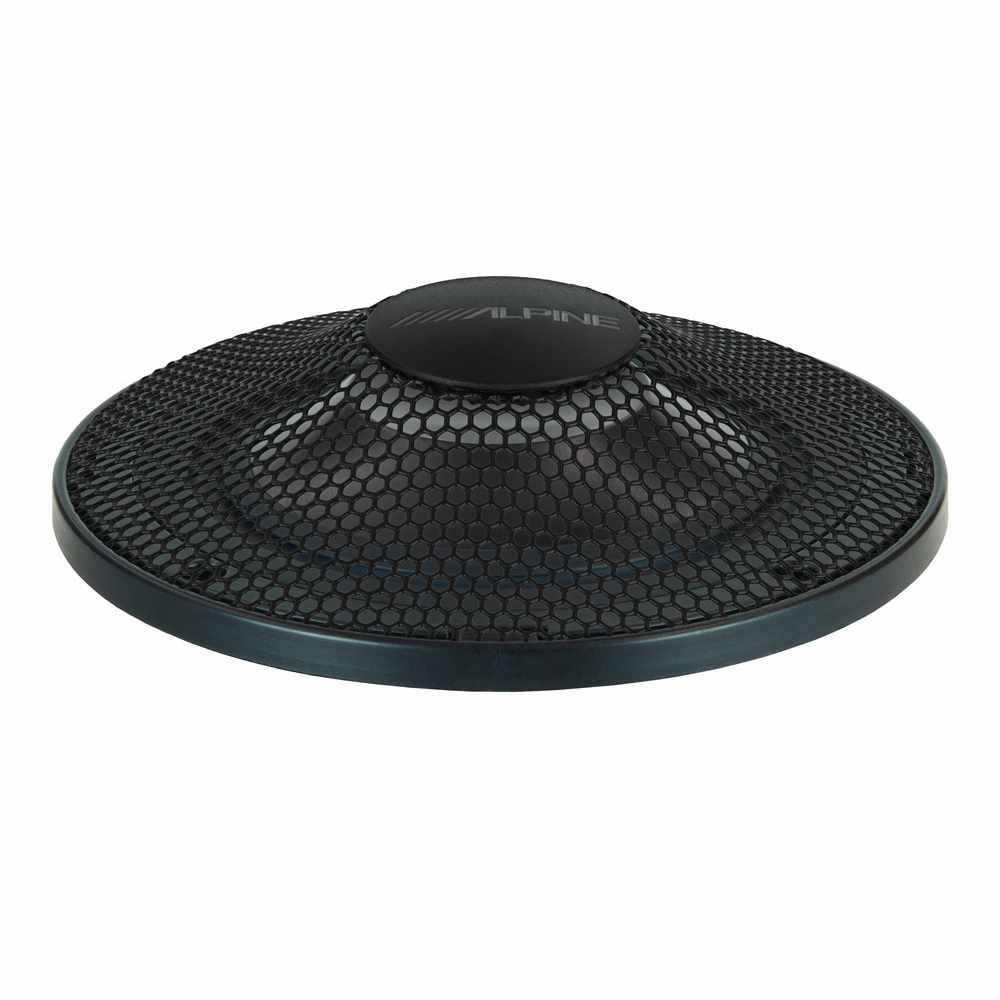

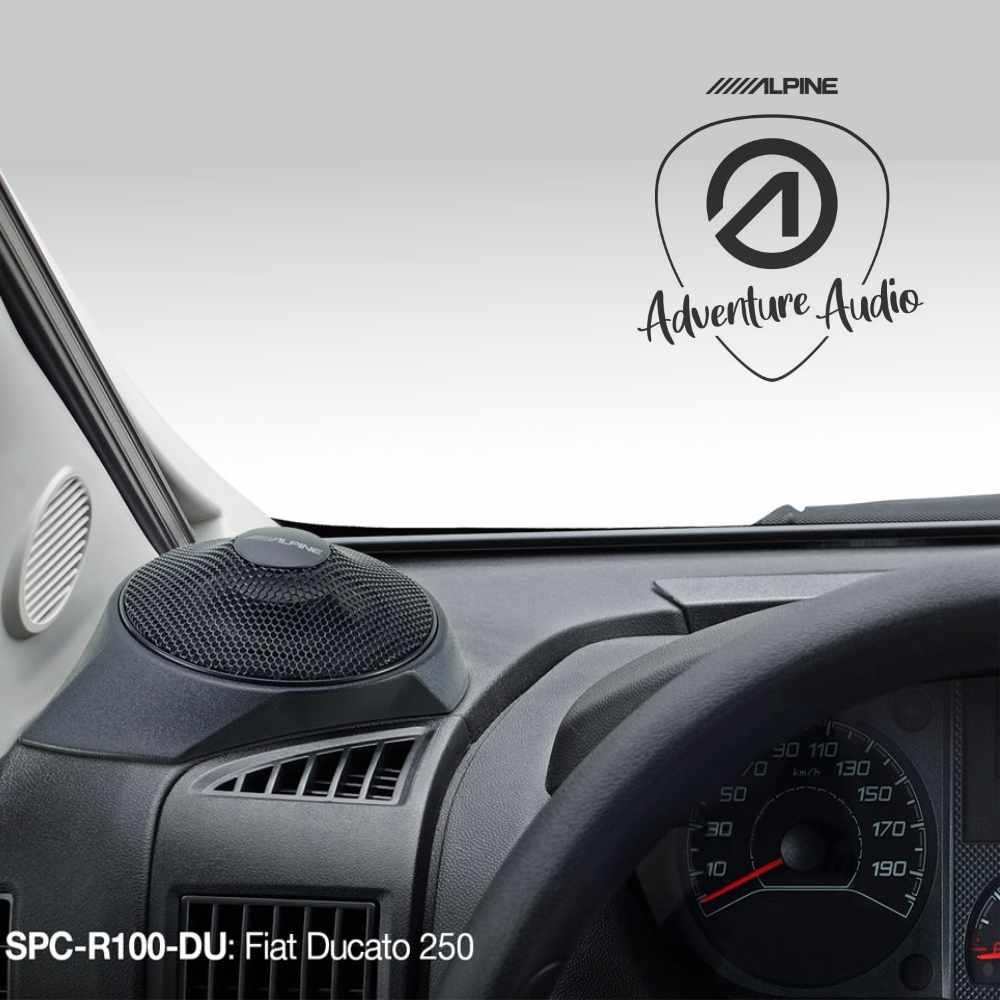

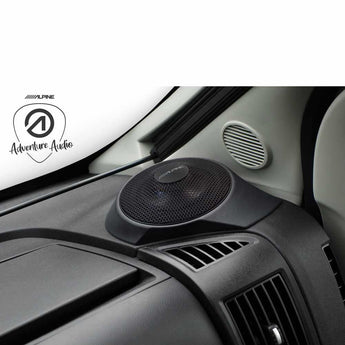

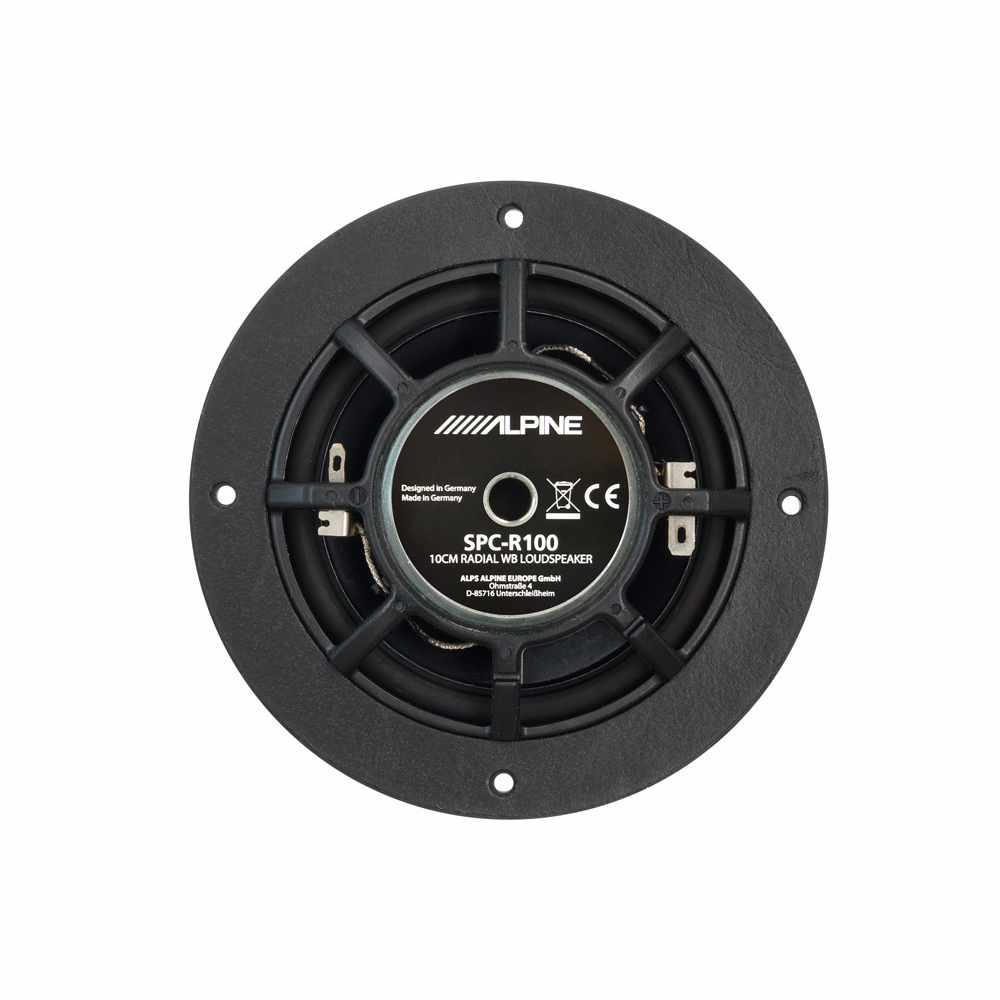

The 12 cm radial full-range speakers are installed on top of the dashboard and replace the original Ducato tweeters. These speakers feature an inverted cone design, resulting in an excellent 360-degree sound radiation. They deliver excellent sound detail, especially for vocals. This really improves listening to news, podcasts or audiobooks, but also regular music tracks will sound more detailed and balanced.
Easy Installation

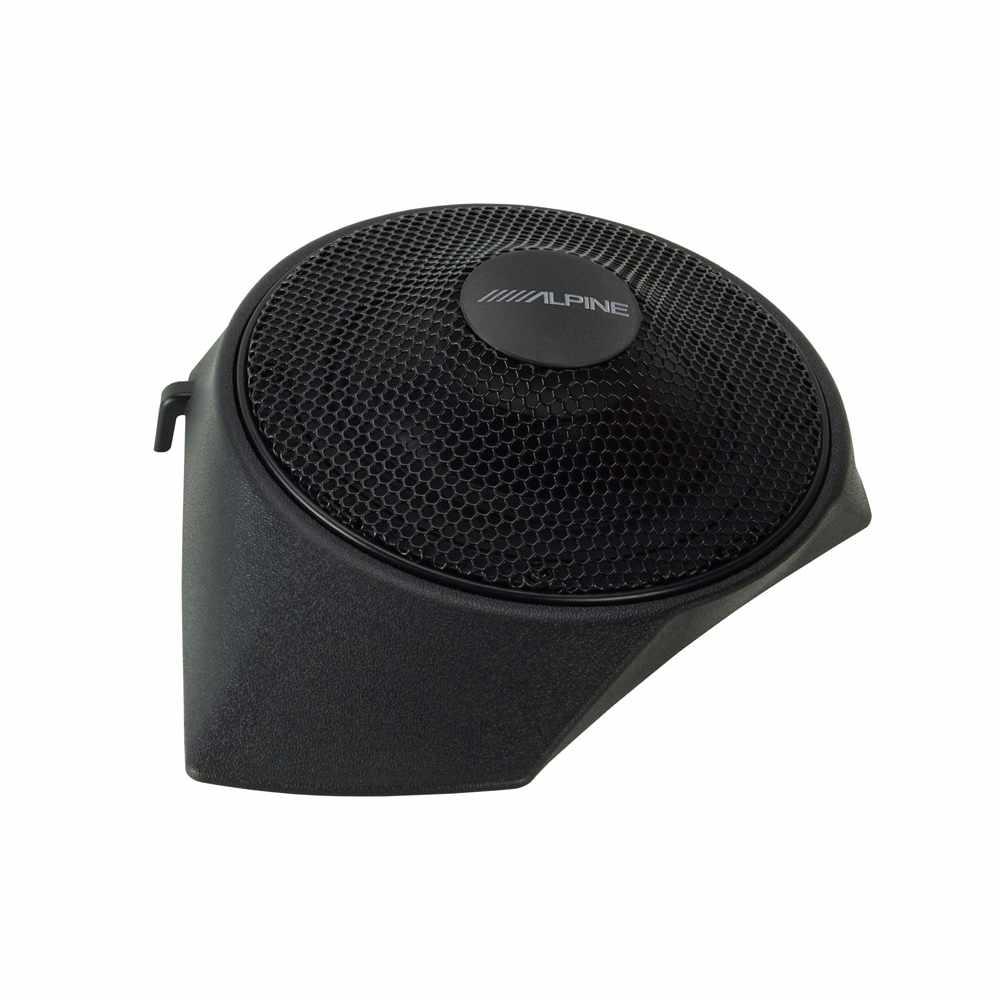

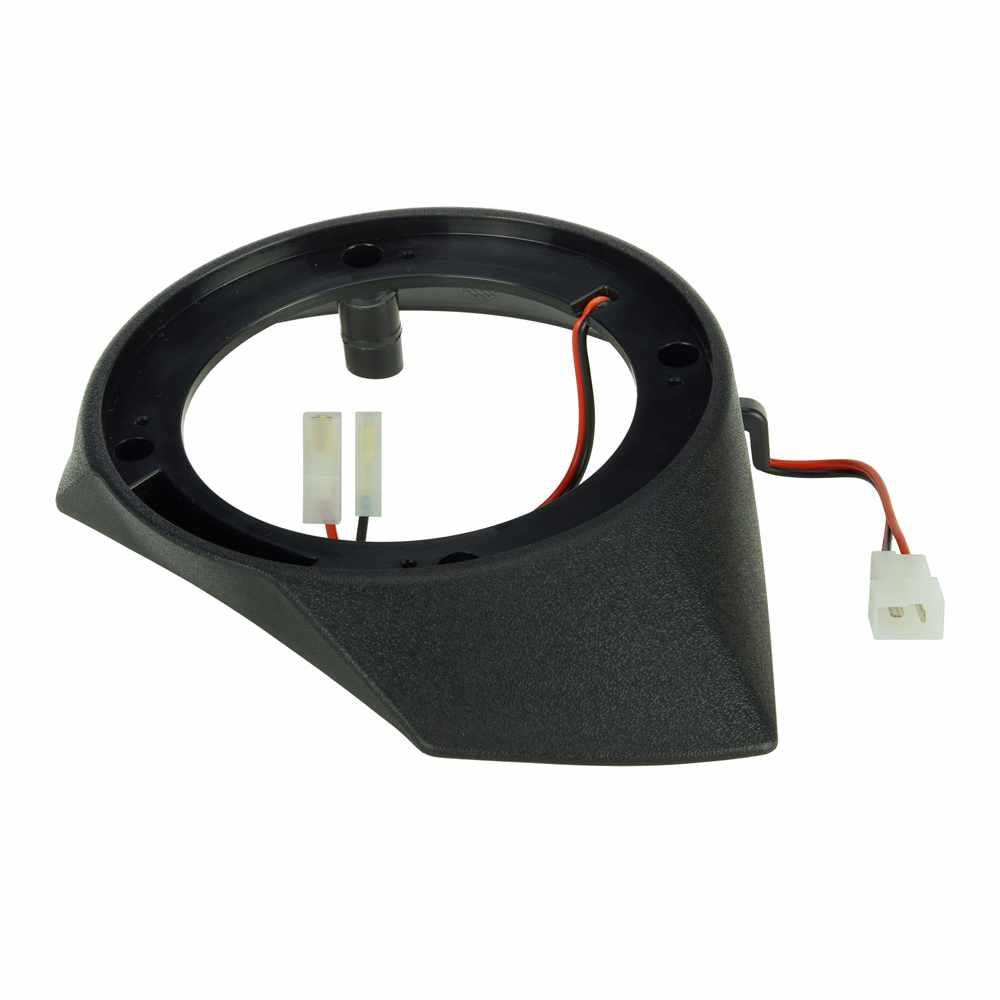

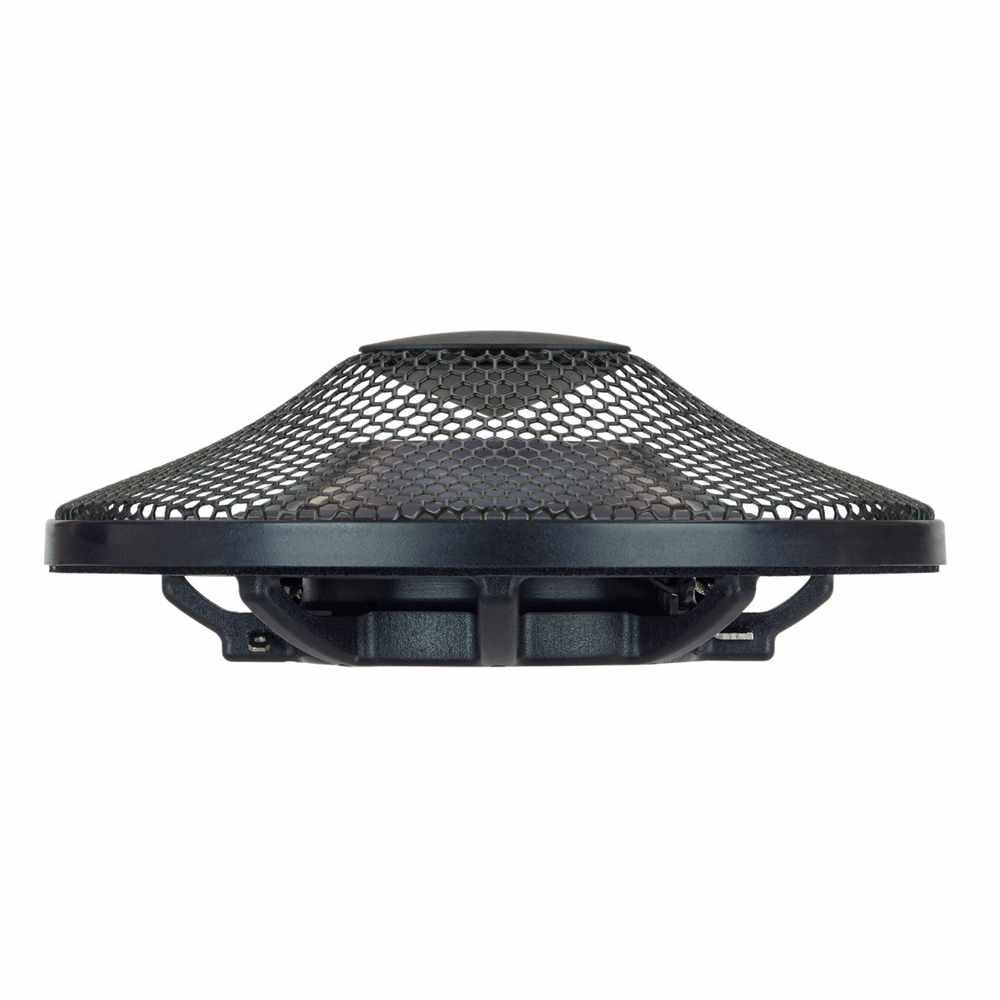

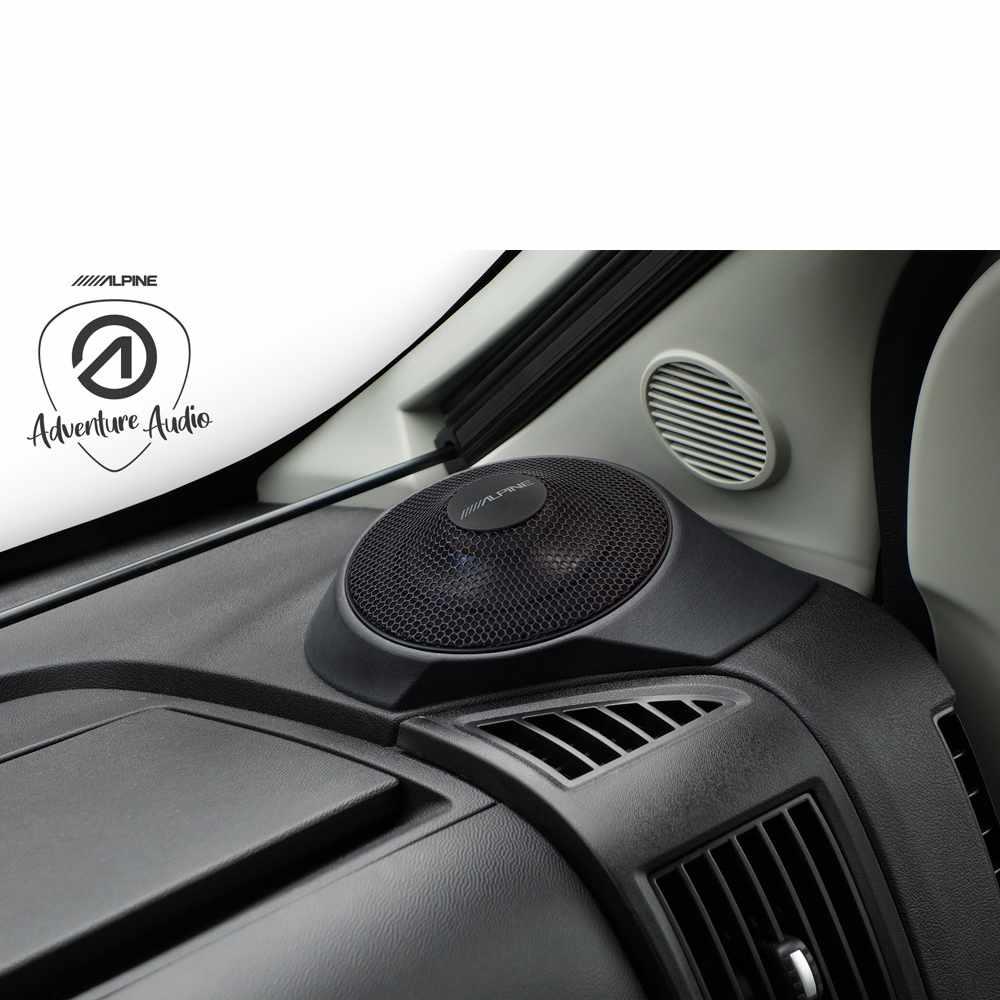

Installing the SPC-R100-DU speakers on your dashboard is very easy. The included speaker brackets fit perfectly to the shape of the dash and get mounted with screws. Due to the very unique speaker design with an inverted cone, we could design the overall speaker very flat, therefore eliminating the need to cut any hole in the dash for the speaker basket or magnet. There are also cable adapters included, allowing a simple plug-and-play adaptation to the original tweeter cable harness.
Vehicle Compatibility
We designed the SPC-R100-DU to be compatible with Fiat Ducato 3, Citroën Jumper 2 and Peugeot Boxer 2 motorhomes and vans. When installed, the speakers will not interfere with the function of the “Remifront” or other windshield blinds.
Specification
| Peak Power | 180 Watts |
|---|---|
| RMS Power | 45 Watts |
| Radial Speaker mounting diameter | 120 mm |
| Radial Speaker mounting depth | 12 mm |
| Radial Speaker height | 45 mm |
| Frequency response | 100Hz – 20kHz |
| Impedance | 4 Ohms |
More specs
| |

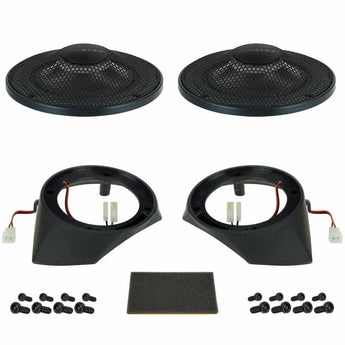

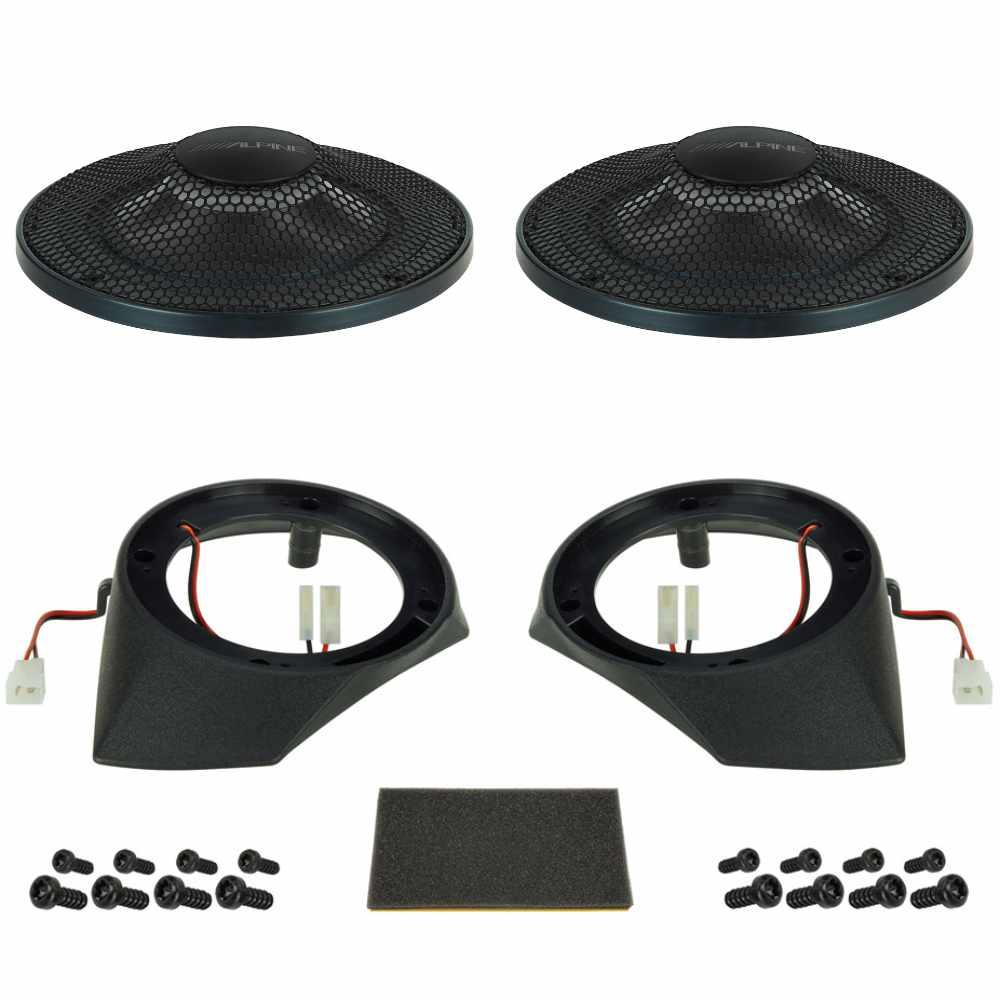

What's Included
- Included on-dash mounting brackets
- Included cable adapter for adaption to original tweeter cable
- Includes all required installation materials
FAQs
Q: Will these speakers fit my car?
A: Most car speakers are standard sizes, but mounting depth and fitting rings vary by vehicle. Check the size in the Specification tab against your vehicle, or contact CEN with your registration and we will confirm fitment and any adapters or fitting kits you need.
Q: Do I need an amplifier to run these speakers?
A: Not always. Most speakers will run from a standard head unit, but a dedicated amplifier lets them perform at their best, particularly for component sets and higher power handling models. The RMS figure in the Specification tab is the guide to how much clean power they can use.
Q: What is the difference between coaxial and component speakers?
A: Coaxial speakers combine the tweeter and woofer in one unit for a simple like-for-like upgrade. Component sets separate the tweeter and woofer with a crossover for better imaging and detail, and suit installs where sound quality is the priority.
Q: Do these come as a pair?
A: Unless stated otherwise, car speakers are sold in pairs. Check the product title and What's Included tab, which lists exactly what is in the box.
Q: Can CEN fit these speakers for me?
A: Yes. CEN offers professional installation from our Nottingham premises. Contact us to book an installation slot or ask for a fitting quote.
