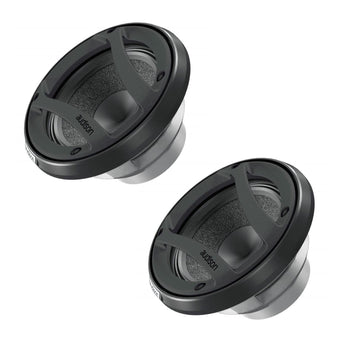

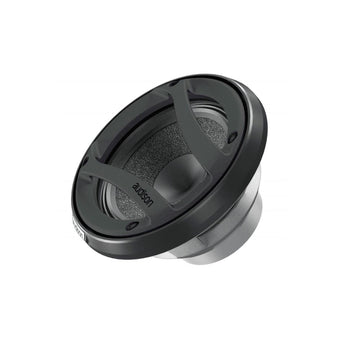

Audison Voce AV 3.0 3" 7cm 70mm Dash Door Midrange Speaker with Grills 100w Pair
Pickup Available at CEN
Usually ready in 1 hour
VOCE AV 3.0
Mid Range | 100 W Peak Power | 70 mm | 4 ohm
VOCE
The precious synergy between Voce speakers and audison amplifiers technology takes the in-car listening experience to a new level of excellence; the synthesis of a unique know-how employed in mobile audio reproduction.
- The profile of the aerodynamic basket’s spokes, along with the open-air design, ensures drastic reduction of back-wave reflections.
- The exclusive Triple Wave surround profile and selected materials provide full linearity as well as reliable performance under extreme conditions.
- Extremely lightweight and compact, the CCAW (Copper Clad Aluminium Wire) voice coils wound on dowble layer provide very high efficiency and neat, dynamic sound.
- Cotton-fibre pressed paper cone with Light Damping treatment.
- The Radial Venting System ensures high thermal capability, power handling and reliability.
- High flux density Neodymium magnet, for to flatter impedance and extend the frequency response.
- The central pole piece is covered with a pure copper sleeve to provide linear impedance and wide frequency response.
The core of the AV 3.0 midrange is a powerful Neodymium magnetic group: efficiency and linearity make it an irreplaceable component to achieve a fine yet dynamic mid range, while its compact size allows versatile and high-performance installations.Grille included.
Specification
Part Number: AV 3.0
- Size 70 mm
- Power Handling - Peak 100 W
- Impedance 4 Ohm
- Frequency Response 200 ÷ 14k Hz
- Magnet Material NEODYMIUM
- Voice Coil Ø 20 mm
- Voice Coil Material CCAP - COPPER CLAD ALLUMINIUM RIBBON
- Woofer Qes 0,74
- Xmax 2 mm
- D 66 mm
- Re 3 Ohm
- Fs 160 Hz
- Vas 0.4 l
- Mms 4.4 g
- Cms 0.24 mm/N
- BL 4.1 T•m
- Qms 4.7
- Qts 0.64
- Le Standard 0.12 mH
- Le mH @ 10 kHz 0,07 0.07
- Spl 93 dB
Weight 0.3 kg
What's Included
2 Year Warranty
- Audison Voce AV 3.0
