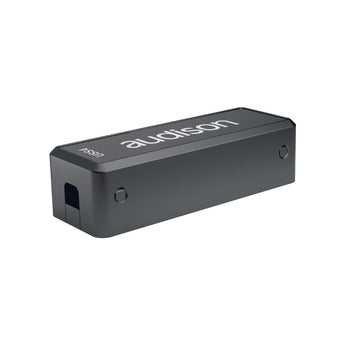

Audison USS4 Universal 4 Channel Speakers Simulator Presence Load Interface
Pickup Available at CEN
Usually ready in 1 hour
Audison USS4
UNIVERSAL SPEAKERS SIMULATOR
Some OEM sources/head-units have a test circuit that monitors the presence of a low-impedance load to enable audio outputs. When you connect this type of head-unit to the high-level inputs of an Audison bit processor, which has a high impedance load, audio outputs are silenced. By inserting the USS 4 between the source and the processor / amplifier, these problems are definitively solved.
Some OEM sources/head-units have a test circuit that monitors the presence of a low-impedance load to enable audio outputs. When you connect this type of head-unit to the high-level inputs of an Audison bit processor, which has a high impedance load, audio outputs are silenced. By inserting the USS 4 between the source and the processor / amplifier, these problems are definitively solved. If there is a need to generate a remote signal to control the amplifier turn on/off, it is necessary to power the USS4, providing the additional feature of the possibility to delay the signal from 1 to 8 seconds, so as to avoid annoying “bumps” upon ignition. In countries where the legislation on electromagnetic compatibility is not mandatory under ECE / UN Regulation no. 10/5
Specification
Part Number: USS 4.00
- Input/Output Channels 4
- Input Power Max 50 W
- Input Impedance 12Ω
- Output Impedance 12Ω
- Remote Out (only with 12 VDC Power Supply) 12 VDC 150 mA
- Remote Out Delayed (only with 12 VDC Power Supply) 12 VDC 150 mA; 1 to 8 sec.
- Weight (gr / lb.) 90 / 0.19
What's Included
2 Year Warranty
- Audison USS4
