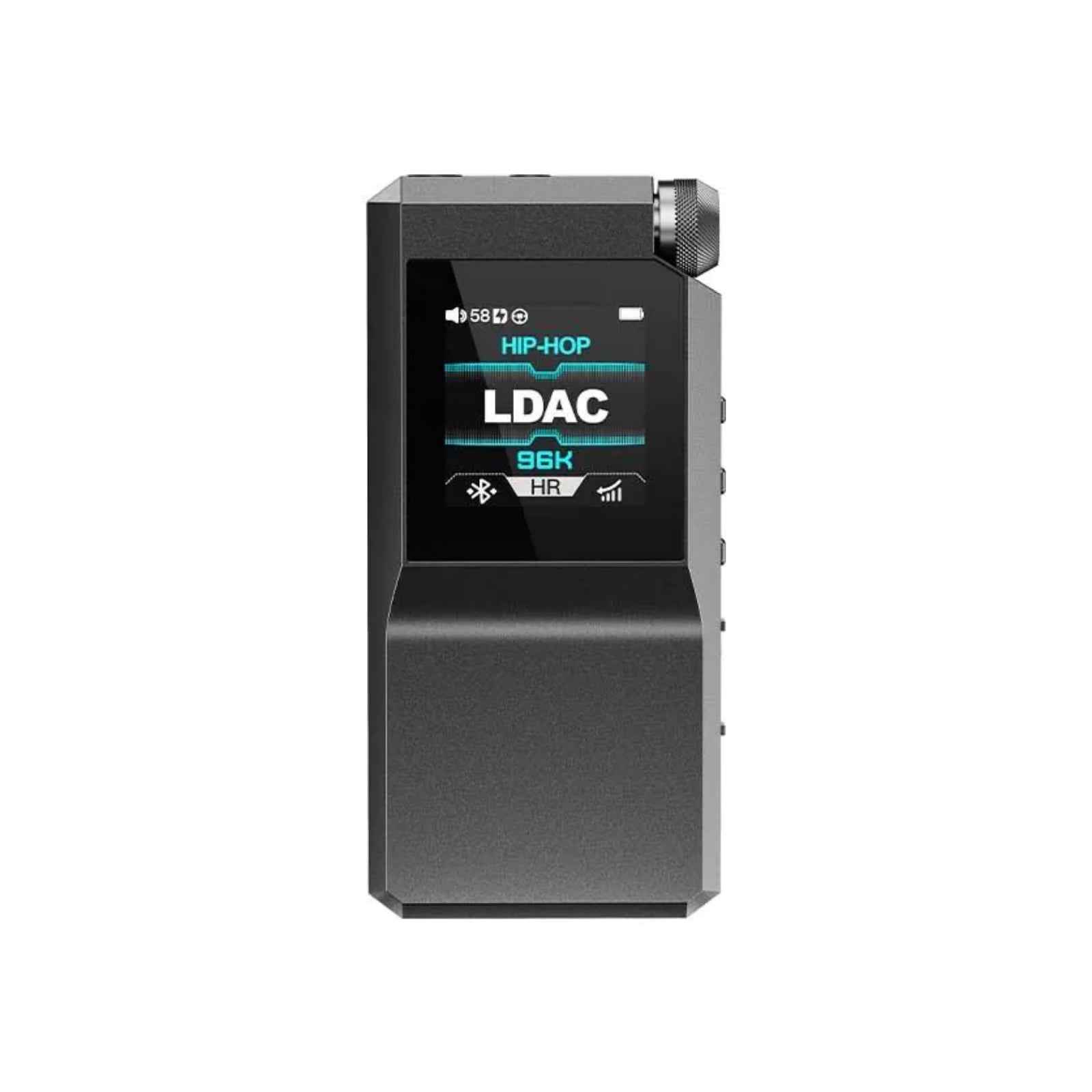

FiiO BTR17 Portable Headphone Amplifier Bluetooth Receiver HI-Res Audio DAC USB C
FiiO BTR17 - Black
Portable Headphone USB & Bluetooth DAC
Flagship Qualcomm Bluetooth Platform QCC5181 | Bluetooth 5.4 | Supports LDAC | aptX Lossless | Physical Control Knob | Desktop Mode 650mW + 650mW Powerful Output | Dual Flagship DACs ES9069Q x2 | 10-Band High-Precision PEQ | XMOS 16-core XU316 | Four-way Full Balanced THX AAA 78+ Amps | Multi-stage HiFi Audio Architecture
A Master of all trades | Unrivalled
The BTR17, brings together FIIO's years of expertise in developing DACs and headphone amps. Within a compact package, it fits flagship-level features such as a multi-stage audio architecture and precision power supply system comparable to other high-end players and DAC/headphone amp combos. It is truly a master of all trades that will once again become a new standard amongst Bluetooth headphone amps.
A New Chip Era | New Era of Lossless | Bluetooth Flagship Qualcomm | Bluetooth Chip QCC5181
The BTR17 is equipped with Qualcomm’s new flagship QCC5181 Bluetooth chip, which not only complies with the Bluetooth LE Audio standard and has transmission bandwidth capacity of 2.1Mbps but also is capable of lossless quality within the aptX Adaptive system. This means the chip is capable of achieving CD-level lossless sound quality over Bluetooth audio, bringing you ever closer to the music with all of its intricate details.
Additionally, the BTR17 also supports the latest Bluetooth standard – Bluetooth 5.4. It also supports the LDAC, aptX Adaptive 96kHz/24bit Bluetooth audio codecs, which when combined with Snapdragon Sound technology means your Bluetooth listening experience has never sounded this good before.
Patented desktop mode | Independent power supply, "Boosted" performance
On the BTR17 is a dedicated D.Mode (desktop mode) switch along with a port to connect an external independent power supply. When in desktop mode, if you connect the BTR17 to a phone as a dongle DAC and headphone amplifier you can also choose to connect an external power supply to the BTR17 via its dedicated power port. Doing so means that the BTR17’s battery will be completely powered via USB, which not only avoids overcharging and over-discharging its built-in battery but also means it is capable of powerful audio output without consuming the connected phone’s battery.
Covering all uses | One switch for multiple uses
On the BTR17 is a convenient PC/BT/PHONE three-position switch which allows it to seamlessly switch between operating modes. Switching modes allows the BTR17 to optimize its power supply status according to the device connected, making it perfect for various use cases.
Specification
Part Number: BTR17
- Dimensions 16.3mm x 41.2mm x 86.6mm
- Weight 73.4g
- Bluetooth Chip QCC5181
- Bluetooth version 5.4
- Bluetooth formats supported AAC/SBC/aptX/aptX Adaptive/aptX Lossless /aptX HD/LDAC
- USB Chip XMOS XU316
- USB DAC 768kHz-32bit, DSD512 native, MQA full decoding
- USB DAC driver-free mode Supported
- DAC ES9069Q x2
- Display 1.3-inch 240×240 colour
- Headphone outputs Single-ended 3.5mm + balanced 4.4mm
- Charging time Under 2 hours
- Battery life About 8 hours (LDAC)
- Output power 1 L+R≥280mW+280mW (32Ω/THD+N＜1%/single-ended/desktop mode)
- Output power 2 L+R≥31mW+31mW (300Ω/THD+N＜1%/single-ended/desktop mode)
- Output power 3 L+R≥650mW+650mW (32Ω/THD+N＜1%/balanced/desktop mode)
- Output power 4 L+R≥125mW+125mW (300Ω/THD+N＜1%/balanced/desktop mode)
- Output power 5 L+R≥300mW+300mW (32Ω, THD+N＜1%/balanced/non desktop mode)
- Output power 6 L+R≥140mW+140mW (32Ω, THD+N＜1%/single-ended/non desktop mode)
- Signal-to-noise ratio ≥126dB (UAC decoding, desktop mode, A-weighted)
- THD+N ＜0.00035% (UAC decoding, desktop mode, balanced output)
What's Included
1 Year Warranty
- BTR17 x1
- Leatherette Case x1
- Specially-made short dual Type-C OTG data cable x1
- Quick start guide x1
- Warranty Card x1
- PET protective film (pre-installed)
