JL Audio 300/4v3 Slash Amp Class A/B 4 Channel Car Speaker Amplifier 300w RMS
300/4v3 Slash
4 Ch. Class A/B Full-Range Amplifier, 300 W
4-Channel Class A/B Full-Range Amplifier, 75 W x 4 @ 1.5-4 Ω
If you prefer a traditional Class A/B design taken to its highest possible level, the 300/4v3 is your amplifier, thanks to its outstanding fidelity, reliability and well-designed feature set.
This classic amplifier features JL Audio's unique, and patented, Absolute Symmetry Class A/B circuit and our R.I.P.S. power supply design for full power delivery (75 W x 4) over a wide range of load impedances and vehicle voltages.

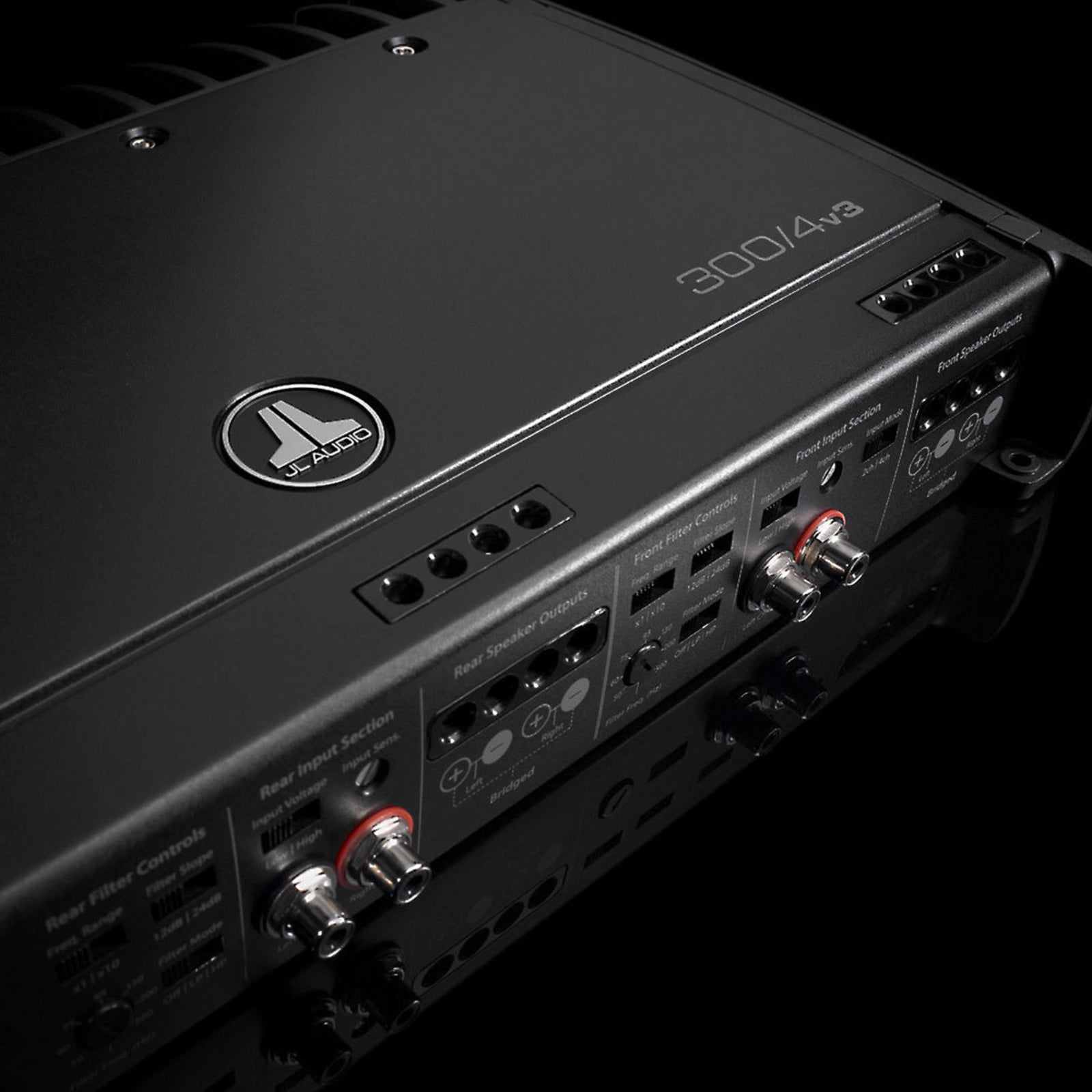

This amplifier features an all-black look that is pure, sexy evil, including the powder-coated cast alloy heat sink and end caps.
If you prefer a traditional Class A/B design taken to its highest possible level, the JL Audio 300/4v3 is your amplifier, thanks to its outstanding fidelity, reliability and well-designed feature set.
This classic amplifier features JL Audio's unique, and patented, Absolute Symmetry Class A/B circuit and our R.I.P.S. power supply design for full power delivery (75 W x 4 RMS) over a wide range of load impedances and vehicle voltages.
This amplifier features an all-black look that is pure, sexy evil, including the powder-coated cast alloy heat sink and end caps.
Specification
Part Number: 300/4v3
- Frequency Response - 5 Hz - 30 kHz (+0, -1dB)
- S/N Ratio, referred to highest rated power - >108.5 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
- S/N Ratio, referred to 1 W - >89.5 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
- Damping Factor @ 4 Ω - >300 / 50 Hz
- THD+N @ Rated Power - <0.03% @ 4 Ω per Ch.
- Input Voltage Range @ RCA Inputs - Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High)
- Min Copper Power / Ground Wire Gauge - 4 AWG wire
- Fuse Rating - 40 A (AFS, AGU or MaxiFuse™)
- Rated Continuous RMS Power @ 14.4 V
- @ 4 Ω - 75 W RMS x 4
- @ 3 Ω - 75 W RMS x 4
- @ 2 Ω - 75 W RMS x 4
- @1.5 Ω - 75 W RMS x 4
- Bridged @ 8 Ω - 150 W RMS x 2
- Brdiged @ 4 Ω - 150 W RMS x 2
- Rated Continuous RMS Power @ 12.5 V
- @ 4 Ω - 75 W RMS x 4
- @ 3 Ω - 75 W RMS x 4
- @ 2 Ω - 75 W RMS x 4
- @1.5 Ω - 75 W RMS x 4
- Bridged @ 8 Ω - 150 W RMS x 2
- Brdiged @ 4 Ω - 150 W RMS x 2
What's Included
2 Year Warranty
- JL Audio 300/4v3 Slash
