Name: JL Audio C1-570x C1 Series 5x7" 6x8" Coaxial Car Door Speakers 50w RMS Pair
Brand: JL Audio
SKU: CENC1570X
Price: 179 GBP
Rating: 0 (0 reviews)

Product Information
Specification
What's Included

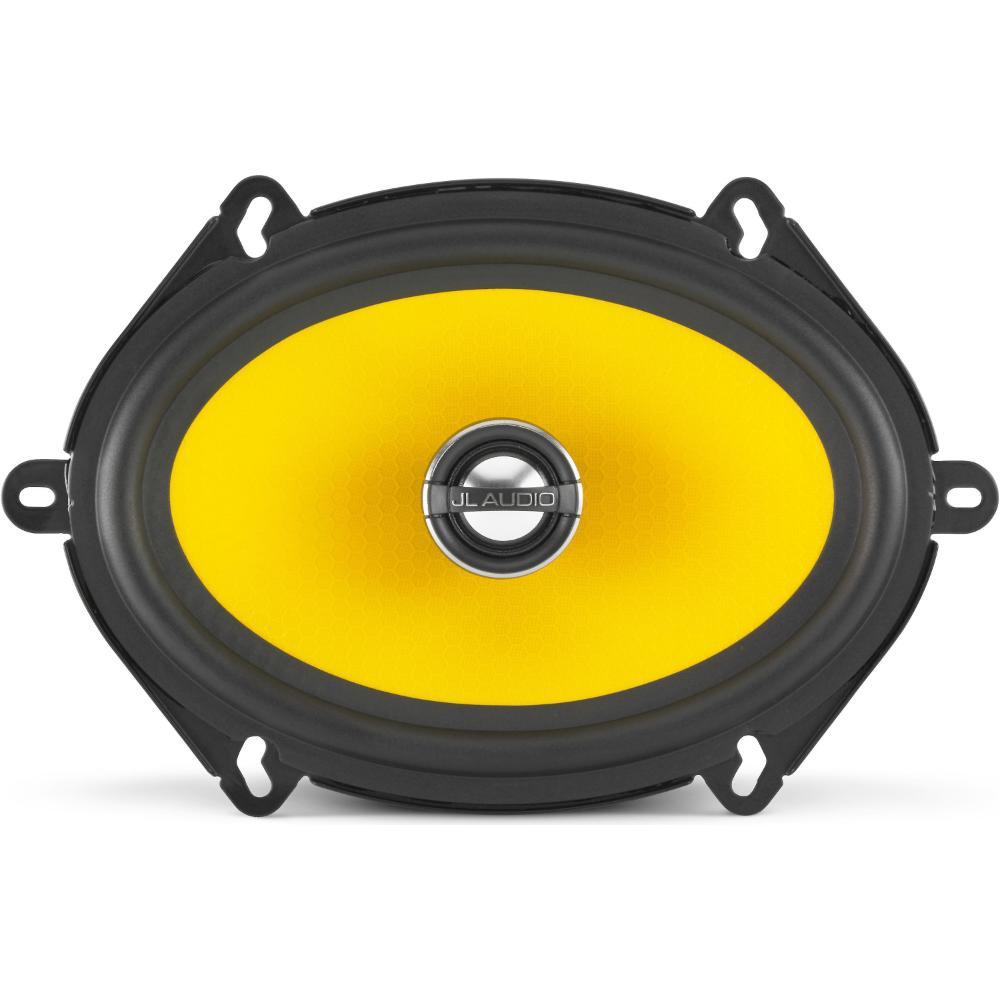

JL Audio C1-570x

C1 Series 5"x7" 2-way car speakers

Coaxial Speaker System: 5 x 7 / 6 x 8-inch (125 x 180 mm) Woofer, 0.75-inch (19 mm) Aluminum Dome Tweeter

C1 speakers deliver real substance and great audio performance in a format designed for easy fit behind factory grilles.

To facilitate fit, spacer/adaptor rings are included, allowing the C1-570x to be installed in bottom-mount applications. The speaker baskets are also equipped with slotted mounting holes to fit into 6 x 8-inch factory speaker locations.

C1 woofer drivers benefit from proprietary FEA modeling and JL Audio's expertise in low-frequency driver design. This knowledge is used to create speakers that can play loudly, while maintaining a smooth, dynamic, low distortion sound. At the core of the C1-570x is a proprietary, stamped, steel 5 x 7-inch (125 x 180 mm) oval frame and a DMA-optimized motor system. A mineral-filled, injection-molded polypropylene cone is suspended with a rubber surround on the front, and a carefully engineered flat Conex® spider at the top of the voice coil, to precisely control motion and prevent impact between the voice coil and the back plate. Tinsel leads are carefully routed and attached to the spider to prevent fatigue and buzzing. These are the same kinds of features and materials normally found on much more expensive loudspeakers.

Equipped with a true, edge-driven, aluminum dome tweeter, C1 speakers stand further apart from others in its category with superior high-frequency clarity and definition. The tweeter’s design has inherently excellent off-axis response and high-frequency extension. It also benefits from the damping of a silk surround suspension and Ferrofluid in the voice coil gap, along with the superior strength of a neodymium magnet circuit. A true, 2nd order high-pass filter is employed to further enhance smoothness and improve power handling.

When it comes to value, C1 is the real deal!

Sold as a pair. Grilles not included.

Continuous Power Handling (RMS) 50 W
Peak Music Power 225 W
Recommended Amplifier Power (RMS) 10 - 75 W / Ch.
System Efficiency 90.5 dB @ 1 W / 1 m
System Nominal Impedance 4 Ω
System Frequency Response 40 Hz - 24 KHz ± 3 dB
Frame Outer Diameter* (A) 5.50 x 7.63 in / 140 x 194 mm
Grille Tray Outer Diameter (B) N/A
Motor Outer Diameter (C) 2.76 in / 70 mm
Frontal Coaxial Tweeter Protrusion** (D) 0.46 in / 12 mm
Frontal Grille Protrusion (E) N/A
Mounting Hole Diameter (F) N/A
Mounting Depth (G) 2.46 in / 63 mm

*Does not take into account mounting tabs

**Frontal coaxial tweeter protrusion measured from mounting surface

Two 2-way speakers
2 Bottom mount brackets
Twelve 1-1/2" Screws (#8)
12 Speed clips
Two 0.187" Crimpable female quick slides
Two 0.110" Crimpable female quick slides
Owner's manual

Product Information

JL Audio C1-570x
C1 Series 5"x7" 2-way car speakers

Coaxial Speaker System: 5 x 7 / 6 x 8-inch (125 x 180 mm) Woofer, 0.75-inch (19 mm) Aluminum Dome Tweeter
C1 speakers deliver real substance and great audio performance in a format designed for easy fit behind factory grilles.
To facilitate fit, spacer/adaptor rings are included, allowing the C1-570x to be installed in bottom-mount applications. The speaker baskets are also equipped with slotted mounting holes to fit into 6 x 8-inch factory speaker locations.
C1 woofer drivers benefit from proprietary FEA modeling and JL Audio's expertise in low-frequency driver design. This knowledge is used to create speakers that can play loudly, while maintaining a smooth, dynamic, low distortion sound. At the core of the C1-570x is a proprietary, stamped, steel 5 x 7-inch (125 x 180 mm) oval frame and a DMA-optimized motor system. A mineral-filled, injection-molded polypropylene cone is suspended with a rubber surround on the front, and a carefully engineered flat Conex® spider at the top of the voice coil, to precisely control motion and prevent impact between the voice coil and the back plate. Tinsel leads are carefully routed and attached to the spider to prevent fatigue and buzzing. These are the same kinds of features and materials normally found on much more expensive loudspeakers.
Equipped with a true, edge-driven, aluminum dome tweeter, C1 speakers stand further apart from others in its category with superior high-frequency clarity and definition. The tweeter’s design has inherently excellent off-axis response and high-frequency extension. It also benefits from the damping of a silk surround suspension and Ferrofluid in the voice coil gap, along with the superior strength of a neodymium magnet circuit. A true, 2nd order high-pass filter is employed to further enhance smoothness and improve power handling.
When it comes to value, C1 is the real deal!
Sold as a pair. Grilles not included.
Specification
- Continuous Power Handling (RMS) 50 W
- Peak Music Power 225 W
- Recommended Amplifier Power (RMS) 10 - 75 W / Ch.
- System Efficiency 90.5 dB @ 1 W / 1 m
- System Nominal Impedance 4 Ω
- System Frequency Response 40 Hz - 24 KHz ± 3 dB
- Frame Outer Diameter* (A) 5.50 x 7.63 in / 140 x 194 mm
- Grille Tray Outer Diameter (B) N/A
- Motor Outer Diameter (C) 2.76 in / 70 mm
- Frontal Coaxial Tweeter Protrusion** (D) 0.46 in / 12 mm
- Frontal Grille Protrusion (E) N/A
- Mounting Hole Diameter (F) N/A
- Mounting Depth (G) 2.46 in / 63 mm
*Does not take into account mounting tabs
**Frontal coaxial tweeter protrusion measured from mounting surface
What's Included
- Two 2-way speakers
- 2 Bottom mount brackets
- Twelve 1-1/2" Screws (#8)
- 12 Speed clips
- Two 0.187" Crimpable female quick slides
- Two 0.110" Crimpable female quick slides
- Owner's manual
