MP 165.3 PRO

165 (6.5) mm (in.) | Woofer | 180 W | 4 Ohm

Extreme dynamics, unlimited power handling, realistic sound stage

Thanks to the V-cone® and Boundary Free Surround technologies the MP 165.3 car audio woofers boast outstanding dispersion features and generates high SPL with compact dimensions, ensuring a wide low frequency response, even in cars with no space for a subwoofer.

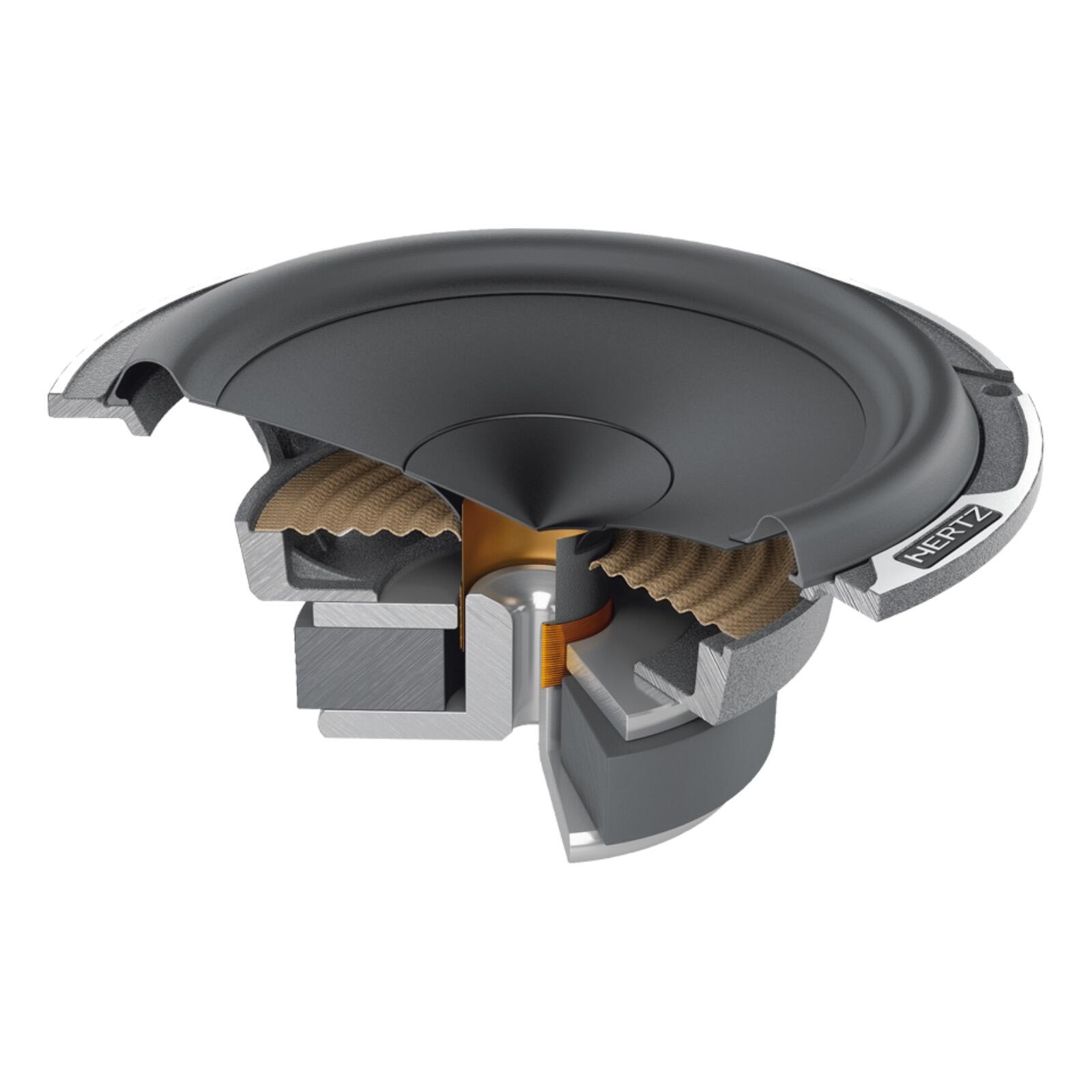

• Pure copper voice coil wound on a Polyamide former for high power handling combined with very low intermodulation distortion of vocals.
• Exponential V-cone® profile pressed-pulp cone with cotton fibers, combining stiffness and lightweight for a wide frequency response.
• Cone profile geometrically optimized for utmost linearity and dispersion in the mid frequency range.
• “Boundary Free” rubber surround, for improved efficiency and wider mid-bass frequency.
• High density flux ferrite magnet combined with very low carbon content iron plates, for low distortion at high power levels.
• Low mounting depth, acoustically transparent aluminium alloy basket with elegant diamond cutting and featuring the aluminium Hertz logo.
• Optional full protection metal mesh grill featuring the aluminium Hertz logo and attractive look mineral powder coated inner grill are included for several install combinations.

• Component    Woofer
• Size mm (in.)    165 (6.5)
• Power Handling - Continuous W    90
• Power Handling - Peak W    180
• Impedance Ohm    4
• Voice Coil Ø    25 (1)
• Frequency Response Hz    40 ÷ 5k
• Magnet size D x d x h mm (in.)    85 x 32 x 17 (3.35 x 1.26 x 0.67)
• Weight of one speaker kg (lb.)    1.07 (2.36)
• Magnet    High density flux ferrite
• Cone    Pressed-pulp cone with cotton fibers
• Xmech mm (in.)    ±7 (0.28)

• Hertz MP 165.3 Mille Pro
